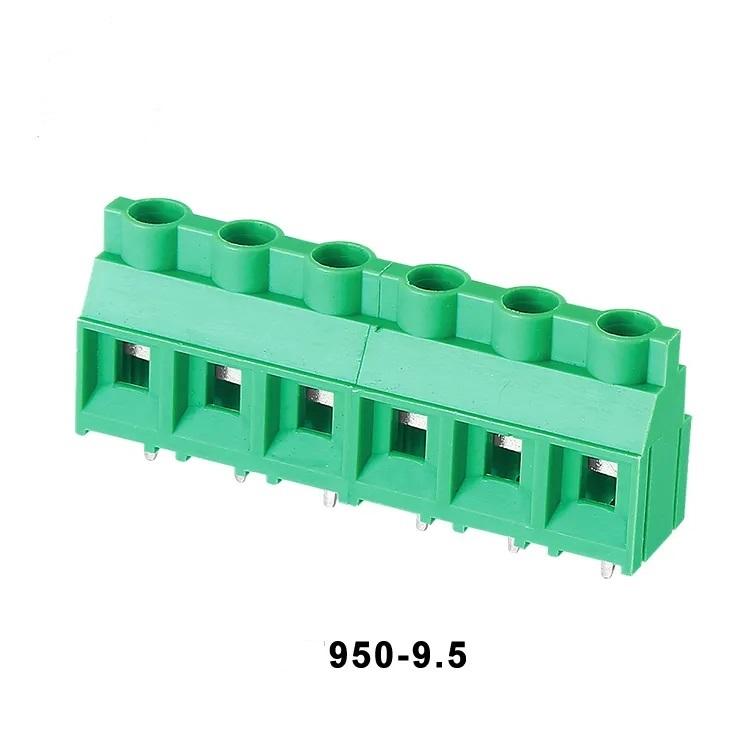

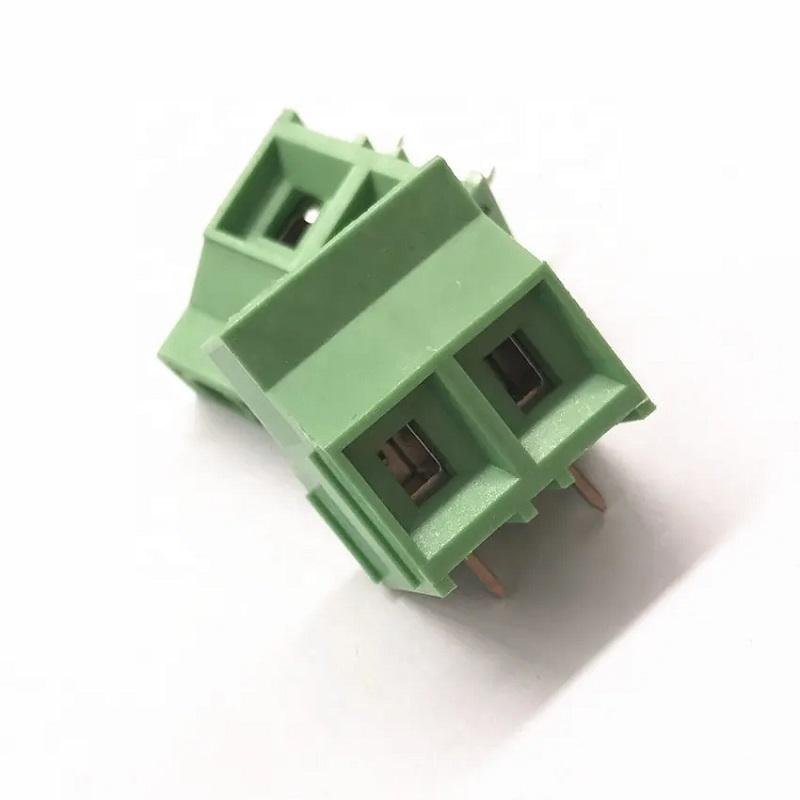

TERM BLK 3P SIDE ENT 9.5MM PCB 1714984

Our 9.5mm pcb terminal blocks can replace MKDS 5/ 3-9,5 - PCB terminal block

  • Brand:

    OLINK
  • Item no.:

    950-9.5
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Green
  • Goods stock:

    50000
  • Min order:

    1000
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    15

TERM BLK 3P SIDE ENT 9.5MM PCB 1714984


Description of 9.5mm pitch terminal block


PCB terminal block, nominal current: 32 A, rated voltage (III/2): 1000 V, nominal cross section: 4 mm2, number of potentials: 2, number of rows: 1, number of positions per row: 2, product range: MKDS 5, pitch: 9.52 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 5 mm, number of solder pins per potential: 1, type of packaging: packed in cardboard. The article can be aligned to create different nos. of positions!

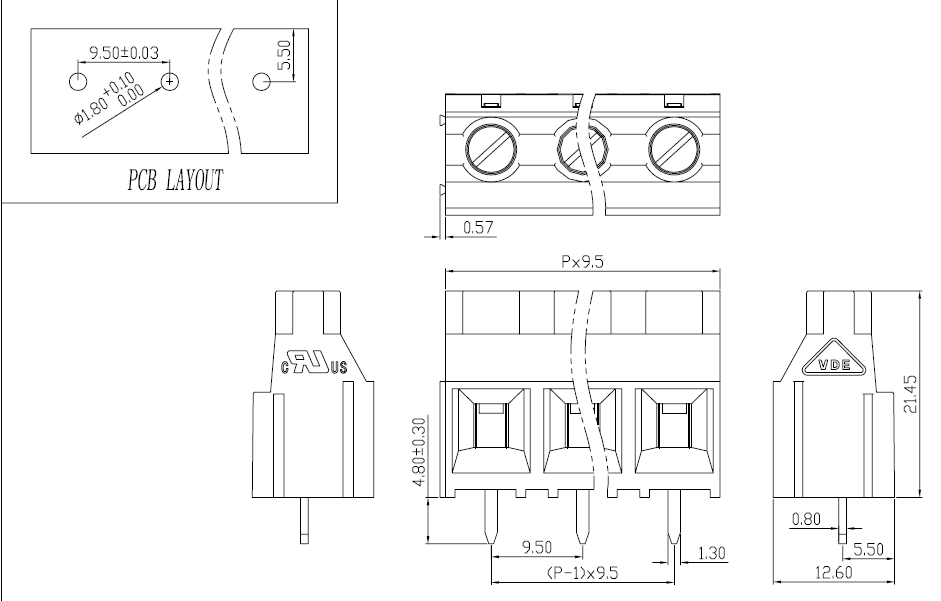

Drawing of 950-9.5


Specification of Screw terminal block


Product name:   Screw terminal block Model:   950-9.5
Certification:   UL, CE Rated voltage:   300V
Rated current:  32A Wire range:   22-10 AWG
Withstand voltage:   2200V/1Min Torque:   0.5Nm
Temperature range:
 -40℃ to +105℃ Strip length:   8 mm
Pitch:   9.5 mm Poles:   2-3P
Housing:   PA66 UL94V-0 Pin header:   Copper alloy, tin plated
Conductor cross section:   4 mm² Screw:   M3
Pin dimensions:   4.8 mm PCB hole diameter:   1.8mm


Feature of Screw terminal block


  • High flame-retardant grade: insulated shell, made of UL94V-0 grade raw materials, flame-retardant and fire-proof
  • Convenient and quick operation structure: The use of plus and minus slotted screws is more convenient for the selection of screwdrivers, and the wiring operation can be carried out conveniently and quickly.
  • Anti-vibration design: The screws are designed with self-locking principle, which will not loosen under vibration environment
  • Lead-free and environmentally friendly "green" connection: the product meets RoHS environmental requirements
  • Reliable weldability: prismatic welding foot, easy to insert the welding hole, conducive to the rise of the welding liquid, high weldability
  • Excellent electrical and environmental performance: The metal parts are made of high-quality copper alloy, with low contact resistance, good surface treatment, and strong corrosion resistance


Application of 9.5mm pitch terminal block


There are many types of screw terminal block, and they are mainly used in security, lighting, power supply, elevator, electrical, power and other industries etc.
