2 pin green color screw type terminal block

We are a terminal blocks manufacturer. There are many types of terminal block, our terminal block can replace of phoenix terminal block.


  • Brand:

    OLINK
  • Item no.:

    128(R)-5.0/5.08
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Green
  • Goods stock:

    50000
  • Min order:

    1000
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    15

2 pin green color screw type terminal block

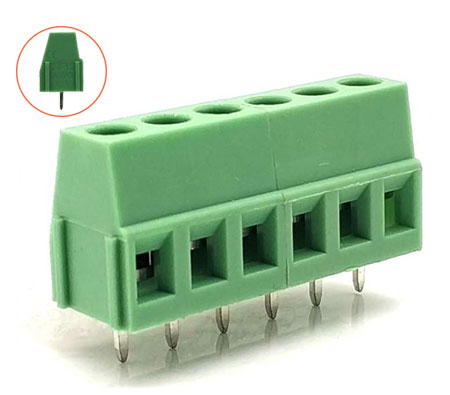

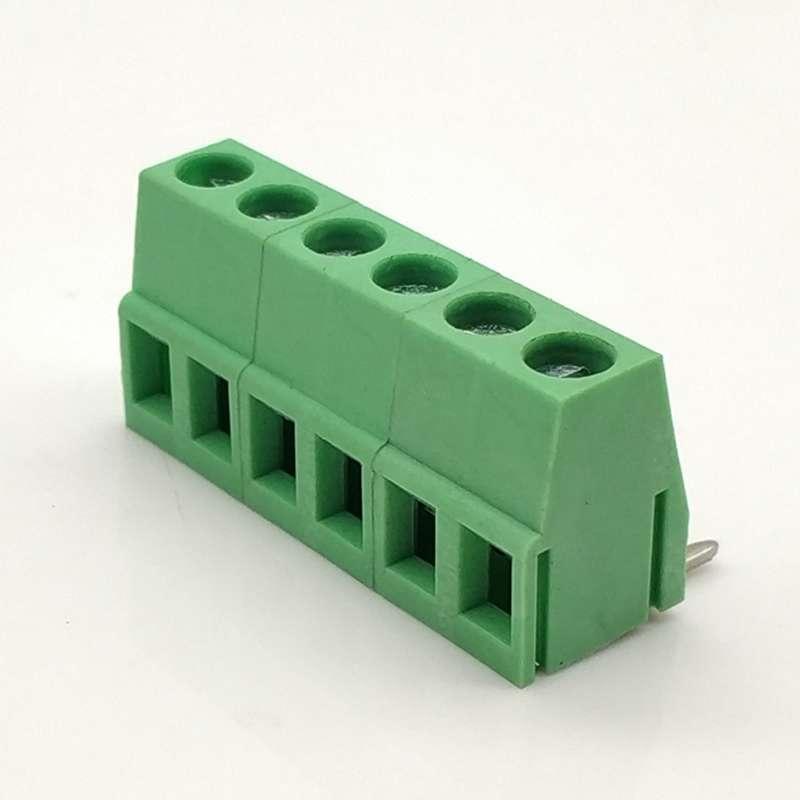

128-5.0-6P

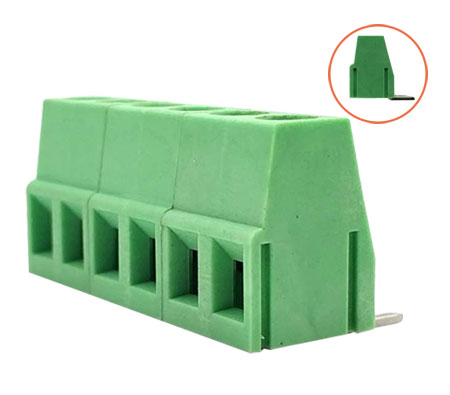

128R-5.0-6P


Description of Screwfix terminal block


The PCB terminal block is an accessory product that realizes electrical connection, and is often used on a PCB. PCB terminal blocks can provide fast and simple connection points for one wire or multiple wires, and can also provide a variety of multi-level blocks to save space and optimize.

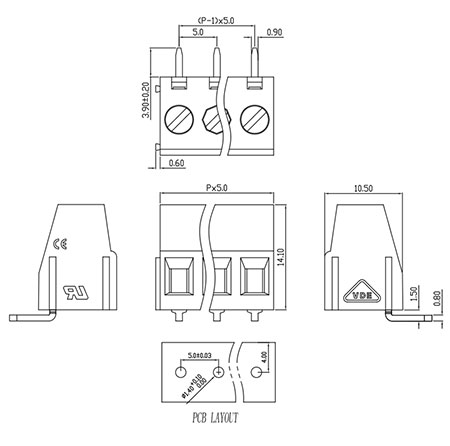

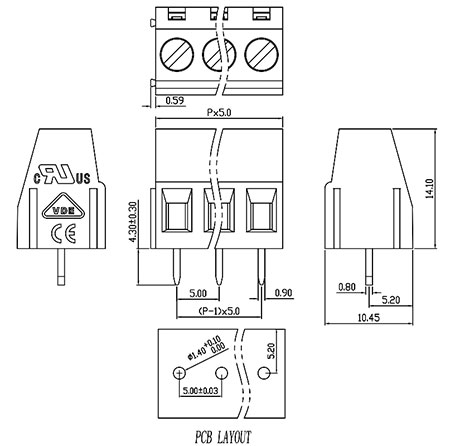

Drawing of 128-5.0 Screw type terminal blocks





128-5.0 (pitch 5.0mm DIP terminal block)
128R-5.0 (pitch 5.0mm DIP terminal block)


Specification of Green terminal block


Product name:   Screw terminal block  Model:   128(R)-5.0/5.08
Certification:   UL, CE  Rated voltage:   300V (UL), 250V (IEC)
Rated current:   10A (UL), 24A (IEC)  Wire range:   22-14 AWG (2.5mm²)
Withstand voltage:   AC 2000V/1 Min  Torque:   0.4 Nm (3.5 Lb-in)
Temperature range:
 -40℃ to +105℃  Strip length:   6.0-7.0 mm
Pitch:   5.0/5.08 mm  Poles:   2P 3P
Housing:   PA66 UL94V-0  Pin header:   Brass, tin plated
Wire cage:   Brass, nickel plated  Screw:   M2.5  steel  Zinc plated


Feature of Terminal block 2 pin


  • High flame-retardant grade: insulated shell, made of UL94V-0 grade raw materials, flame-retardant and fire-proof
  • Convenient and quick operation structure: The use of plus and minus slotted screws is more convenient for the selection of screwdrivers, and the wiring operation can be carried out conveniently and quickly.
  • Anti-vibration design: The screws are designed with self-locking principle, which will not loosen under vibration environment
  • Lead-free and environmentally friendly "green" connection: the product meets RoHS environmental requirements
  • Reliable weldability: prismatic welding foot, easy to insert the welding hole, conducive to the rise of the welding liquid, high weldability
  • Excellent electrical and environmental performance: The metal parts are made of high-quality copper alloy, with low contact resistance, good surface treatment, and strong corrosion resistance


Application of terminal blocks manufacturer


There are many types of screw terminal block, and they are mainly used in security, lighting, power supply, elevator, electrical, power and other industries etc.
