terminal block 300V 16A wholesale electronic connector snap PCB Screw Teminal Block blue 5.0mm pitch

Spring terminal blocks help to achieve signal distribution and safe energy. It has different poles and pitch, easy install and safety.


  • Brand:

    OLINK
  • Item no.:

    301-2P,301-3P
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Blue
  • Goods stock:

    50000
  • Min order:

    1000
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    15

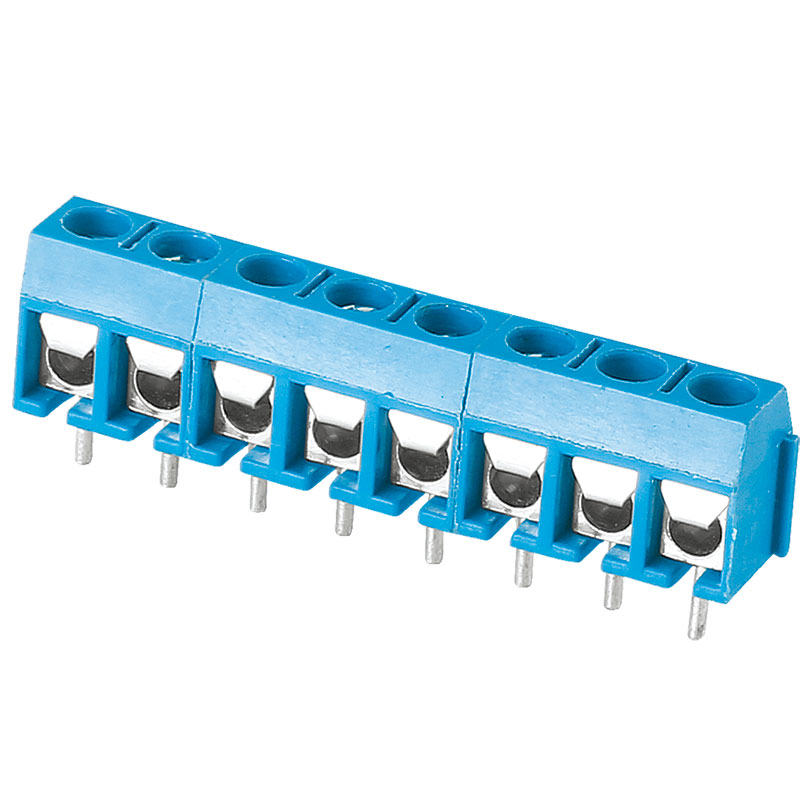

 PCB Screw Teminal Block blue 5.0mm pitch



Description of Srew terminal block


The Spring terminal block is an accessory product that realizes electrical connection, and is often used on a PCB. Screwless terminal blocks can provide fast and simple connection points for one wire or multiple wires, and can also provide a variety of multi-level blocks to save space and optimize.

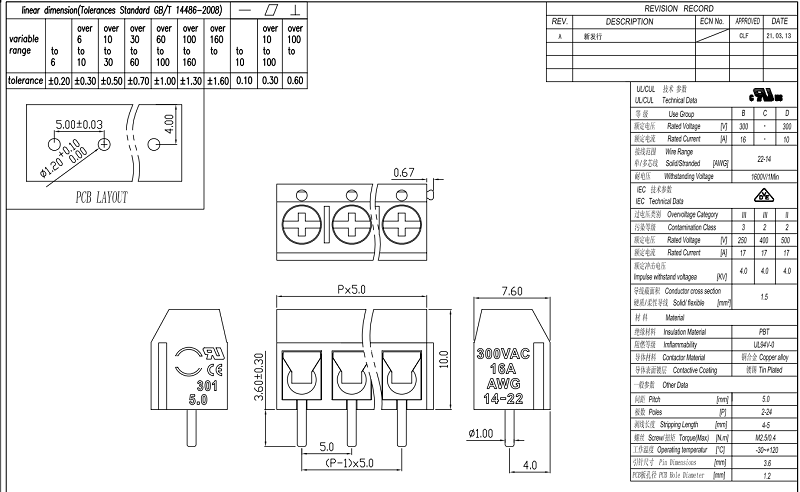

Specification of Screw  terminal block

Product name:   Screw terminal block Model:   OL301-5.0
Certification:   UL, CE Rated voltage:   300V (UL), 400V (IEC)
Rated current:   16A (UL), 16A (IEC) Wire range:   22-14 AWG (0.75mm²)
Withstand voltage:   AC 2000V/1 Min Temperature range:   -40℃ to +105℃
Pitch:  5.0mm Strip length:   4.5-6.0 mm
Poles:   2P-3P Pin header:   Phosphor bronze, tin plated
Housing:   PBT,UL94V-0                     Screws M2.5 Steel, Zinc plated

Feature of Plastic terminal block


  • Save cost and time: They are cheaper than other types of connectors.
  • Reduce Space
  • Increase Safety
  • Easy Installation
  • Made of Copper Alloy: Helps prevent loosening due to different expansion rates.
  • It can also reduce corrosion caused by electrolysis between two different metals.


Application of Plastic terminal block


Spring loaded terminal blocks usually used in industrial equipment, such as cable support boxes and control boxes. Terminal blocks are often seen in the following types of equipment used in industrial environments:

  • Blower
  • control panel
  • Substation
  • Energy-saving lighting (LED)
  • LED municipal outdoor and street lights
  • All motors
  • Cooling control
  • Variable speed/frequency drive
  • Power is scattered everywhere!
