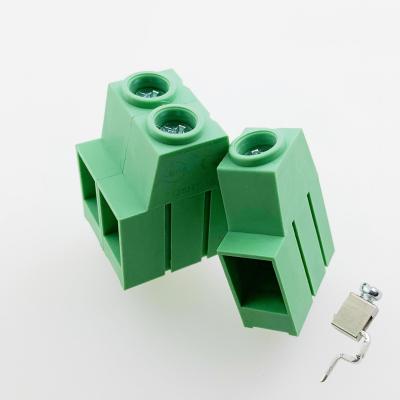

3 pole 8 awg quick release pcb mount terminal block pa66

It's 10.16 mm pitch, number of contact is from 2 to 24 pin, with brass contact, UL list.

  • Brand:

    OLINK
  • Item no.:

    135T/136T-10.16
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Green
  • Goods stock:

    50000
  • Min order:

    1000
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    15

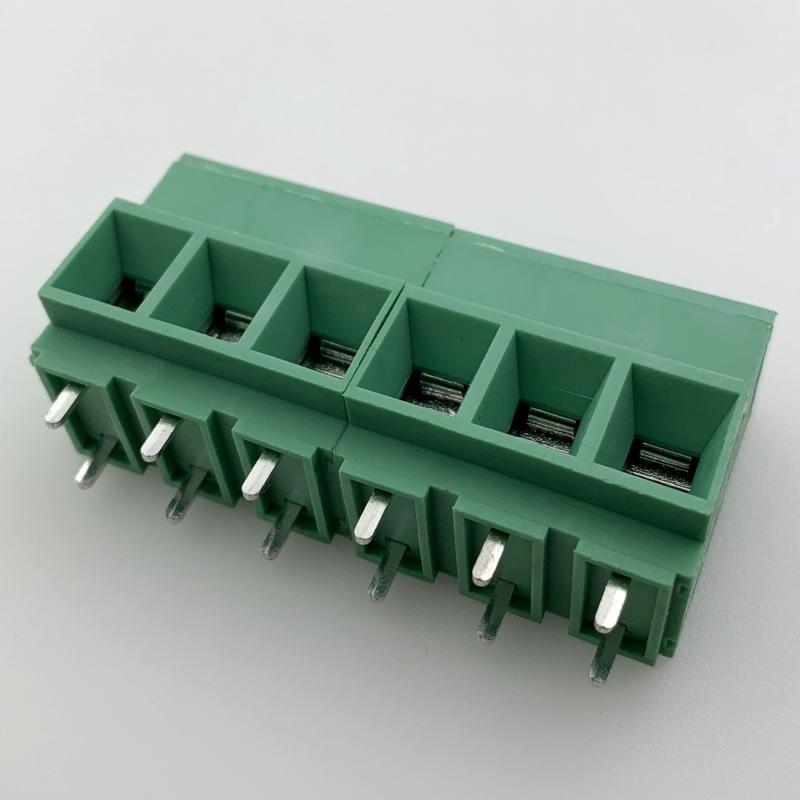

3 pole 8 awg quick release pcb mount terminal block pa66

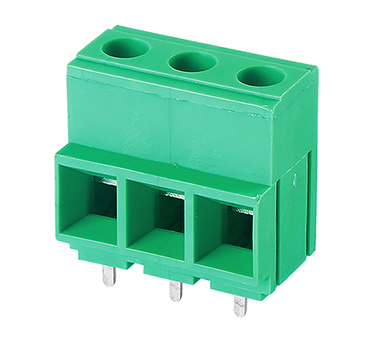

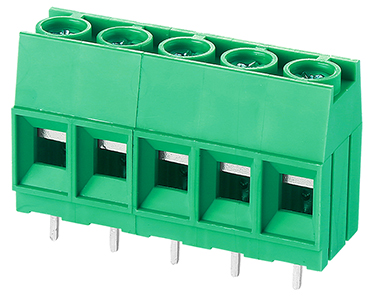

135T-10.16 136T-10.16

Description of 10.16mm pitch terminal block


The PCB terminal block is an accessory product that realizes electrical connection, and is often used on a PCB. PCB terminal blocks can provide fast and simple connection points for one wire or multiple wires, and can also provide a variety of multi-level blocks to save space and optimize.

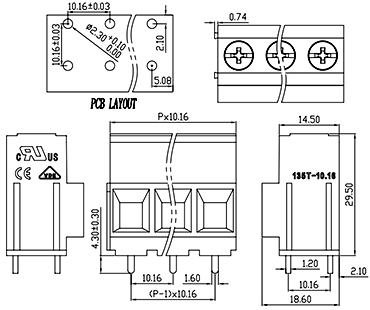

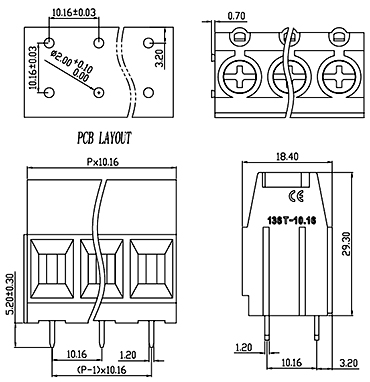

Drawing of 135T-10.16 & 136T-10.16




135T-10.16 136T-10.16


Specification of Screw terminal block


Product name:   Screw terminal block Model:   135T/136T-10.16
Certification:   UL, CE Rated voltage:   300V
Rated current:   65A Wire range:   26-6 AWG
Withstand voltage:   1600V/1Min Torque:   1.2Nm
Temperature range:
 -40℃ to +105℃ Strip length:   10 mm
Pitch:   10.16 mm Poles:   2-24P
Housing:   PA66 UL94V-0 Pin header:   Brass, tin plated
Conductor cross section:  10.0 mm² Screw:   M4  steel  Zinc plated
Pin dimensions:   4.3mm(135T), 5.2 mm(136T) PCB hole diameter:   2.3MM(135T), 2.0mm(136T)


Feature of Screw terminal block


  • High flame-retardant grade: insulated shell, made of UL94V-0 grade raw materials, flame-retardant and fire-proof
  • Convenient and quick operation structure: The use of plus and minus slotted screws is more convenient for the selection of screwdrivers, and the wiring operation can be carried out conveniently and quickly.
  • Anti-vibration design: The screws are designed with self-locking principle, which will not loosen under vibration environment
  • Lead-free and environmentally friendly "green" connection: the product meets RoHS environmental requirements
  • Reliable weldability: prismatic welding foot, easy to insert the welding hole, conducive to the rise of the welding liquid, high weldability
  • Excellent electrical and environmental performance: The metal parts are made of high-quality copper alloy, with low contact resistance, good surface treatment, and strong corrosion resistance


Application of 10.16mm pitch terminal block


There are many types of screw terminal block, and they are mainly used in security, lighting, power supply, elevator, electrical, power and other industries etc.
