Flexible Electrical Terminal Block with Multiple Amp Ratings

Our PA12-12p terminal blocks is a compact PP plastic shell wire terminal connector for efficient electrical connections.

  • Brand:

    OLINK
  • Item no.:

    PA12-12PS
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    white
  • Goods stock:

    50000
  • Min order:

    1000
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    15

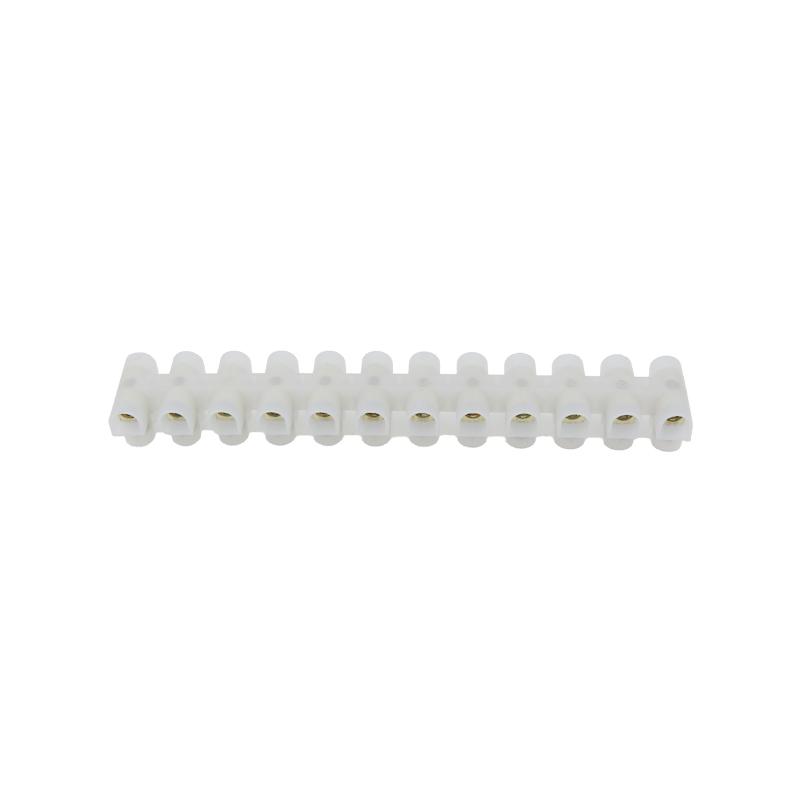

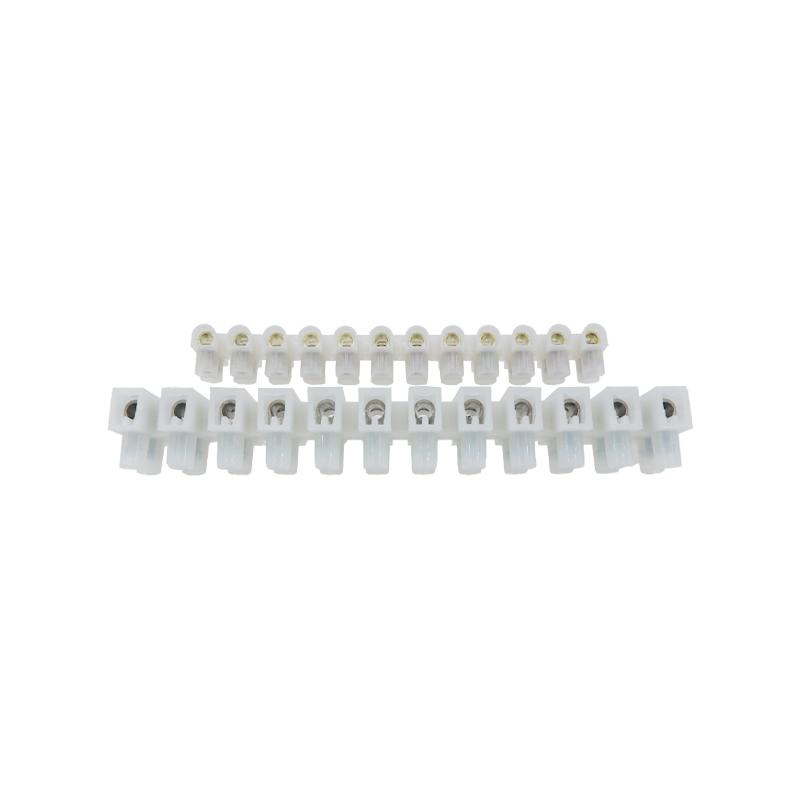

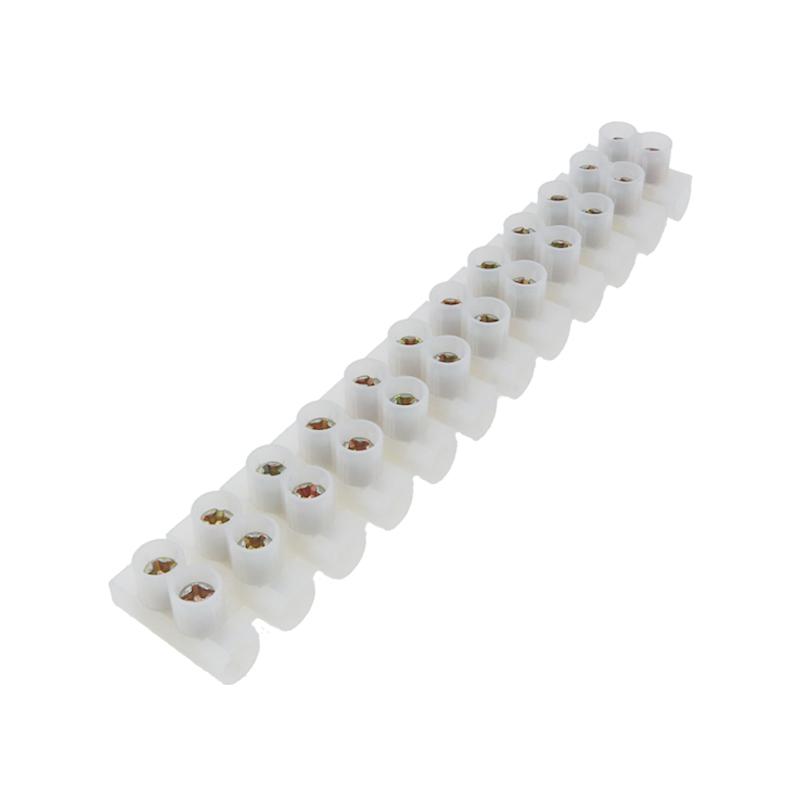

PA12-12Pin Plastic Terminal Block

plastic terminal block


Description of 12-hole Plastic terminal block


Terminal station (H model)

Base: Increase the base by 1.2-2.5mm
Housing: PA66, UI94v-2, 94V-0 Flame retardant rating
Conductive: Copper alloy, zinc alloy, nickel plating
Shrapnel: Stainless steel
Screw: Carbon steel wire, galvanized
Stripping length: approximately 7mm (0.28 in.)


Drawing


screw terminal block12 pin terminal block


Specification of Screw terminal block


Product name:   Screw terminal block Model:   PA12-12P
Certification:   UL, CE Rated voltage:   450V
Rated current:   50A Wire range:   22-10 AWG
Temperature range:
 -40℃ to +105℃ Strip length:   7 mm
Housing:   PA66 UL94V-0/2 Pin header:   Carbon steel wire, galvanized


Feature of Screw terminal block


  • High flame-retardant grade: insulated shell, made of UL94V-0 grade raw materials, flame-retardant and fire-proof
  • Convenient and quick operation structure: The use of plus and minus slotted screws is more convenient for the selection of screwdrivers, and the wiring operation can be carried out conveniently and quickly.
  • Anti-vibration design: The screws are designed with self-locking principle, which will not loosen under vibration environment
  • Lead-free and environmentally friendly "green" connection: the product meets RoHS environmental requirements
  • Reliable weldability: prismatic welding foot, easy to insert the welding hole, conducive to the rise of the welding liquid, high weldability
  • Excellent electrical and environmental performance: The metal parts are made of high-quality copper alloy, with low contact resistance, good surface treatment, and strong corrosion resistance


Application of 12-hole terminal block


There are many types of screw terminal block, and they are mainly used in security, lighting, power supply, elevator, electrical, power and other industries etc.terminal block
