Plastic Strip Terminal Block for PCB Connection

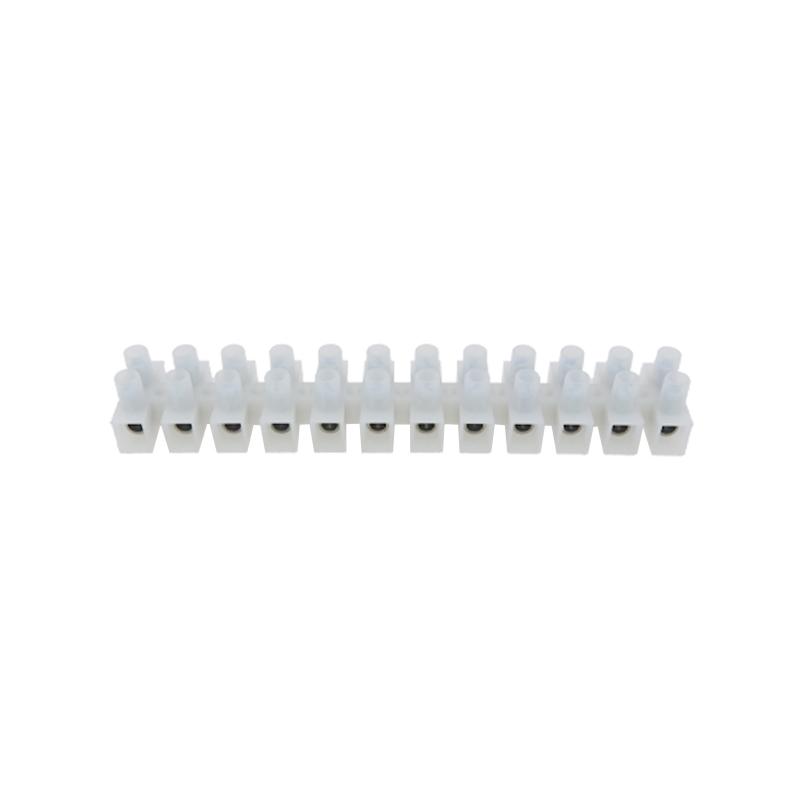

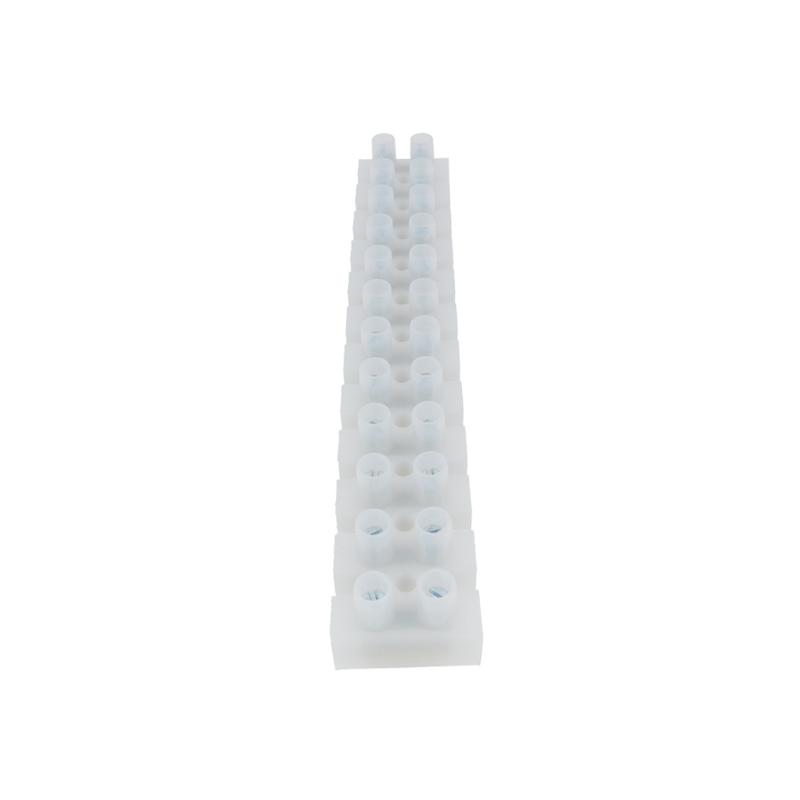

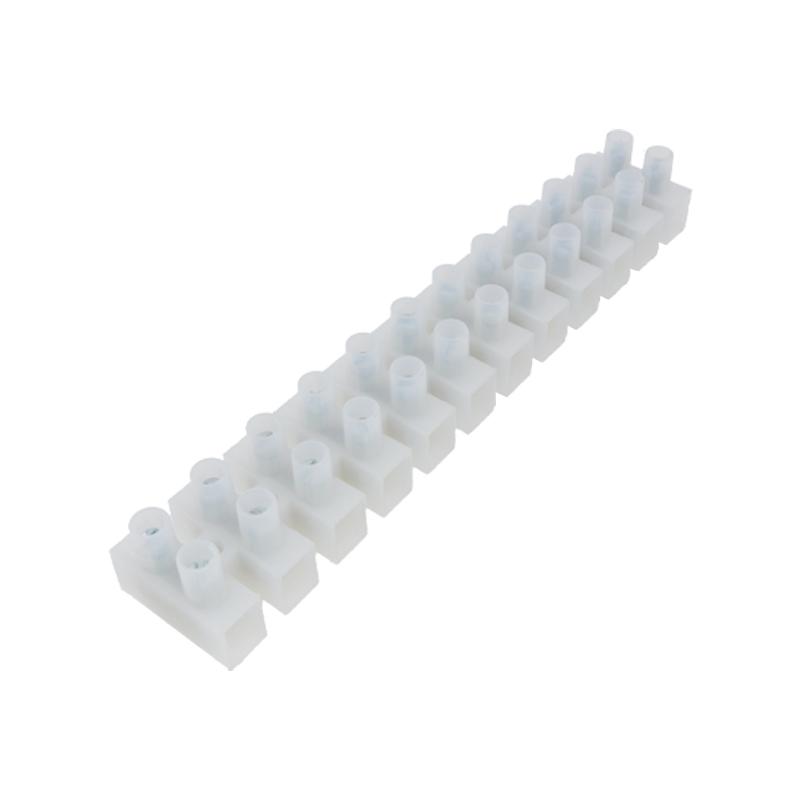

PA12-12Pin Plastic Terminal Block

Description of 12-hole Plastic terminal block

Terminal station (H model)

Base: Increase the base by 1.2-2.5mm
Housing: PA66, UI94v-2, 94V-0 Flame retardant rating
Conductive: Copper alloy, zinc alloy, nickel plating
Shrapnel: Stainless steel
Screw: Carbon steel wire, galvanized
Stripping length: approximately 7mm (0.28 in.)

Drawing

Specification of Screw terminal block

Feature of Screw terminal block

• High flame-retardant grade: insulated shell, made of UL94V-0 grade raw materials, flame-retardant and fire-proof
• Convenient and quick operation structure: The use of plus and minus slotted screws is more convenient for the selection of screwdrivers, and the wiring operation can be carried out conveniently and quickly.
• Anti-vibration design: The screws are designed with self-locking principle, which will not loosen under vibration environment
• Lead-free and environmentally friendly "green" connection: the product meets RoHS environmental requirements
• Reliable weldability: prismatic welding foot, easy to insert the welding hole, conducive to the rise of the welding liquid, high weldability
• Excellent electrical and environmental performance: The metal parts are made of high-quality copper alloy, with low contact resistance, good surface treatment, and strong corrosion resistance

Application of 12-hole terminal block

There are many types of screw terminal block, and they are mainly used in security, lighting, power supply, elevator, electrical, power and other industries etc.
