SP13 electrical connector IP68 waterproof cable connectors plug and socket

The ip67 connectors can be used for both cable to cable (in-line) or cable to panel-mount connections.

  • Brand:

  • Item no.:

  • Payment:

    Wire transfer, Paypal, Western Union, Alipay
  • Product origin:

  • Color:

  • Min order:

  • Product weight:

  • Shipping port:

  • Lead Time:


IP67 Waterproof cable connector for outdoor

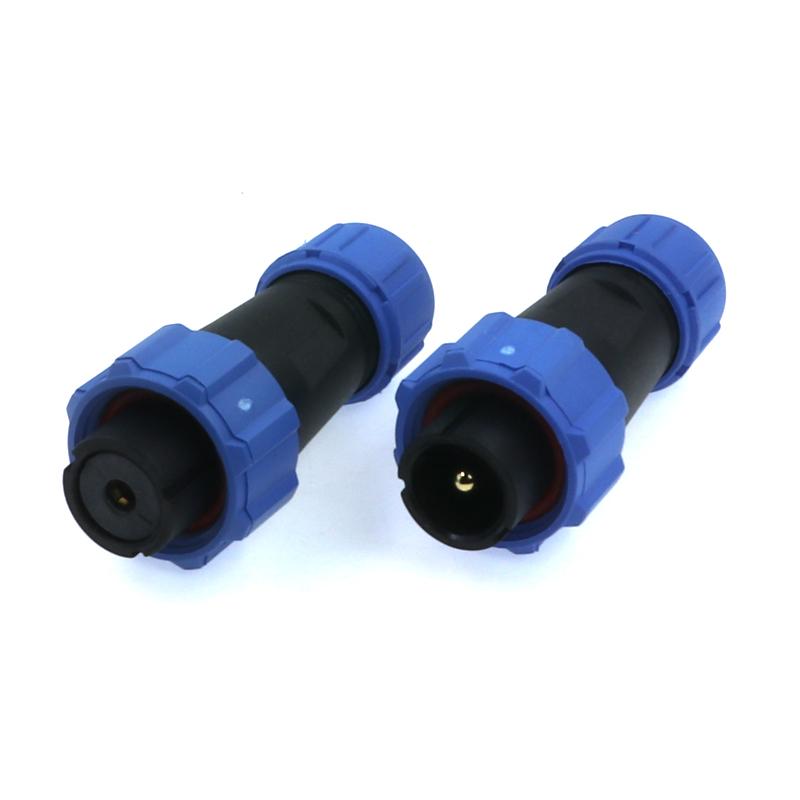

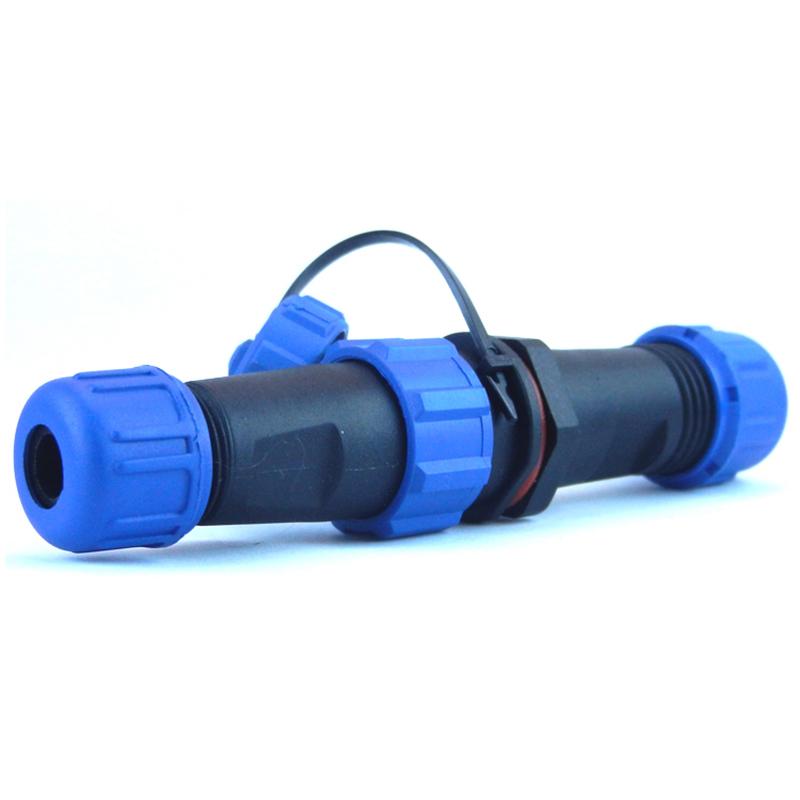

 Description of SP13 waterproof connector

  • Male female ip67 cable connector is widely used in outdoor wire connection.
  • There are 2-9 Pins for your choice.
  • Couoling: Thread
  • Shell Material:  Nylon66, Fire Resistance:V-0
  • Insert Material: PPS Max Temperature 260 degree
  • Contact material: Brass Wigh Gold plating
  • Cable OD: I4-6.5(mm)    II5-8(mm)
  • IP rating: IP67/68

  Drawing of SP13 Connector

1310 (Pulg) 1311 (Coupler)

1312 (Rear Nut Socket) 1313 (Flange Socket)

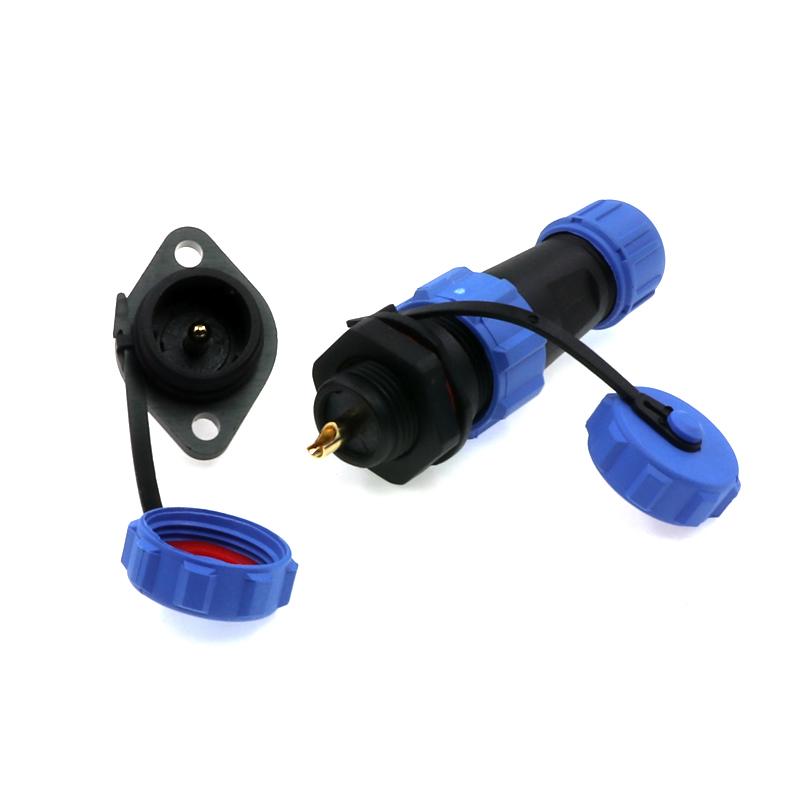

  • SP13 Connector There Are 4 Types: Plug, Coupler, Rear Nut socket, Rhombus Flange Socket.
  • Number Of Contack: 2pin 3pin 4pin 5pin 6pin 7pin 9pin.
  • According To The Size Of The Cable Used, There Are Two Outlet Diameters To Choose From: I 4-6.5mm(Default delivery)    II 5-8mm(Need to explain to customer service)

We can also customize all-black SP13 connector products to meet the needs of customers on specific occasions.

 More SP series connectors are available

SP17 Connector SP21 Connector M20 Connector(Bayonet,Screw crimping)
*If you need more information, you can find customer service through the contact information on the right side of this page.
