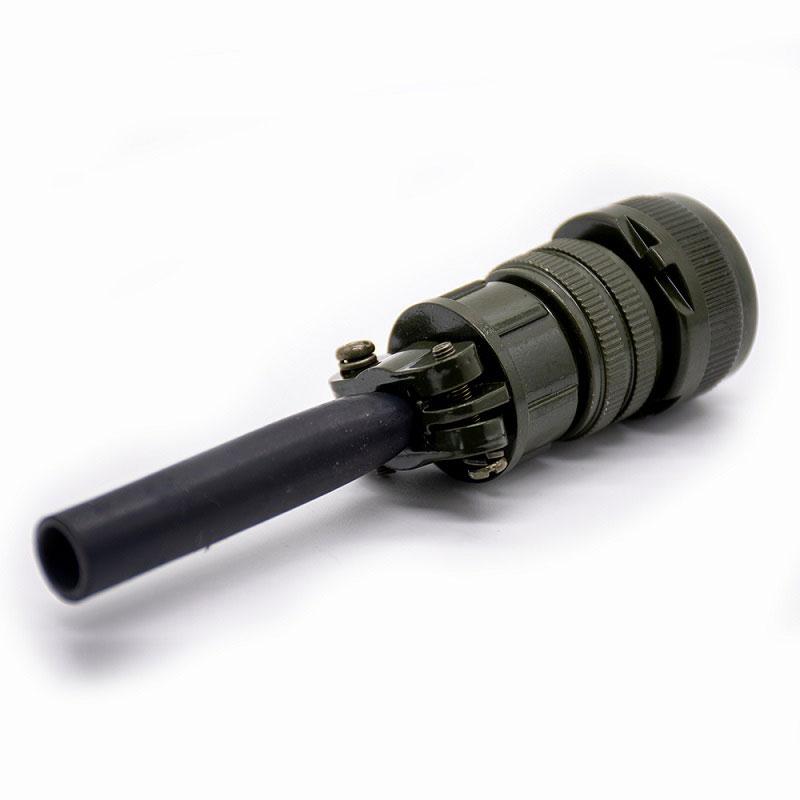

MS3106A10SL-4S STRAIGHT FEMALE PLUG 4PIN CIRCULAR POWER CONNECTOR

MS series connector is developed and produced according to American mil-c-5015g standard, Specially designed for military use

Brand:
OLINK
Item no.:
MS3106A 10SL-4S
Payment:
Wire transer, West Union
Color:
Green
Goods stock:
8000
Min order:
10
Shipping port:
Xiamen
Lead Time:
3days

Inquiry now

product introduction

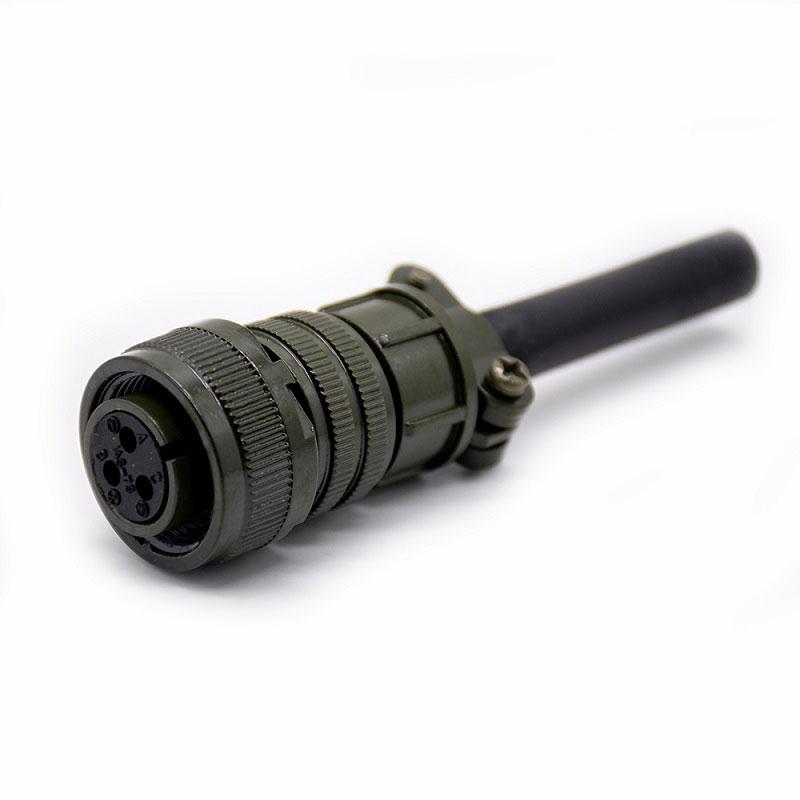

MS3106A10SL-4S STRAIGHT FEMALE PLUG 4PIN CIRCULAR POWER CONNECTOR

These circular connectors are especially suitable for military purposes. Nowadays, they are also widely used in the industrial industry. A large number of specifications make the products meet the choices of different customers. MS series connector is the best solution in various application fields。

Main Technical Specification for round shell connector:

Series	MS5015-MS3106

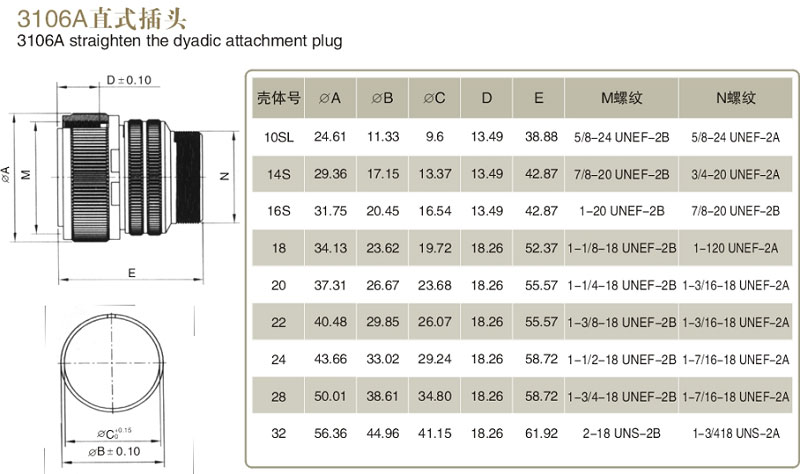

Shell size	10SL/ 14S/16S/16/18/20/22/24/28
Pin NO	2-37pin	Contact size	#0, #4,#8,#12,#16
Shell	Aluminum alloy, Olive drab chromate	Contact	Brass with gold plated
Insulator	Synthetic Rubber	surface treatment	Military green electroplating
Temperature range	-55°C ~ +125°C	Insulation resistance	5,000 Mega ohms minimum(at 25°C)
Frequency Range	10-2000HZ/147m /S2	Voltage Rating	500VAC 700VDC
Mating type	Threaded coupling	Termination	Solder
