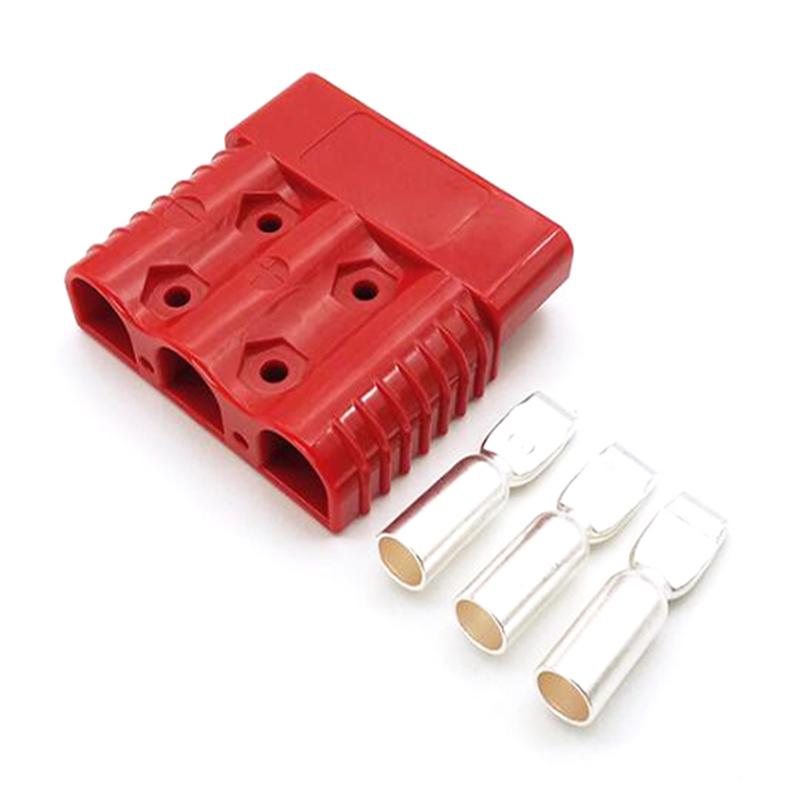

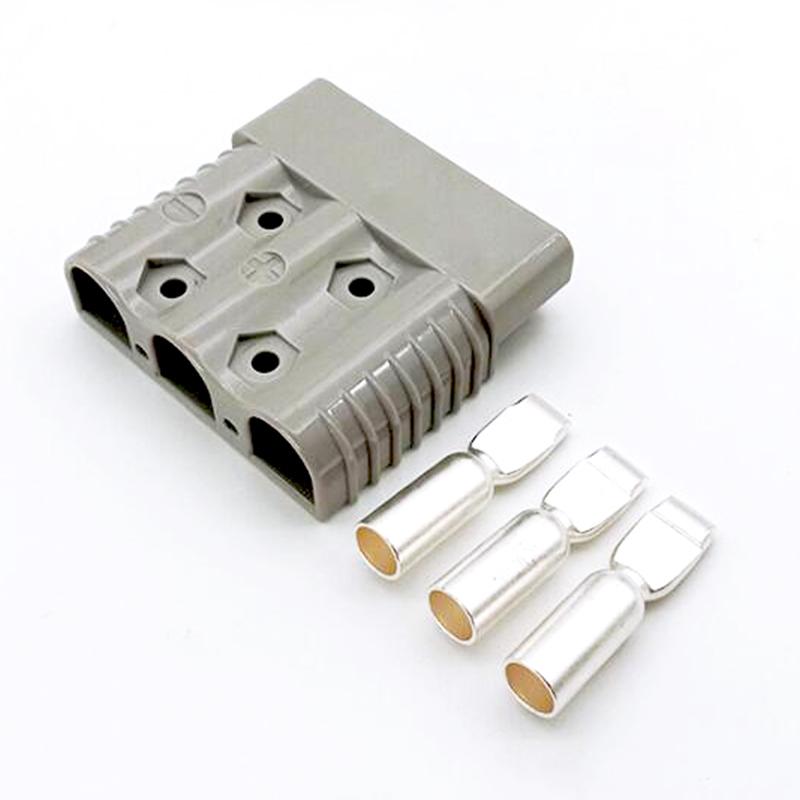

50a 175a 3 pin battery charger cable connector

50A/600V lithium battery connector, 3 pin battery connector, a pcs is 1 shell and 3 terminals.

  • Brand:

    OLINK
  • Item no.:

    SHD50
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    RD, BK, GY, BU
  • Goods stock:

    50000
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    7

50a 175a 3 pin battery charger cable connector



Features of 3 way battery cable connectors

  • There are multiple colors, each color has a different interface;
  • There is no distinction between male and female, SHD50 connectors of the same color can be mutually matched, and different colors cannot be connected to each other to avoid wrong insertion;
  • Copper-plated silver terminal block, with card slot design, better conductivity;
  • Two-pole design, can be connected to the "+" and "-" poles at the same time.

Drawing for SHD50 Connectors


Note:A pcs of SHD50 Connector

contains a shell, and 3 terminals



Parameter of 50 amp connector

Product name
   50a 175a 3 pin battery charger cable connector
Rated Current       50A Rated Voltage       600V
Wire Size

   6AWG, 8AWG, 10&12 AWG

Contact Material       Copper Plate With Silver
Insulation Material       PC Flammability
   UL94 V-0
Contact Resistance
   <140mΩ Insulation Resistance       5000MΩ
Average.Connection       85N Connector Holding Force       450N Min
Shell Optional Color
   Blue, Grey, Red

Use occasion of 3 pin battery connector


The SHD50  connector is mainly used in the following industries:

  • Machinery industry: cutting machine, electric vehicle controller, etc.
  • Power supply: UPS uninterruptible power supply, voltage stabilizer, inverter, lithium battery module, etc.;
  • Electric vehicles, such as golf carts, indoor cleaning vehicles, electric tractors;

*For more information, please contact us by email or through any contact information on the webpage.
