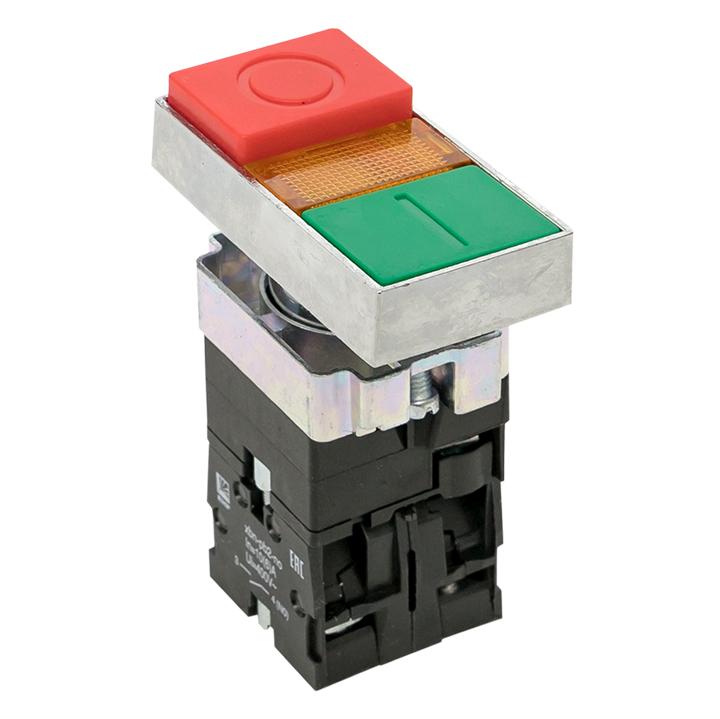

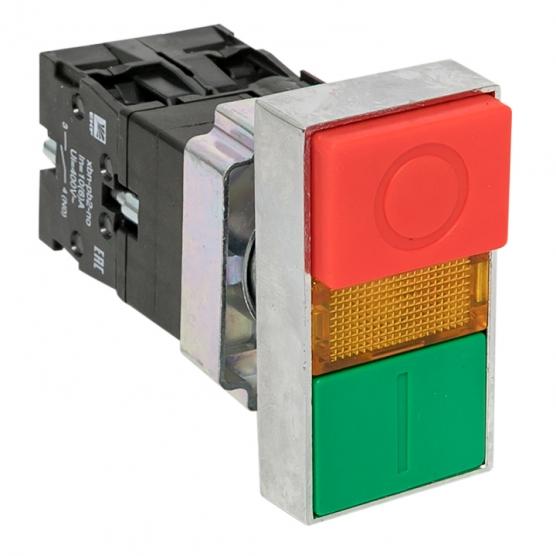

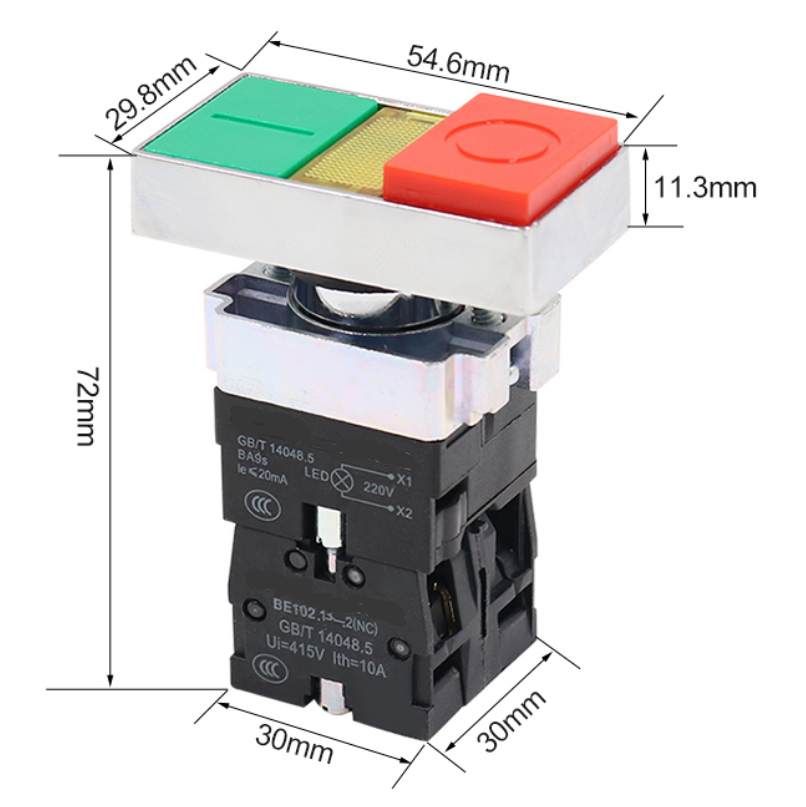

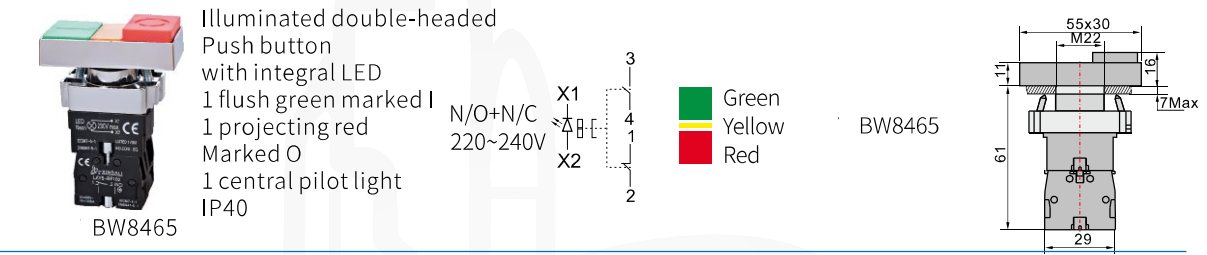

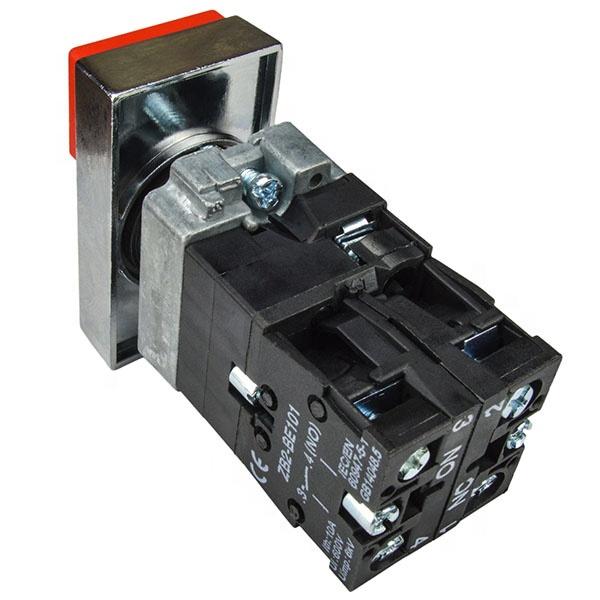

XB2-BW8465 Illuminated Double square head switch with pilot light

1NO1NC switch, Illuminated Double square head switch with pilot light

Brand:
OLINK
Item no.:
XB2-BW8465
Payment:
Wire transfer, PayPal, Western Union, Alipay
Product origin:
China
Color:
Green, Red and yellow
Min order:
40
Shipping port:
Xiamen, Ningbo
Lead Time:
7

Inquiry now

product introduction

Producs name: XB2 series push button switches

Item number: XB2-BW8465

Shell material:New flame retardant material

Contact material: copper/silver

Hole size: 22mm

Operation type: 1NO1NC

Working voltage: 660V

With LED

Operation:Green for start / Red color for stop

22QB Push button Optional Accessories

22mm PushButton: The in-line quick socket can eliminate the cumbersome operations of welding and connecting terminals during the switch installation process, and it is more convenient to replace the damaged button switch in the future, saving time and effort.

22mm button switch socket, the default wire length is 150mm, the wire diameter is 0.5mm², and customization is acceptable.

*If you need more information, you can find customer service through the contact information on the right side of this page.
