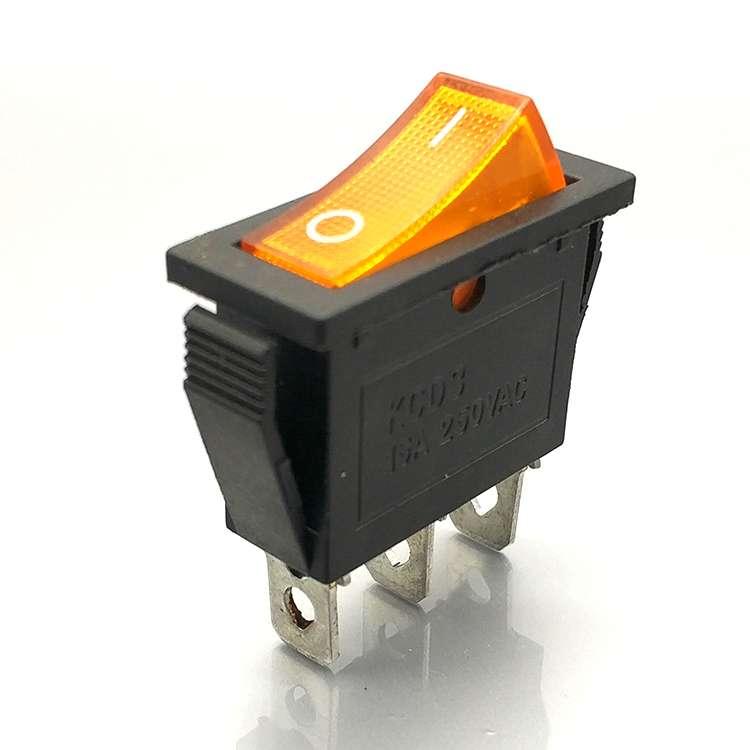

16a 250vac rectangle rocker switch with orange illuminate

Rocker switches are usually used to directly power devices. They are available in a variety of shapes, sizes and colors, both standard and custom symbols are provided on the actuator.


  • Brand:

    OLINK
  • Item no.:

    KCD3
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Black shell, button color can choose
  • Goods stock:

    50000
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    7

16a 250vac rectangle rocker switch with orange illuminate

Description of 16a 250vac rocker switch

  • A rocker switch is an on/off switch that rocks when pressed, which means one side of the switch is raised while the other side is depressed much like a rocking horse rocks back and forth.
  • Rocker switches are widely used in surge protectors, display monitors, computer power supplies, and many other devices and applications.


Specification of 16a 250vac rocker switch

Product name:   Illuminated rocker switch Model:   KCD3 series
Panel mount diameter:   28 x 10.7 mm Function:   on-off, on-off-on, on-on
Rating:   16A 250V AC/20A 125V AC Rated load:   2/8A 250V AC
Solder terminal:   PTI 175 Ambient temperature:   T85
Endurance:   10000 cycles Contact resistance:   ≤ 50mΩ
Dielectric intensity:   ≥ 1500V AC/min Withstand voltage:   1500V AC/min
Insulation resistance:  ≥ 100MΩ Frequency:   50HZ


Feature of Kcd3 rocker switch

  • May print 'I' & 'O' on the surface (I for "on", O for "off"), so that the user can know if the device is on or off.

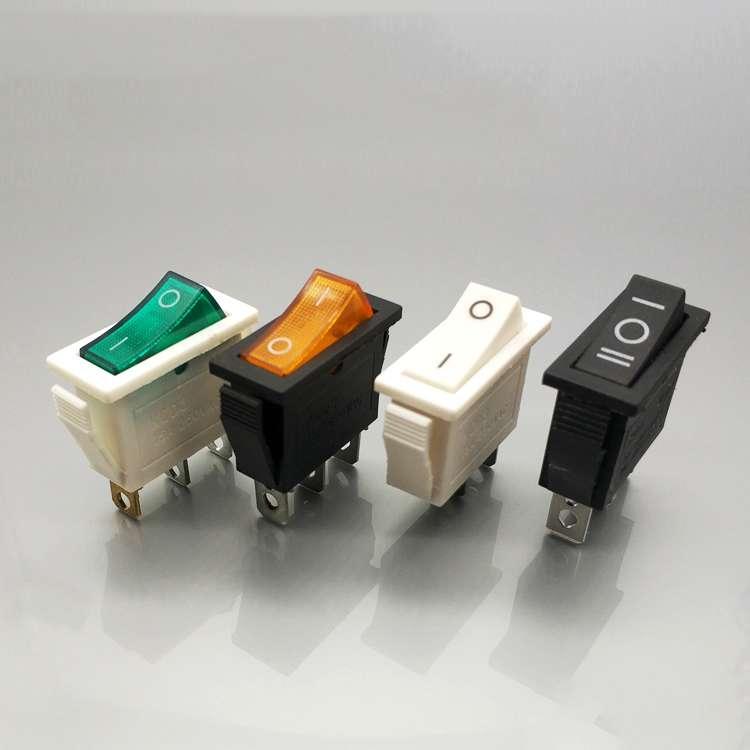

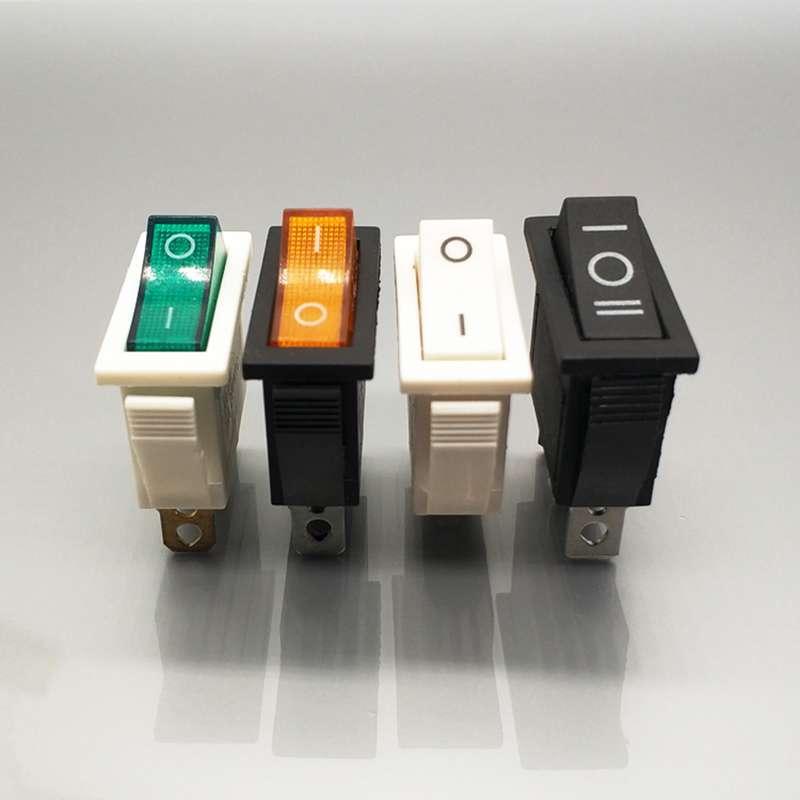

There are rocker switches to choose from
