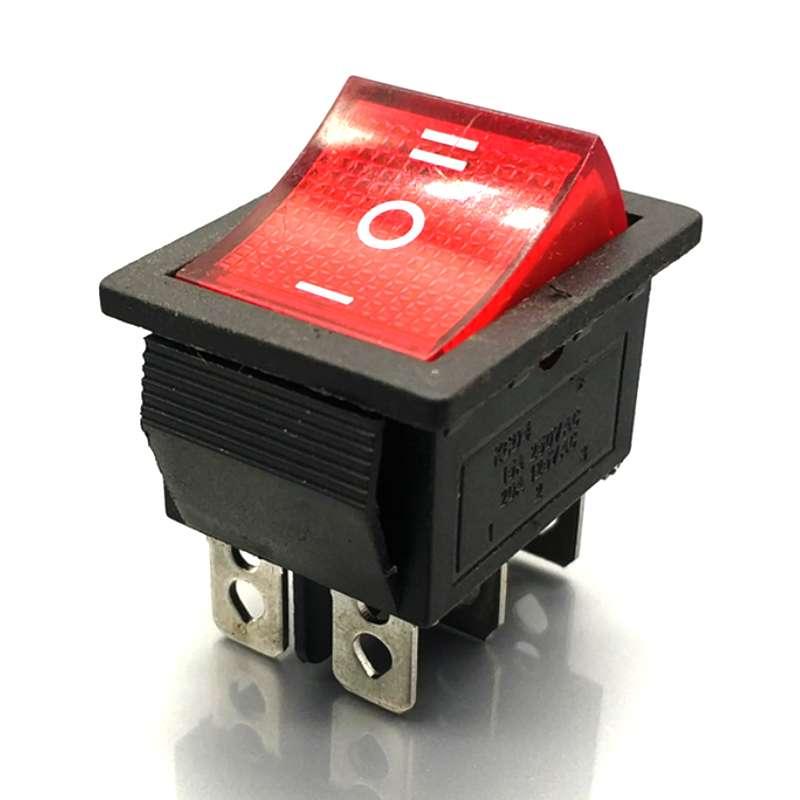

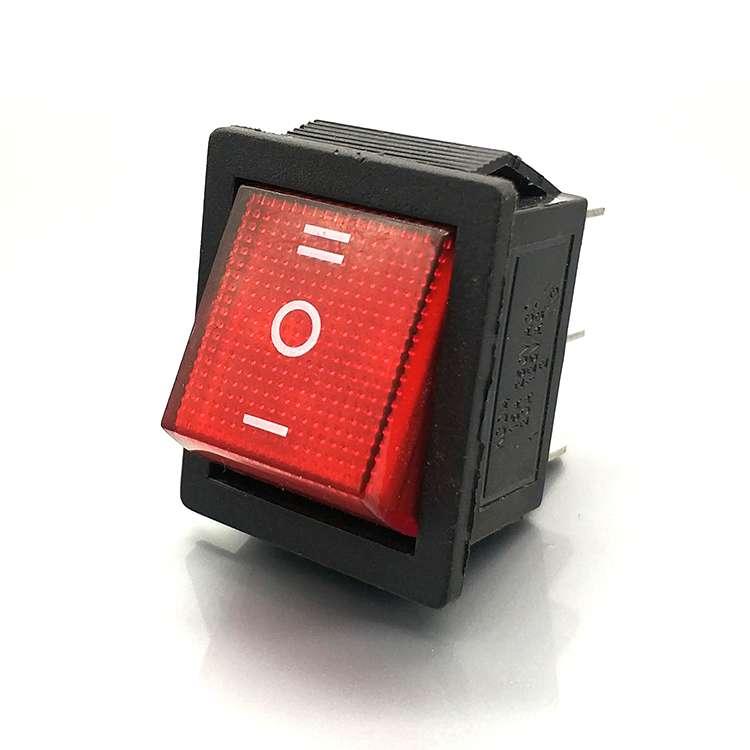

Momentary on off on rocker switch with arrow

Olink offers a variety of illuminated and non-illuminated, and also snap-in installation rocker switches. The rocker switch has 2 to 6 poles, and there are a variety of colors, functions.

  • Brand:

  • Item no.:

  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

  • Color:

    Black shell, button color can choose
  • Goods stock:

  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

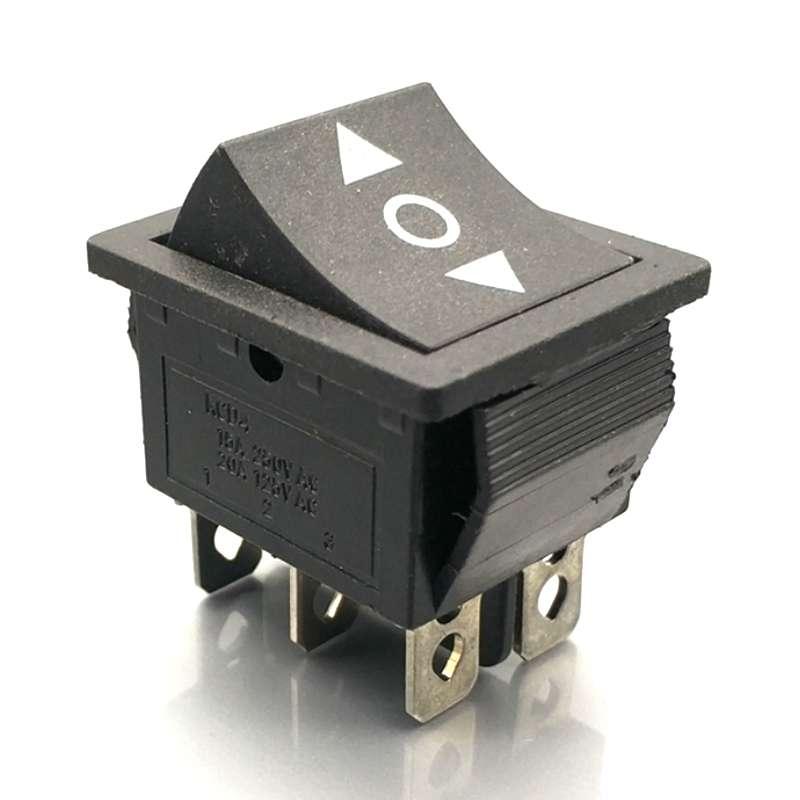

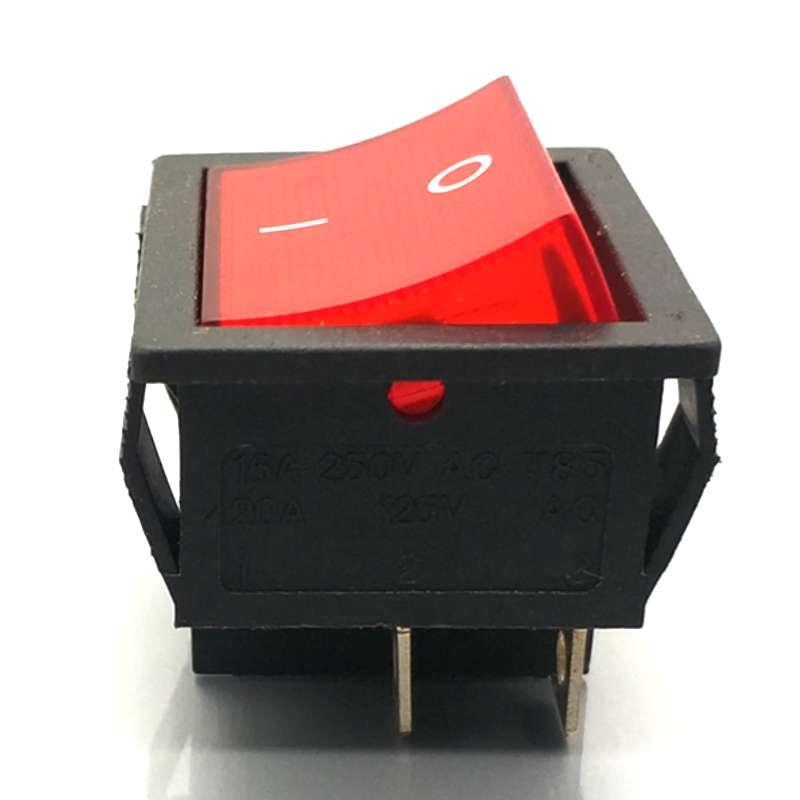

Momentary on off on rocker switch with arrow

Description of Rocker switch 16a 250vac

  • A rocker switch is an on/off switch that rocks when pressed, which means one side of the switch is raised while the other side is depressed much like a rocking horse rocks back and forth.
  • Rocker switches are widely used in surge protectors, display monitors, computer power supplies, and many other devices and applications.

Specification of Rocker switch 16a 250vac

Product name:   Momentary rocker switch Model:   KCD4 series
Panel mount diameter:   27.8 x 21.7 mm Function:   on-off, on-off-on, on-on
Rating:   16A 250V AC/20A 125V AC Rated load:   2/8A 250V AC
Solder terminal:   PTI 175 Ambient temperature:   T85
Endurance:   10000 cycles Contact resistance:   ≤ 50mΩ
Dielectric intensity:   ≥ 1500V AC/min Withstand voltage:   1500V AC/min
Insulation resistance:   ≥ 100MΩ Frequency:   50HZ

Feature of Kcd4 rocker switch

  • May print 'I' & 'O' on the surface (I for "on", O for "off"), so that the user can know if the device is on or off.

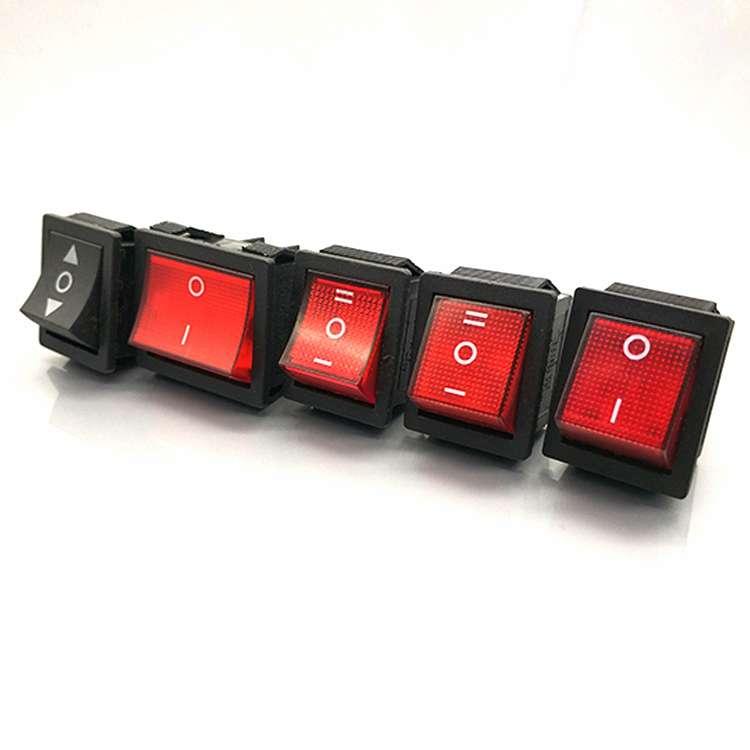

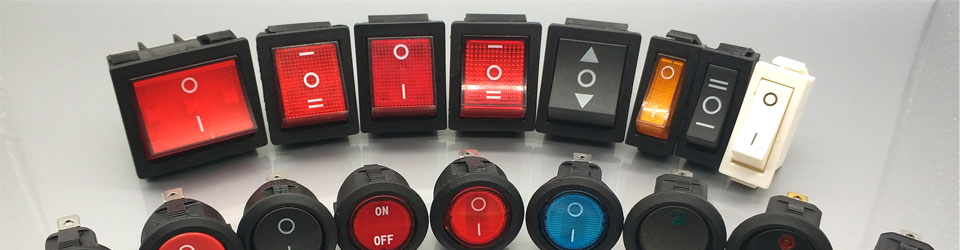

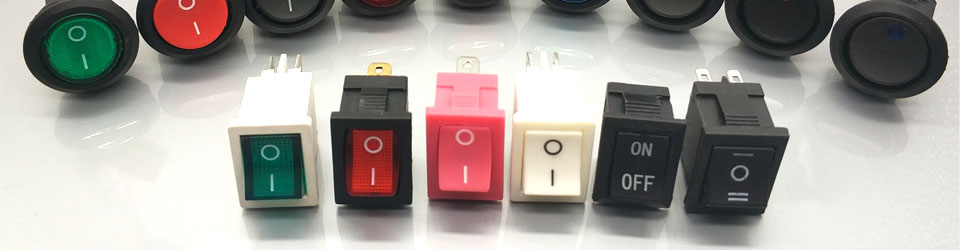

There are more rocker switches to choose from
