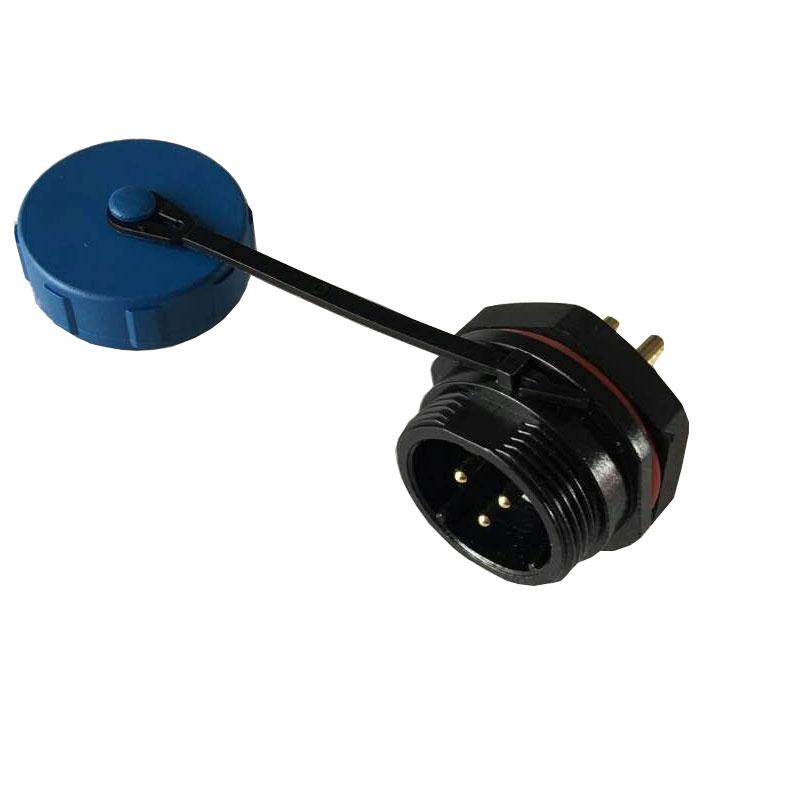

SP1312/P Panel Mounts 3Pin IP68 Solder Male Plug Female Socket Waterproof Aviation Connector

The waterproof panel mount connector can be used for both cable to cable (in-line) or cable to panel-mount connections.

Brand:
OLINK
Item no.:
OL1312/P3
Payment:
Wire transfer, Paypal, Western Union, Alipay
Product origin:
China
Color:
Black&Blue
Min order:
10
Product weight:
2
Shipping port:
Xiamen
Lead Time:
7

Inquiry now

product introduction

SP1312/P Panel Mounts 3Pin IP68 Solder Male Plug Female Socket Waterproof Aviation Connector

Description of SP1312 connector

3 core waterproof cable is widely used in outdoor wire connection.
There are 2-9 Pins for your choice.
Couoling: Thread
Shell Material: Nylon66, Fire Resistance:V-0
Insert Material: PPS Max Temperature 260 degree
Contact material: Brass Wigh Gold plating
Cable OD: I4-6.5(mm) II5-8(mm)
IP rating: IP67/68

Drawing of SP1312 connector


1310 (Pulg)	1311 (Coupler)

1312 (Rear Nut Socket)	1313 (Flange Socket)

SP13 Connector There Are 4 Types: Plug, Coupler, Rear Nut socket, Rhombus Flange Socket.
Number Of Contack: 2pin 3pin 4pin 5pin 6pin 7pin 9pin.
According To The Size Of The Cable Used, There Are Two Outlet Diameters To Choose From: I 4-6.5mm(Default delivery) II 5-8mm(Need to explain to customer service)

We can also customize all-black SP13 connector products to meet the needs of customers on specific occasions.

More SP series connectors are available

SP17 Connector	SP21 Connector	M20 Connector(Bayonet,Screw crimping)

*If you need more information, you can find customer service through the contact information on the right side of this page.
