M8 and M12 panel mount connector plug-in connectors for THR applications Apr 13

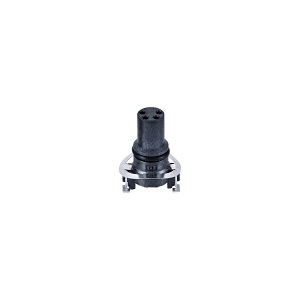

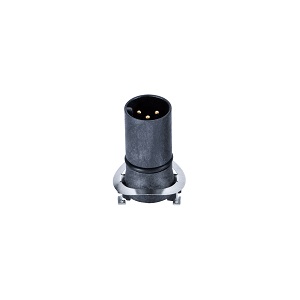

THR-capable M8 and M12 device plug-in connectors can be soldered on the PCB along with SMD components. Process-optimised geometry and machine-capable packaging ensure quick and easy handling in the pick and place assembly process.


1. Reduced mounting costs thanks to two-piece device connector.

2. Packaging available for automated pick and place assembly.

3. More flexibility in device design, thanks to numerous pin assignments and codings for signals, data, and power in a uniform installation geometry.

4. Easy device integration thanks to mechanical port screw connections with threaded attachment, press-in contour or direct integration in the front plate.

5. Optional shield connection and seal for the device when not plugged in.

6. Reliable electronics protection: integrated seals prevent dust or splash water ingress, even when not plugged in.

7. Save costs – thanks to integration in the SMT production process.


Ambient temperature: -25 ~ +125

Connector insert: LCP

Connector contacts: Brass with gold plated

Seal/O-ring: FKM

Insulation resistance: ≥100MΩ

Contact resistance: ≤5mΩ

IP rating: IP67 in locked condition

Earth tag/pin: Available

Mating endurance: >500 cycles
