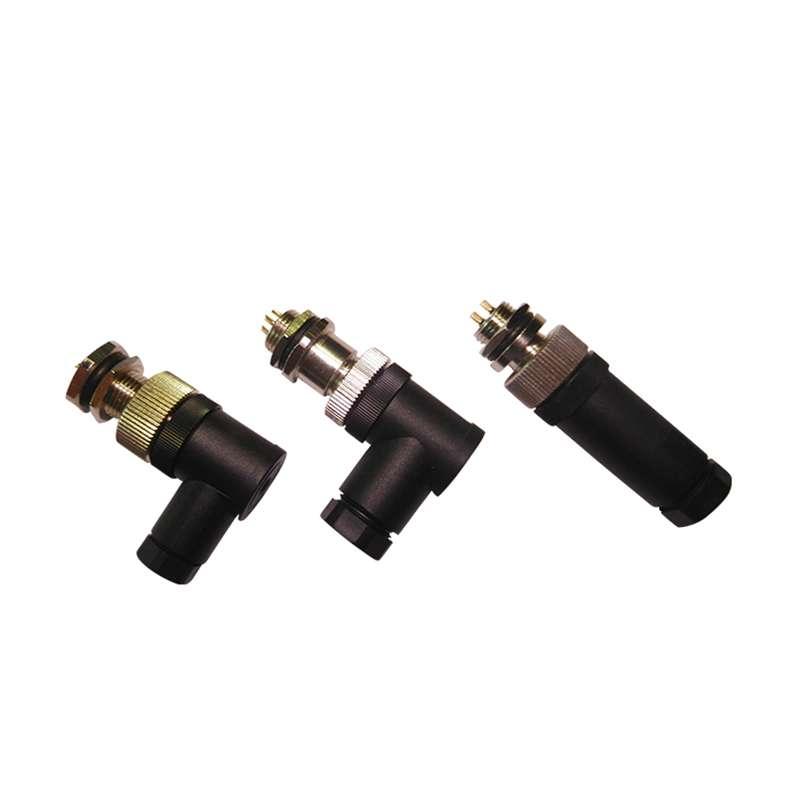

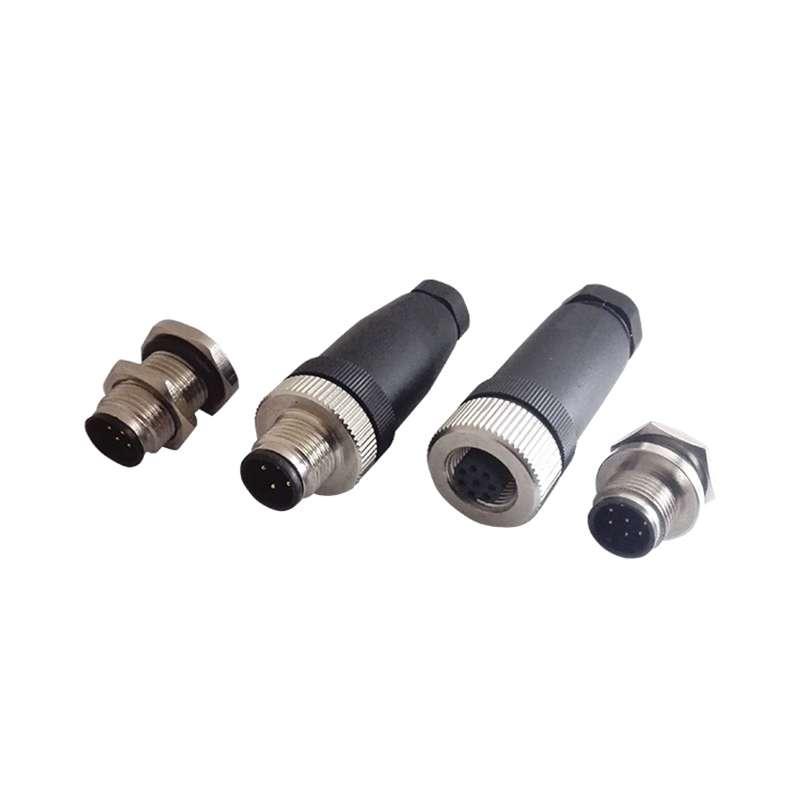

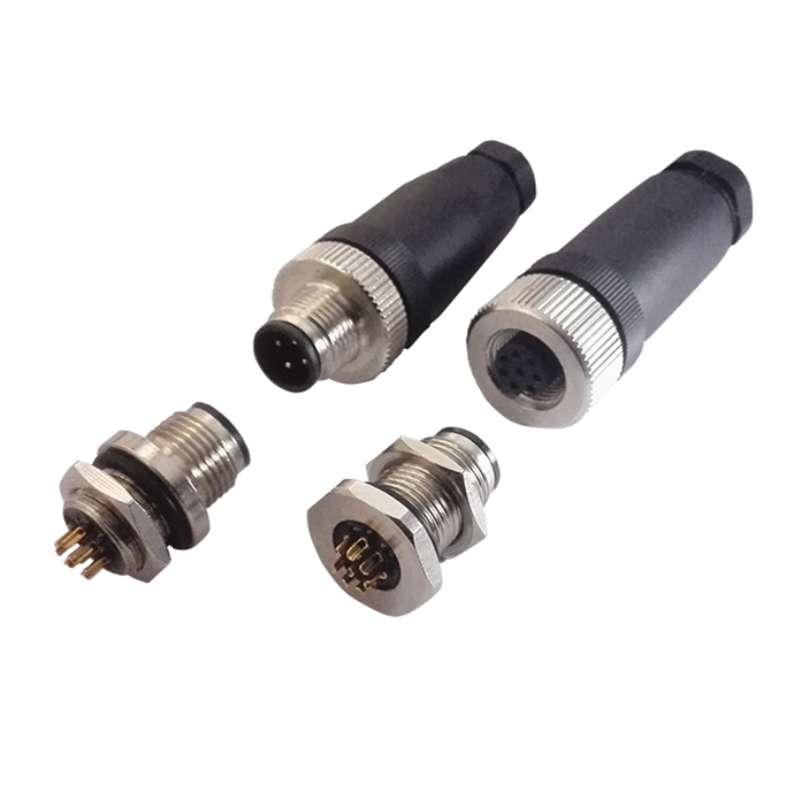

2 4 6 8 pin M12 cable plug connector

M12 circular connectors came to market in the late 1980’s and remain a positive disruption in industries such as automotive, industrial automation, agriculture, and food processing
  • Brand:

    OLINK
  • Item no.:

    M12
  • Payment:

    Wire transfer, Paypal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Black
  • Shipping port:

    Xiamen
  • Lead Time:

    7

2 4 6 8 pin M12 cable plug connector


Description:

M12 bulkhead connector provide technology that allow ease of application, low set-up/tear-down time, improved reliability, and far less MRO expense. Three decades into their life cycle, they continue to evolve, replacing previous designs that required labor-intense hardwiring and connectors that did not meet/exceed the IP67/68 rating.


M12 Cable connectorThe Features of M12 Power connector

  • Metal or Plastic available
  •  Male and Female

  •  A, B, and D-Coded

  •  Many configurations available
  •  Waterproof rated to IP-65, IP67-68
  •  RoHS Compliant

Drawing for m12 electrical connector

M12 Cable connectorM12 Cable connectorM12 Cable connector

Shell Material   PA66+30%GFUL94V0 Connector Gender   Male/Female Number of contact  2.3.4.5.6.7.8
Mold Material   Waterproof PVC Assembly style   Field installation/Molding(Solder) Mating Style  Screw
Sealing ring   Ethylene-propylene-diene Rubber Prduct Type   Straigh/Right Angle IP Rating  IP67/68
Compliance   ROHS  CE Size   M12 Current  5-7 A
Breakdown Voltage

 ≥2.5KV Norma

 1.0KV water

Temperature

 -45°C-105°C

Contact Resistance

5mΩ

Insulation Reisistance

 ≥500MΩ

 AC DC 500V

Duratility

 3K plug/Unplug Cycles



FAQ

M12 connector refers to the electrical connector with M12 thread, which is mainly used in signal transmission and sensors of equipment. Commonly used in the market are A code, B code and D code.
