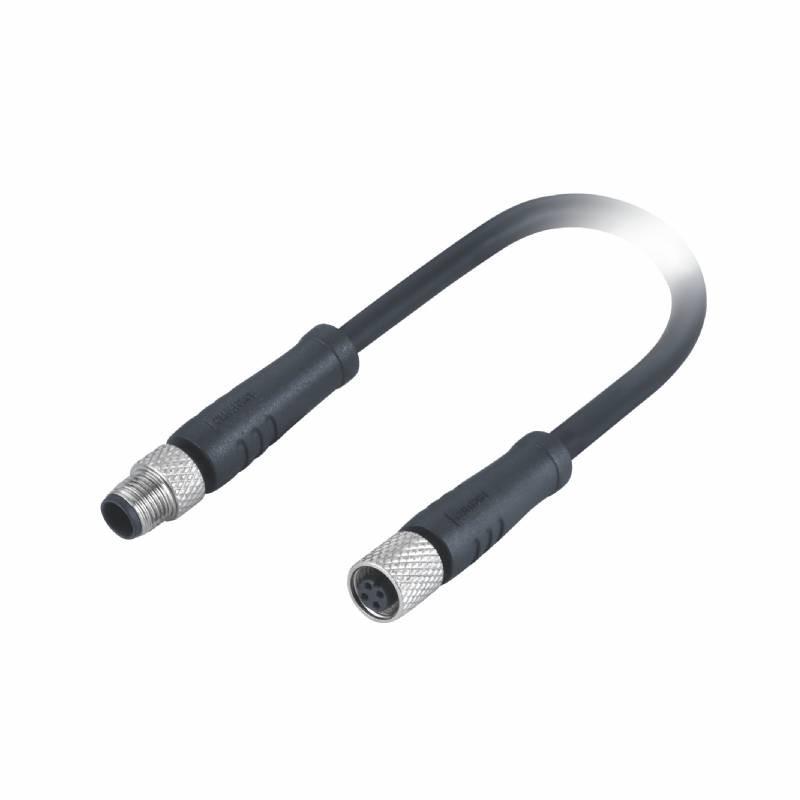

M5 4Pin male to female, straight, molded 4x26AWG PUR cable, custom length

M5 circular connector is specially developed for the micro sensor market and any application that needs to install multiple sensors in a very small area
  • Brand:

  • Item no.:

  • Payment:

    Wire transer, West Union
  • Product origin:

  • Color:

  • Goods stock:

  • Shipping port:

  • Lead Time:

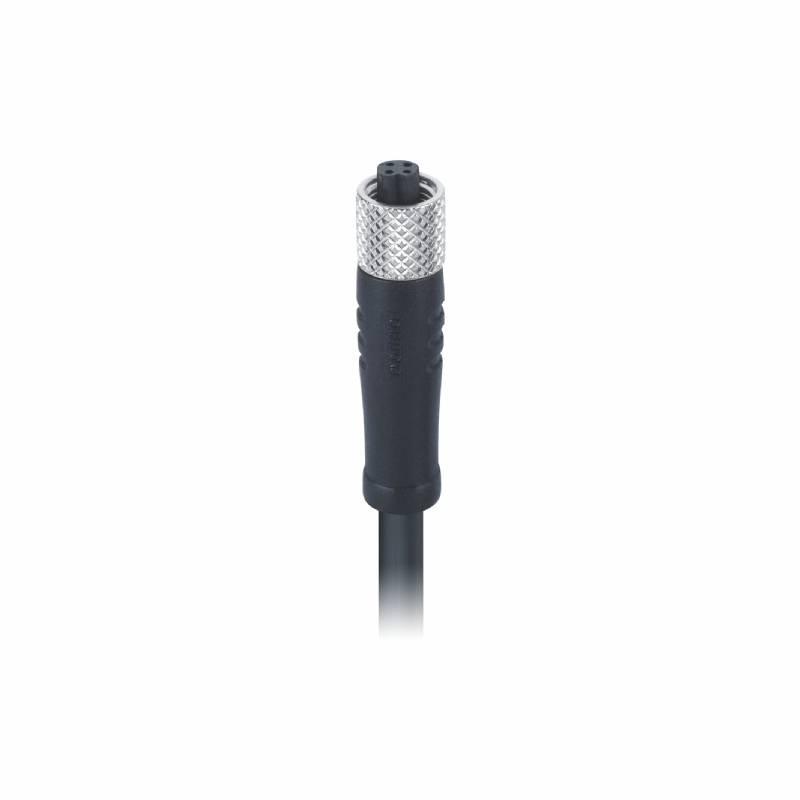

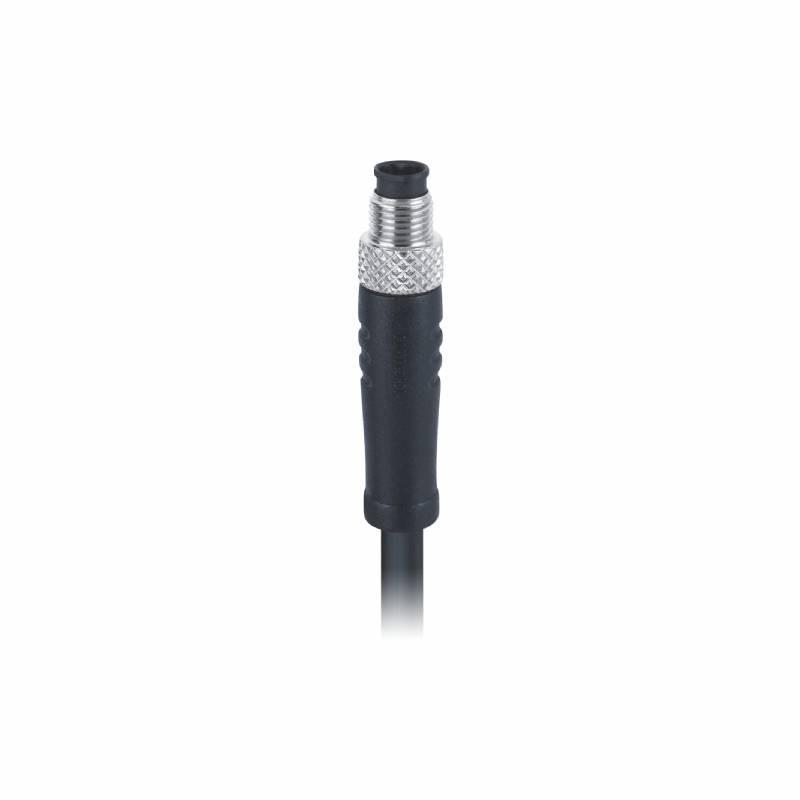

                                   M5 4Pin male to female, straight, molded 4x26AWG PUR cable

Desciption for M5 sensor connector:

Contacts Poles: 04 Pin;                                                    Cable Length: Customized lengthes

Connector Gender: Male to female connector, double ended    ; Cable Jacket: PUR (TPU)

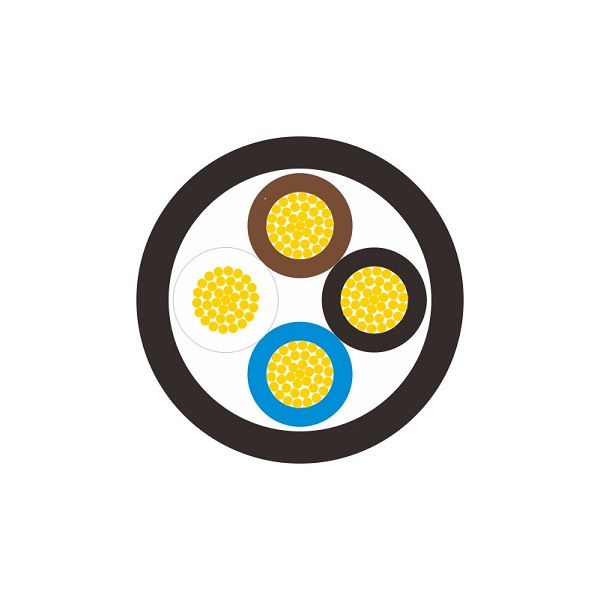

Current Rating: 1 A;        Wire Gauge (size): 26AWG/ 0.14mm²

Voltage Rating: 30V;         Wire Insulation: PVC

Keyway Coding: A-Coding;      EMC Shielding: Un-shielded

Straight/ 90° Angled: 180° Straight;     Cable Color: Black

Contacts Termination: Soldering;   Temperature Rating: -40°C ~ + 80°C

Contacts Material: Phosphor bronze, machined solid pin, Brass, machined solid pin

Cable Flamability: VW-1;   Contacts Plating: 3μ" Gold plating thickness

Cable Features: UV-Resistant, Hydrolysis resistant, Oil resistant

Inserts: TPU + GF;   Sealing: O-Ring

Overmolding: TPU;    Locking Screws: Brass with nickel plated

Contact Resistance: ≤5mΩ;    Insulation Resistance: ≥ 100 MΩ

Protection Degree: IP 67;    Pollution Degree: III

Connector Flamability: UL94 HB;  Waterproof Depth: IP67 1m depth 30 minutes

Plug Mating Life: 500 times;   Warranty: 2-years quality guarantee period

Compliance: RoHS compliant;  Reference Standard: IEC 61076-2-105

Pin correction:

Sensor & Industiral Automation

Olink company  is the connectivity specialist in the connection of factory automation devices of sensors, motor, encoder, PLC, light grid, RFID, industrial cameral, Ethernet, Fieldbus as well as robots. We offer hundreds of standard connectors with custom lengths and various material of cable, and a broad range of field-installable connectors.
