Emergency stop button

 /Lockable mushroom emergency stop button switch for machine

Lockable emergency stop button
Lockable emergency stop button Lockable emergency stop button Lockable emergency stop button Lockable emergency stop button

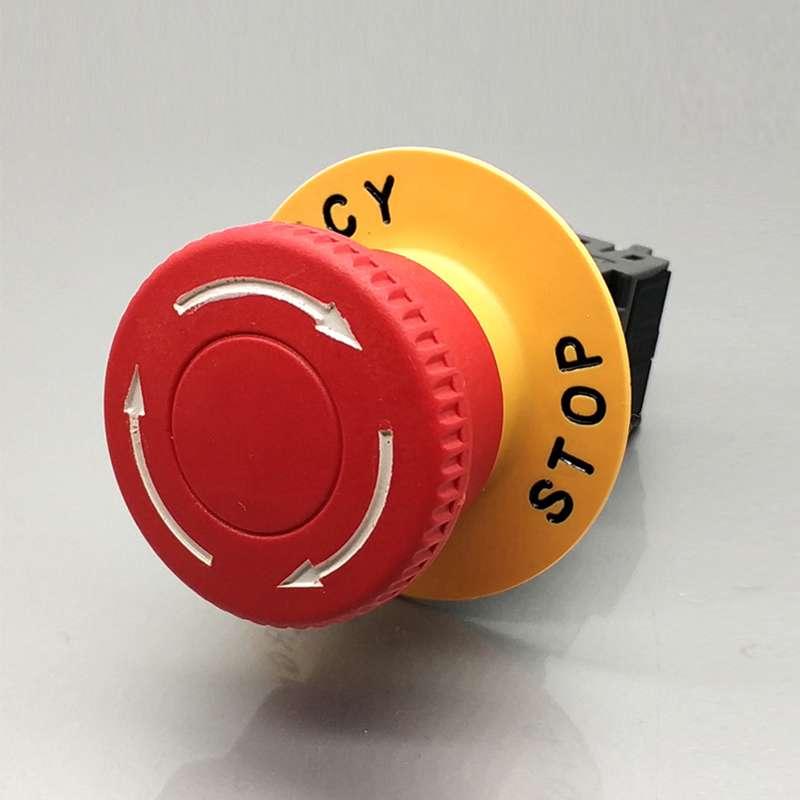

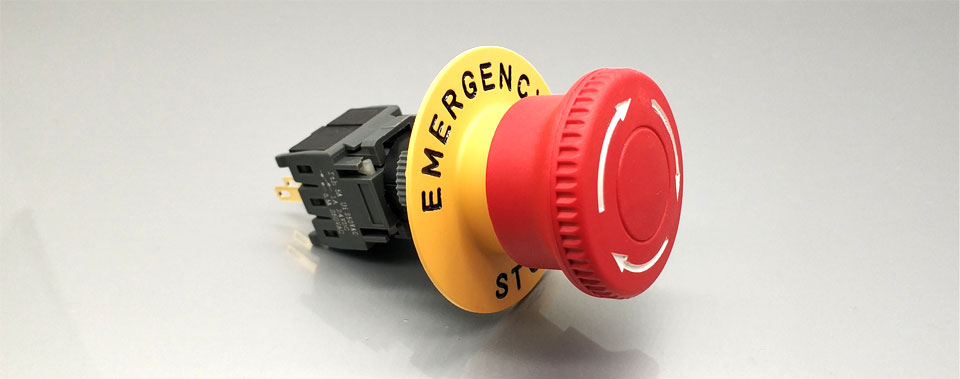

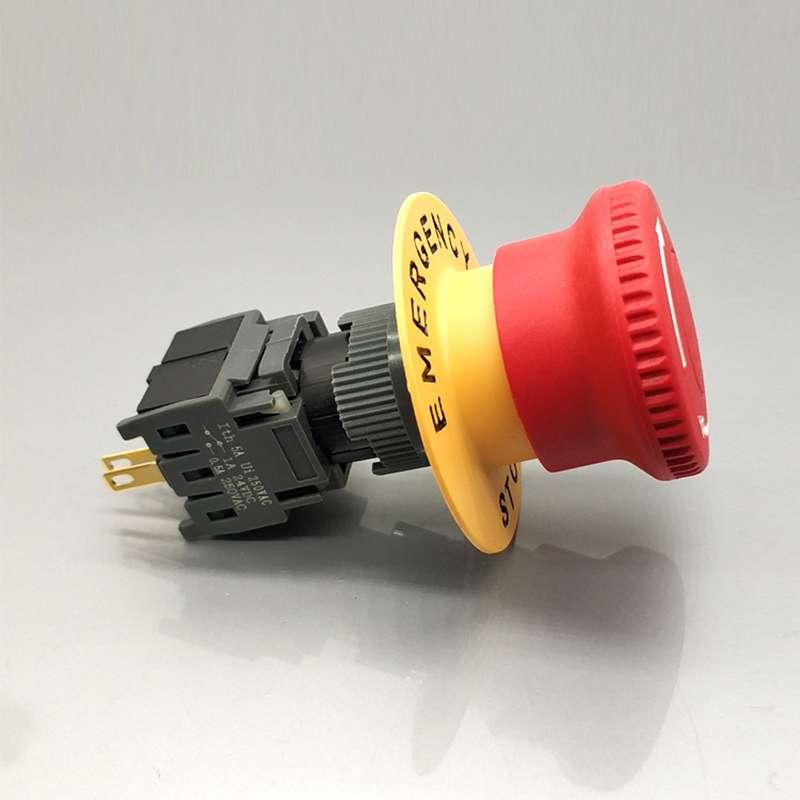

Lockable mushroom emergency stop button switch for machine

The product is small in size and complete in models and specifications. 5 colors of operation indicator. All types include a silicone rubber sealing ring so that it is dust-proof, The oil-proof and waterproof grade reaches IP65.


  • Brand:

    OLINK

  • Item no.:

    F16-A12

  • Payment:

    Wire transfer, PayPal, Western Union, Alipay

  • Product origin:

    China

  • Color:

    Yellow & black & red

  • Min order:

    40

  • Shipping port:

    Xiamen, Ningbo

  • Lead Time:

    7
Inquiry now

Lockable mushroom emergency stop button switch for machine


Features of Lockable emergency stop button

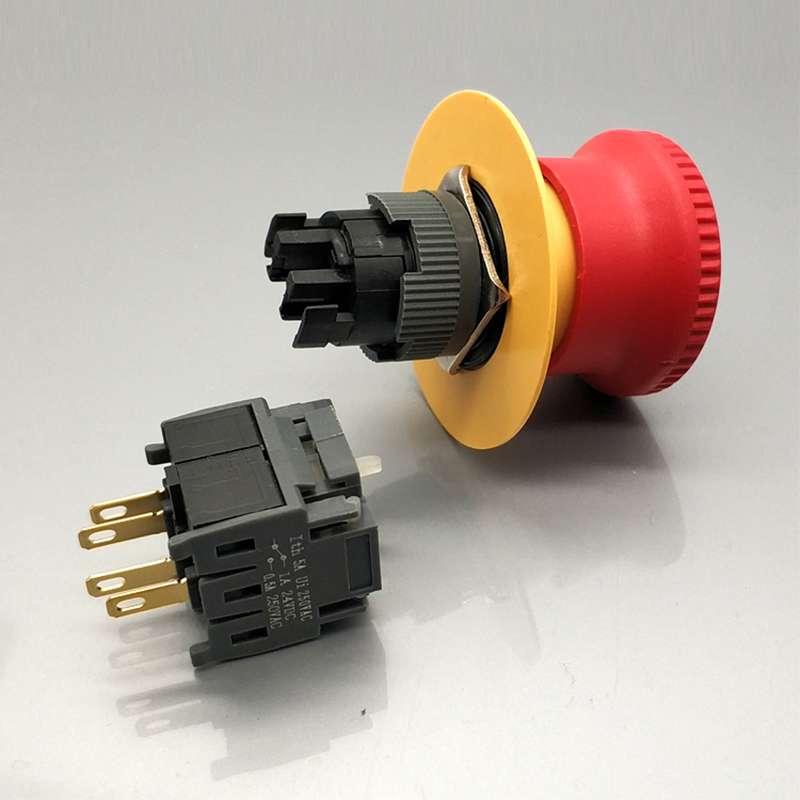

  • The emergency stop can be divided into two parts, easy to disassemble and assemble
  • Using pure silver high-thickness contacts, better conductivity and more efficient work

Specifications of Lockable emergency stop button

Product name:   Lockable emergency stop button
 Model:   F16-A12
Degree of protection:   IP65 Watertight/Oiltight
 Contact configuration:   Single pole, double pole
Max. voltage:   250V AC/DC Thermal current:   5A
Min. applicable load:
  5V AC/DC, 1mA Contact material:   Gold plated silver
Terminal style:
  .110'' Solder/Quick connect Operating temperature:   -25℃ to +55℃
Operating humidity:
  45 to 85% RH Contact resistance:   50MΩ max.
Insulation resistance:
  100MΩ min (500V DC megger) Vibration resistance:   10 to 55HZ, amplitude 1.2mm p-p
Degree of protection:   ＞10g Electrical life:   100,000 operations min (at full rated load)
Mechanical life:

 Maintained/Momentary: 1,000,000 operations min

 Selector/Keylock: 250,000 operations min




Application of Emergency stop switch suppliers

F16 series buttons are suitable for remote control of electromagnetic starters, contactors, relays and other electrical circuits with AC 50Hz (or 60Hz) 380V and below, DC voltage 220V and below.
