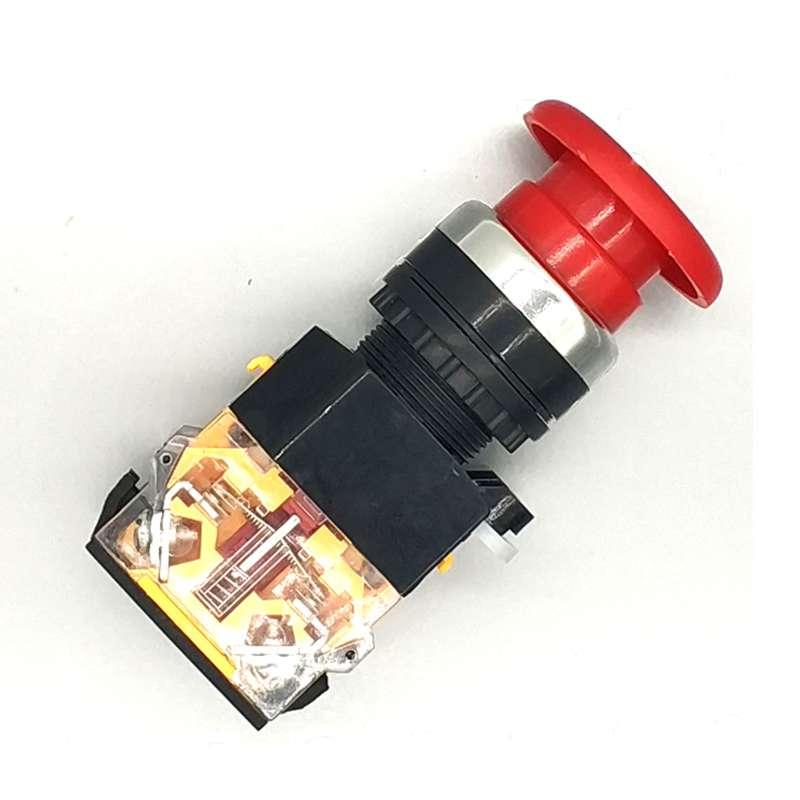

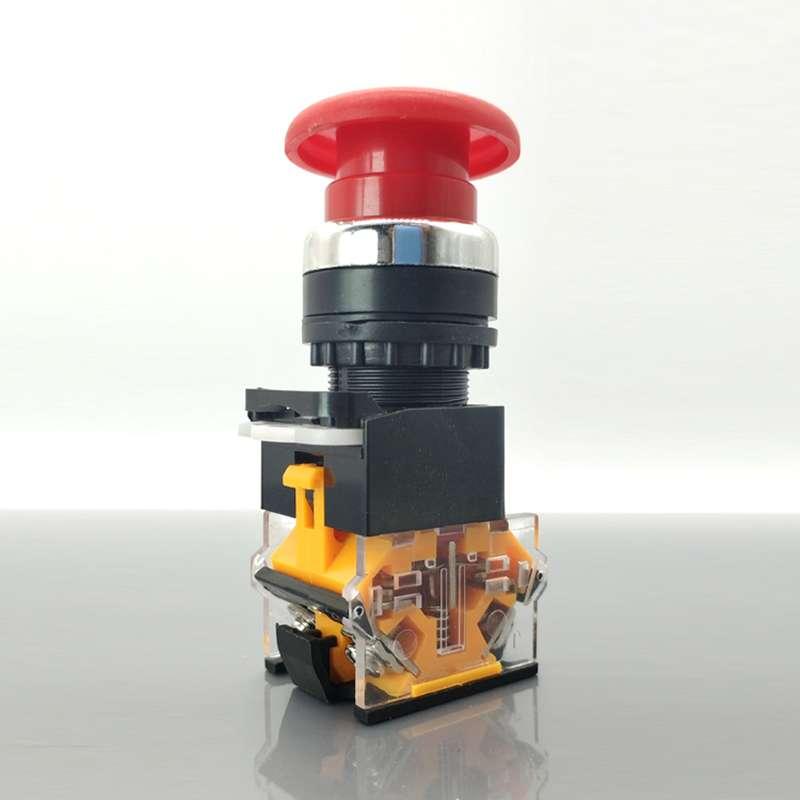

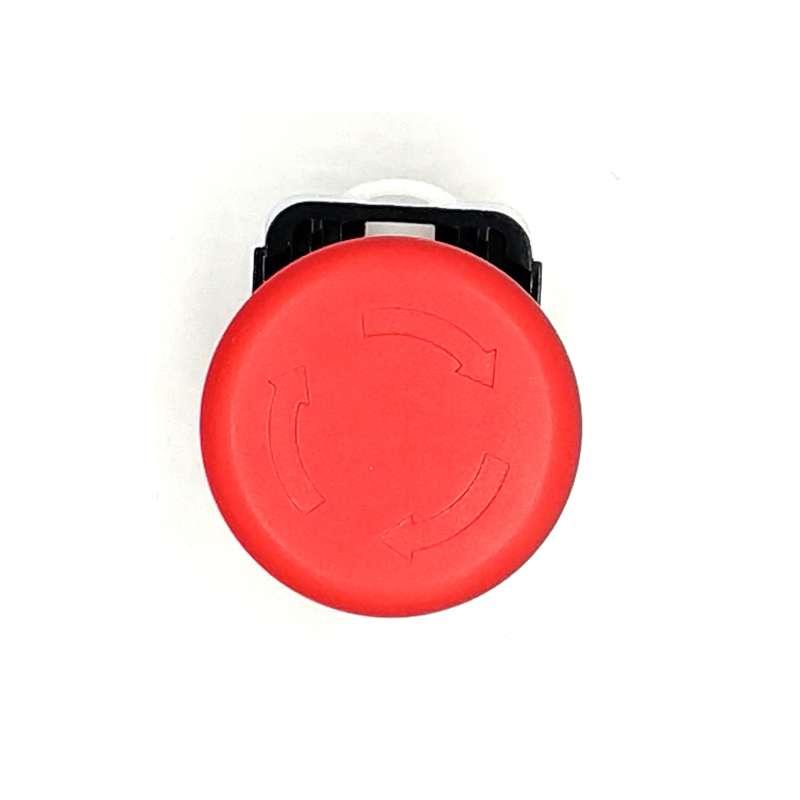

22mm red mushroom electrical emergency stop button switch

The emergency stop switch is usually used in emergency situations to directly disconnect the power supply of the control circuit, so as to quickly stop the equipment to avoid abnormal operation. With a good sealing performance that can be used in harsh environments such as gas, coal dust, smoke, and moisture.

  • Brand:

    OLINK
  • Item no.:

    LA38-11ZS
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Yellow & black & red
  • Min order:

    40
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    7

22mm red mushroom electrical emergency stop button switch


Features of 22mm emergency stop button

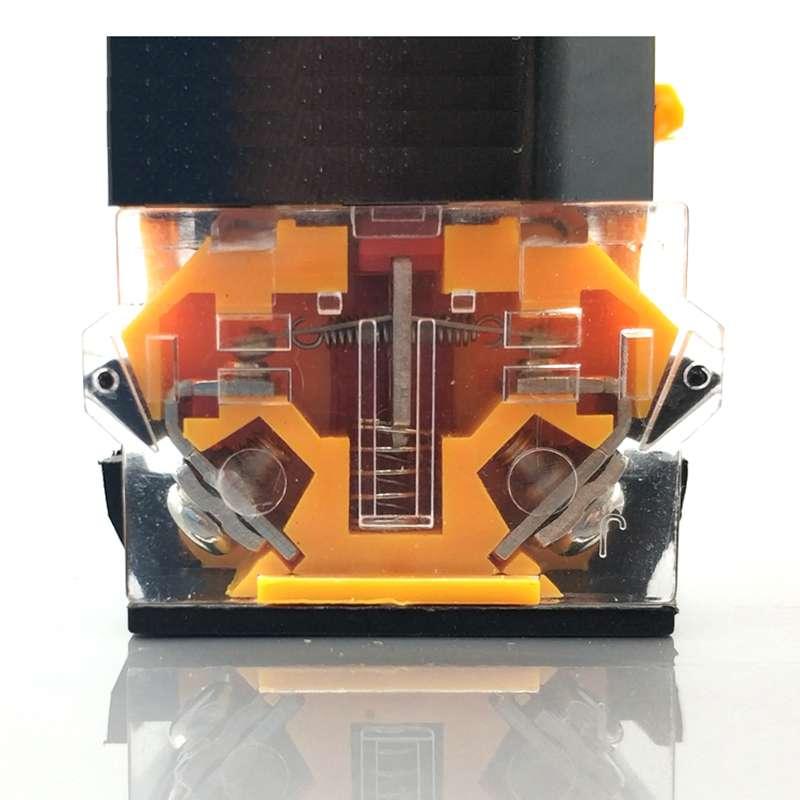

  • The original LA38 series push button switch with double-block moving contact adopts a shrapnel-type action mechanism, with the self-cleaning function of the double-block moving contact, the contact is accurate and reliable, and the arcing performance is good. The contact types can be combined arbitrarily.

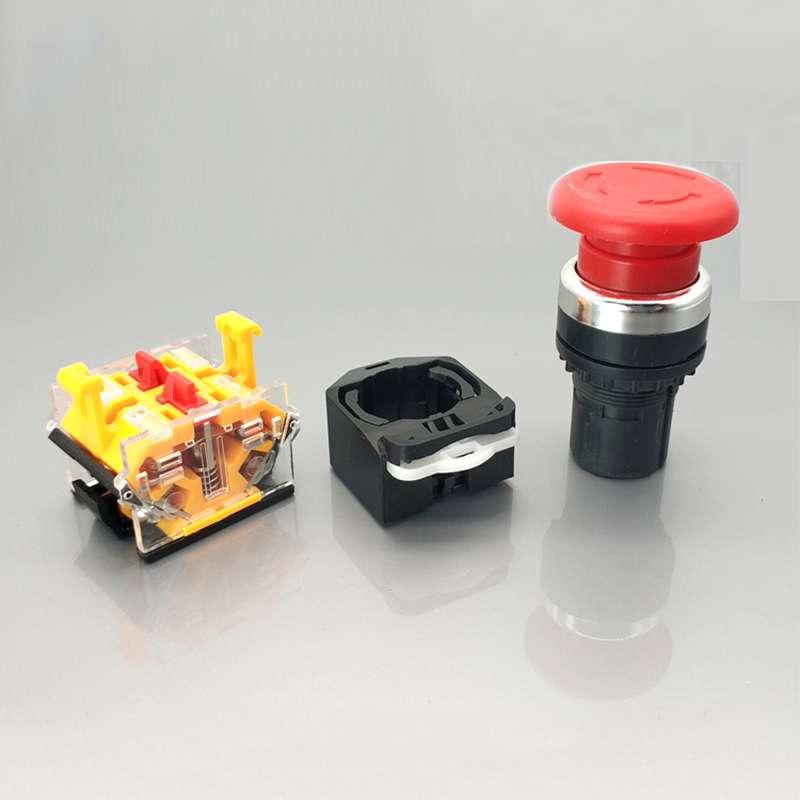

  • The styles are diversified. The original switch of the LA38 series button is the same as the installation structure. As long as different operating heads are configured, different appearances and functions can be obtained, which is bright, beautiful and generous.
  • LEDG light source illumination, LA38 series illuminated buttons use LED light source illumination, which has the characteristics of bright color, long life and high reliability.

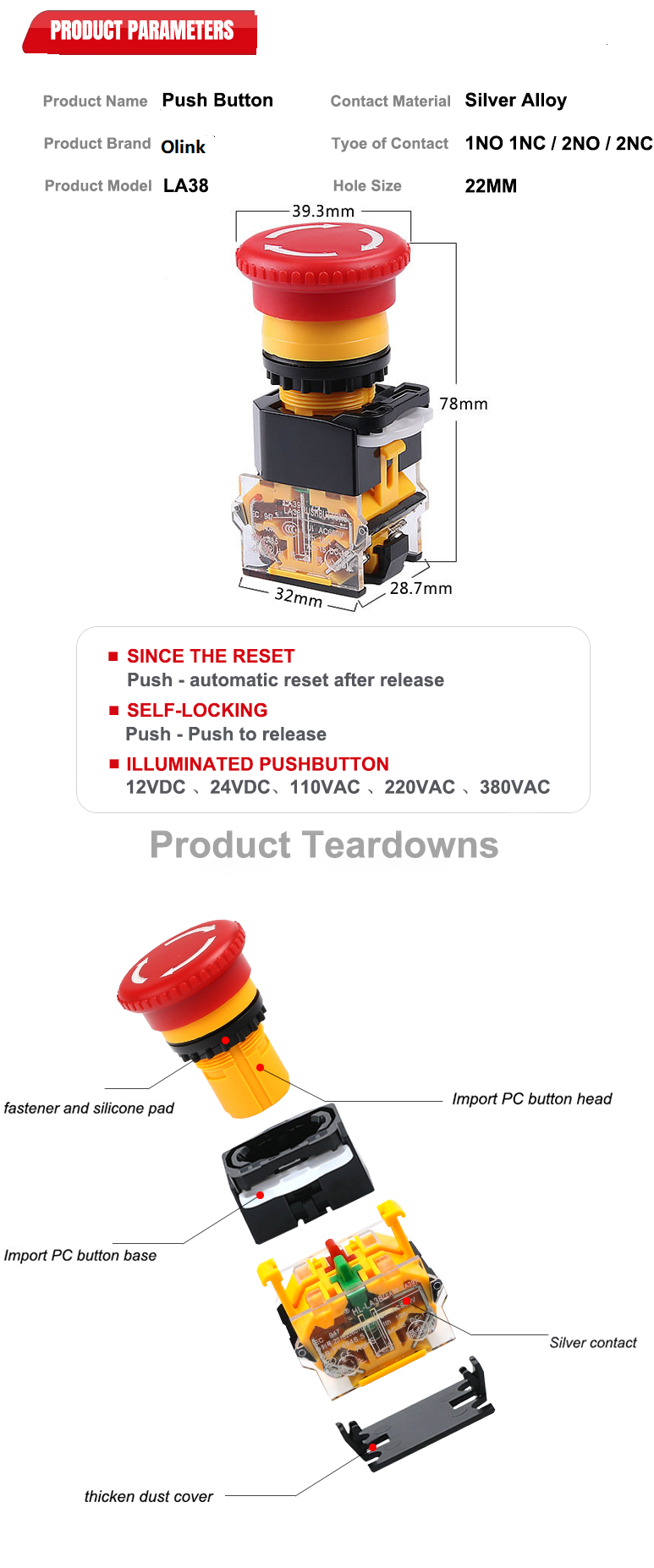

Specifications of 22mm emergency stop button

Product Name:

 Emergency stop button switch

Product Model:   LA38-11ZS
Switch Rating:   AC-15A 220V/6A 380V/4A 660V Switch Function:   1NO1NC, Momentary
Contact resistance:   ≤50mΩ Insulation resistance:   AC 2500V 50HZ

Application of Mushroom emergency stop button switch

LA38 series buttons are suitable for remote control of electromagnetic starters, contactors, relays and other electrical circuits with AC 50Hz (or 60Hz) 380V and below, DC voltage 220V and below.
