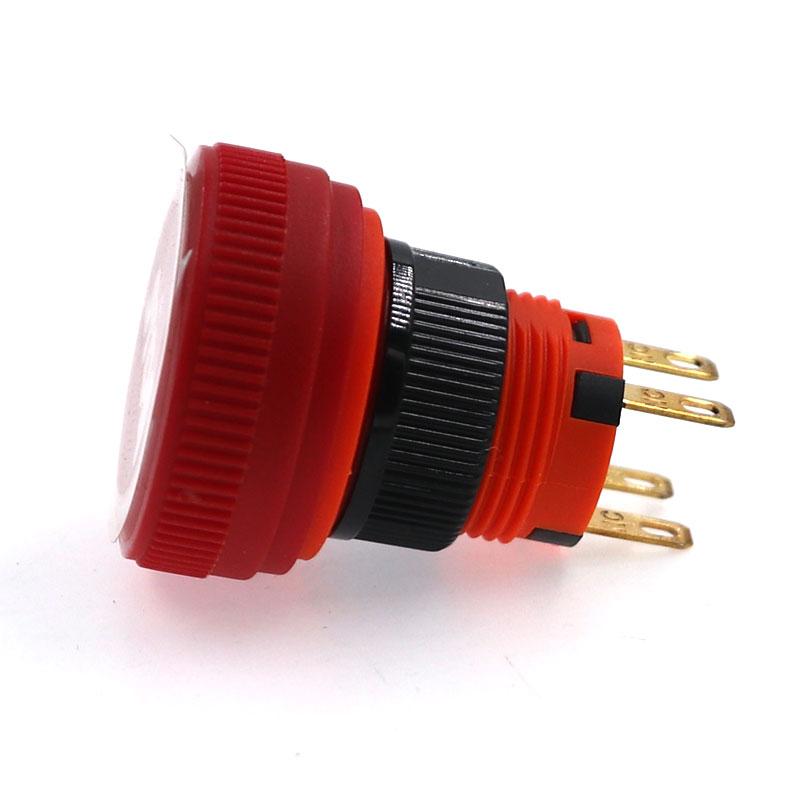

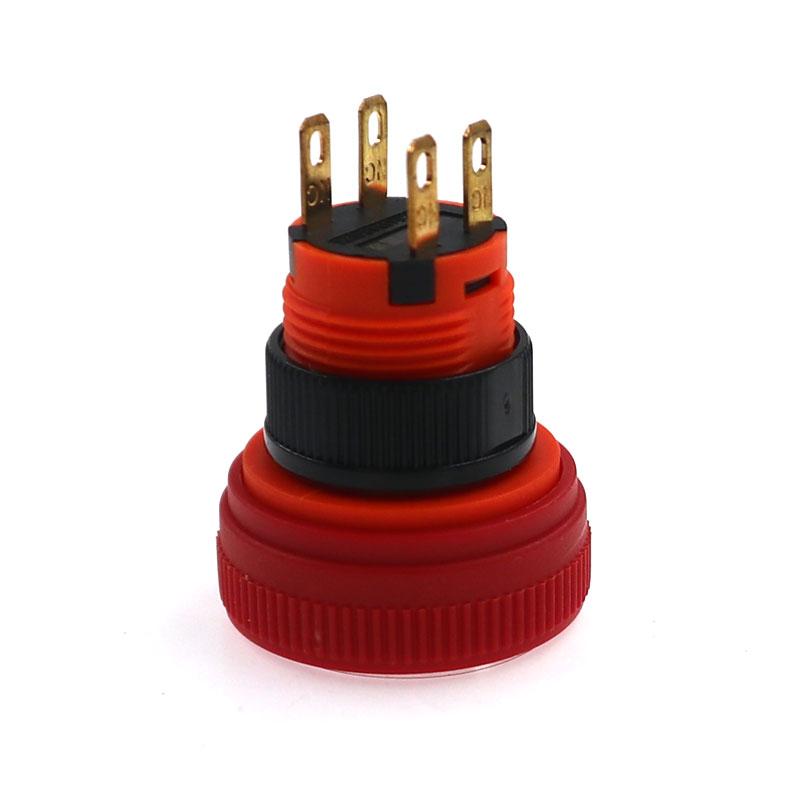

16mm IP65 Waterproof Emergency Selector Switch Switch Plastic Mushroom Emergency Stop Switch

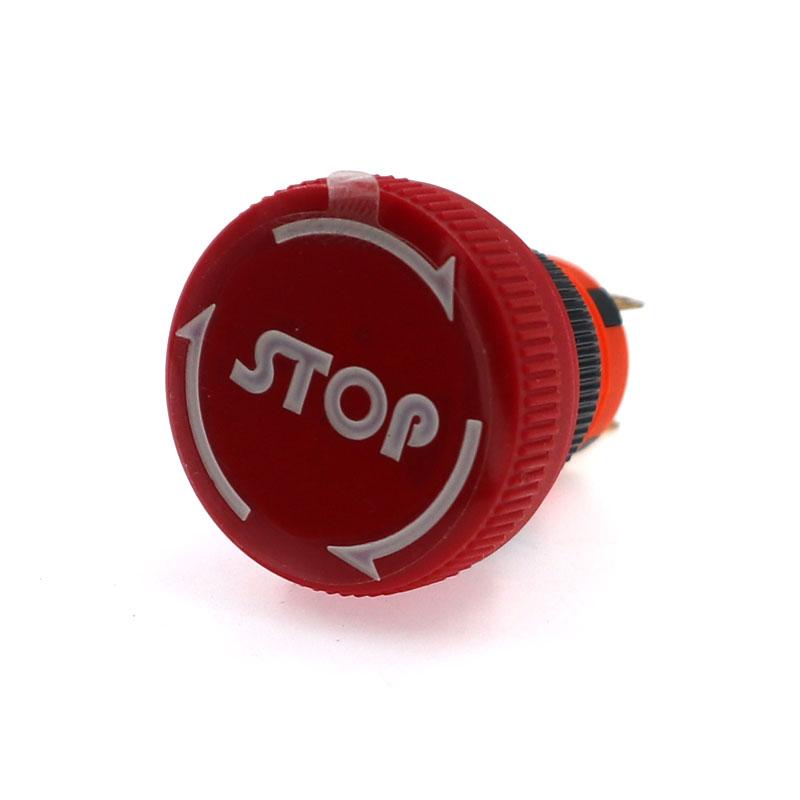

OLINK 16mm High Current Plastic Mini Stop Emergency Button Switch Mushroom Head With Arrow Latching Flame Retardant PA66.

  • Brand:

    OLINK
  • Item no.:

    LB16SM
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Sliver, other colors(OEM)
  • Min order:

    40
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    3

  • SM Type Anti Slip Design,With Super Self-Locking Performance Comfortable Operating Feel;
  • With Super Metal Texture And High-Grade Appearance Design;
  • SM Mini Head,Small And Exquisite;
  • Mechanical Life:Up To 50,000 Cycles;
  • Optional 1NO1NC Function;
  • The Internal Use Of High Quality Silver Contact.
  • It Has Applied Of Many Patents ,CCC,CE ISO9001 Approved.

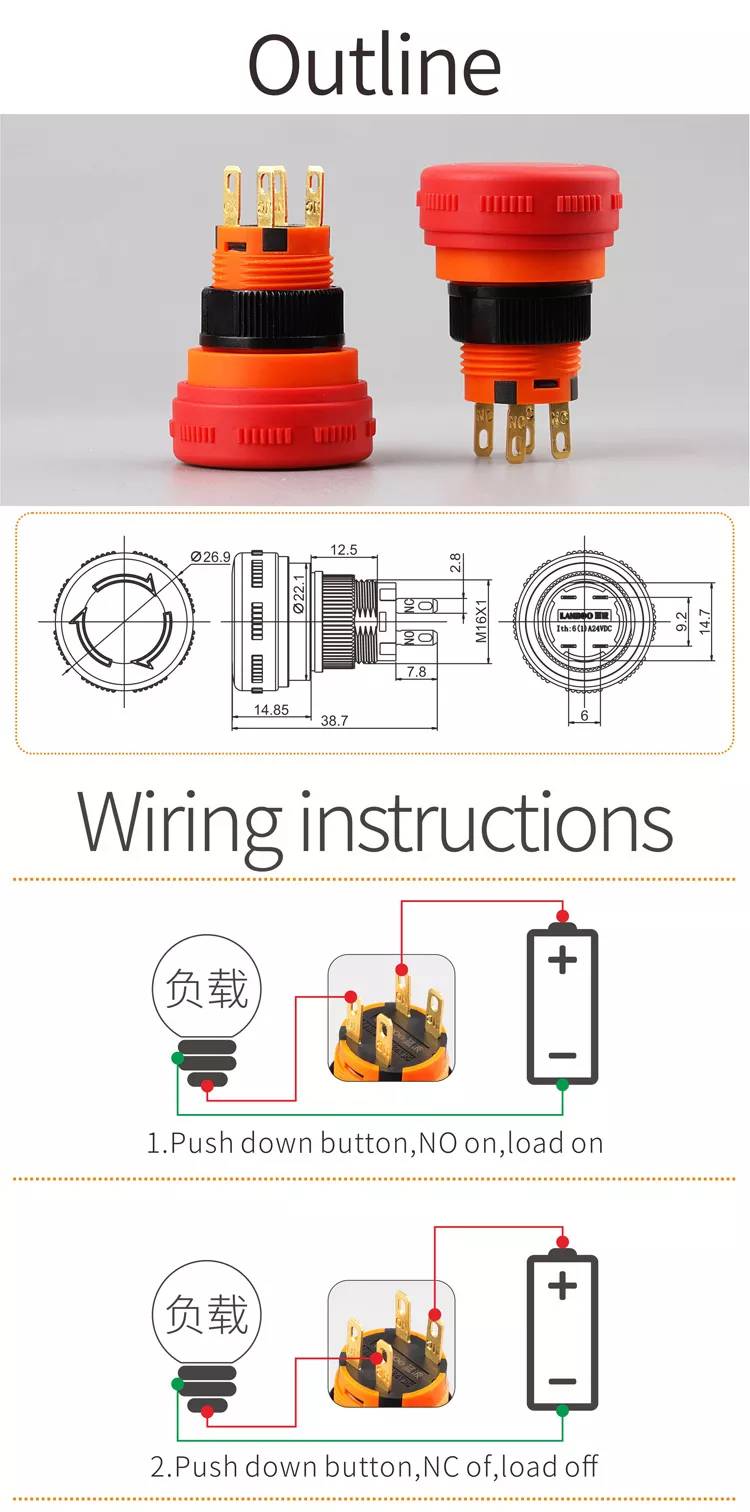

  Specifications

Product Name:

16mm emergency stop switch

Product Model: LB16SM
Switch Rating:

DC12V/7A, DC24V/7A,

AC110V/5A; AC220V/7A

Terminal Type: J pin terminal
Switch Function: 2NO, 1NO1NC, 2NC Environment Temperature: -40℃~+80℃
Contact Resistance: ≤50 mΩ Insulation Resistance: ≥1000 MΩ
Panel Thickness: ≤10 mm Protection Grade: IP65,
Contact Material:

AgSnO2 Silver Oxide(9ROHS)

Button Material: PA66(Rohs), Grade V0 Flame retardant
Body Material: PA66(Rohs), Grade V0 Flame retardant
Base Material: PA66
Lamp Voltage: 2V, 3V, 6V, 12V, 24V, 36V,110V, 220V, 250V Lamp color: Red, White, Blue, Green, Yellow



 Package of metal Push Button switch



Applications: Car modification, battery car modification, computer modification, access control switch, home appliance button, industrial control instrument


 16SM Push button Optional Accessories

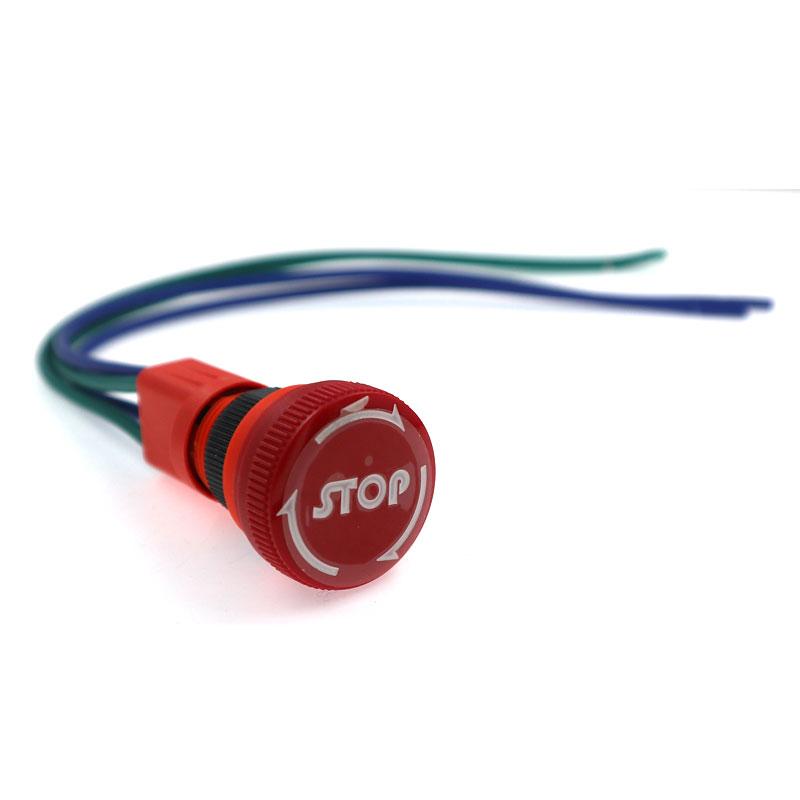

  • 16mm PushButton Switch: The in-line quick socket can eliminate the cumbersome operations of welding and connecting terminals during the switch installation process, and it is more convenient to replace the damaged button switch in the future, saving time and effort.
  • 16mm button switch socket, the default wire length is 150mm, the wire diameter is 1.5mm2, and customization is acceptable.

*If you need more information, you can find customer service through the contact information on the right side of this page.
