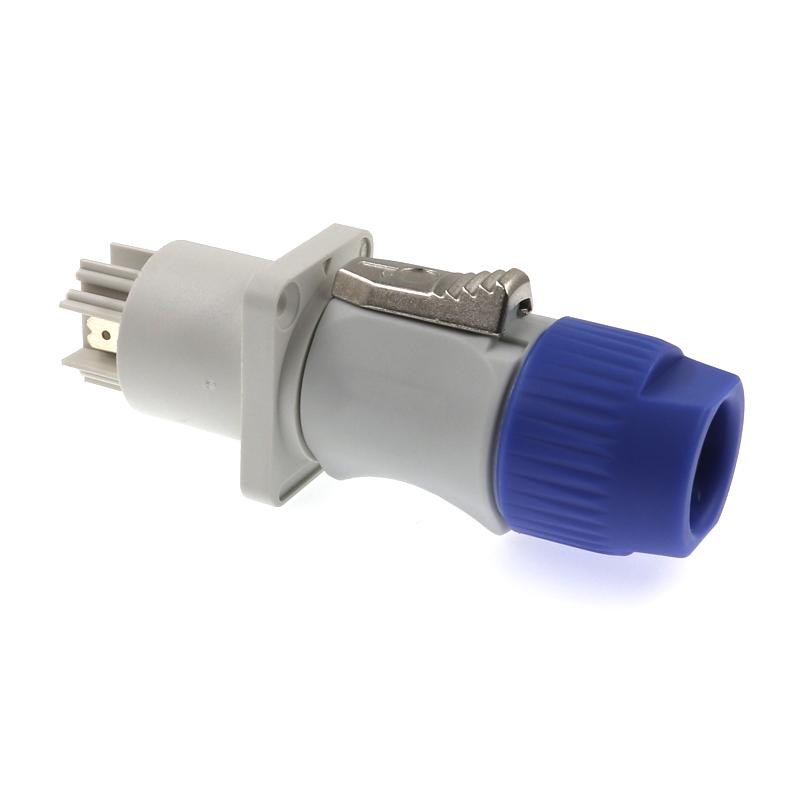

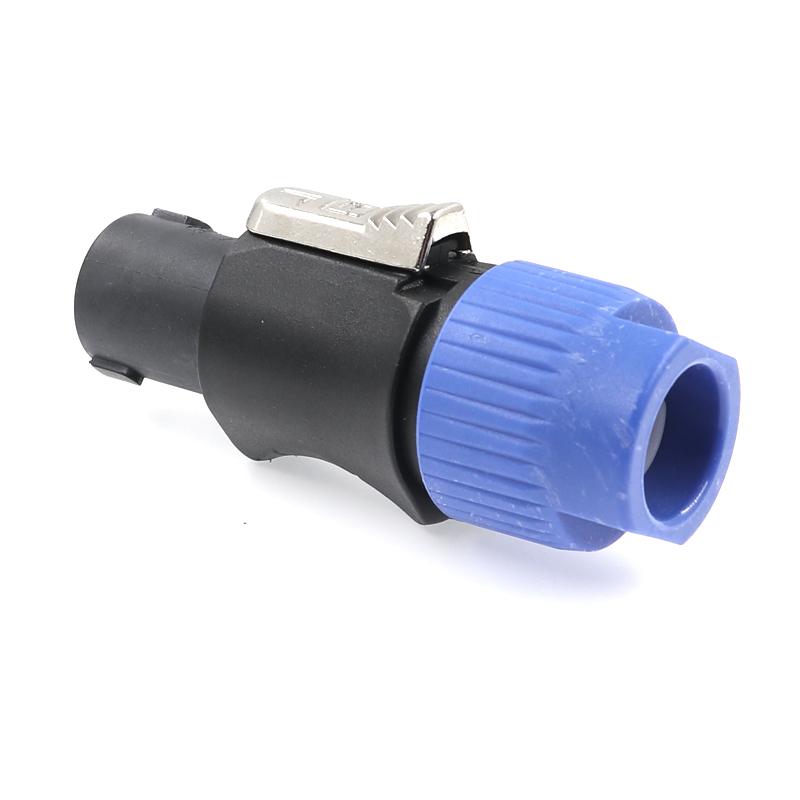

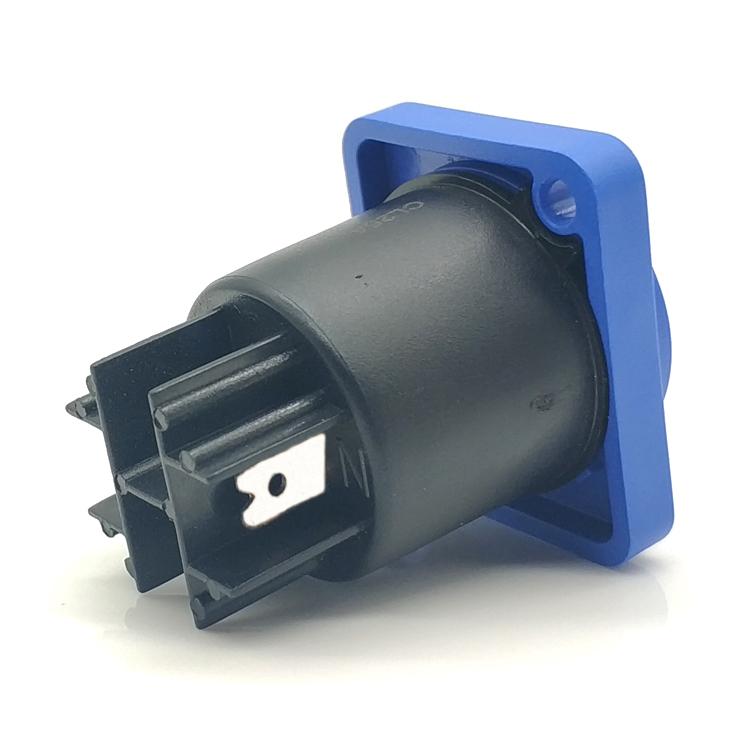

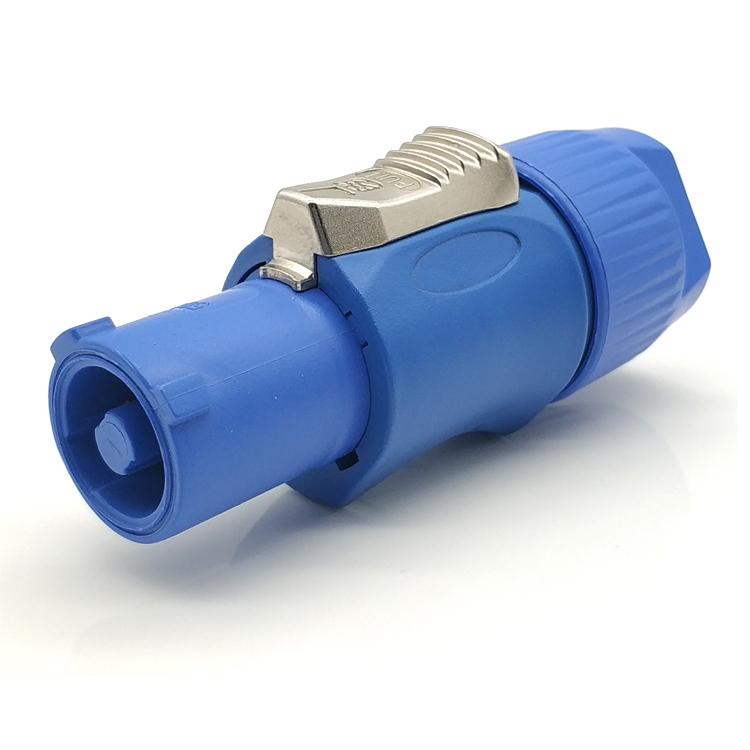

LED-Compatible Powercon Connector

The IP65 Powercon connector is a durable and reliable power connector suitable for outdoor and harsh environments. It offers protection against dust and water ingress, making it ideal for outdoor events and industrial use. The connector features a secure locking mechanism for a stable connection.

  • Brand:

  • Item no.:

  • Payment:

    Wire transfer, Paypal, Western Union, Alipay
  • Product origin:

  • Color:

  • Product weight:

  • Shipping port:

  • Lead Time:


 3 pin 4 pin IP44 IP65 powercon connectors

 YF series connectors, because of its unique locking bolt, which is easy to operate and has a unique blue-gray separable power  nput and output, so effectively distinguish device input and output ports and a power coupling, both portable terminals transform at same time and make it more flexibility. Widely used in Audio, video and power equipment.

Cable specification 2.5mm2~4mm2/14~12 AWG
Diameter range Φ8mm~Φ12mm
Contact diameter × number Φ2.0×3
Rated Current (A) 20A
Operating voltage (AC.V.rms) 500V
Contact resistance <3mΩ
Withstanding Voltage (AC.V) 1 minute 2500V
Insulation resistance >500MΩ
Protection level IP44
Durability >500
Working temperature -40℃~80℃
Connecting mode Latching lock
Cssembly wire Solder&lock screw
Housing, the insulating parts High-performance engineering plastics
Contact material Copper alloy (gold-plated)


3 pin 4 pin IP44 IP65 powercon connectors3 pin 4 pin IP44 IP65 powercon connectors3 pin 4 pin IP44 IP65 powercon connectors3 pin 4 pin IP44 IP65 powercon connectors3 pin 4 pin IP44 IP65 powercon connectors
