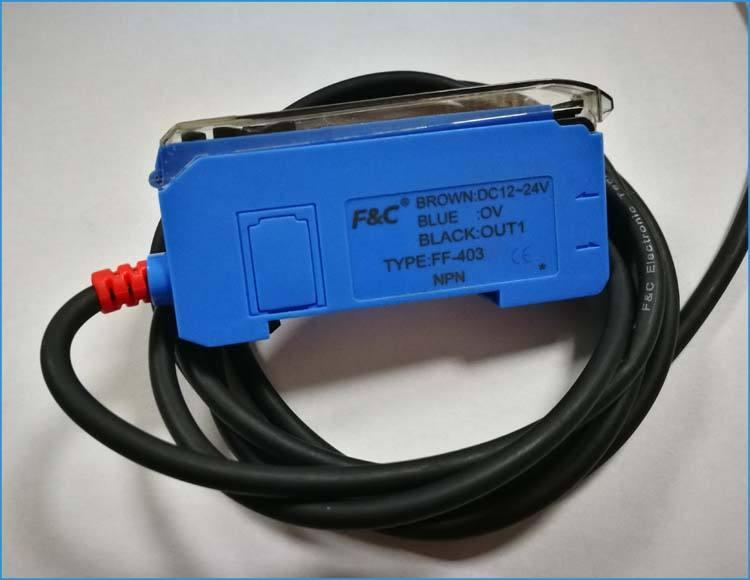

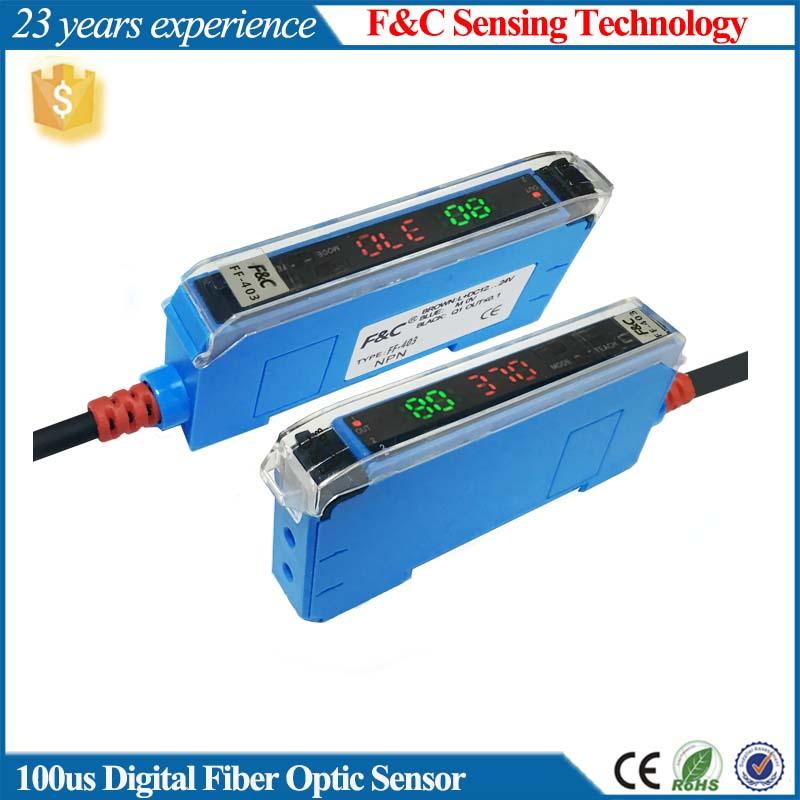

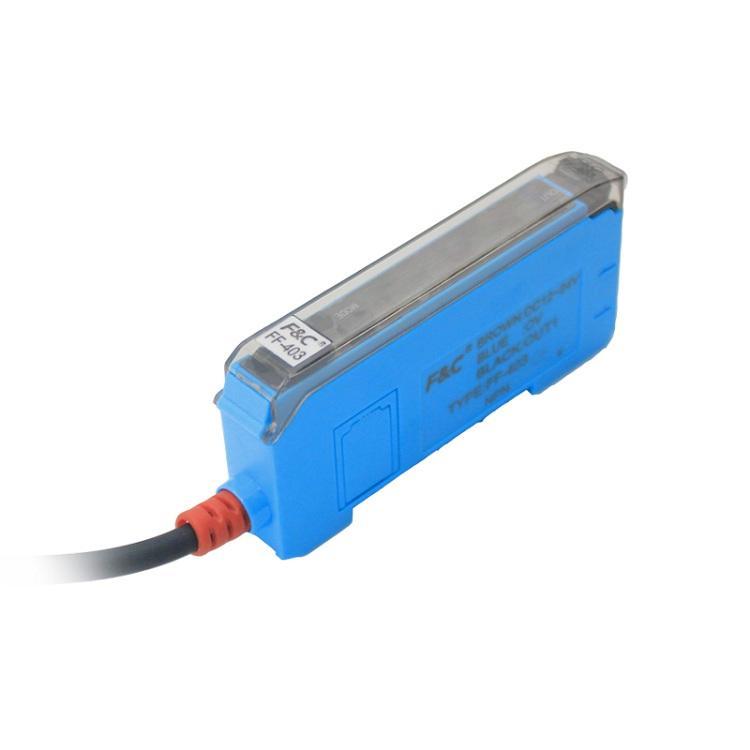

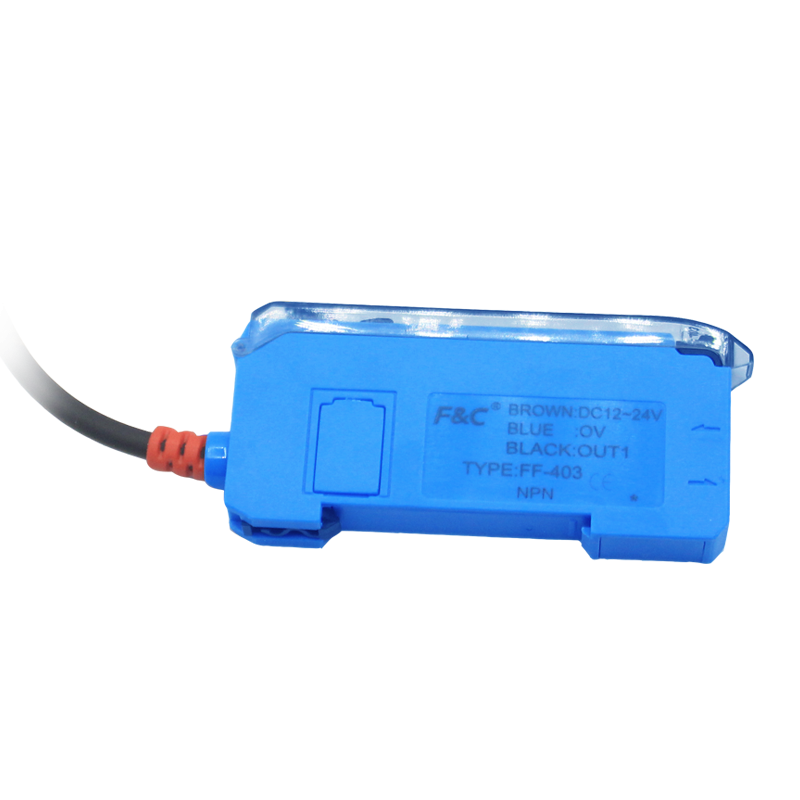

Fiber Amplifier Fiber Optic Amplifier Sensor FF-403

Fiber amplifier-FF-403 series (digital display, simple designed type):

  • Double 4-digit display, green and red two colors, green one is threshold value, red one is lights diffuse value;
  • One key auto setting function, set easily;
  • Better price, high sensitivity.
  • Brand:

    F&C
  • Item no.:

    FF-403
  • Payment:

    Wire transer, West Union, Paypal
  • Product origin:

    China
  • Color:

    blue
  • Product weight:

    50
  • Shipping port:

    Xiamen
  • Lead Time:

    7 days

                                                Fiber amplifier-FF-403 series

Quick Details
Model Number:
FF-403
Place of Origin:
Hunan, China
Brand Name:
F&C
Usage:
Position Sensor, Automation Control Position Sensor
Theory:
Optical sensor
Output:
Switching Transducer
Output Type:
NPN or PNP
Voltage::
12-24VDC
Material:
ABS/PC
Speed:
2ms/1ms/300us/100us
Waterproof::
IP64
Application:
Industrial Automation
Electric Connection:
Directly cabe , M8 connector
Certificatiion:
CE, RoHS
Product name:
Fiber Optical Sensor 0-5V output for Packaging Production Line

Models Light Sounce Diffuse Max Thr-beam Maz Connecting Outputs
FF-402 Dual outputs Red 200mm 1000mm 2M cable or M8 connector type
NPN.NO.NC
FF-402P Dual ouputs Red 200mm
1000mm
PNP.NO.NC
FF-403 Red 200mm
1000mm
NPN.NO.NC
FF-403P Red 200mm
1000mm
PNP.NO.NC
FF-403B Blue 50mm 400mm NPN.NO.NC
FF-403BP Blue 50mm 400mm PNP.NO.NC
FF-403G Green 100mm 600mm NPN.NO.NC
FF-403GP Green 100mm 600mm PNP.NO.NC
FF-403V Red 200mm 1000mm 0-5V DC
FF-403W White 150mm 700mm NPN.NO.NC
FF-403WP White 150mm 700mm PNP.NO.NC
FF-403F infrared 50mm 400mm NPN.NO.NC
FF-403FP infrared 50mm 400mm PNP.NO.NC
FF-403K Remote input red 200mm 1000mm NPN.NO.NC
FF-403KP Remote input red 200mm 1000mm PNP.NO.NC

Working Voltage 12~24VDC±10% P-P ≧10%
Current consumption 400mA Max.
Loading current 100mA Max.at DC24V
Output mode NPN Open collector transistors PNP Open collector transistors
NPN Open collector transistors PNP Open collector transistors
Max input current:100mA Max output current:100mA
voltage:30VDC voltag:30VDC
Residual voltage:1.0VDC below Residual voltage:1.0VDC below
0.4V below(current at 16mA) 1.0V below(current at 16mA)
Operation output: normally open or normally close, can be set by pressed the button.
Short circuit protection: Yes
Self diagnosis Instability detection output when on, the signal last 40ms (cut off the output automatically when output short circuit protection signals continued to short-circuit the disarmament)
Response time/frequency Universal:switch frequency: 1KHz, response time:500μs
Indicatior LED output:(red)     stable:(green, please keep this LED non-flashing)
Time delay function 5ms/50ms/500ms/5s/0s, five choice of setting by button.
Transmission power 100% / 50% / 25% / 12% Transmitter power can be set in different percentage.
Ambient temperature -20 ~ +70°C
Environment humidity 35 ~85%RH
Material Shell: PC+ABS;Cover: Polycarbonate
Annex (Mounting bracket): 1pc

FF-403 fiber amplifier:

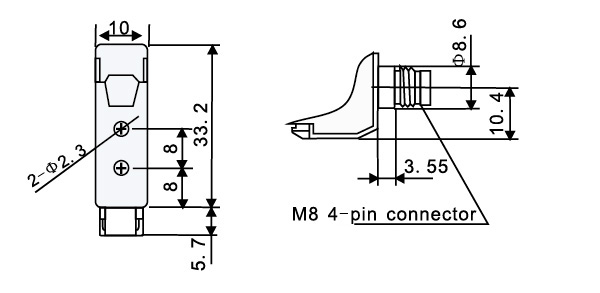

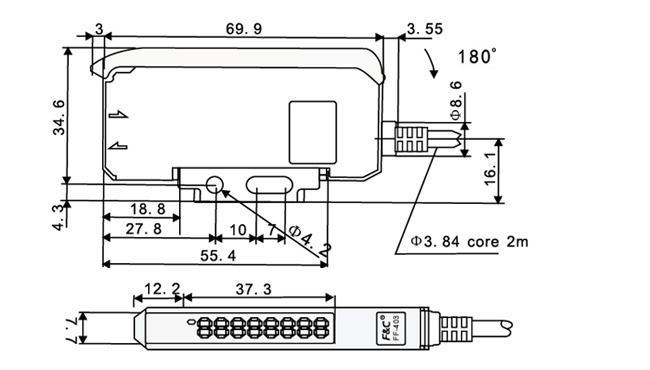

Dimensions(Unit:mm):

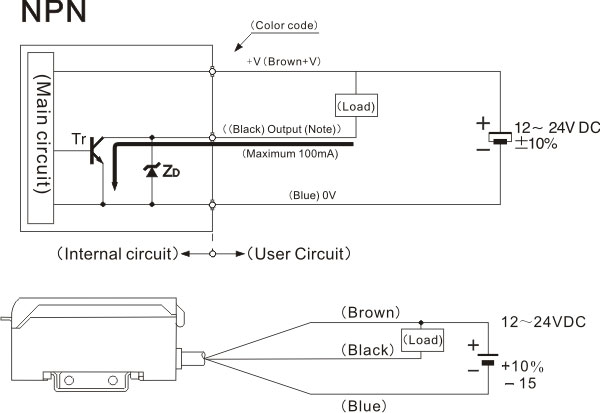

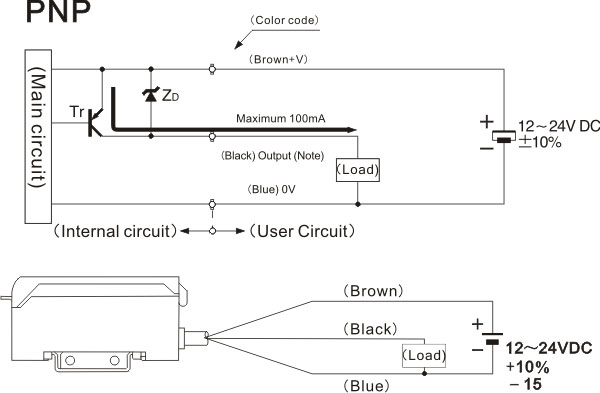

Wiring Schemes:






FF-403 Fiber Optical Amplifier Application:
