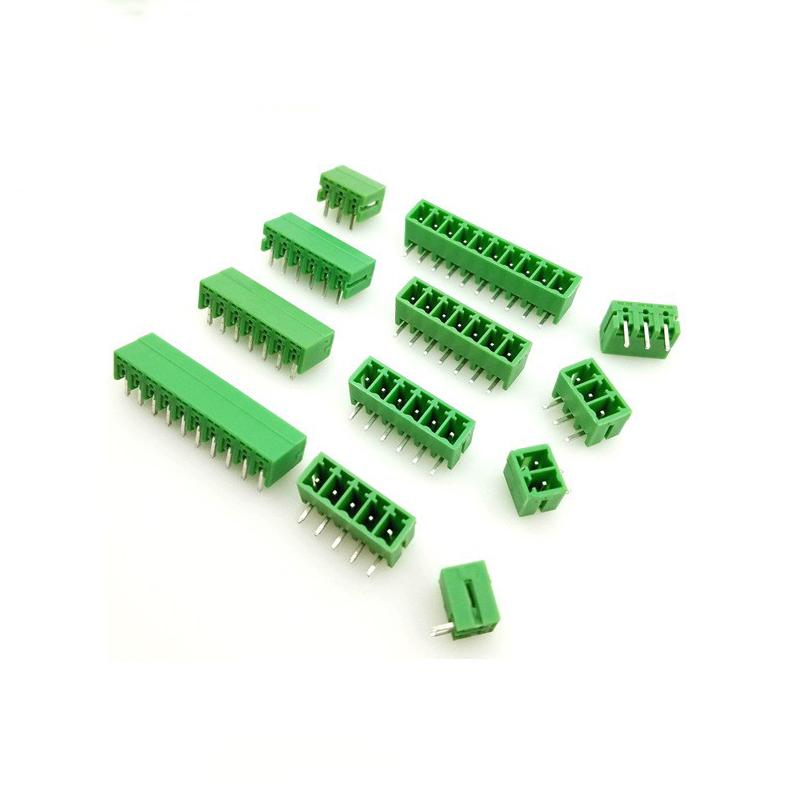

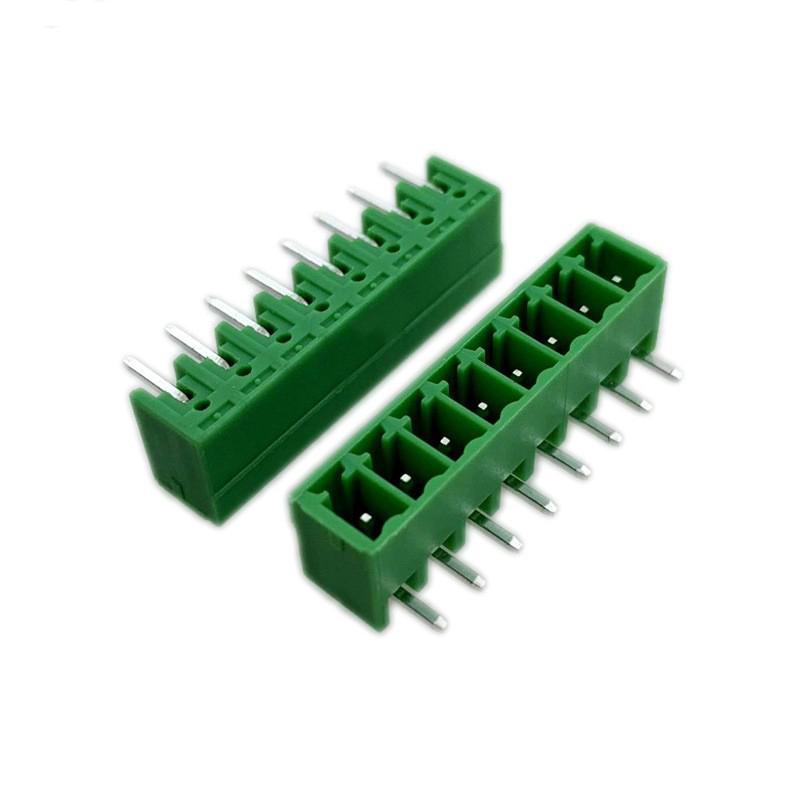

3.5/3.81mm solder pluggable pcb terminal block plug and socket

2EDGR/2EDGV has 6 different pitch: 3.5mm, 3.81mm, 5.0mm, 5.08mm, 7.5mm and 7.62mm. The contact pin has 2-24 pin, material is brass with tin plated. Both these two models can be matched with 2EDGK. Shell color is green, made by PA66.
  • Brand:

    OLINK
  • Item no.:

    2EDGR/V-3.5/3.81
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Green
  • Goods stock:

    50000
  • Min order:

    1000
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    15

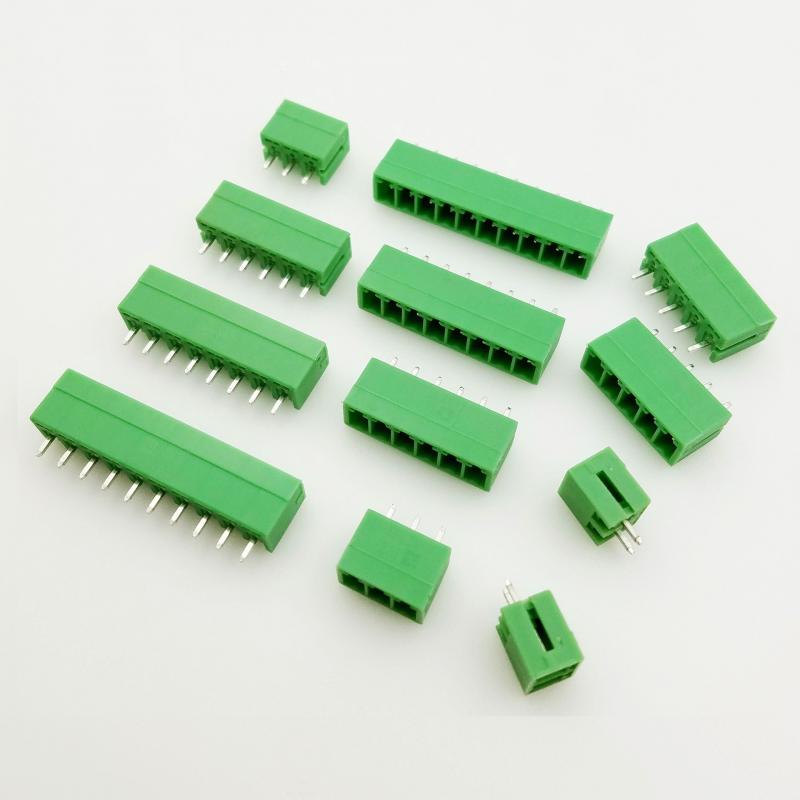

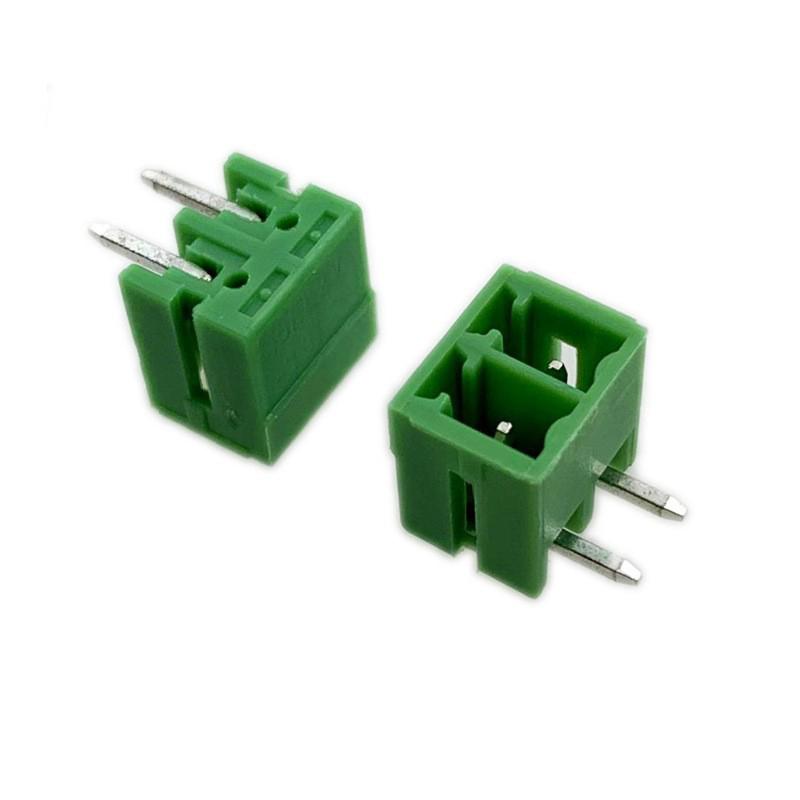

3.5/3.81mm solder pluggable pcb terminal block plug and socket




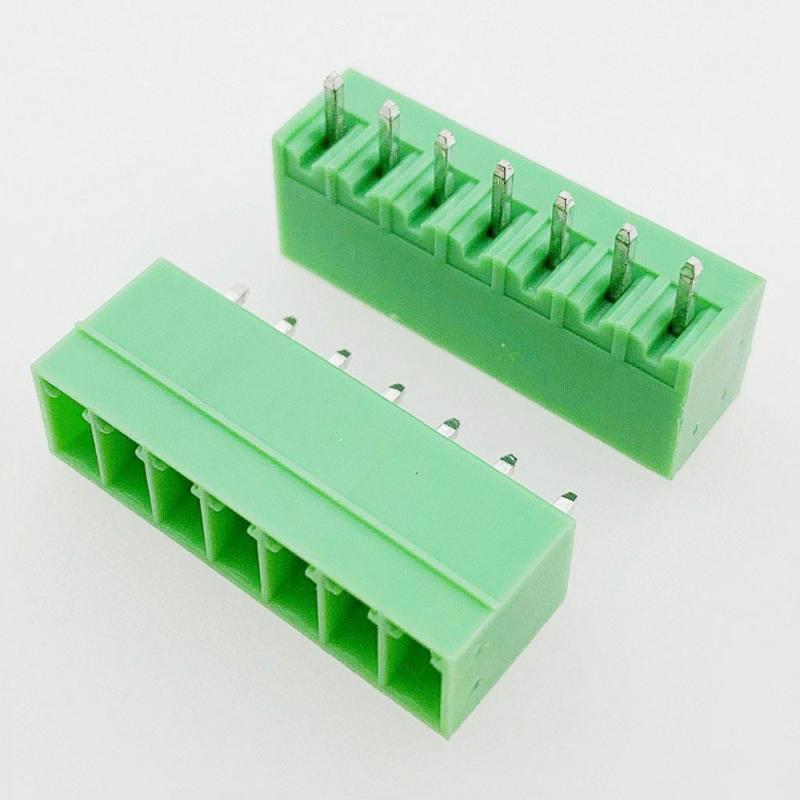

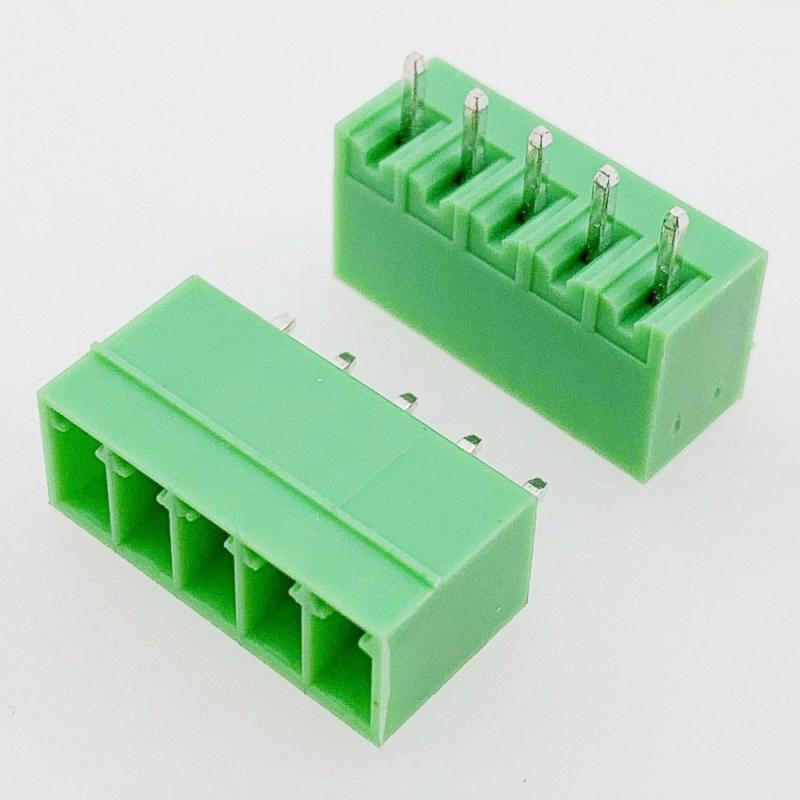

2EDGV-3.5/3.81mm plug-in terminal block 2EDGR-3.5/3.81mm plug-in terminal block

Description of 3.5/3.81 mm terminal block


Pluggable terminal blocks, using universal, easy-to-maintain wire connections, can be applied to almost all types of equipment in industries and markets.  Use screws, springs, and fast wire-free connection.

This model is suitable for all types of wires with a wire range from 28AWG to 12AWG, and the spacing is 3.5mm-7.62mm to choose from.


Specification of Terminal block green


Product name:   Plug in terminal block connector Model:   2EDGR(V)-3.5/3.81
Rated current:   8A Rated voltage:   300V
Withstand voltage:   AC 2000V/1 Min Temperature range:   -40℃ to +105℃
Pitch:   3.5/3.81 mm Poles:   2P-24P
Housing:   PA66 UL94V-0 Pin header:   Brass, tin plated

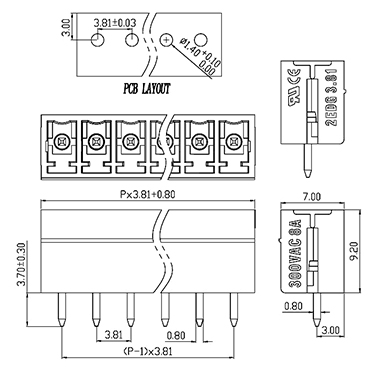

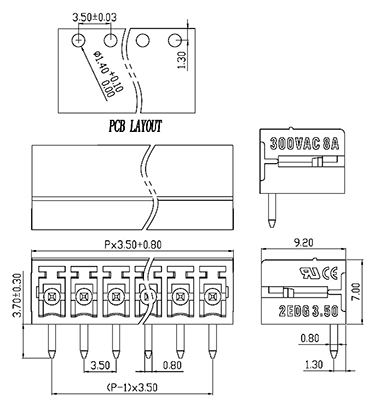

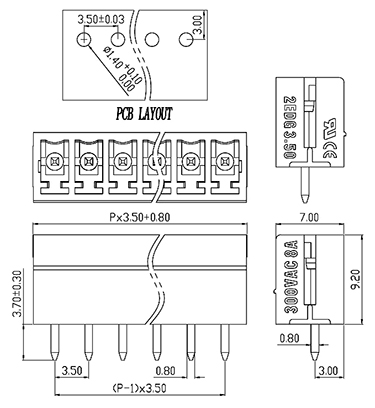

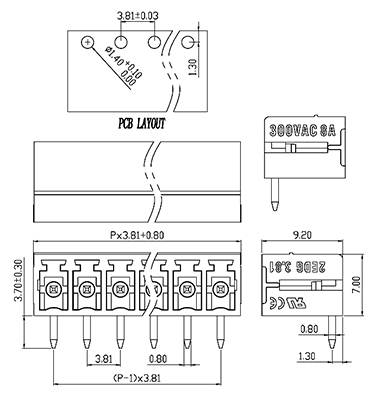

Drawing of 2EDGV/R-3.5/3.81

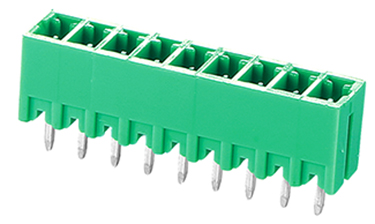

2EDGV-3.5 2EDGV-3.81

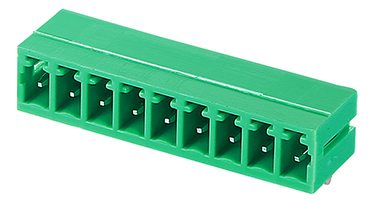

2EDGR-3.5 2EDGR-3.81

Feature of 3.5/3.81 mm terminal block


  • Flexible connection-quick connection, free choice of connection method.
  • Different poles and pitch can be choosen.
  • Both 2EDGR and 2EDGV can match with 2EDGK.
  • Solder terminal block: Can solder in the PCB board.

Application of Single row terminal block


Plug-in terminal blocks are widely used in Industrial Automation, Smart Home/Home Automation, Security, Lighting, NB-IOT, also Rail Transit.
