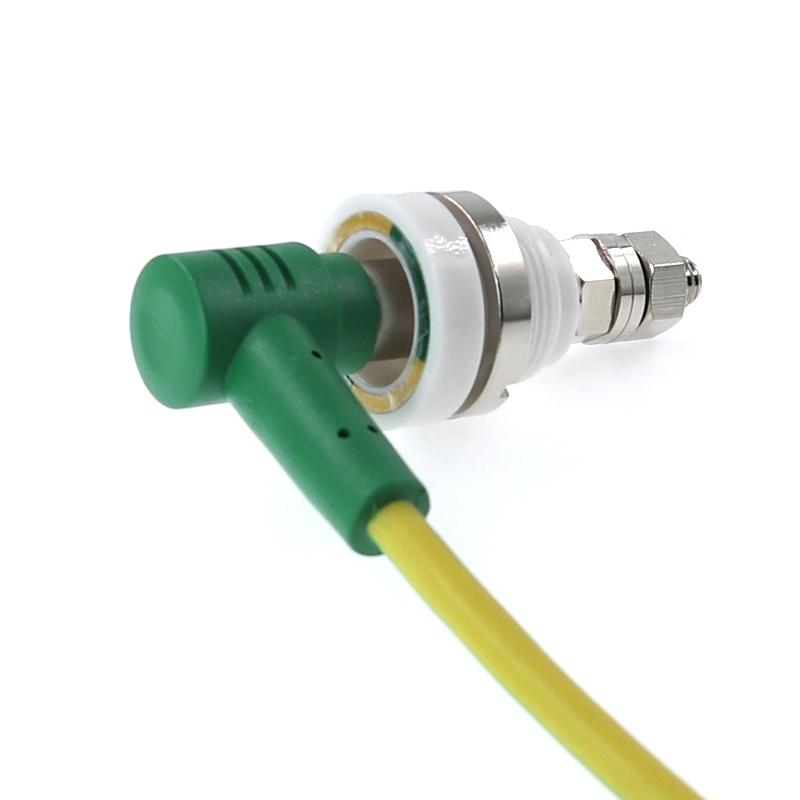

3 Meters Medical Cable Potential Equalization Socket

The grounding terminal is used for medical equipment, easy to plug and unplug, small contact resistance, can be equipped with various specifications of grounding harnesses, can be customized according to customer requirements, high reliability.

Brand:
OLINK
Item no.:
OLD06-02, OLD06-03,
Payment:
Wire transer, West Union
Product origin:
China
Color:
Silver
Min order:
10
Shipping port:
Xiamen
Lead Time:
7 days

Inquiry now

product introduction

Equipotential socket for medical equipment

The special grounding terminal for medical equipment can be plugged in and out quickly with minimal contact resistance, and is equipped with grounding harnesses of various specifications. It can be customized according to customer needs, with fast connection and high reliability. It is suitable for grounding and eliminating potential difference of various medical equipment and precision instruments.

Products And Drawings For Ground Terminal

	OLD06-02 Ground Terminal	OLD06-02 Cut Out Hole Size

	OLD06-03 Ground Terminal	OLD06-03 Cut Out Hole Size

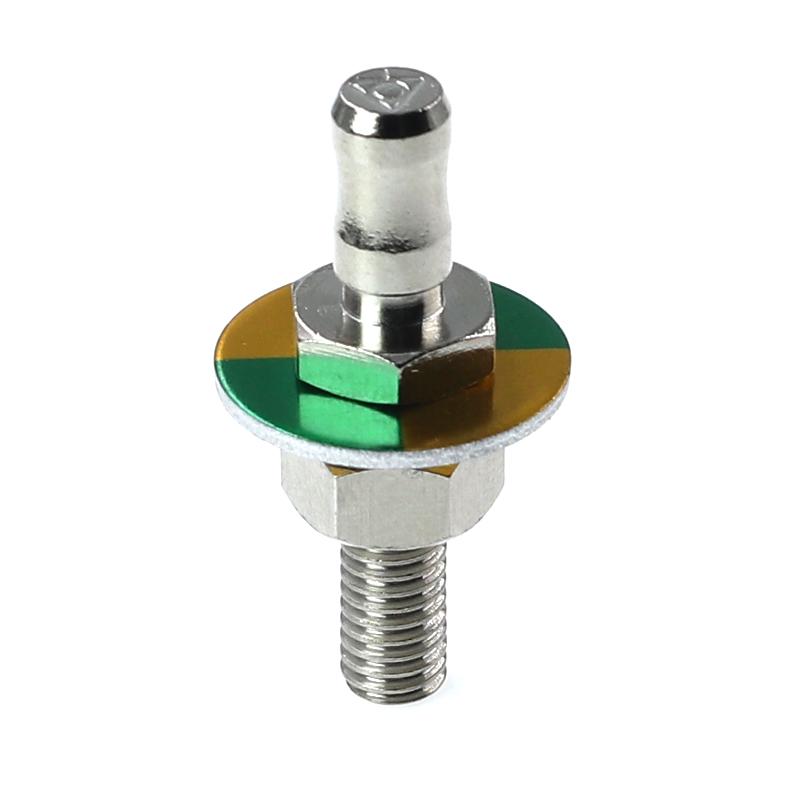

Ground Terminal physical	OLD06-04 Ground Terminal	OLD06-04 Cut Out Hole Size

*OLD06 Type grounding terminal (equipotential terminal) is currently available in lengths of 30mm, 35mm, and 40mm, and customized size products can be provided.

parameter of Ground Terminal
Connector Type	Ground Terminal L=30mm 35mm 40mm
Finishing	Nicke Plating
Accessory Type	Adapter,Distributor
Connection Gender	Male
For Use With	Medical Device
Protection Degree	\
Interface	Potential Socket
Voltage Rating	30V AC/DC
Orientation	Straight
Operating Temperature Range	-30~80(Fixed)°C,-5~80(Flexible)°C
Conductor Material	Copper
Body Material	Brass
Current Rating	10A

Optional grounding wire accessory

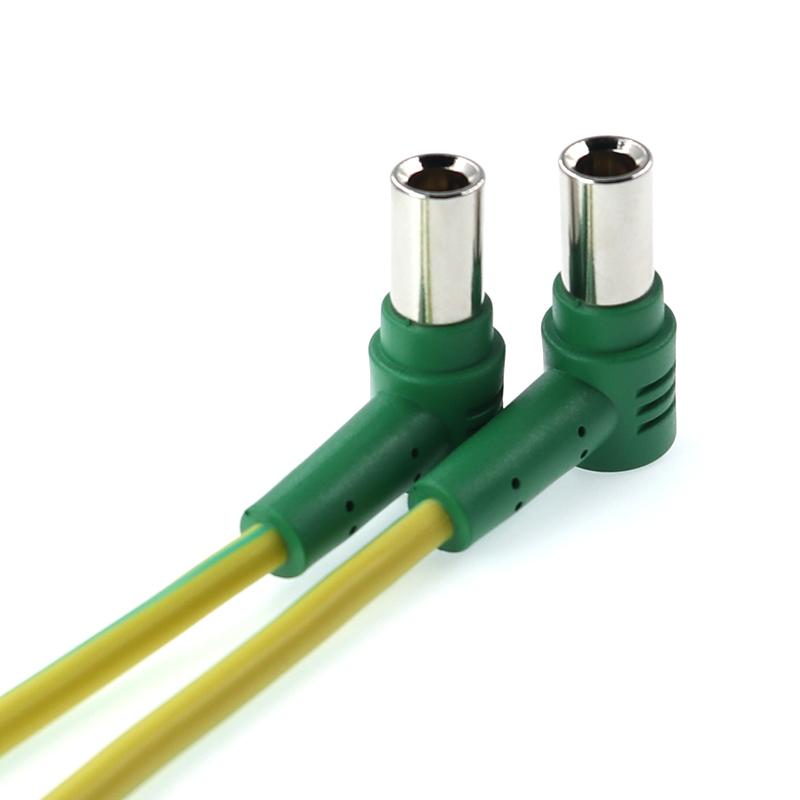

Both heads are OLDD06 adapter interface	One end is the OLDD06 adapter interface, and the other end is the ground clip

*Optional accessories for OLD06 equipotential terminal, one type is OLD06 adapter connector with both ends; the other type is OLD06 adapter connector with one end and ground clamp at the other end. Harness accessories with grounding clips are more convenient and flexible to use. Line length, line diameter and connection structure can be customized.

*For more information, please contact us through the contact information on the right side of the page.
