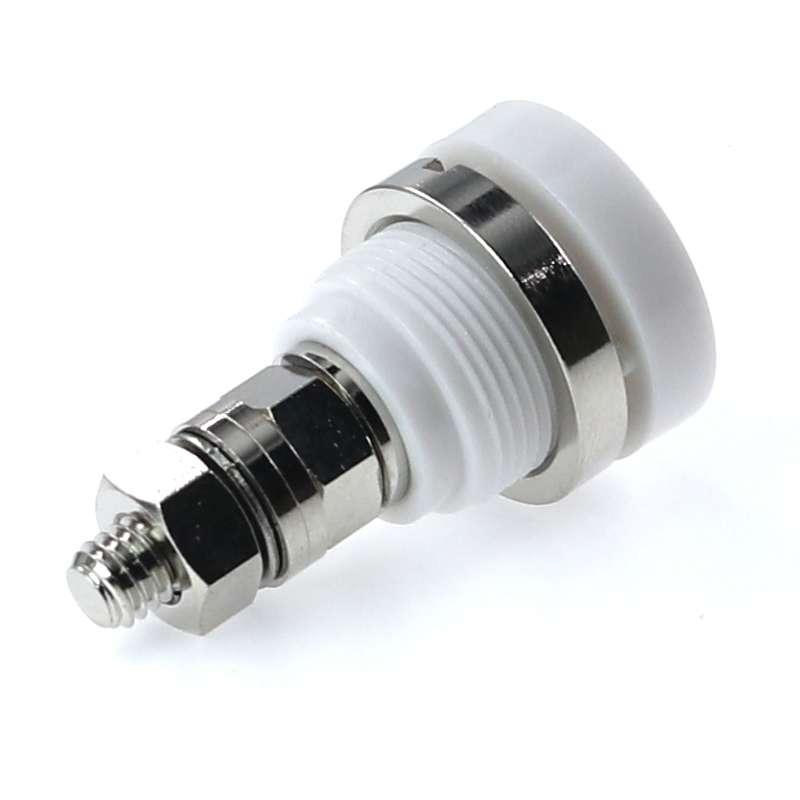

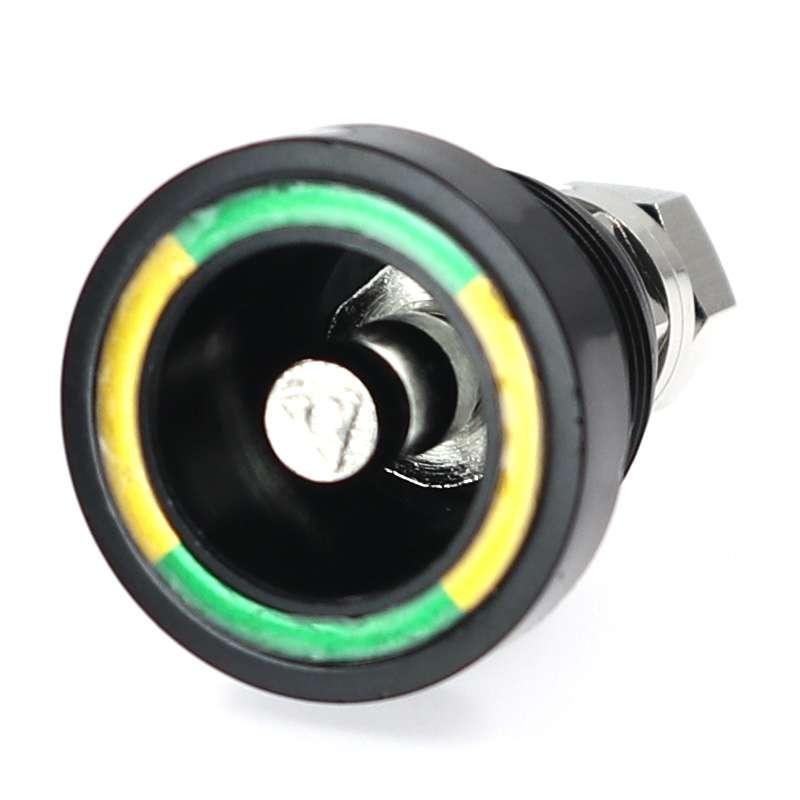

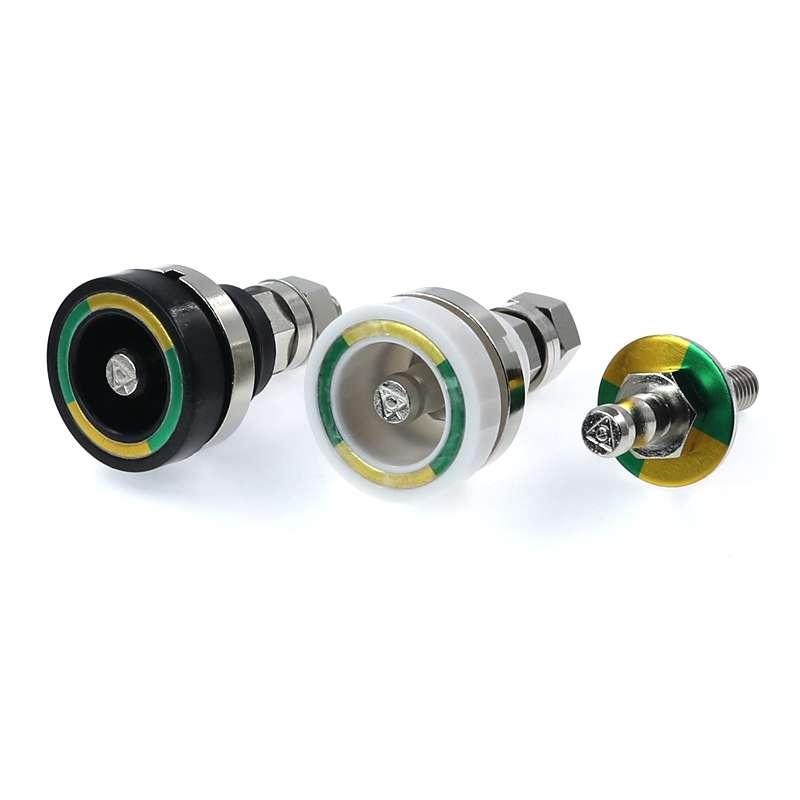

Potential Equalization Socket Connector used for medical equipment

Socket Terminal Connector are used for grounding and eliminating potential difference of various medical equipments and precision instruments.

  • Brand:

    OLINK
  • Item no.:

    OLD06-01
  • Payment:

    Wire transer, West Union
  • Product origin:

    China
  • Color:

    Black. White
  • Shipping port:

    Xiamen
  • Lead Time:

    7 days

Potential Equalization Socket Connector used for medical equipment


Equipotential connectors are used in medical equipment/common connectors used in medical equipment/grounding terminals used in medical equipment are mainly used for grounding in medical equipment, which can improve equipment detection accuracy, reduce electrostatic interference, and reduce measurement errors.



 Equipotential termina
  Equipotential terminal size


Specification of Socket ground connector


Part Number  OLD06-01
Shell Style/Nodel   Fixed Socket Fixed Type   Inner Fixed
Housing Material   PC Technical Plastic Material Rings Unt Material
 Nickel-Plated Brass
Washing Material
 Nickel-Plated Brass Color Ring Materiel
 Aluminium Alloy Anodizing
Max. Matings
 >5000 Contact Dia.
 6mm
Vtest(Contact-shell)
 2400V Vtest(Contact-Contact)   2000V


Material of Equipotential connectors



Material:

Housing-PC

Rings Nut-Nickel-Plated Brass

Color Ring-

Aluninium Alloy Anodizing


Application of Medical Ground Terminal

Equipotential connectors used in medical equipment/common connectors used in medical equipment/grounding terminals used in medical equipment are mainly used for grounding in medical equipment, which can improve equipment detection accuracy, reduce electrostatic interference, and reduce measurement errors.


Optional accessories


Optional connection harness for medical equipotential connector/grounding terminal, wire length can be customized.
