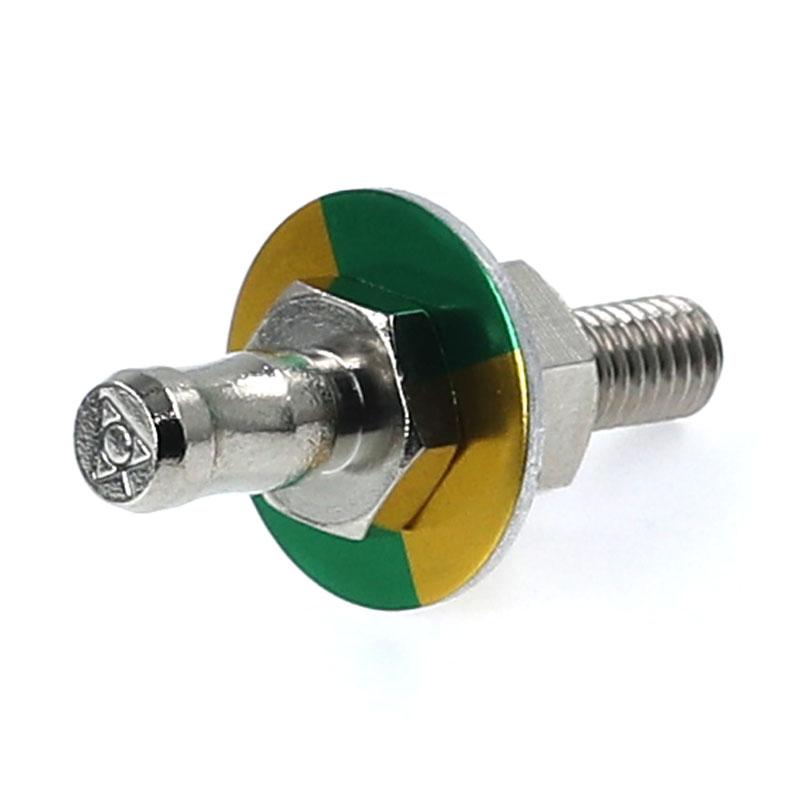

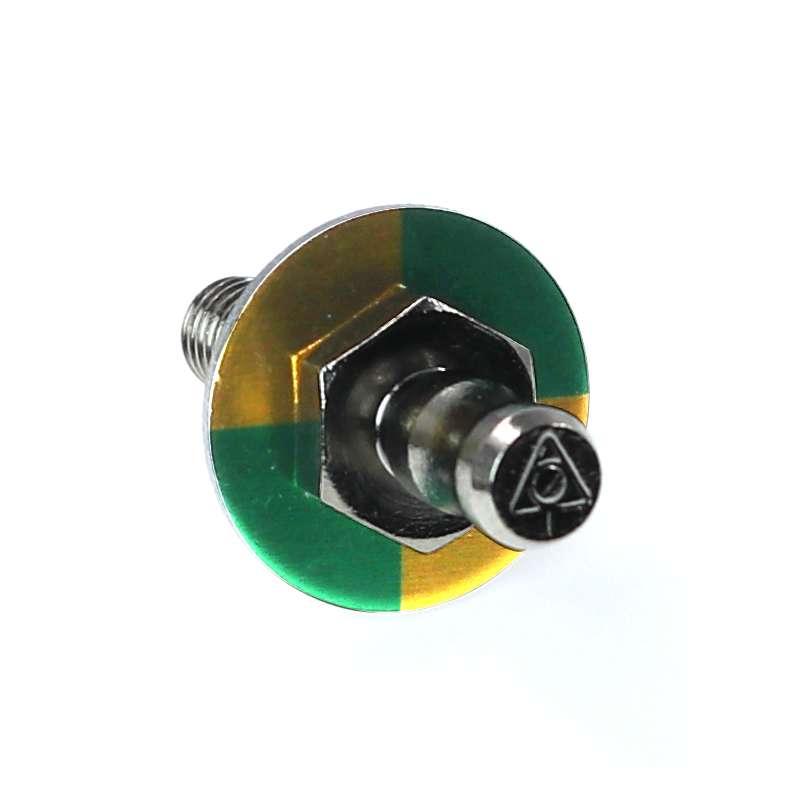

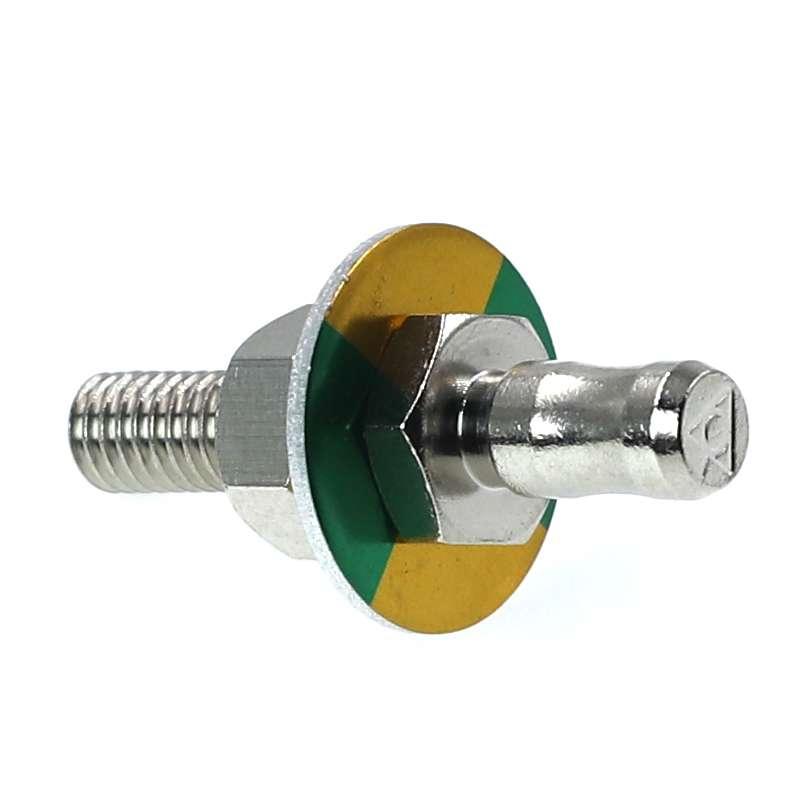

Medical Ground Terminal with Screw and washer L30mm, L35mm, L40mm

The grounding terminal is used for medical equipment, easy to plug and unplug, small contact resistance, can be equipped with various specifications of grounding harnesses, can be customized according to customer requirements, high reliability.


  • Brand:

    OLINK
  • Item no.:

    OLD06-02, OLD06-03,
  • Payment:

    Wire transer, West Union
  • Product origin:

    China
  • Color:

    Silver
  • Min order:

    10
  • Shipping port:

    Xiamen
  • Lead Time:

    7 days

Equipotential socket for medical equipment


The special grounding terminal for medical equipment can be plugged in and out quickly with minimal contact resistance, and is equipped with grounding harnesses of various specifications. It can be customized according to customer needs, with fast connection and high reliability. It is suitable for grounding and eliminating potential difference of various medical equipment and precision instruments.


Products And Drawings For Ground Terminal



OLD06-02 Ground Terminal OLD06-02 Cut Out Hole Size


OLD06-03 Ground Terminal OLD06-03 Cut Out Hole Size

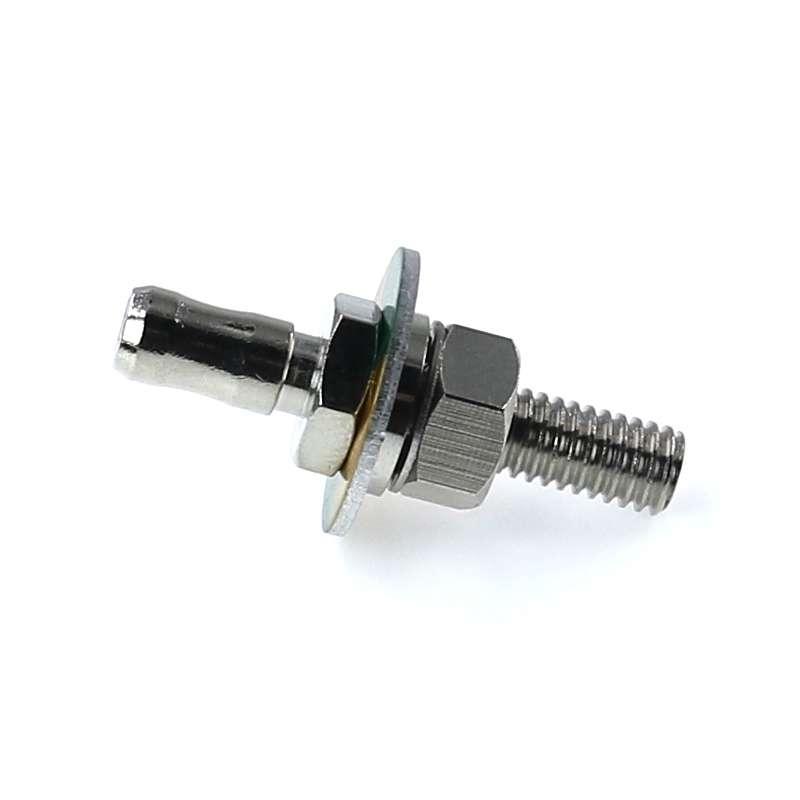

Ground Terminal physical
OLD06-04 Ground Terminal OLD06-04 Cut Out Hole Size

*OLD06 Type grounding terminal (equipotential terminal) is currently available in lengths of 30mm, 35mm, and 40mm, and customized size products can be provided.


 parameter of Ground Terminal
Connector Type
  Ground Terminal L=30mm  35mm  40mm
Finishing   Nicke Plating
Accessory Type   Adapter,Distributor
Connection Gender   Male
For Use With   Medical Device
Protection Degree   \
Interface   Potential Socket
Voltage Rating   30V AC/DC
Orientation   Straight
Operating Temperature Range   -30~80(Fixed)°C,-5~80(Flexible)°C
Conductor Material   Copper
Body Material   Brass
Current Rating   10A

Optional grounding wire accessory


Both heads are OLDD06 adapter interface

One end is the OLDD06 adapter interface, and the other end is the ground clip

*Optional accessories for OLD06 equipotential terminal, one type is OLD06 adapter connector with both ends; the other type is OLD06 adapter connector with one end and ground clamp at the other end. Harness accessories with grounding clips are more convenient and flexible to use. Line length, line diameter and connection structure can be customized.

*For more information, please contact us through the contact information on the right side of the page.
