Equipotential Socket equipotential terminal Ground Connection Connector For Medical Equipment

Medical equipotential terminals are core components in medical electrical systems to ensure the safety of patients and medical staff. They are designed for environments with extremely high electrical safety requirements such as operating rooms, ICUs, and dialysis rooms. Their core function is to minimize the potential difference between different conductive parts such as medical equipment housings, metal pipes, and grounding systems through reliable electrical connections, effectively preventing the risk of micro-electric shocks and avoiding the impact of electromagnetic interference on precision instruments.

Brand:
OLINK
Item no.:
OLD06

Inquiry now

product introduction

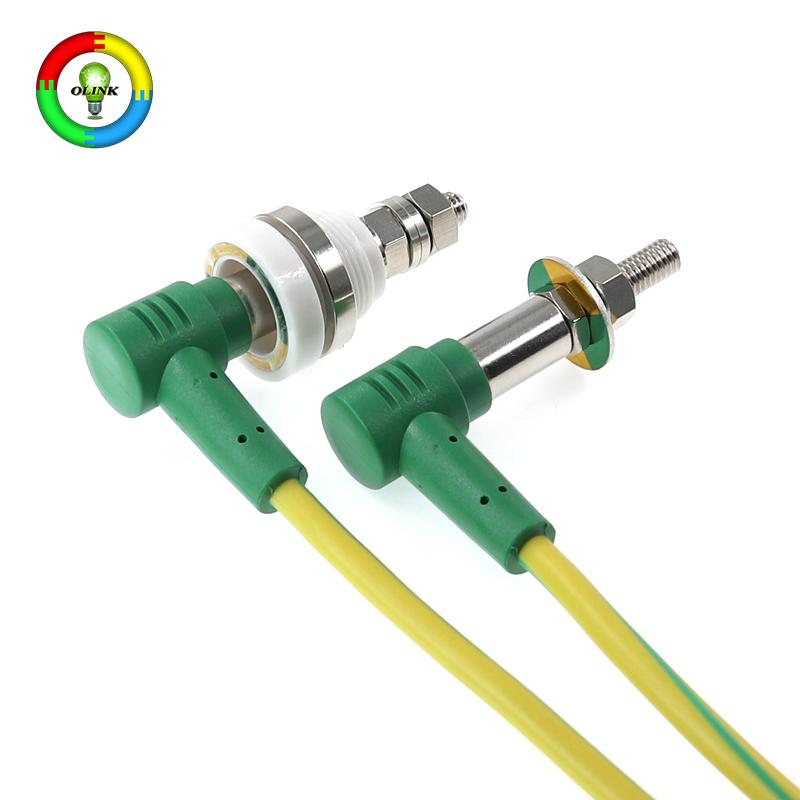

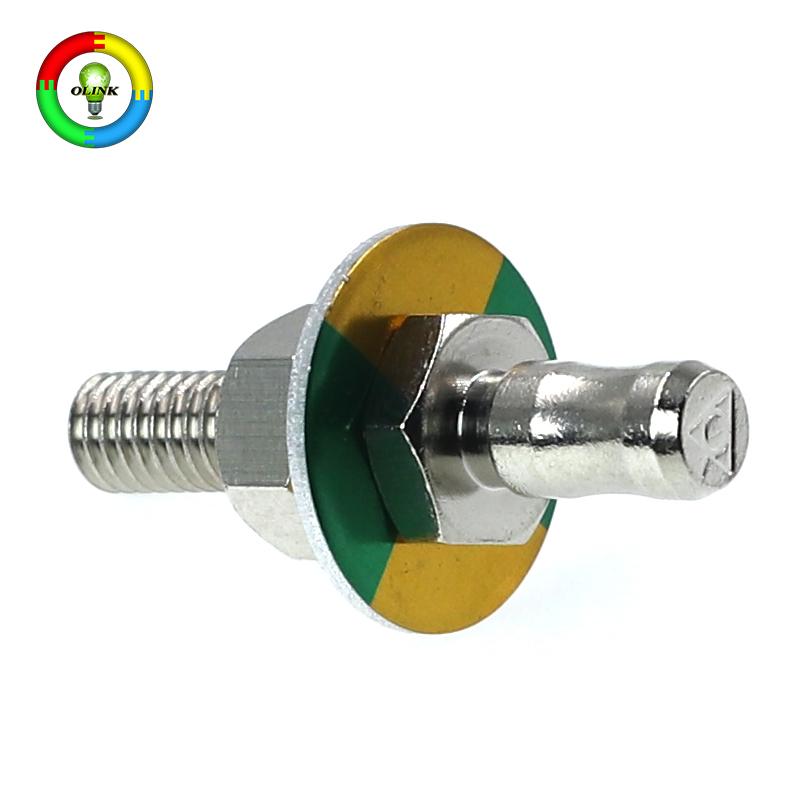

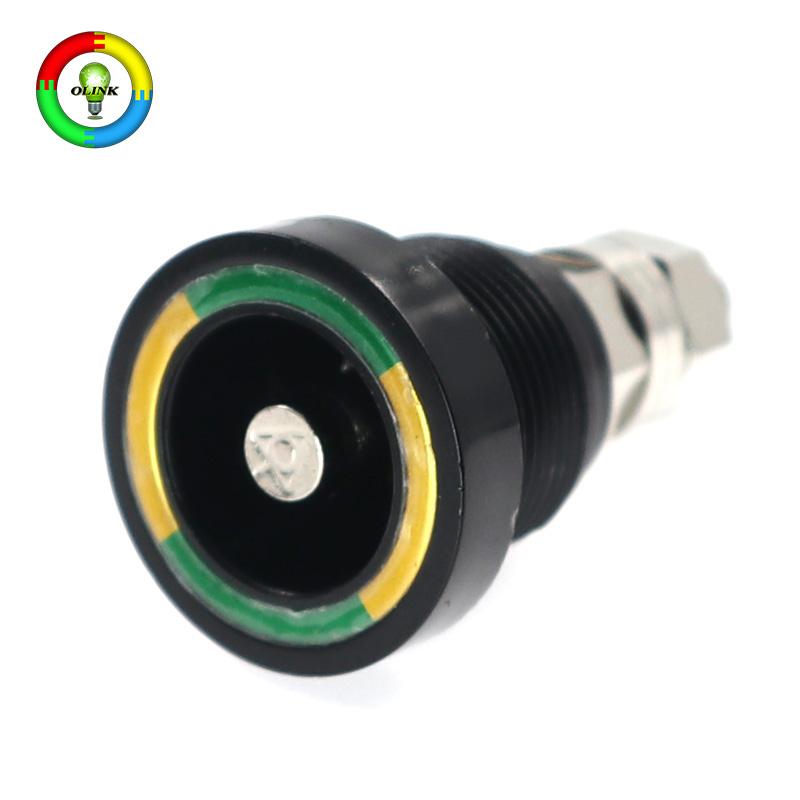

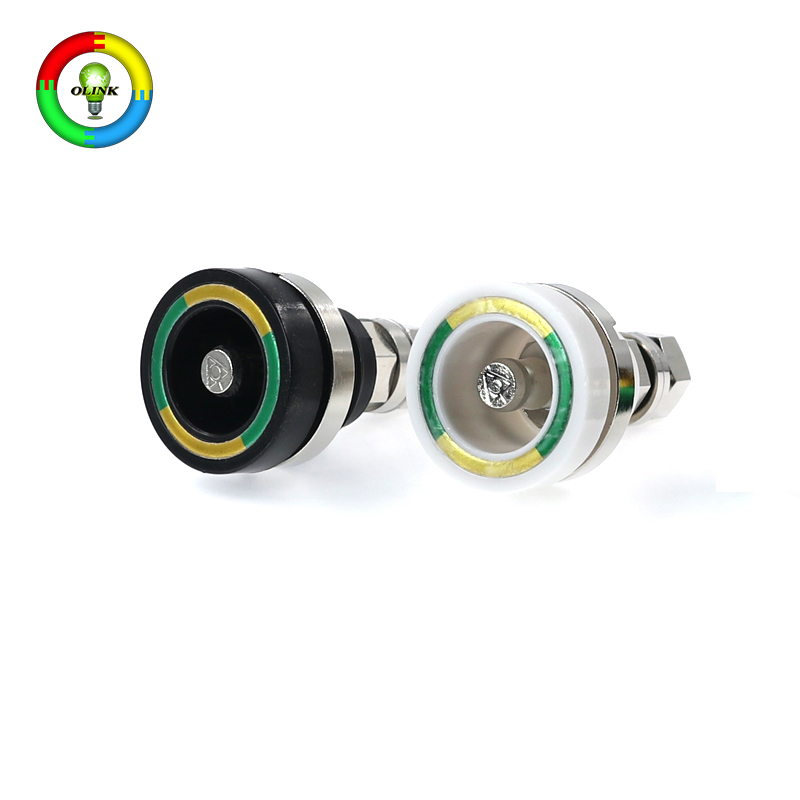

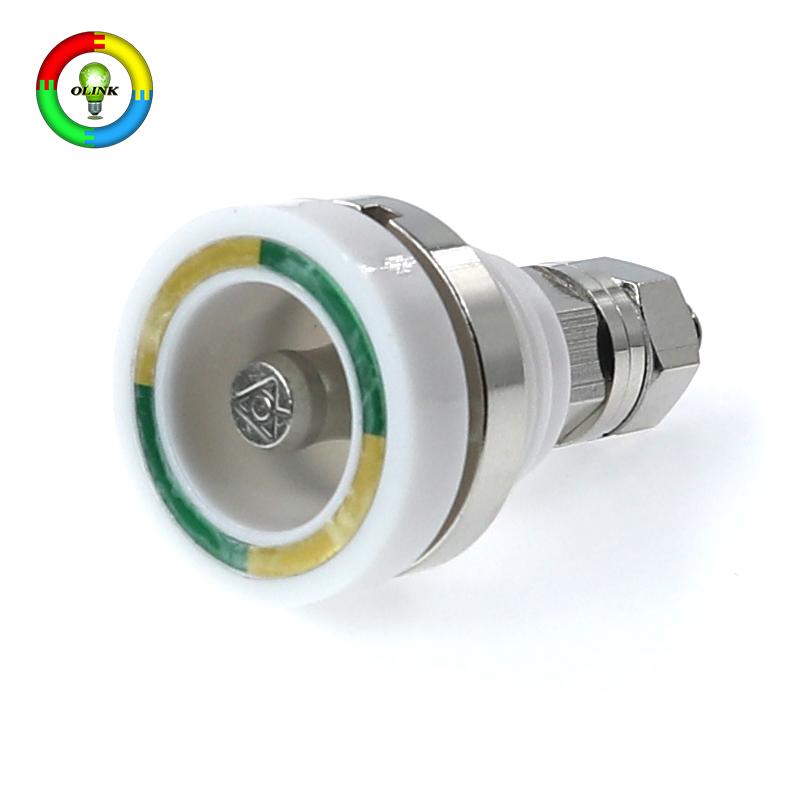

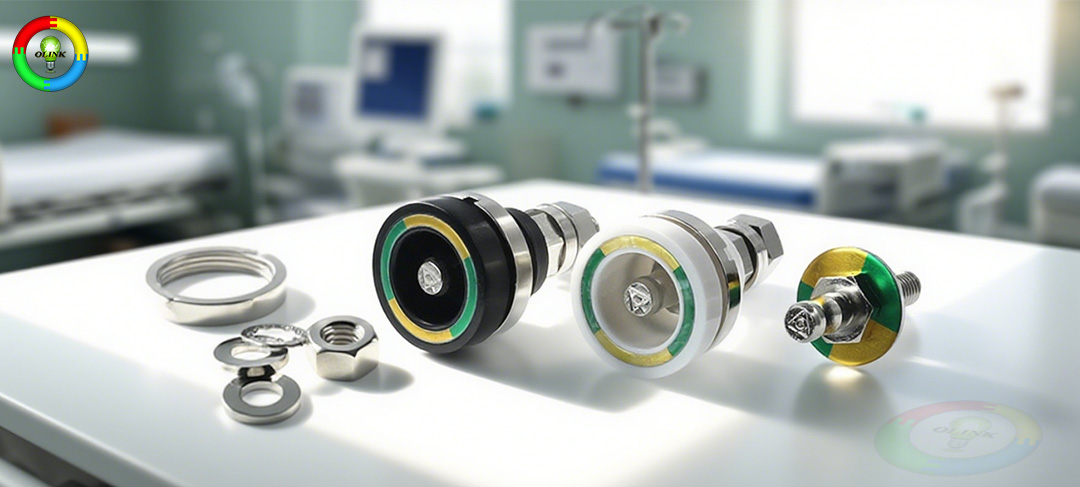

Equipotential Socket equipotential terminal Ground Connection Connector For Medical Equipment

The medical equipment equipotential socket is a key component in establishing a safe electrical environment in the medical environment. It connects multiple medical devices to form a uniform potential area, minimizing the risk of electric shock or equipment failure caused by potential differences. Grounding connectors and grounding terminals play a vital role here, ensuring that the entire equipotential system is firmly connected to the grounding network. This configuration ensures that all connected medical devices maintain the same potential, thereby enhancing the safety of patients and staff while complying with strict medical electrical safety standards.


	Product Properties
	Part Number：	OLD06-01
	Shell Style/Nodel：	Fixed Socket
	Fixed Type：	Inner Fixed
	Housing Material：	PC Technical Plastic Material
	Rings Unt Material：	Nickel-Plated Brass
	Washing Material：	Nickel-Plated Brass
	Color Ring Materiel：	Aluminium Alloy Anodizing
	Max. Matings：	>5000
	Contact Dia：	6mm
	Vtest(Contact-shell)：	2400V
	Vtest(Contact-Contact)：	2000V

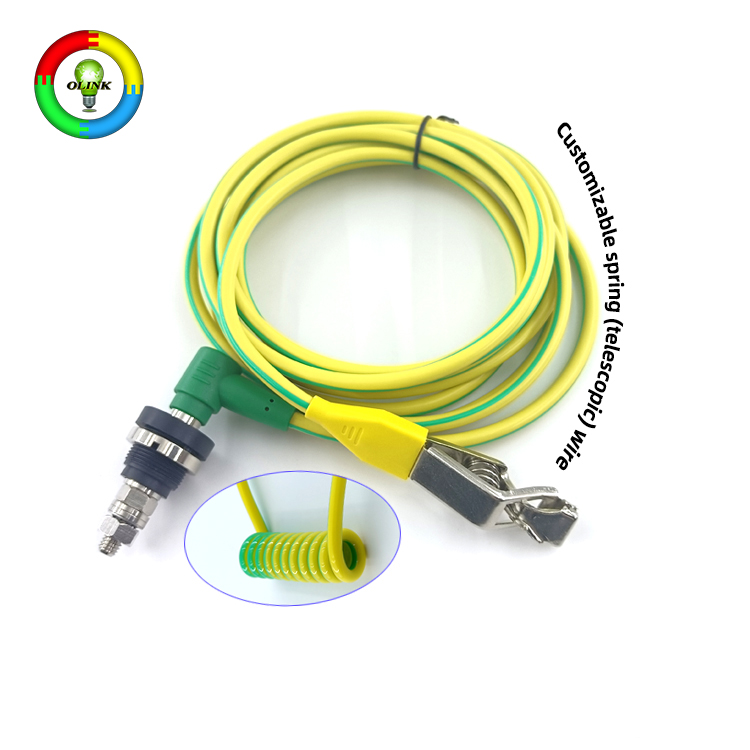

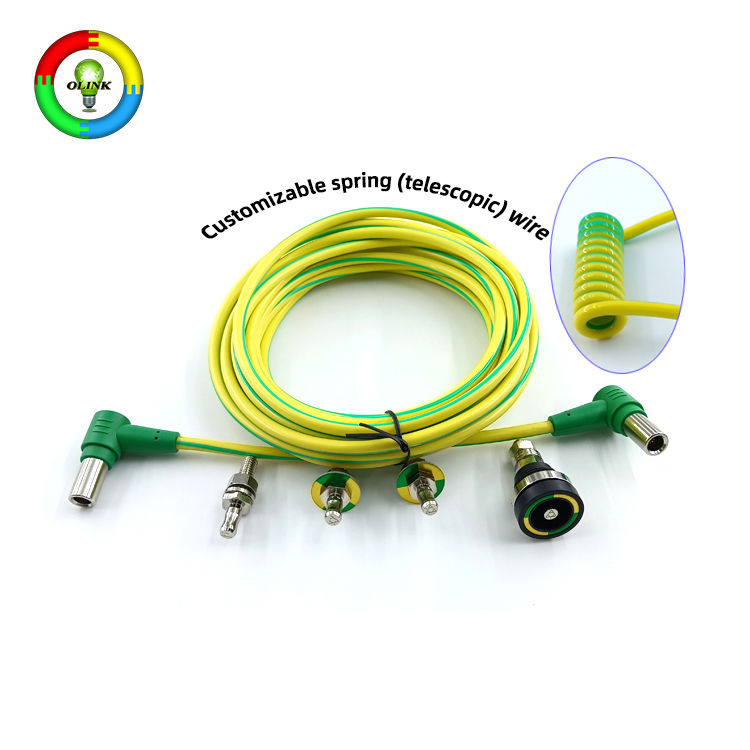

We can provide customized services (wire harnesses, cables, medical cables...)
