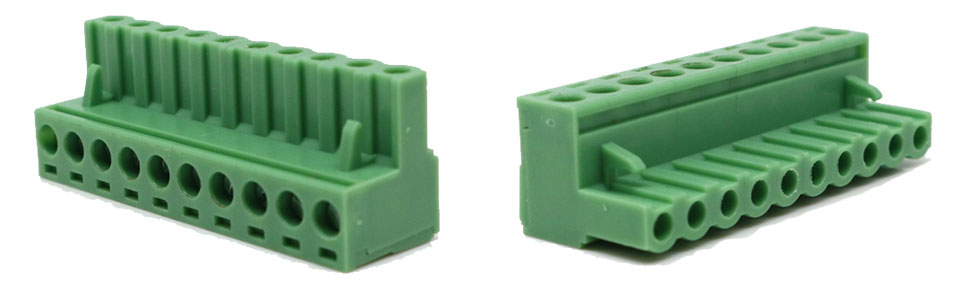

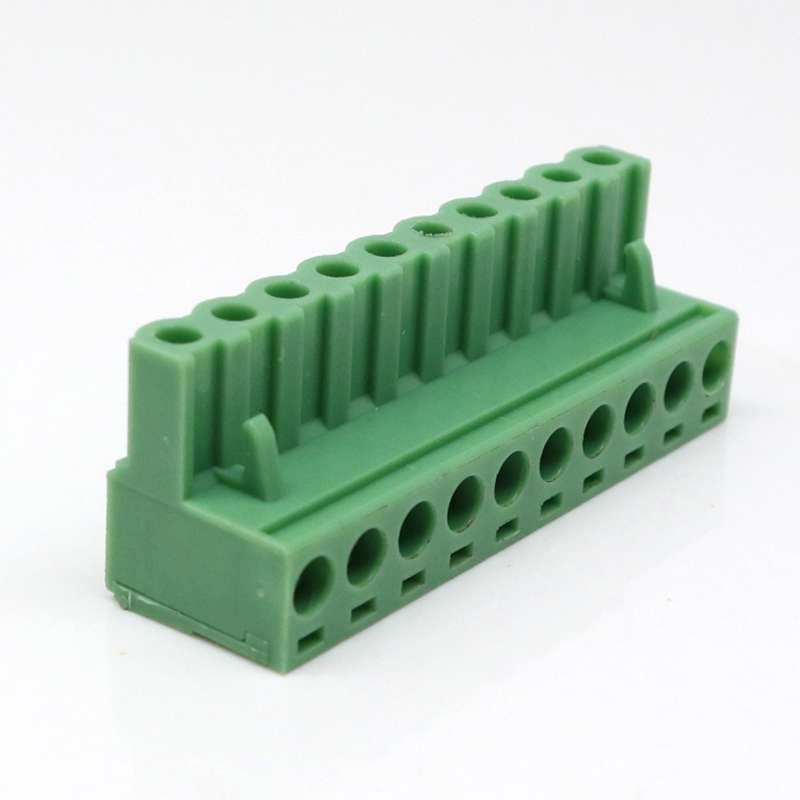

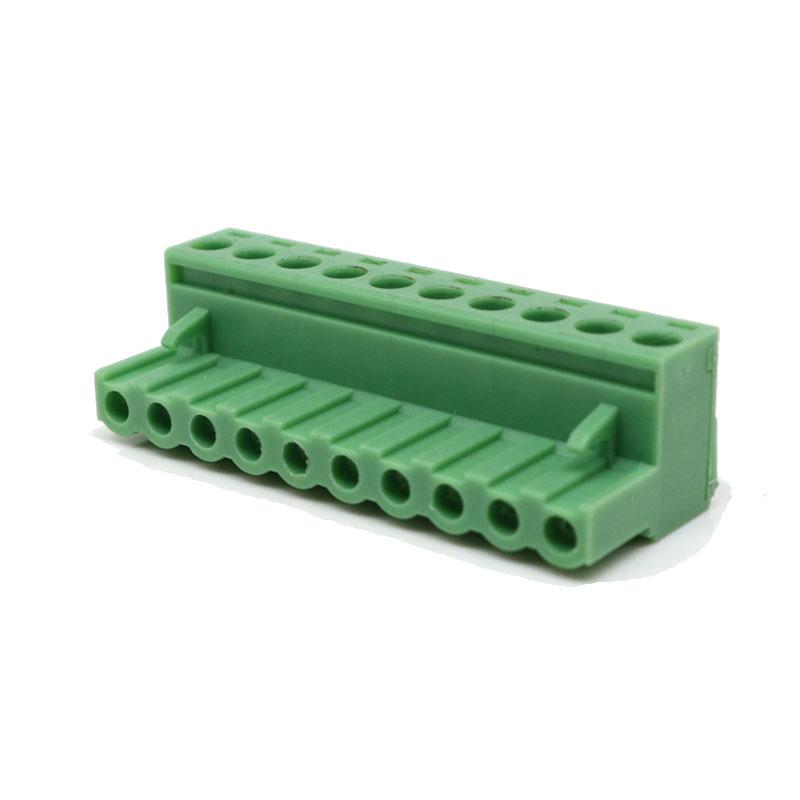

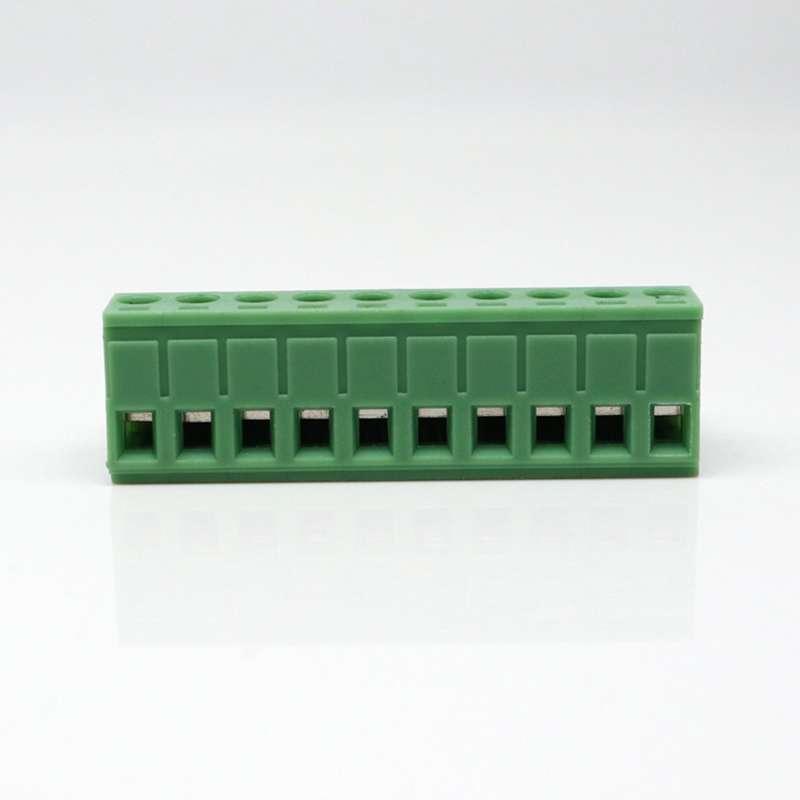

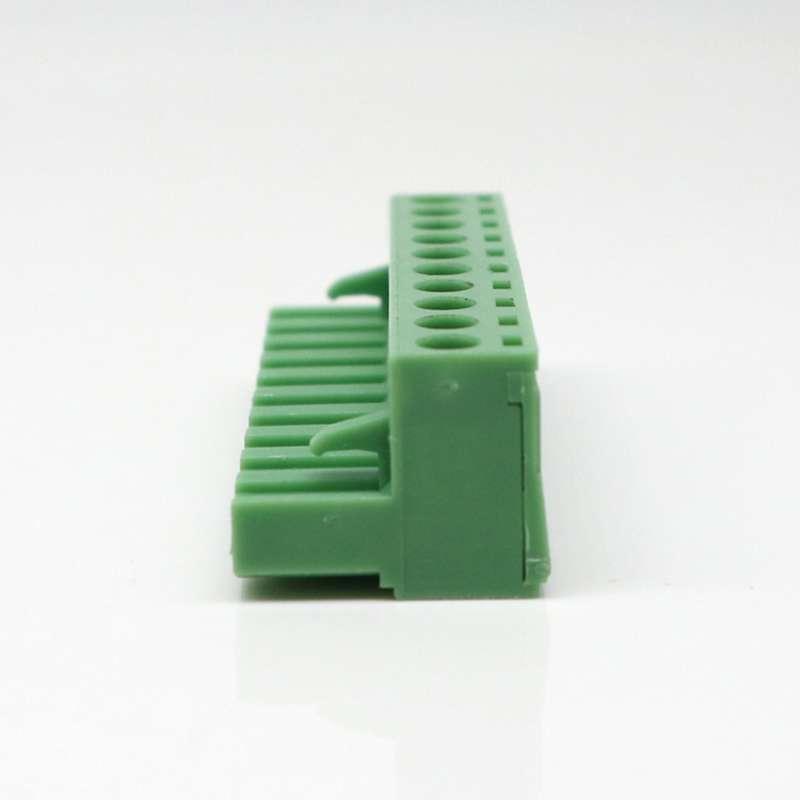

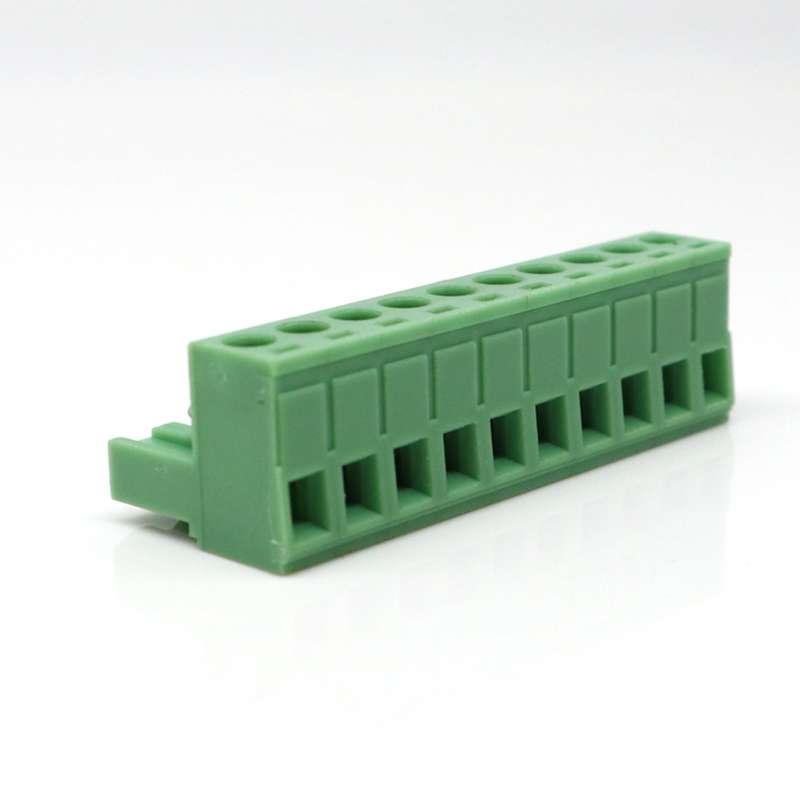

Quick connect 5.0 mm pitch pluggable terminal block

Pluggable terminal blocks are used to quickly connect or disconnect electrical equipment and devices. Can provide different poles, different pitch, and both male and female(a pair).

  • Brand:

    OLINK
  • Item no.:

    2EDGK-5.0/5.08
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Green
  • Goods stock:

    50000
  • Min order:

    1000
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    15

Quick connect 5.0 mm pitch pluggable terminal block

Description of plug-in terminal block


A plug-in terminal block is a terminal block that has a cable entry to allow the connection of wires or cables but has a plug output to allow easy connection to a socket. These types of terminal blocks are very useful in situations where hot plugging may be important or the connection can be removed for maintenance or inspection.


Specification of 5mm terminal block



Product name:   Plug-in terminal block Model:   2EDGK-5.0/5.08
Certification:   UL, CE Rated voltage:   300V (UL), 320V (IEC)
Rated current:   10A (UL), 15A (IEC) Wire range:   24-12 AWG (2.5mm²)
Withstand voltage:   AC 2500V/1 Min Temperature range:   -40℃ to +105℃
Torque:   0.4Nm (3.5Lb. in) Strip length:   7.0-8.0 mm
Pitch:   5.0/5.08 mm Poles:   2P-24P
Housing:   PA66 UL94V-0 Contact:   Phosphor bronze, nickel plated
Wire range:   Brass, nickel plated Screw:   M2.5, Steel, Zinc plated

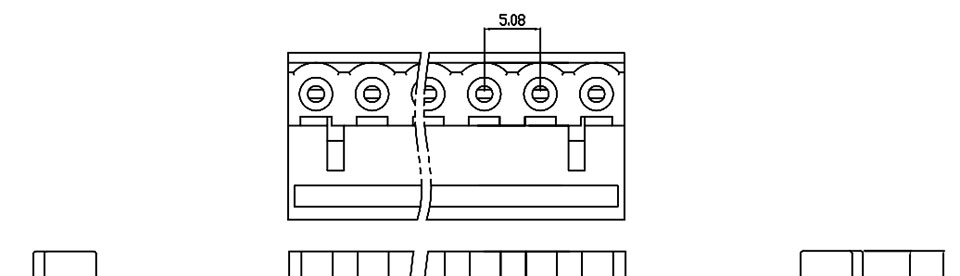

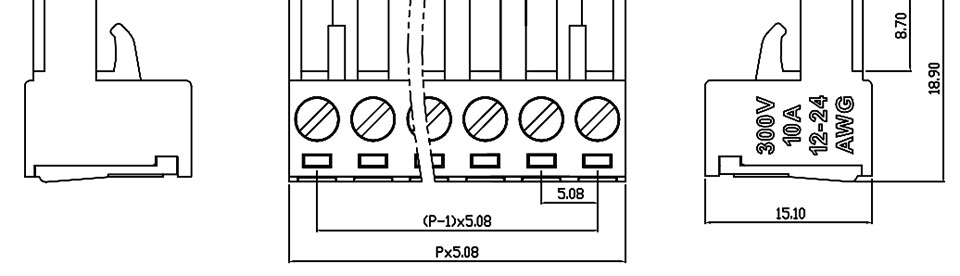

Drawing of 2EDGK-5.0/5.08




Feature of plug-in terminal block


  • Flexible connection-quick connection, free choice of connection method.
  • Different poles and pitch can be choosen.
  • Can provide male and female(a full set).


Application of plug-in terminal block


5.0/5.08mm pitch plug-in terminal blocks are widely used in Arduino wiring and electronics, communication equipment, instruments, calculators, automatic control systems, household appliances and alarm devices.
