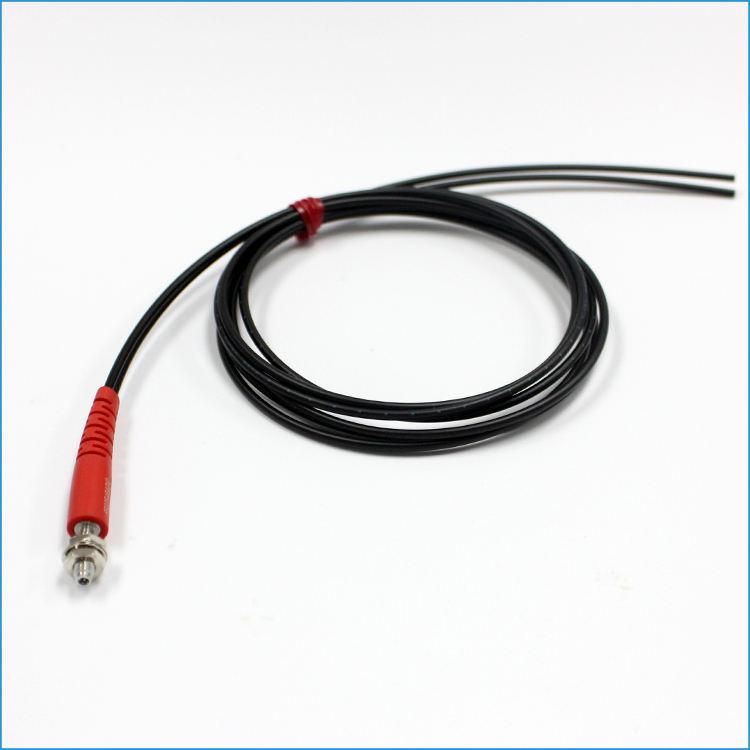

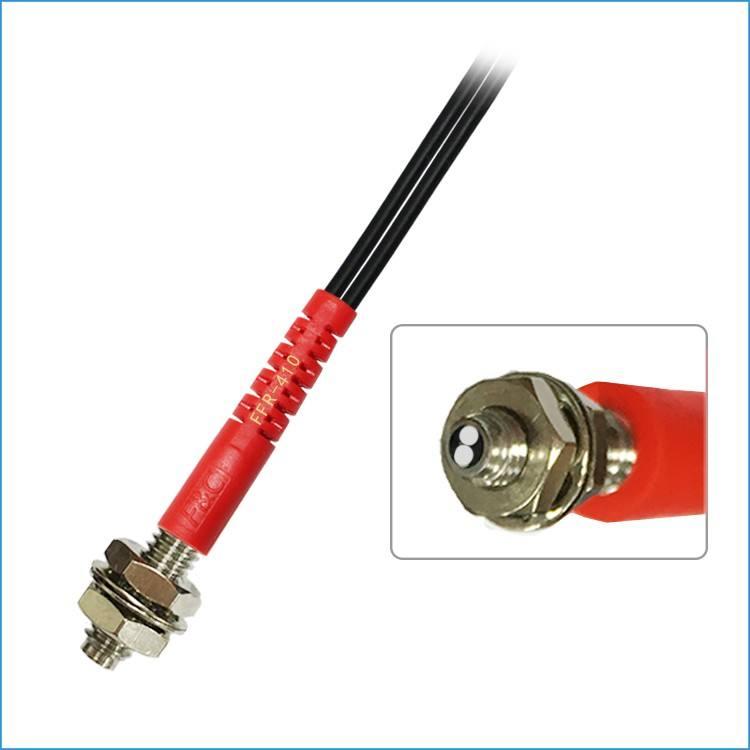

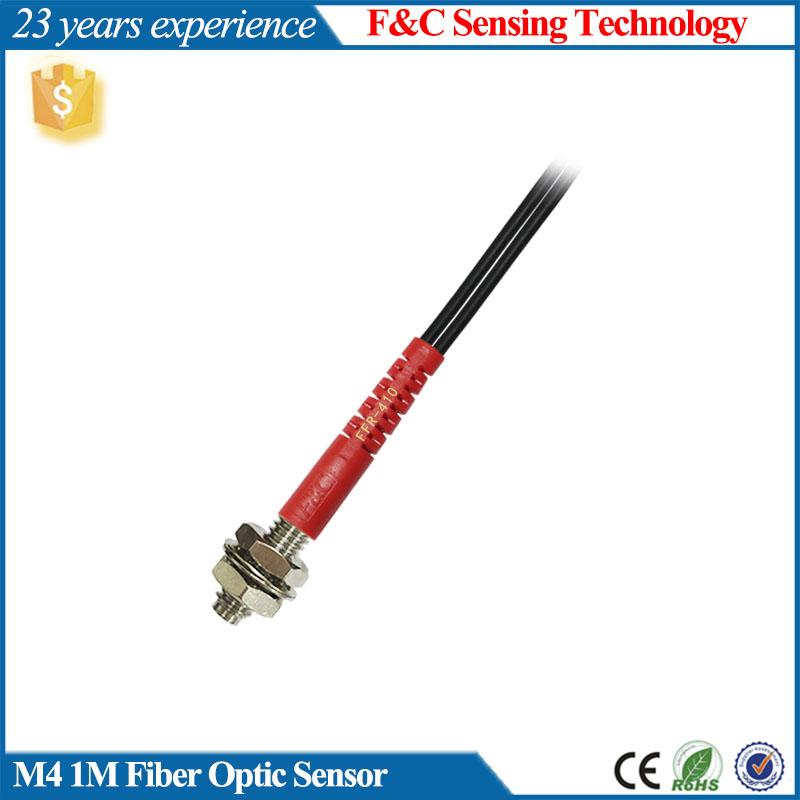

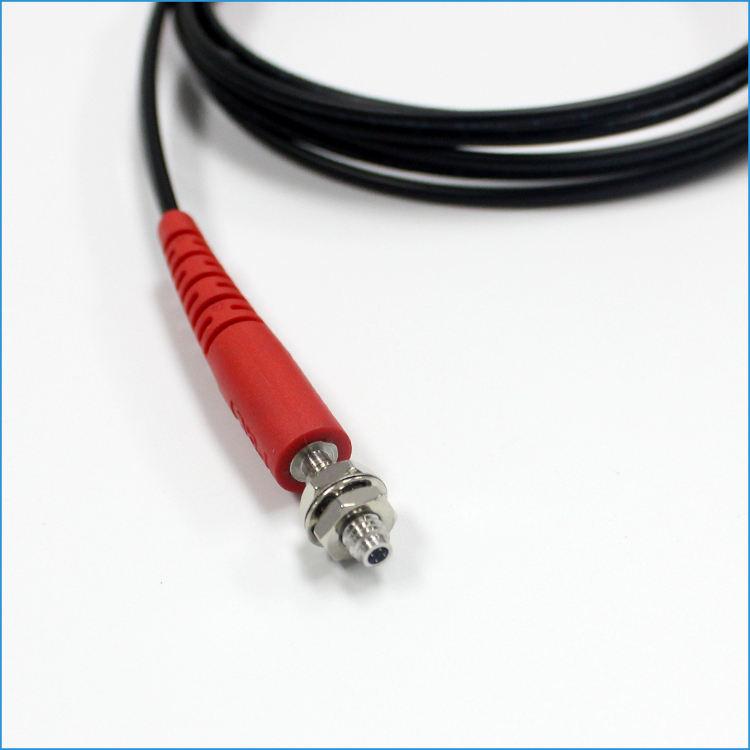

FFR-410 new optical fiber sensor and its protective sleeve M4 Diffuse Fiber Sensor

FFR-410 M4 optical fiber sensor diffuse reflection optical fiber 1M line
  • Brand:

    F&C
  • Item no.:

    FFR-410/ FFRS-410
  • Payment:

    Wire transer, West Union, Paypal
  • Product origin:

    China
  • Color:

    blue
  • Product weight:

    50
  • Shipping port:

    Xiamen
  • Lead Time:

    7 days


                                                             M4 optical fiber sensor Diffuse Fiber Sensor

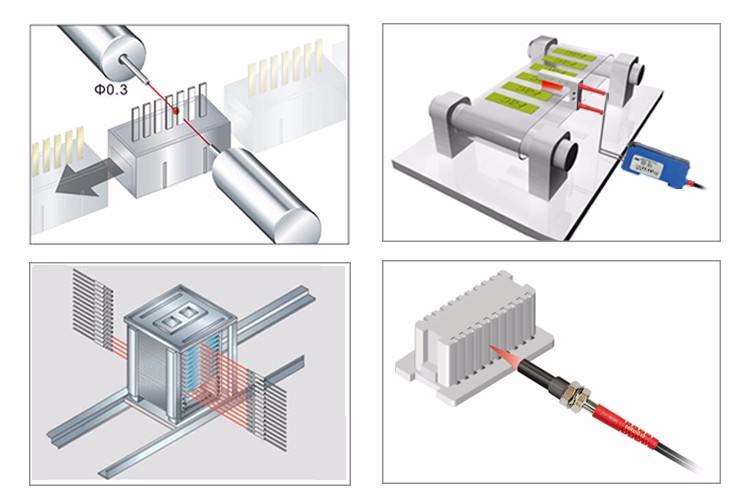

Fiber Optic Principle: M4 fiber sensors use the concept of transmitting light through a fiber optic cable or fiber bundle. The light is guided through the fiber and interacts with the target or environment to detect changes such as presence, position, or distance.



Model Number:  FFR-410;  Place of Origin: Hunan, China

Brand Name:F&C;  Usage:Automation Control Position Sensor

Optic Fiber:diameter2.2*1.0*2; Detection distance:90-120mm

Bending radius:25; Temperature:-25 to 60 degree

Diameter:M6 M5 M4 M3;  Cable:1m cable length fiber (free cutting)

Material: SUS303 M4 thread head; Theory: Optical sensor

Output: Switching Transducer

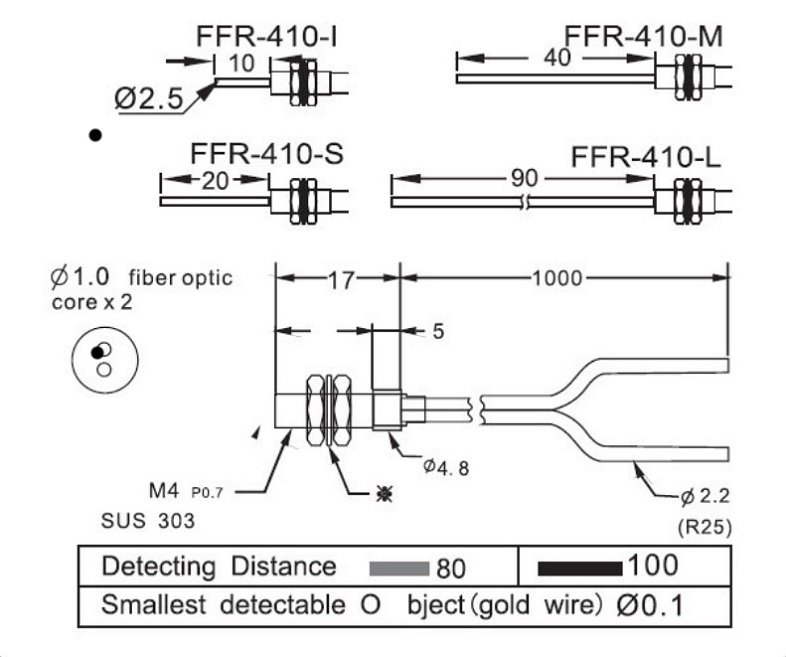

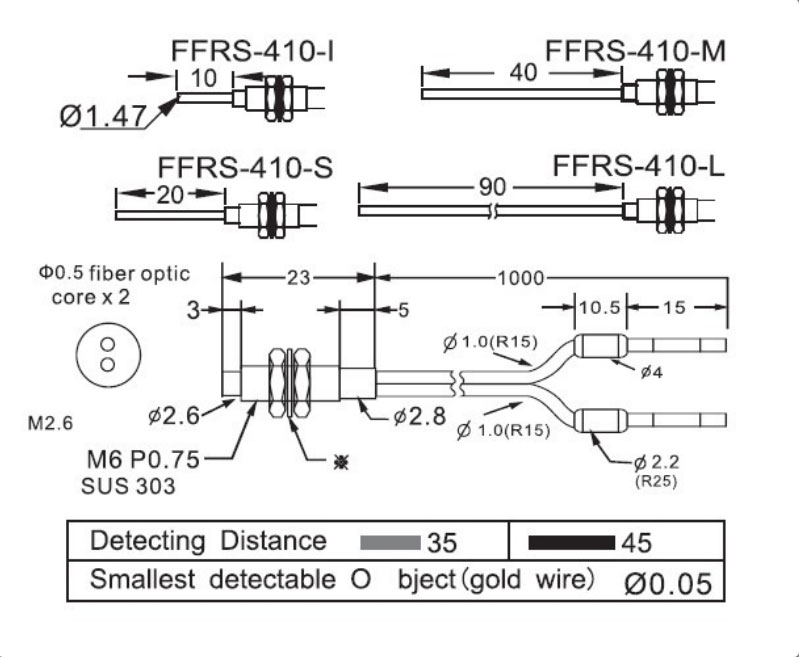

Drawing for M4 diffuse Fibers
