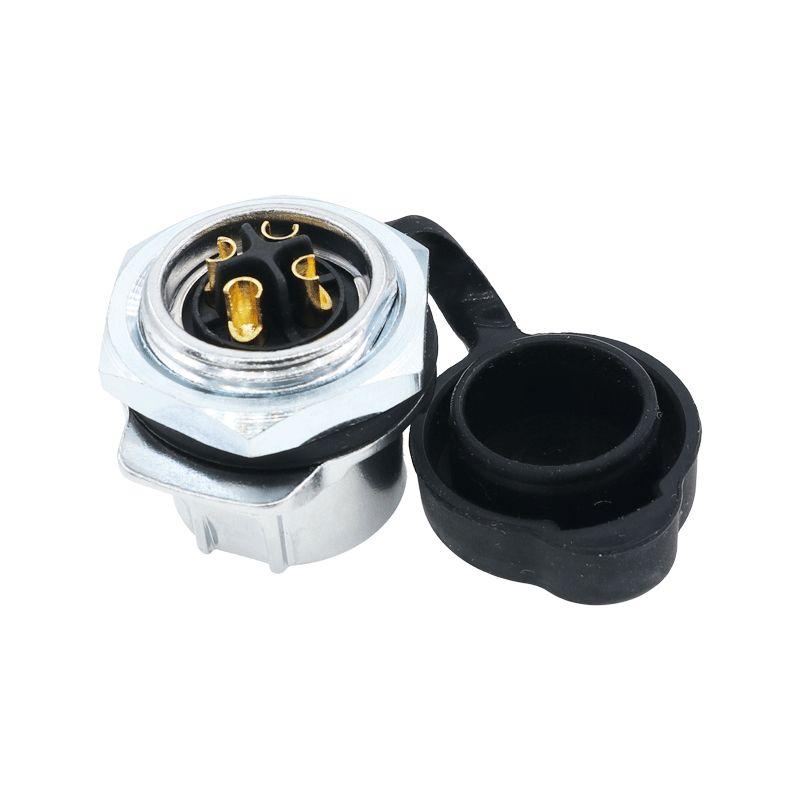

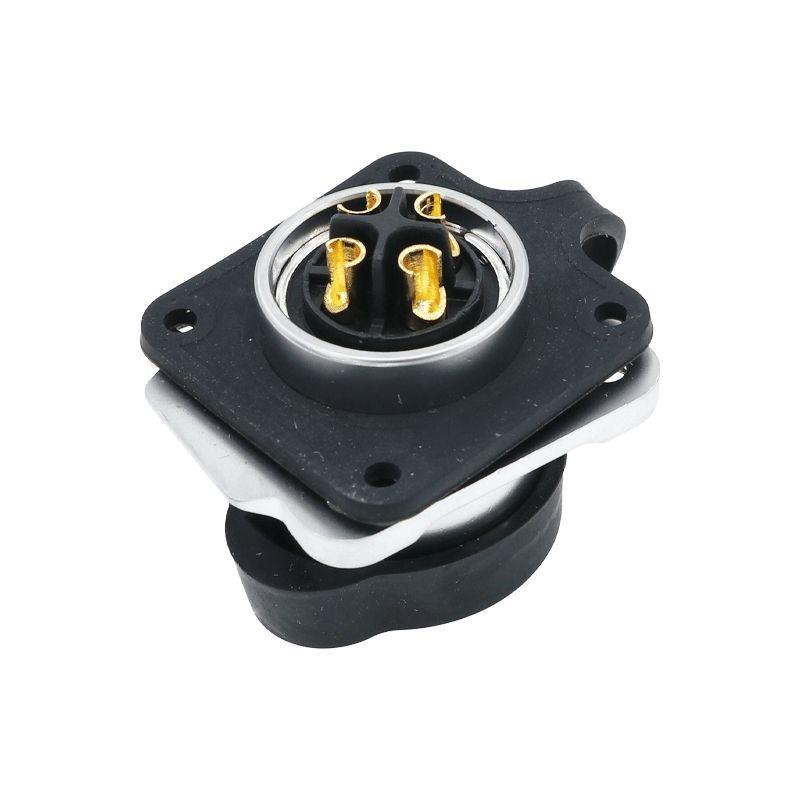

High-Quality FP20 LP20 M20 Industrial Power Auto Connectors for Mechanical Equipment with IP67 Waterproof Rating

FP20 series there are many poles can choose. Widely used in power and signal.

  • Brand:

  • Item no.:

  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

  • Color:

  • Goods stock:

  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:


Waterproof Aviation Plug Connector Multi-poles Signal 2 Pin Plastic Connector LP20

Description of IP67 waterproof connector

Model:    FP20 Type:    waterproof connector
Cable OD:    Φ8-Φ12mm/Φ5.5-Φ7mm
Rated current/voltage:

  2-4P: 20A 500V

  5P, 7P: 12A 500V

  9P, 12P: 5A 400V

Wire range:

  2-4P: 14-12 AWG (2.5-4.0mm²)

  5P, 7P: 18-16 awg (2.5-4.0mm²)

  9P, 12P: 26-24 AWG (2.5-4.0mm²)


  Housing: High-prefermance engineering    plastic

  Hardware: Zinc Alloy(pearl hard chrome)

  Copper pin: Copper alloy(gold-plated)

  Waterproof circle: Silica gel

IP level:    IP65/IP68 Connection:    Plug/unplug
Assembly wire:    Pressure & solder Temperature:    -40℃~80℃
Durability:    ≥500 times Flammability:    UL94-V0


Sealing Rings For Two Cable Diameters:
 I: 8-12mm     II: 5-7mm

Product structure

Product feature

Customize cable

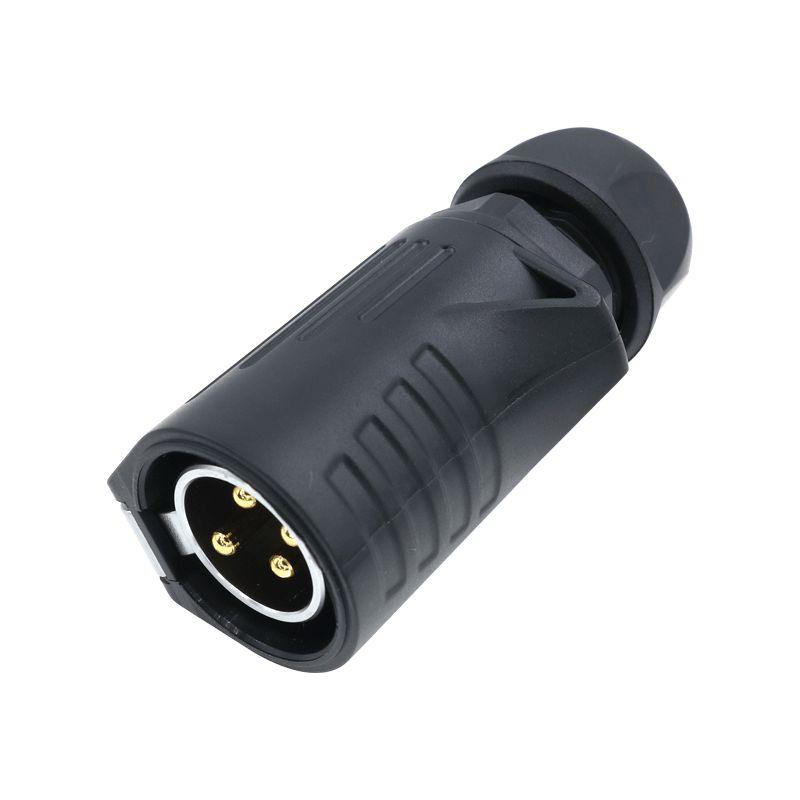

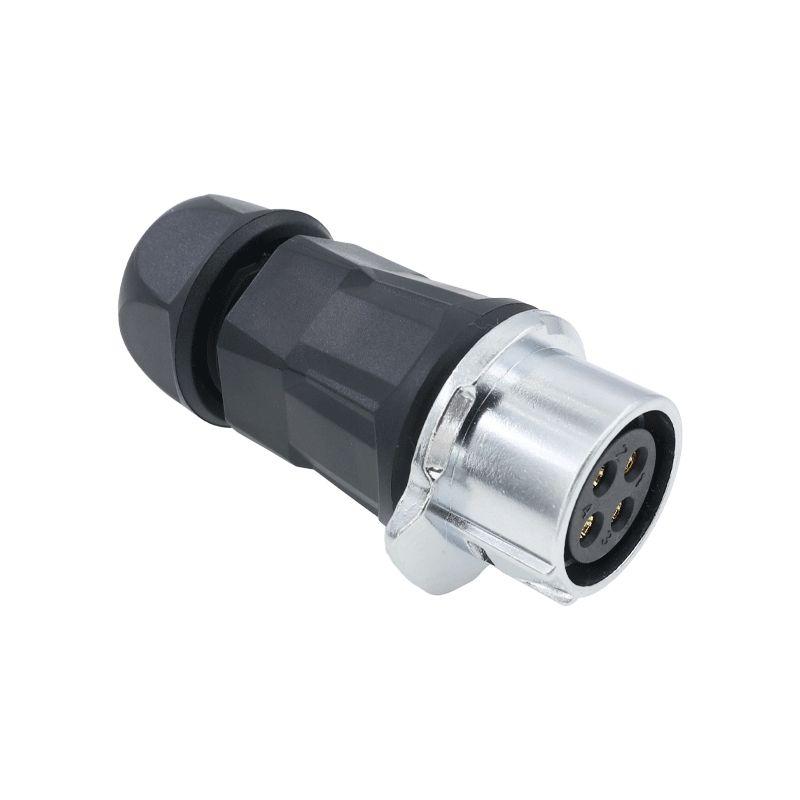

Plug with cable Socket with single electronic wire

*For more information, please contact us by email or through any contact information on the webpage.
