FFT-20ML The matrix beam penetrates the fall detection optical fiber

FFT-20ML fiber amplifier detection distance can be customized fiber line for 1 M , 2 M, 3 M to 50 M and various special optical fiber.
  • Brand:

    F&C
  • Item no.:

    FFT-20ML
  • Payment:

    Wire transer, West Union, Paypal
  • Product origin:

    China
  • Color:

    Silver
  • Min order:

    10
  • Shipping port:

    Xiamen
  • Lead Time:

    3days

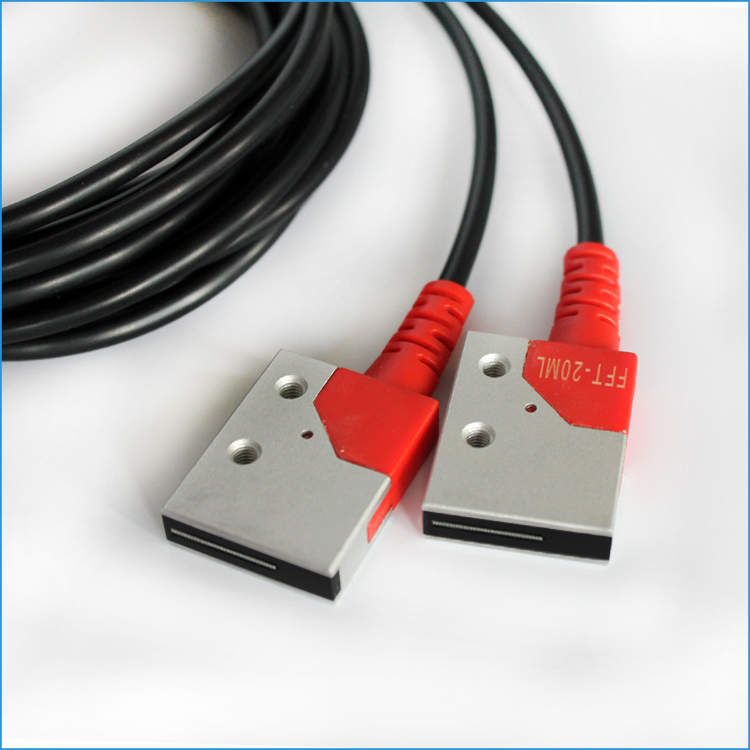

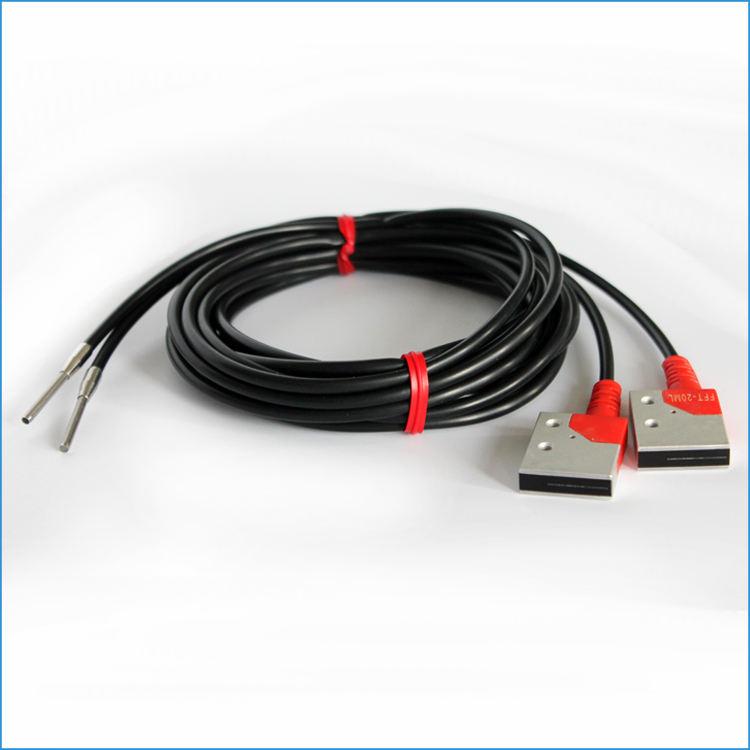

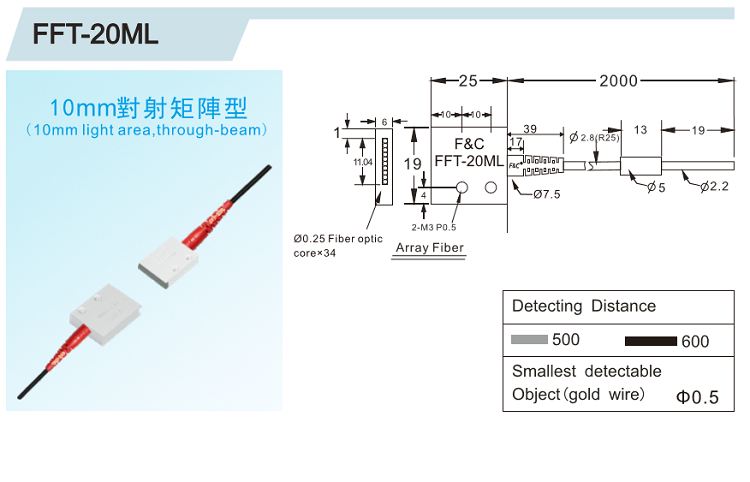

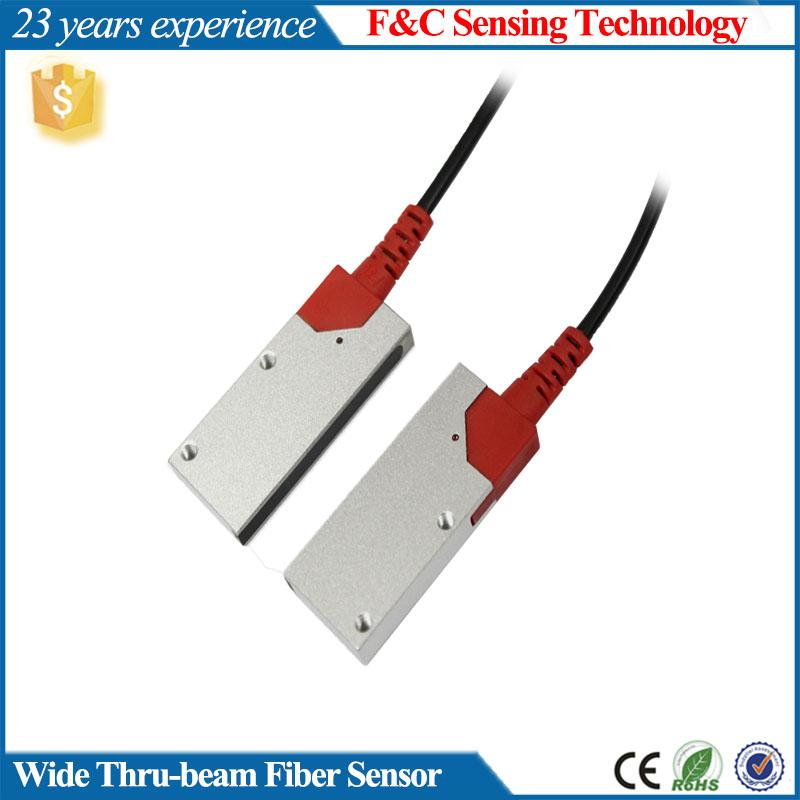

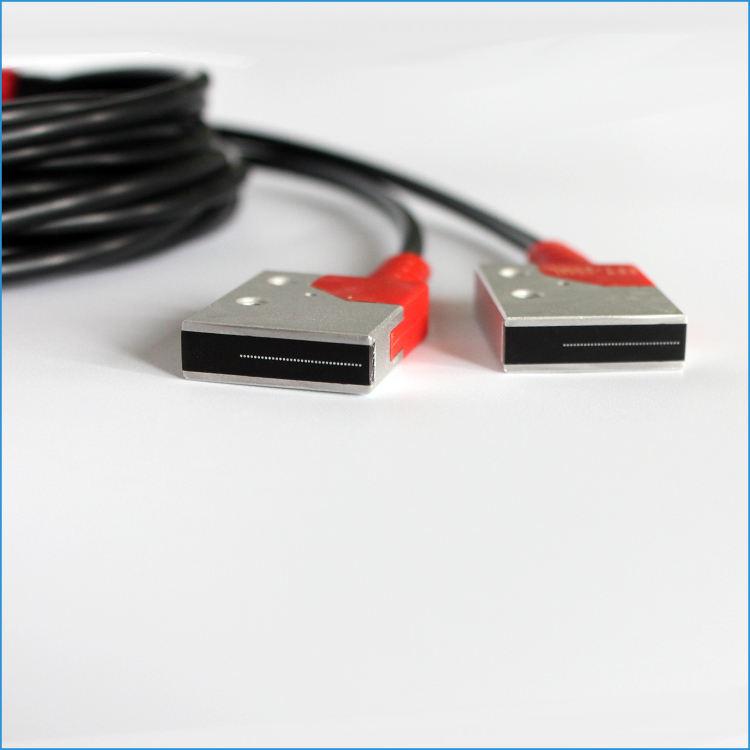

                                                            FFT-20ML  Matrix optical fiber
Model Number:
FFT-20ML
Place of Origin:
Hunan, China
Brand Name:
F&C
Usage:
Position Sensor
Theory:
Optical sensor
Output:
Switching Transducer
Thru beam Fiber Optic Cable:
Thru beam Fiber Optic Cable
Minimun Sensing object:
dia0.5mm gold wire
Sensing Area width:
10mm
Sensing Area length:
500mm
Bending radius:
R25 fibre units
Cable Length:
2m cable length fiber (free cutting)
Ambient temperature:
-25 to 60 degree
Material:
Aluminium head
Array Type Fiber Optic:
Array Type Fiber Optic
Name:
Array Fiber Optic Cable Falling Detection Fiber optical s

Same shape differrent size model:

FFR-05ML  fiber optic core 0.25*9

FFR-50ML  fiber optic core 0.27*32


FFR-10ML  fiber optic core 0.25*9

FFR-35ML  fiber optic core 0.27*32


FFR-15ML  fiber optic core 0.25*16

FFR-30ML  fiber optic core 0.27*32


FFR-20ML  fiber optic core 0.25*16

FFR-25ML  fiber optic core 0.27*32
