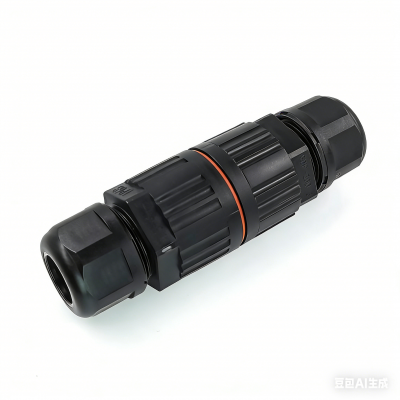

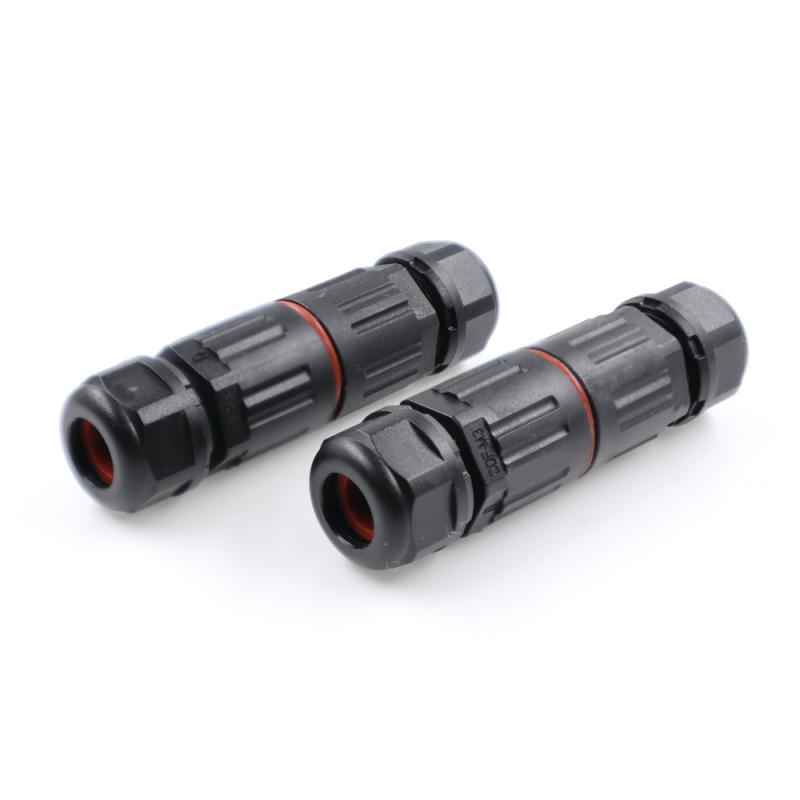

CDF-M3 2pin 3pin IP68 Mini Watertight Cable Connector with Crimp Terminal for Wire Connections 16A 300V PA66/Nylon Housing

OLINK CDF-M3 is an IP68 mini watertight cable connector with 2Pin/3Pin options, boasting 4m water resistance and a compact AA battery-sized design. It features 300V rated voltage, 16A rated current and copper contacts for stable conductivity, with flame-retardant PA66/nylon housing that withstands -40℃~+95℃. The connector fits 0.5-2.0mm²/24-12AWG wires and 4-7mm cable diameters, enabling tool-free, easy wiring and dismantling. Certified by CE, RoHS and IP68, it’s ideal for outdoor/underwater waterproof wire connections in monitoring, fountains, street lights and more.

Brand:
OLINK
Item no.:
CDF-M3
Payment:
Wire transfer, PayPal, Western Union, Alipay
Lead Time:
7

Inquiry now

product introduction

Technical Specifications

Rated Current:	16A
Rated Voltage:	300V
Pin Count:	2P/3P
Contact Material:	Copper
Shell Material:	Nylon PA66
IP Rating:	IP68
Temperature Range	-40℃~+95℃
Color:	Black
Wire size	0.5mm2-2.0mm2/24-12AWG
Applicable cable diameter	4mm-7mm
OEM/ODM:	YES
Technical Support:	7*24h Online Service

Product selling points

· Super Waterproof Performance: IP68 rating, resistant to 4m water depth, ideal for outdoor/underwater use.

· Stable Electrical Specs: 300V rated voltage, 16A rated current; copper contacts ensure excellent conductivity.

· Compact Size: AA battery-level mini design, space-saving for various installation scenarios.

· Durable Materials: Flame-retardant Nylon PA66 housing; wide temperature resistance (-40℃~+95℃).

· Flexible Wiring: 2P/3P options; fits 0.5-2.0mm²/24-12AWG wire, 4-7mm cable diameter; easy wiring/dismantling.

· Versatile Applications: Suitable for outdoor waterproof circuit connections (monitoring, fountains, street lights, fish tanks etc.).

· Certified Quality: IP68/CE/ROHS certified; complete testing system for strict quality control.

· Customizable & Supportive: OEM/ODM available; 7*24h online technical support; free samples (freight excluded).

· Cost-Effective & Efficient: Tiered pricing for bulk orders; short lead time (1-3 days for samples, 5-7 days for mass production); small MOQ.

· Reliable Supplier: 13+ years of experience; 10 million pcs annual production capacity; multiple payment/logistics options.

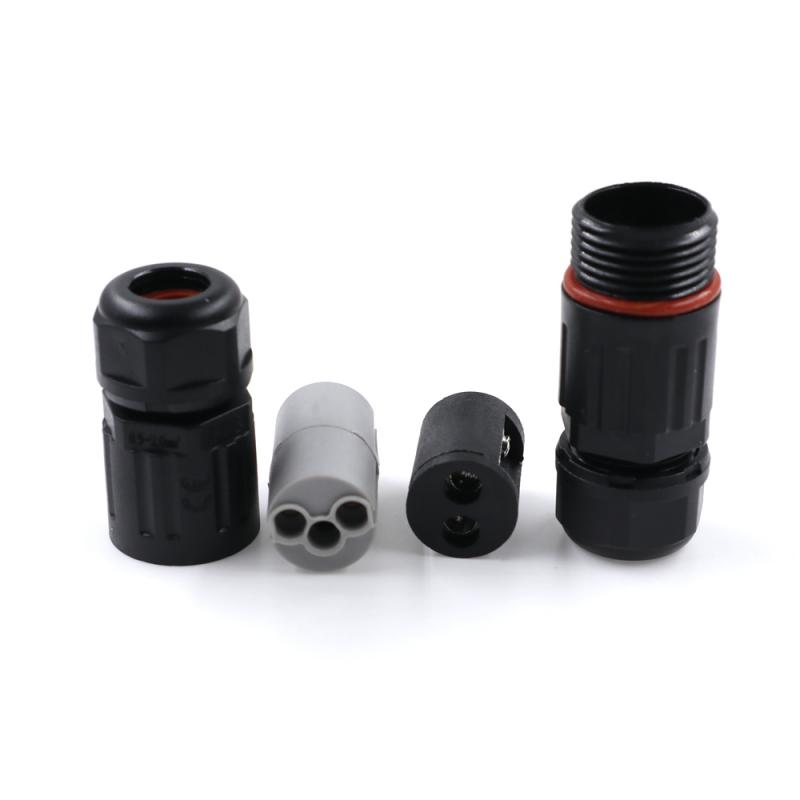

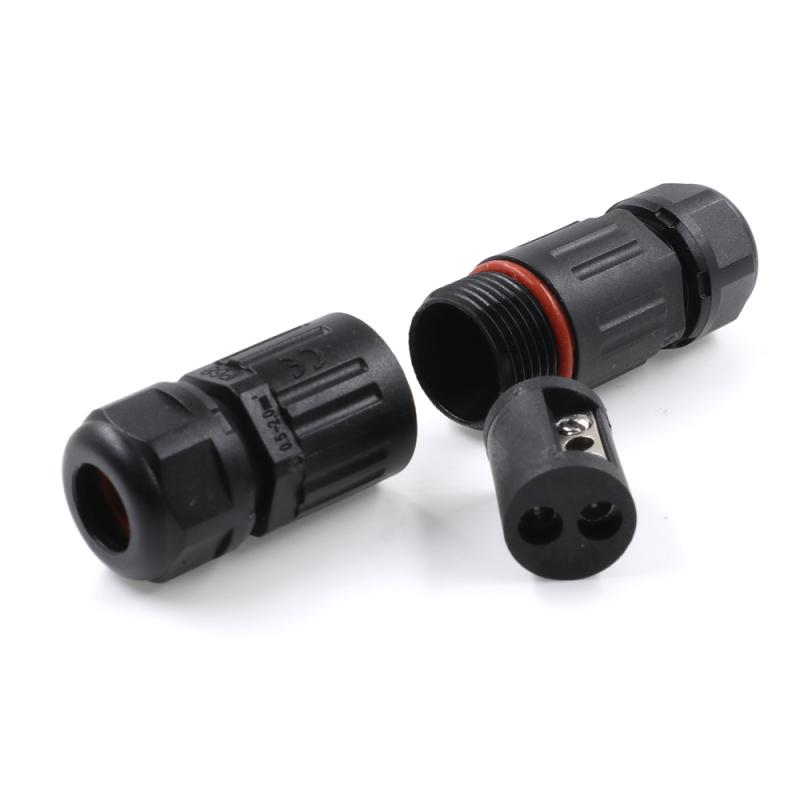

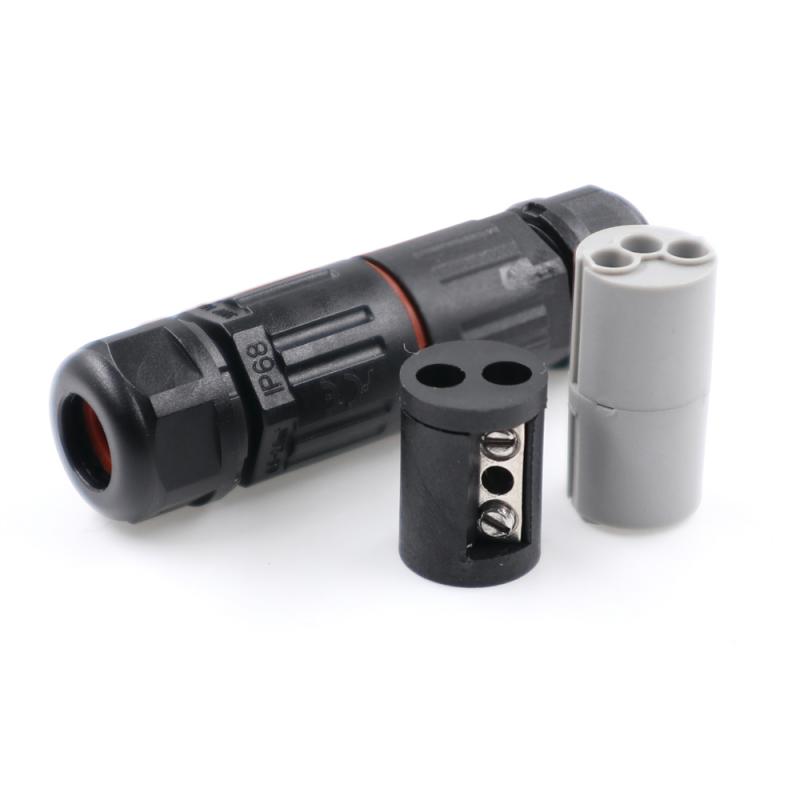

Product details

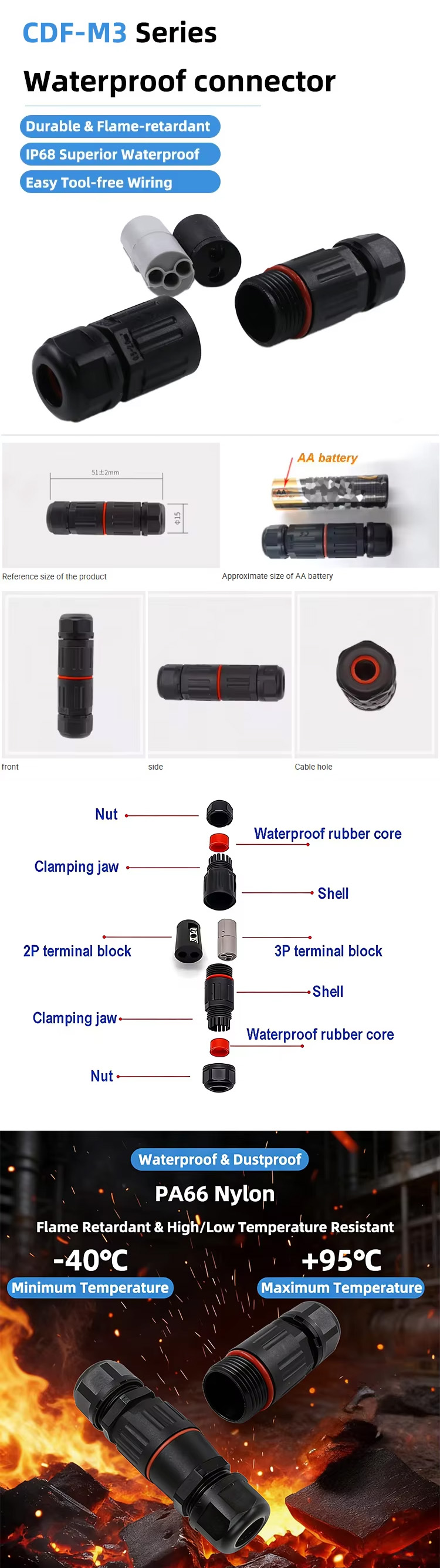

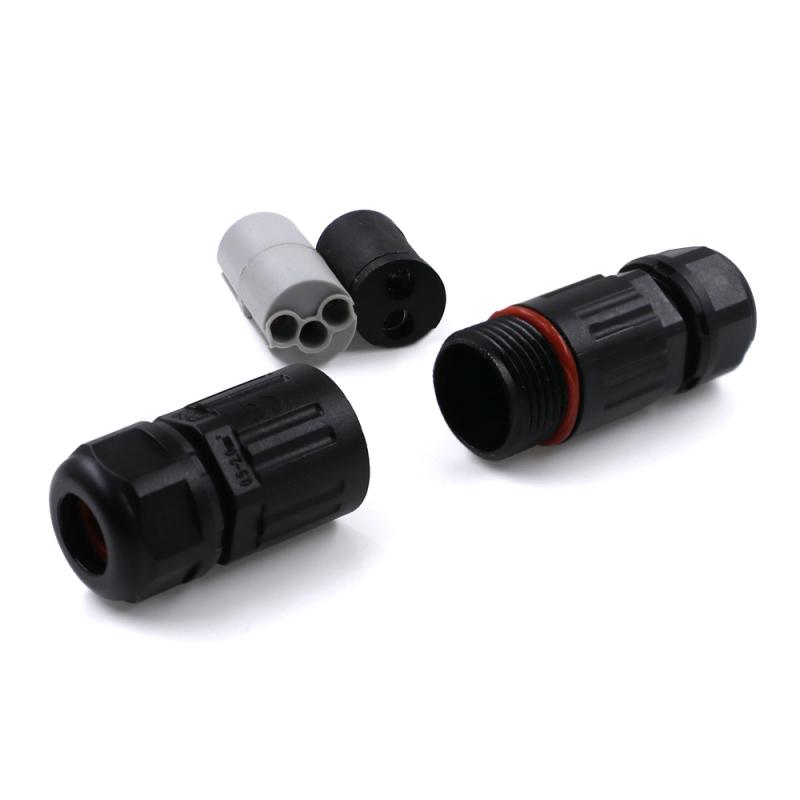

CDF-M3 Product Details & Exploded View

Application Scenarios

CDF-M3 can be applied to outdoor lighting, security monitoring, new energy and marine applications

Factory Display

Shipping & Payment Methods

We support sea, air and land transportation, with a variety of express delivery options. Payment methods include PayPal, Visa, etc

Certificate Display
