Plastic Waterproof Connector

 /CDF-200T 450V 32A Waterproof IP68 High-Level T-Type Bayonet Connection Outdoor Power Electrical Connector 3P/5P

waterproof cable connector ip68
waterproof cable connector ip68 waterproof cable connector ip68 waterproof cable connector ip68 waterproof cable connector ip68 waterproof cable connector ip68

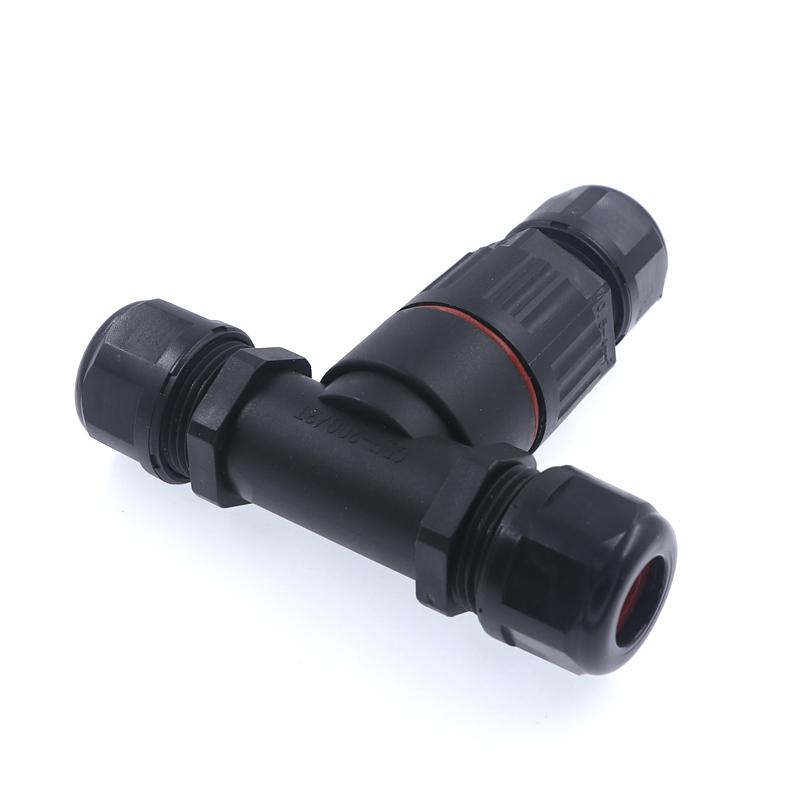

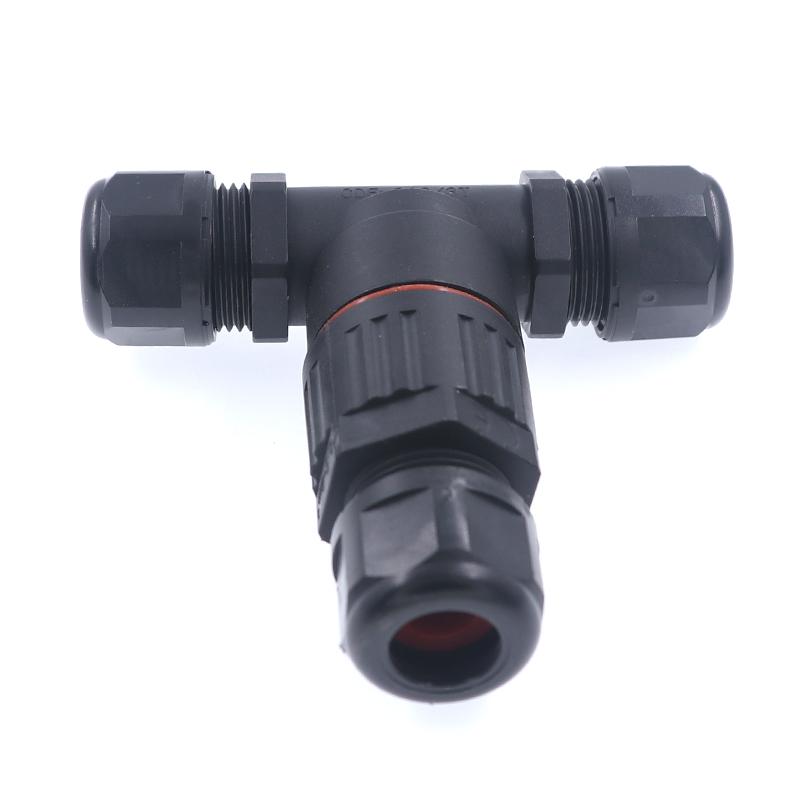

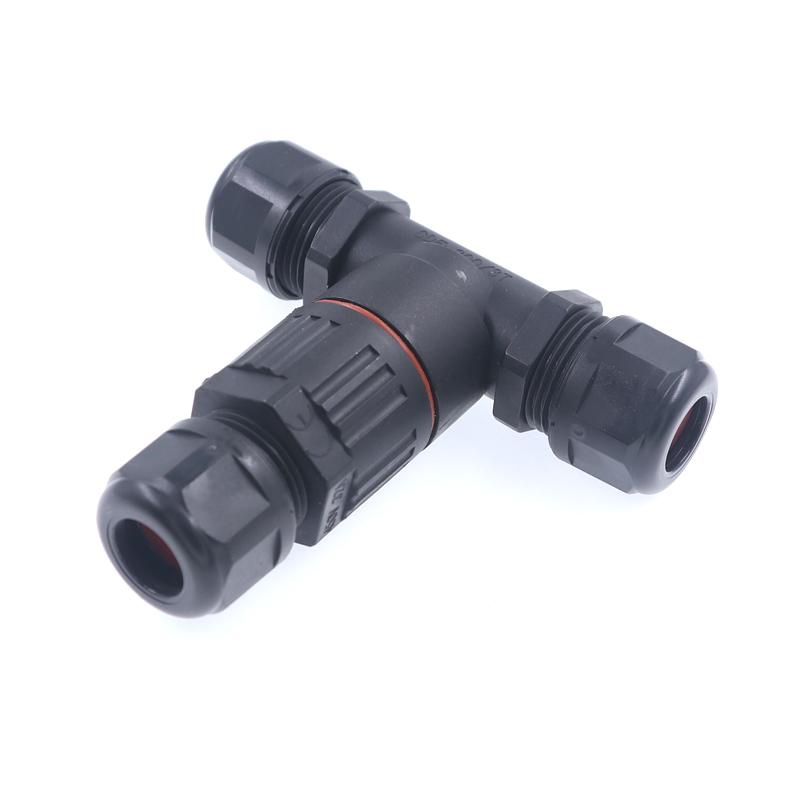

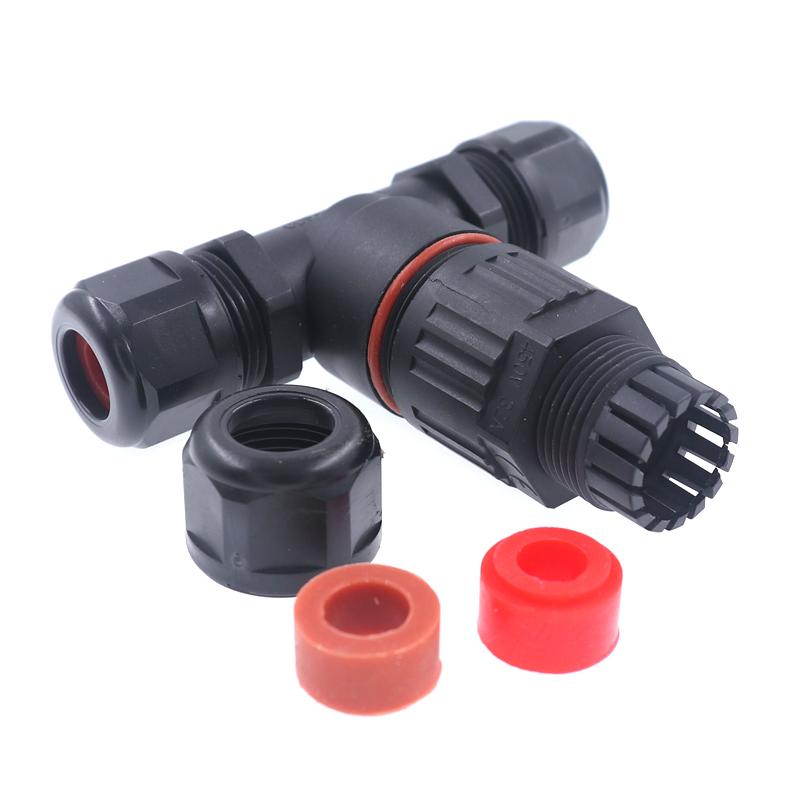

CDF-200T 450V 32A Waterproof IP68 High-Level T-Type Bayonet Connection Outdoor Power Electrical Connector 3P/5P

OLINK CDF-200T is an IP68 waterproof outdoor power connector with T-type bayonet connection, featuring 4m water resistance and dual inner-outer sealing for full dust and moisture protection. It delivers high-power transmission with 450V rated voltage, 32A rated current and nickel-plated brass contacts for stable, low-loss performance. The connector offers flexible 3P/5P pin options and crimp/screw dual termination modes, fitting 0.5-4.0mm² wires and 4-7/7-10mm cable OD. Its flame-retardant PA66 nylon housing is wear and corrosion resistant, adapting to a wide temperature range of -40℃~+95℃. Certified by CE, RoHS and ISO9001, it’s ideal for harsh outdoor power wiring scenarios with tool-free, easy operation.

  • Item no.:

    CDF-200T

  • Payment:

    Wire transfer, Paypal, Western Union, Alipay

  • Product origin:

    China

  • Lead Time:

    7
Inquiry now

Technical Specifications

Rated Current:
 32A
Rated Voltage:
 450V
Pin Count:
 1P-5P
Contact Material:
 Brass nickel pltaed
Shell Material:
 Nylon PA66
IP Rating:
 IP68
Termination:
 Crimp/screw
Color:
 Black
wire gague(max):
 0.5mm²-4.0mm²
Temperature range:
 -40℃ ~ +95℃
Cable OD:
 4-7/7-10
OEM/ODM:
 YES
Technical Support:
 7*24h Online Service

Product selling points

· IP68 Extreme Waterproof: Dual inner-outer sealing rings, withstands 4m water depth; full dust/moisture protection for harsh outdoor wet environments.

· High Power Transmission: Brass nickel-plated copper alloy contacts; 32A rated current, 450V rated voltage, low loss and stable power supply.

· T-Type Bayonet Design: Unique T-type structure with bayonet connection, easy plug/unplug and firm locking for convenient wiring operation.

· Flexible Configuration: 3P/5P pin options; crimp/screw dual termination modes, meets diverse outdoor power wiring demands.

· Wide Cable Compatibility: Fits 0.5-4.0mm² wires; 2 cable OD ranges (4-7mm/7-10mm) for flexible matching with different cables.

· Durable & Flame-retardant: Flame-retardant nylon housing (smooth, burr-free); anti-corrosion and wear-resistant, works in -40℃~+95℃.

· Certified & Reliable: CE, RoHS, ISO9001 certified; strict factory quality control and complete testing system for consistent performance.

· Cost-effective Bulk Pricing: Tiered pricing for bulk orders; free samples (freight excluded); annual production capacity up to 10,000,000 pcs.

· Fast Delivery & Service: 7-day lead time for 1-1000 sets; 1-3 days sample delivery; 7*24h online technical support.

· Customizable Solutions: OEM/ODM supported (LOGO, mold customization); customized packaging available (MOQ 2000 sets); multiple global shipping/payment methods.

Product details

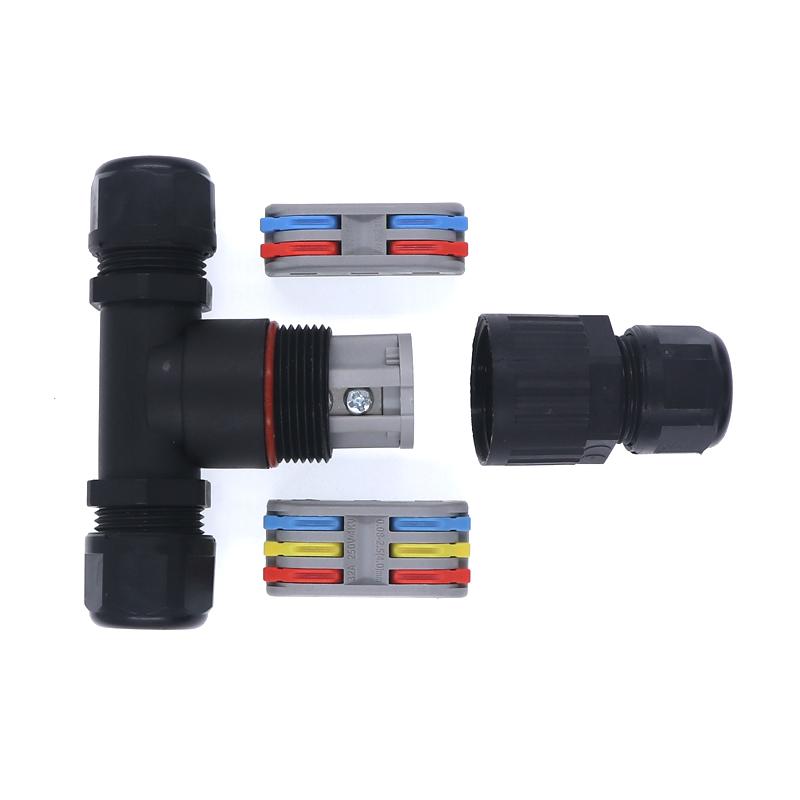

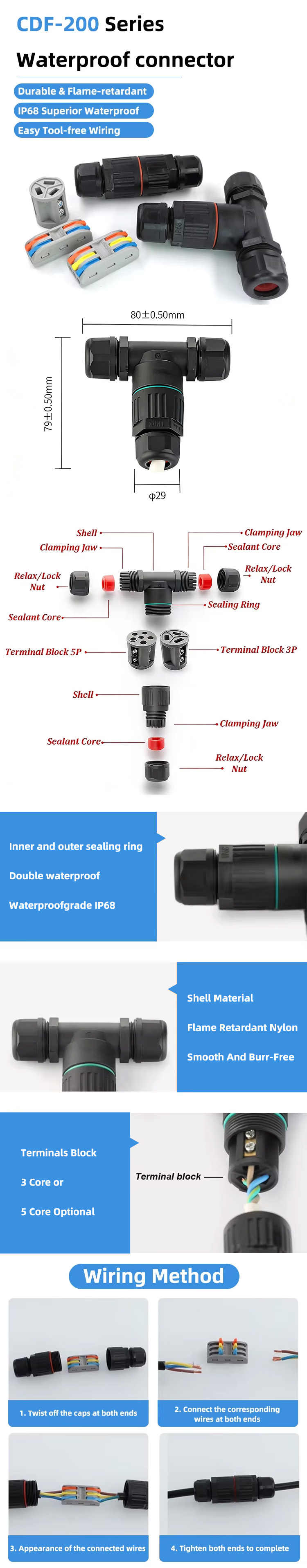

CDF-200T Exploded View, Detail Images, Wiring Instructions

Application Scenarios

CDF-200T is used in outdoor lighting equipment, outdoor electrical equipment, new energy equipment and automation equipment

Factory Display

All-in-one production and customization factory

Certificate Display

CE / IP67 / IP68 / ISO Certificates
