Plastic Waterproof Connector

 /YF24 Factory Price Powercon Connector 20A 3 Pin Male Plug with LED Display for Power Supply Applications

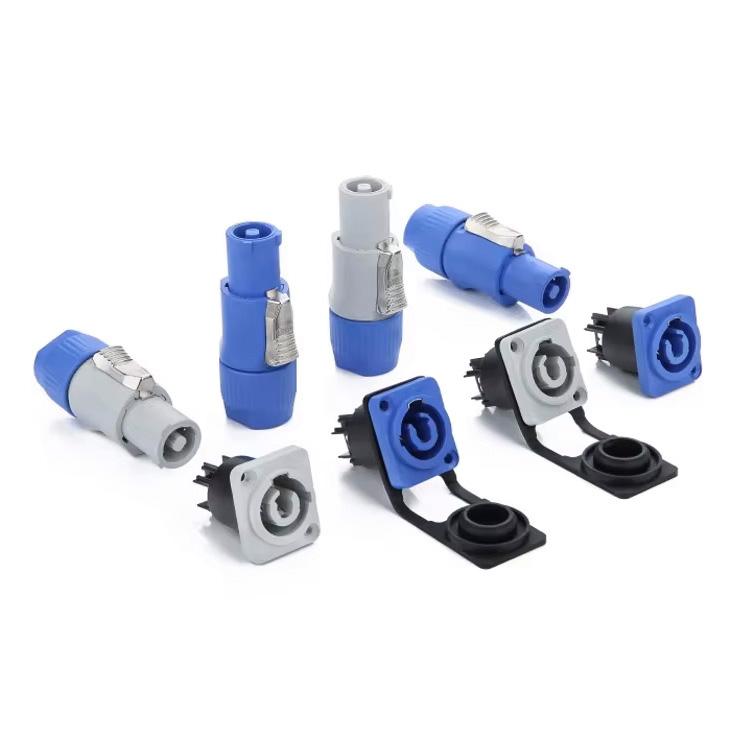

YF24 Plastic Waterproof connector
YF24 Plastic Waterproof connector YF24 Plastic Waterproof connector YF24 Plastic Waterproof connector YF24 Plastic Waterproof connector YF24 Plastic Waterproof connector YF24 Plastic Waterproof connector

YF24 Factory Price Powercon Connector 20A 3 Pin Male Plug with LED Display for Power Supply Applications

The Olink OL-YF24 20A 3 Pin Powercon Connector is a high-performance industrial power connection solution independently developed and produced by Xiamen Olink Import And Export Co., Ltd., a professional electrical interconnection enterprise with over 10 years of experience. This round male/female adapter connector is designed for high-power supply scenarios, integrating excellent electrical performance, structural durability and environmental adaptability, and is widely applicable to various industrial and professional equipment power connection needs with customizable services to meet personalized application requirements.

  • Brand:

    OLINK

  • Item no.:

    YF24

  • Payment:

    Wire transfer, Paypal, Western Union, Alipay

  • Product origin:

    China

  • Color:

    Black&Blue

  • Goods stock:

    50000

  • Shipping port:

    Xiamen

  • Lead Time:

    7
Inquiry now

YF24 Factory Price Powercon Connector 20A 3 Pin Male Plug with LED Display for Power Supply Applications

YF24 Factory Price Powercon Connector 20A 3 Pin Male Plug with LED Display for Power Supply Applications

YF24 Waterproof Connector – Selling Points

· High-Performance Engineering Plastics: Durable housing for long-lasting use.

· 20A Rated Current: Handles high power applications efficiently.

· Tin-Plated Copper Contacts: Ensures low contact resistance and reliability.

· IP44 Protection Level: Dustproof and splashproof for versatile use.

· Customizable Cables: Tailored solutions for various power supply needs.

YF24 Waterproof Connector Specifications

Cable specification 2.5mm2~4mm2/14~12 AWG
Diameter range Φ8mm~Φ12mm
Contact diameter × number Φ2.0×3
Rated Current (A) 20A
Operating voltage (AC.V.rms) 500V
Contact resistance <3mΩ
Withstanding Voltage (AC.V) 1 minute 2500V
Insulation resistance >500MΩ
Protection level IP44
Durability >500
Working temperature -40℃~80℃
Connecting mode Latching lock
Cssembly wire Solder&lock screw
Housing, the insulating parts High-performance engineering plastics

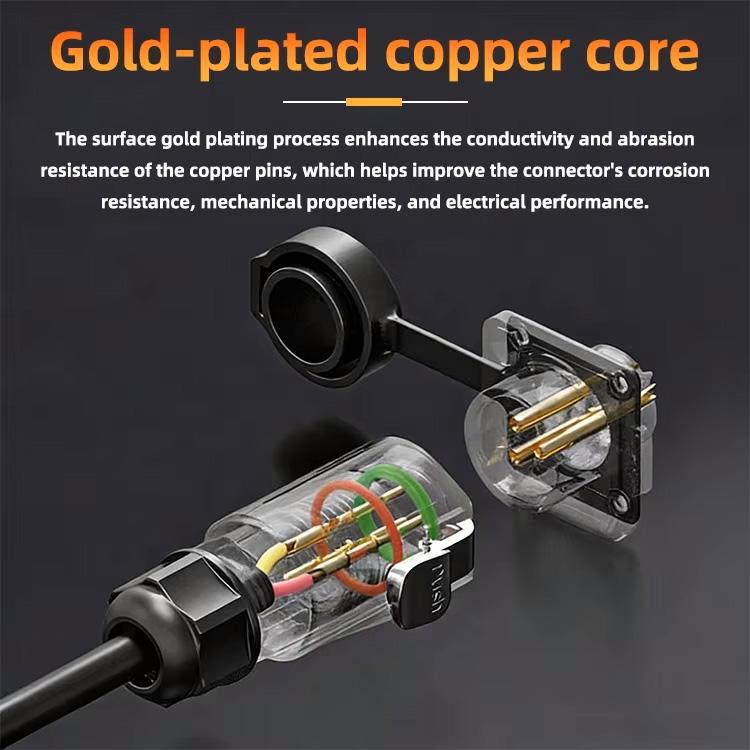

Contact material Copper alloy (gold-plated)

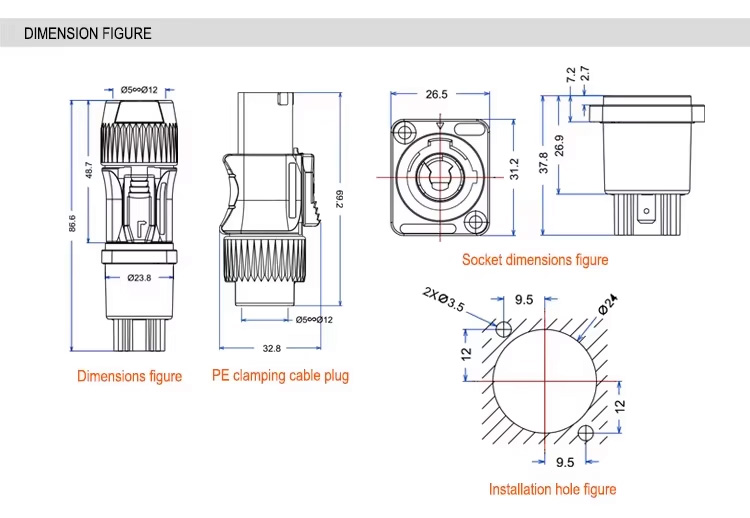

YF24 Waterproof Connector Specifications

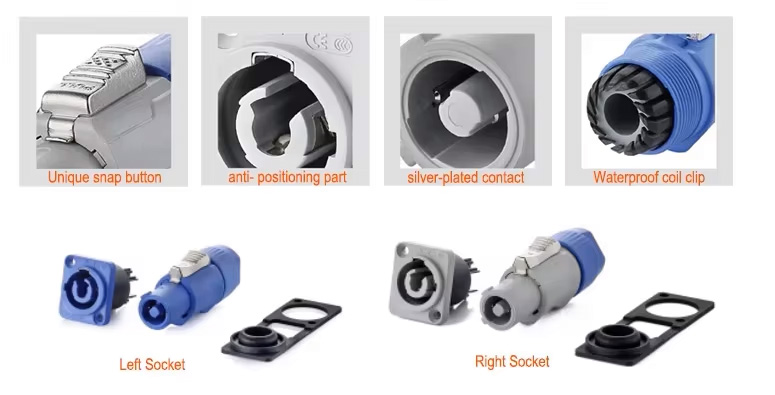

YF24 Waterproof Connector Detail Images

YF24 Waterproof Connector Detail Images

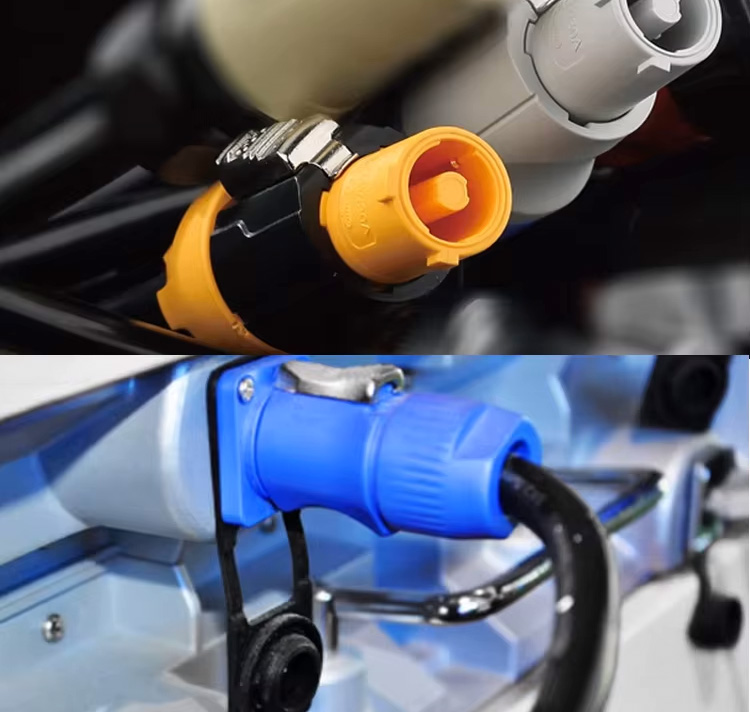

YF24 Waterproof Connector Real Scene Application Photos

YF24 Waterproof Connector Real Scene Application Photos

*If you need more information, you can find customer service through the contact information on the right side of this page. In addition, I have prepared a professional article on how to install waterproof connectors for you below. You may click on it to learn more about waterproof connectors.
