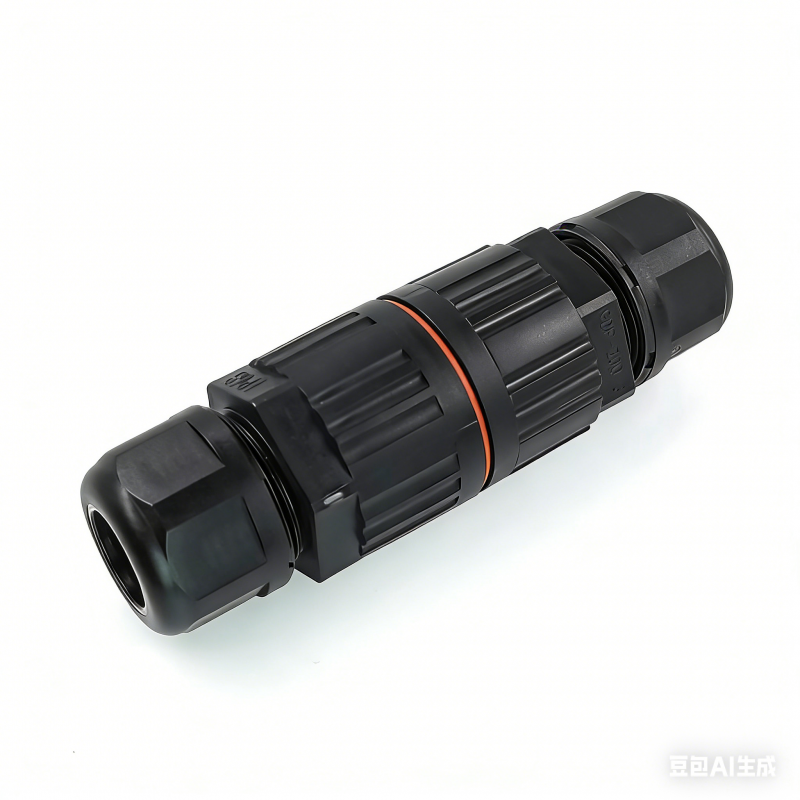

CDF-200 Outdoor Power Street Light Landscape IP68 Waterproof Brass Contact 32A 400V Electrical Connector

OLINK CDF-200 is an IP68 watertight cable connector engineered for outdoor street light and landscape lighting applications, boasting 4m water resistance with dual rubber ring sealing for full dust and moisture protection. It features nickel-plated brass contacts, delivering stable low-loss power transmission with 400V rated voltage and 32A rated current. The round connector offers flexible 2P/3P/5P pin options and screw/lever crimp termination, fitting 0.5-4.0mm²/24-12AWG wires and 4-6/6-8/8-12mm cable OD for diverse wiring needs. Its flame-retardant PA66 nylon housing is anti-corrosion and wear-resistant, adapting to a wide temperature range of -40℃~+95℃. With tool-free rotary nut wiring for easy assembly and upgraded dual-diameter seal structure, it’s CE and RoHS certified, ideal for outdoor power, communication and illumination waterproof wiring scenarios.

Brand:
OLINK
Item no.:
CDF-200
Payment:
Wire transfer, Paypal, Western Union, Alipay
Product origin:
China
Color:
Black
Shipping port:
Xiamen
Lead Time:
7

Inquiry now

product introduction

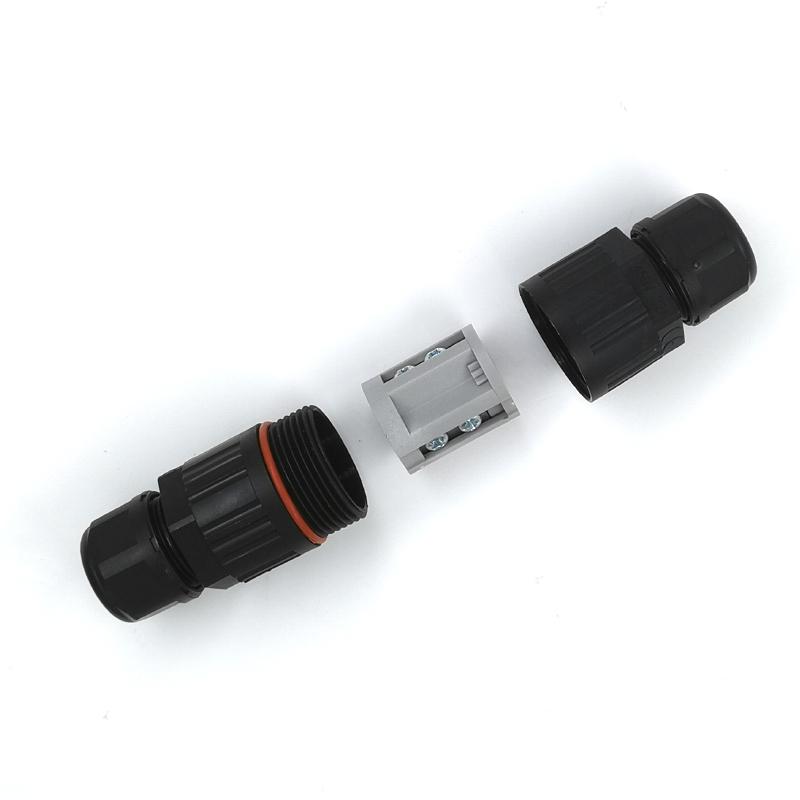

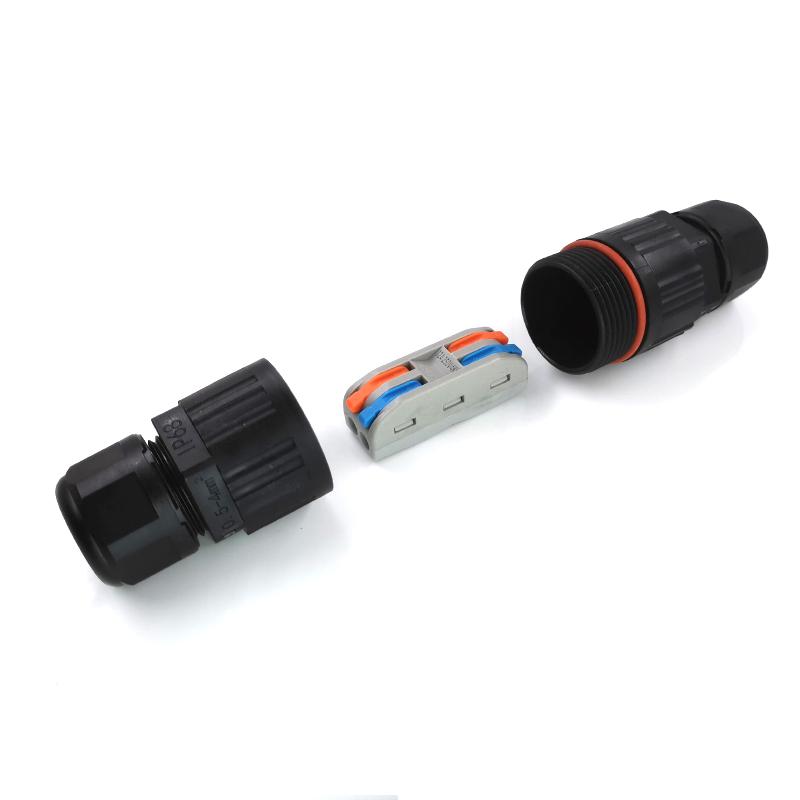

2 pin 3 pin ip68 waterproof cable connector

Description:

This IP68 cable connector by OLINK can be used for safe and waterproof outdoor connection of electrical installations. The practical cable connector can be used to connect or extend cables.

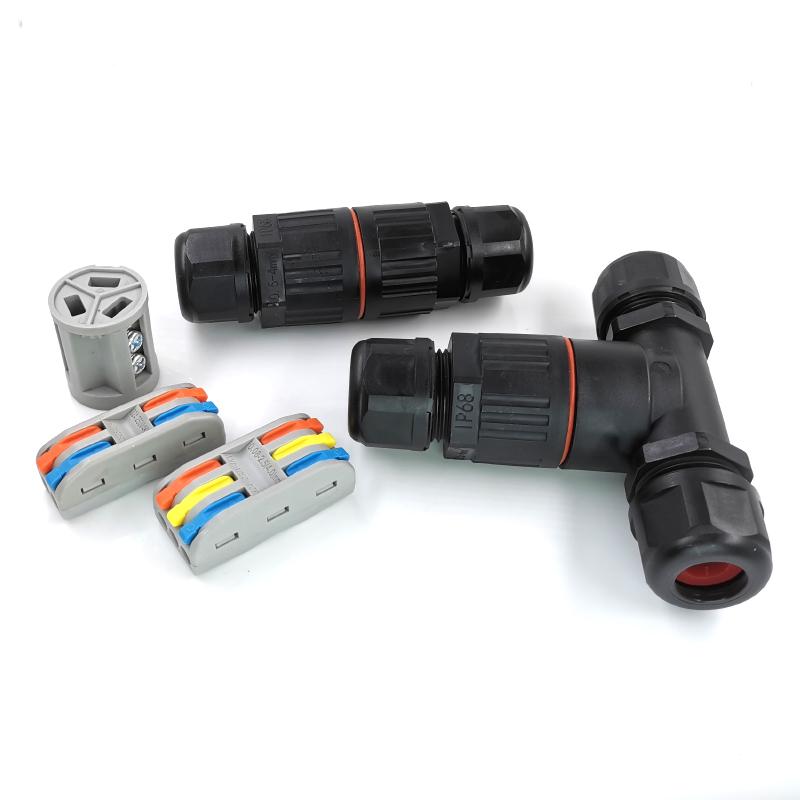

ip68 waterproof connector

Features:

Cable glands joint is made of nylon PA66 plastic, durable and waterproof.
Wide adjustable cable range and special design of the clamping die and rubber part combine with strong stretching resistance ensure no damage to cables and devices.

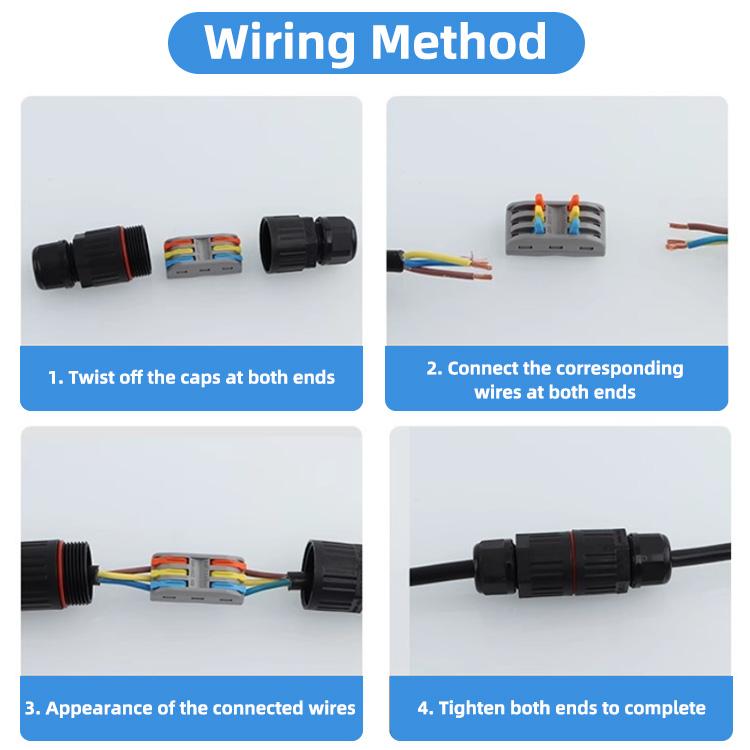

Cable gland joint can be inserted through directly, and can be tightened easily without disassemble.
Gold plated copper contacts ensures good electric conductivity.
Long service life, plugging times more than 500 times.
Thread locking design for reliable connection.

Specifications:

Product Name:	IP68 Cable connector	Product Model:	CDF-200-2/3
Rated Voltage:	450v	Rated Current:	32A
Wring Range:	0.5mm²-4.0mm²	Cable OD:	Φ4-Φ8&Φ7-Φ10
Product Material:	Flame retardant nylon	Contact Material:	Brass nickel plated
Number Of Cores:	2P/3P	Operating Temperature:	-40℃~95℃
Professional Level:	IP68/water depth 4m

Application:

CDF-200 waterproof cable connector ip68 is ideal for any equipment for watertight, indoor / outdoor applications, such as outdoor electric tools or appliances, medical device, communications, Marine equipment, under water equipment, outdoor led lighting, outdoor LED panels, outdoor security cameras, transformer, control box, machines and equipment, packing machines, and so on

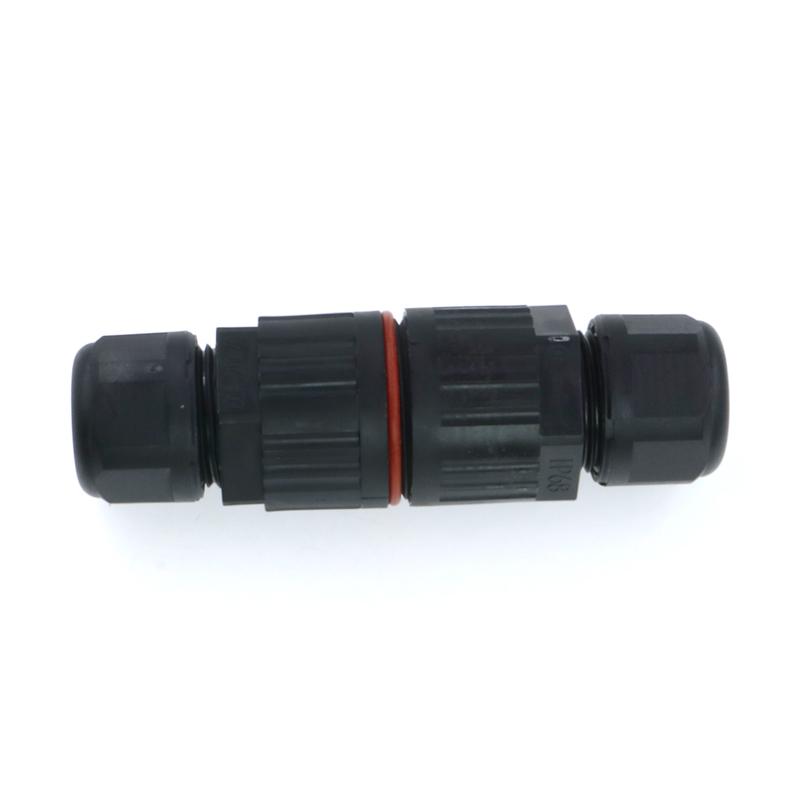

ip68 waterproof connector
