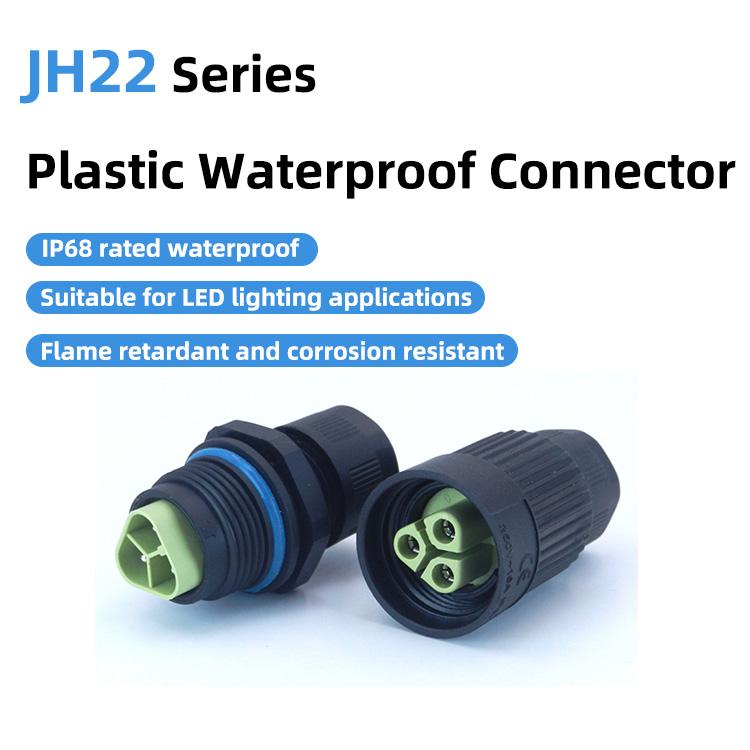

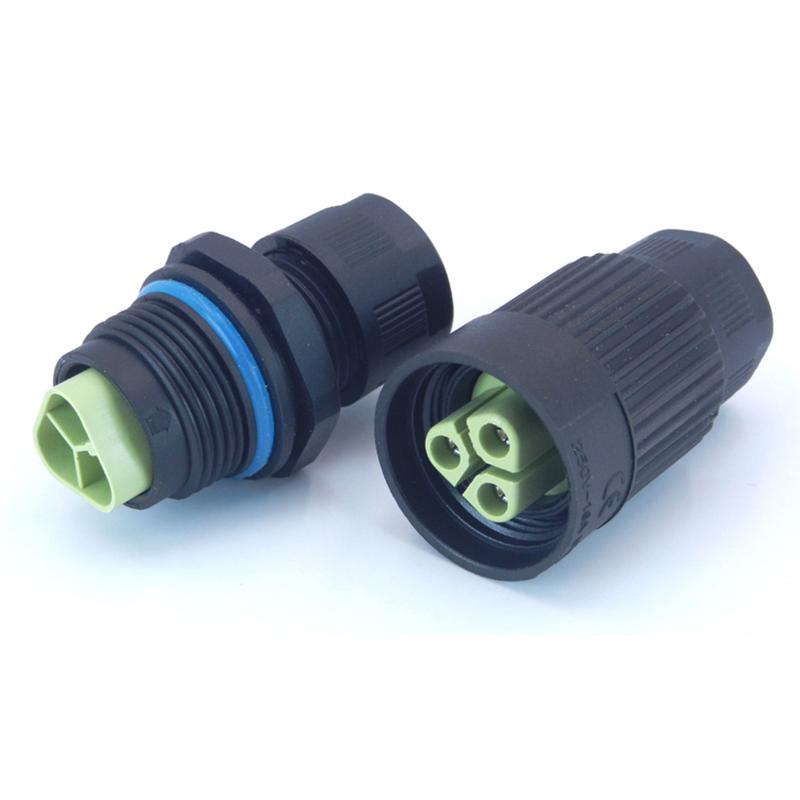

JH22 Dc Led Outdoor Power Lighting 250V IP68 Waterproof Adapter Connector

OLINK CDF-200 is an IP68 watertight cable connector engineered for outdoor street light and landscape lighting applications, boasting 4m water resistance with dual rubber ring sealing for full dust and moisture protection. It features nickel-plated brass contacts, delivering stable low-loss power transmission with 400V rated voltage and 32A rated current. The round connector offers flexible 2P/3P/5P pin options and screw/lever crimp termination, fitting 0.5-4.0mm²/24-12AWG wires and 4-6/6-8/8-12mm cable OD for diverse wiring needs. Its flame-retardant PA66 nylon housing is anti-corrosion and wear-resistant, adapting to a wide temperature range of -40℃~+95℃. With tool-free rotary nut wiring for easy assembly and upgraded dual-diameter seal structure, it’s CE and RoHS certified, ideal for outdoor power, communication and illumination waterproof wiring scenarios.

OL21 connector is  a large sized plastic shell IP68 waterproof wire connector.The user can attach the wires to the connector by solering & screw.

M20 connector is screw type IP68 waterproof electrical connector.The user can attach the wires to the connector by screw.

The Olink OL-YF24 20A 3 Pin Powercon Connector is a high-performance industrial power connection solution independently developed and produced by Xiamen Olink Import And Export Co., Ltd., a professional electrical interconnection enterprise with over 10 years of experience. This round male/female adapter connector is designed for high-power supply scenarios, integrating excellent electrical performance, structural durability and environmental adaptability, and is widely applicable to various industrial and professional equipment power connection needs with customizable services to meet personalized application requirements.

OLINK CDF-M3 is an IP68 mini watertight cable connector with 2Pin/3Pin options, boasting 4m water resistance and a compact AA battery-sized design. It features 300V rated voltage, 16A rated current and copper contacts for stable conductivity, with flame-retardant PA66/nylon housing that withstands -40℃~+95℃. The connector fits 0.5-2.0mm²/24-12AWG wires and 4-7mm cable diameters, enabling tool-free, easy wiring and dismantling. Certified by CE, RoHS and IP67, it’s ideal for outdoor/underwater waterproof wire connections in monitoring, fountains, street lights and more.

OLINK OL28 is an IP68 circular male&female waterproof power connector, featuring 250V/380V rated voltage and 5-45A adjustable rated current for diverse high-power supply needs. It adopts gold-plated brass contacts with nickel underplating for low resistance and anti-corrosion, paired with nylon housing, PA66 back shell and PPS insulation material that reach UL94 V-0 fire resistance grade. The connector works stably in -40℃~+100℃, with rich 2P-26P pin configurations, solder/screw crimping dual termination modes and threaded/bayonet connection options, fitting multiple cable OD specifications. Equipped with free dust cover, rubber ring and dual seal rings as standard accessories, it achieves superior dust and moisture protection for harsh outdoor/wet environments. CE and RoHS certified, it also supports full OEM/ODM customization including LOGO, housing, cable harness and mold, ideal for power inverters, outdoor billboards, street lamps and various industrial power devices.

OL-T1 T Type Waterproof Connector Use 6-10mm diameter cable, wire size ≤14AWG (2.5mm2), screw crimping; the maximum current can support 16A. There are 3 independent wiring devices. Compared with other T-type or Y-type connectors with only one wiring device, the wiring is faster, the operation is simpler, and the contact is more reliable.

The ip68 waterproof connectors can be used for both cable to cable (in-line) or cable to panel-mount connections.
