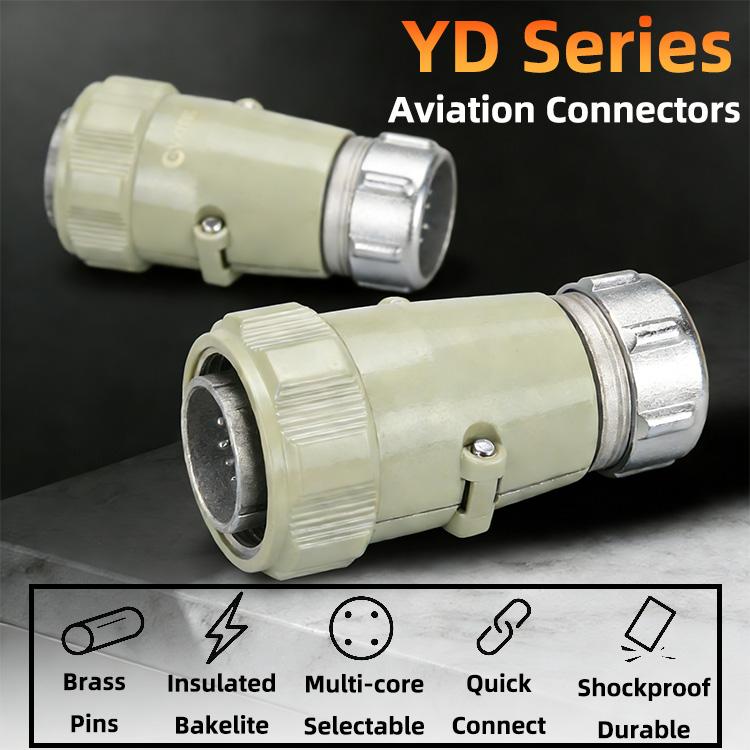

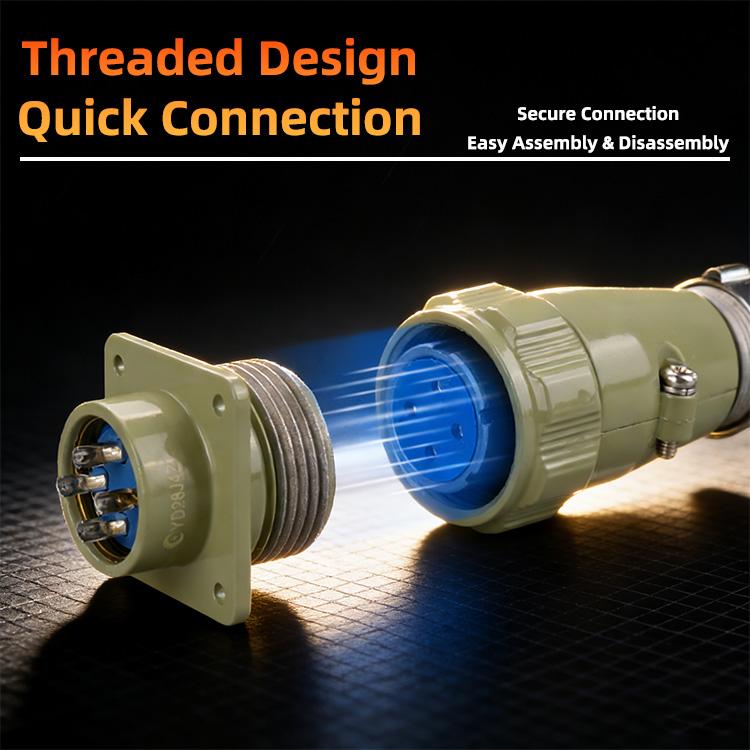

Fzolink OL-YD Series YD40 is an IP55 waterproof male&female power cable connector, engineered for high-current power transmission with exceptional performance in harsh working environments. It features gold-plated copper contacts for superior conductivity and corrosion resistance, paired with a sturdy nickel-plated zinc alloy housing, supporting a wide rated current range of 7A-150A and 500V rated voltage (1500VAC withstanding voltage) for stable and reliable power transfer. The connector offers flexible configurations with 2-61 pin options, flat/round shapes, straight/right angle designs, and cable/flexible metal conduit connection types, adopting threaded coupling for secure, anti-loosening connections. It operates stably in a temperature range of -45℃~85℃, withstands strong shock (40-80 times/min, 400m/s² acceleration), and endures over 500 mating cycles for long service life. With plastic+copper insulation and silica gel sealing for dust and water splash protection, CE and RoHS certified, it is ideal for various industrial power connection scenarios requiring high current and environmental adaptability, and supports OEM/ODM customization for diverse application needs.
Brand:
OLINKItem no.:
OL-YDPayment:
Wire transfer, PayPal, Western Union, AlipayProduct origin:
ChinaColor:
Green, BlackGoods stock:
50000Shipping port:
Xiamen, NingboLead Time:
7YD series high voltage metal connector waterproof

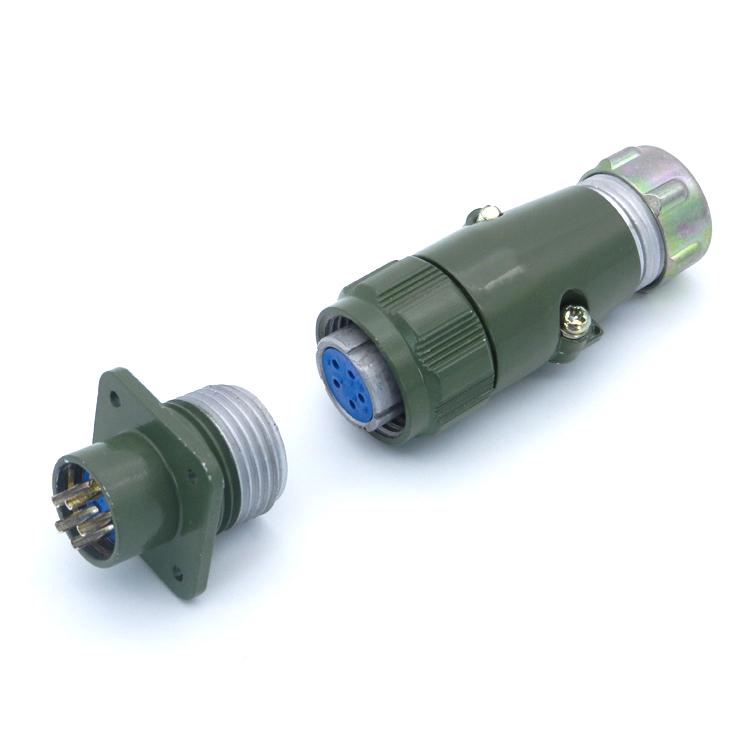

Feature of circular metal connector
Different shell size: There are 20, 28, 32, 40, 48, 50(mm) six type.The contact diameter have 1.5, 2.5, 3.5, 5.5 and 10 (mm) which can meet the requirements of different working currents.
Straight and elbow type can be chosen.
Specification of YD series metal connector
| Temperature range: |
-45℃~+85℃ |
Humidity: |
40℃ 93% |
| Connecting mode: | Screw connect |
Shock: |
10-500Hz, Acceleration 100m/s² |
|
Impact: |
40~80 times/min, Acceleration 400m/s² |
Life: |
500 times |
| Rated voltage: | 500V |
Withstanding voltage: |
1500V |
| Pin diameter (mm): | 1.5 | 2.5 | 3.5 | 5.5 | 10 | |
|
Contact resistance (mΩ): |
2.5 | 1 | 0.5 | 0.3 | 0.2 | |
|
Rated current (A) |
Number of contacts 1-20 |
10 | 25 | 50 | 100 | 150 |
|
Number of contacts 21-30 |
8 | 20 | 40 | 80 | 120 | |
|
Number of contacts 131-48 |
7 | 17.5 | 35 | 70 | 100 | |
Ordering code of metal cable connectors
Eg: YD28K7TP- 28mm diameter, female, 7 pin, plug, flexible metal conduit.
YD28J4Z- 28mm diameter, male, 4 pin, socket
YD28J4ZP- 28mm diameter, male, 4 pin, docking plug
The hole place arranges (Comply with the pin direction)
Application of connector
It is widely used the circuit connection of the power and control circuit of the electromechanical equipment, and has a grounding device, which is dustproof and waterproof.
