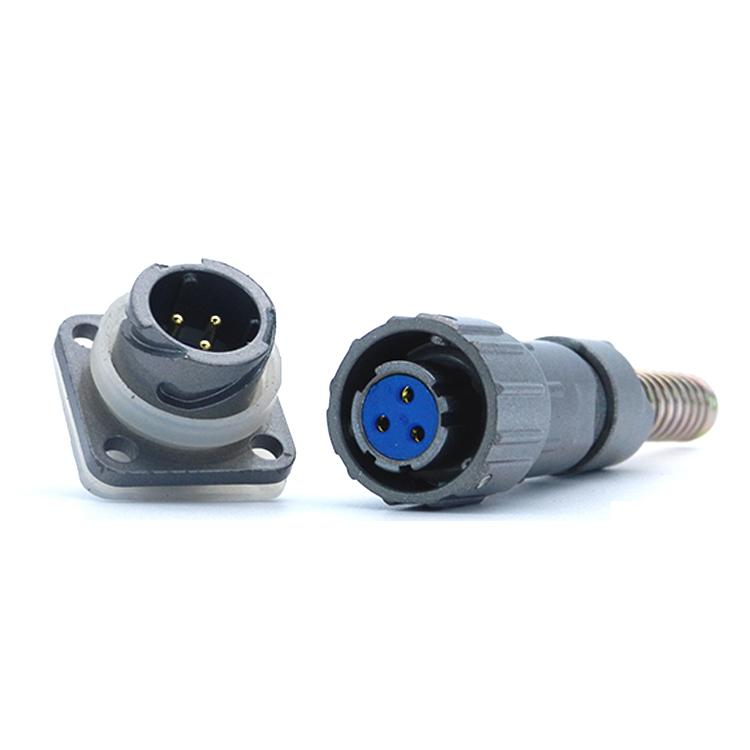

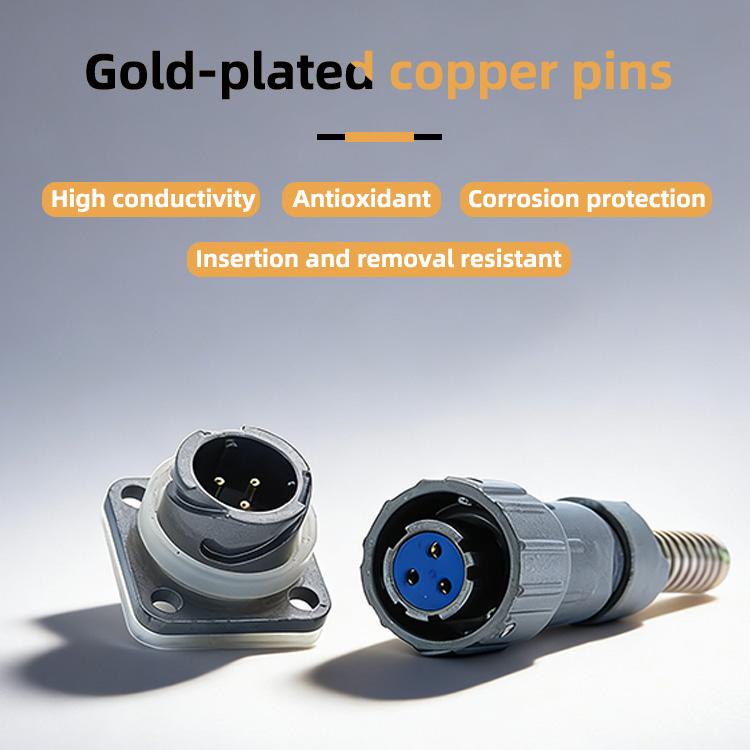

FQ Series 25A Automotive Plug Socket Electric Connector Gold-Plated Copper Contacts Aluminum Alloy IP67 Waterproof Terminals

Fzolink Russian Aviation Mini Aerospace Connector is an IP55-rated circular electrical connector engineered for extreme harsh environments, boasting an ultra-wide operating temperature range of -60℃~+85℃ and outstanding shock resistance (1000g single impact, 100g multiple impacts) as well as vibration resistance (1-5000Hz 20g). It features high-conductivity brass contacts with ≤5mΩ contact resistance and ≥1000MΩ insulation resistance, delivering stable performance with 200V rated voltage and 1.5A-3.7A pin-dependent rated current. Constructed with a robust aluminum alloy housing and adopting threaded coupling for secure, anti-loosening connections, the straight-orientation connector offers diverse flexible configurations with 4/7/10/19/32/50 pin options and male&female genders to meet different application needs. Compliant with EU standards and certified by CE/RoHS, it supports full OEM/ODM customization including cable customization, and is ideal for reliable electrical connections in aviation, aerospace, industrial and various harsh-environment electrical systems, with 7*24h engineer-led professional technical support available.

Fzolink OL-XS series (XS8/XS9/XS12/XS16) are IP65 automotive round electric quick connectors, engineered for harsh automotive working environments with a wide operating temperature range of -55℃~+85℃ and >500 mating cycles for durable use. Featuring gold-plated brass contacts (≤5mΩ contact resistance) for superior conductivity and gold/silver-plated aluminum alloy housing with bakelite insulation, they deliver stable performance with 250V rated voltage and 3A/5A/10A optional rated current, even resisting vibration and impact. The connectors adopt thread/push-pull self-latching coupling for secure and convenient connection, offer diverse pin configurations (2P-9P) across models, and support wire-to-board installation. IP65 dustproof and waterproof, CE and RoHS certified, they are ideal for reliable power transmission in various automotive electrical systems with compact, space-saving design.

Fzolink OL-YD Series YD40 is an IP55 waterproof male&female power cable connector, engineered for high-current power transmission with exceptional performance in harsh working environments. It features gold-plated copper contacts for superior conductivity and corrosion resistance, paired with a sturdy nickel-plated zinc alloy housing, supporting a wide rated current range of 7A-150A and 500V rated voltage (1500VAC withstanding voltage) for stable and reliable power transfer. The connector offers flexible configurations with 2-61 pin options, flat/round shapes, straight/right angle designs, and cable/flexible metal conduit connection types, adopting threaded coupling for secure, anti-loosening connections. It operates stably in a temperature range of -45℃~85℃, withstands strong shock (40-80 times/min, 400m/s² acceleration), and endures over 500 mating cycles for long service life. With plastic+copper insulation and silica gel sealing for dust and water splash protection, CE and RoHS certified, it is ideal for various industrial power connection scenarios requiring high current and environmental adaptability, and supports OEM/ODM customization for diverse application needs.

Fzolink MS5015 is an IP65 waterproof circular automotive adapter connector with exceptional environmental adaptability, operating stably in a wide temperature range of -55℃~+125℃ and enduring over 500 mating cycles for long-term use. It features gold/silver plated copper alloy contacts and nickel-plated zinc alloy housing, paired with polychloroprene insulators, delivering superior electrical performance with optional rated voltage (300/750/1500VAC) and current (10/25/50/100A), plus a minimum insulation resistance of 5000MΩ. The connector offers rich configurations with 3-61 pin options, male&female genders, straight/90° bend plug and panel mount socket types, and adopts threaded coupling for secure, stable connections via cable and flexible metal conduit. Compliant with EU standards and certified by CE/RoHS, it resists vibration and impact, making it ideal for harsh working conditions in automotive, industrial automation, new energy, rail transit, aerospace and medical equipment. It also supports OEM/ODM customization including soldered wiring and logo design for diverse application needs.

OLINK Amphenol MS3116 is an IP67-rated Mil Spec circular aerospace power adapter, engineered for high-reliability electrical connections in extreme harsh environments such as aerospace, instrumentation and industrial power systems. It features gold-plated copper alloy contacts and a robust aluminum alloy housing with polychloroprene insulators and grommets, delivering stable performance with 600V rated voltage, 7.5A rated current and a minimum insulation resistance of 5000MΩ. The connector operates flawlessly in an ultra-wide temperature range of -55℃~+125℃, offers both straight and right angle orientations, and comes in multiple shell sizes (8,10,12,14,16,18,20,22) to fit diverse installation needs. With 500 mating cycles for long service life, excellent vibration and impact resistance, and reliable IP67 dustproof and waterproof sealing, it complies with international Mil standards and is CE/RoHS certified. Ideal for petrochemical, new energy and automotive applications across Russia, the USA and Europe, it also supports OEM/ODM customization including custom wire harnesses for ready-to-use convenience, with 7*24h professional technical support available.

The 2PM Series 4-Pin Power Connector is a professional electrical connection component designed for power transmission scenarios, featuring a 4-pin core configuration for stable and reliable power delivery. As a dedicated power connector, it is engineered to meet standard power connection requirements of various electrical equipment, with a compact and practical structural design that ensures easy installation and secure mating for different power application scenarios.

Fzolink OL-YP is an IP68-rated circular multi-hole plastic cable gland adapter, engineered for high-performance electrical connections in automotive and harsh outdoor environments with full waterproof and dustproof protection. It features gold/silver plated contacts and durable Bakelite/PPS plastic housing, supporting a wide rated current range of 5A-100A and 1500VAC high voltage for stable power transmission with low contact resistance (0.3mΩ-6mΩ). Adopting bayonet coupling and threaded design, it enables quick assembly, anti-loosening secure connection, with internal welding and external metal flexible hose fixation for extra stability. The connector offers ultra-flexible configurations with 2-120 pin options (YP21/28/36/50 models), flange/cable connection types and male&female genders, adapting to -40℃~+85℃ working temperature, strong vibration and shock resistance, and over 500 mating cycles for long service life. CE and RoHS certified, it supports full OEM/ODM customization for wiring harness, cables and LOGO, ideal for automotive high-power systems and industrial harsh-environment electrical connections.

OHS Series Connector Was Developed According Tothe Russia Type Ohц-b C-1(2),Widely Used In Direct Current And Alrernate Currentcircuit,the Connect Way Is Bayonet ,Receptcle without Tail ,plug With Plastic Straight Tail.
