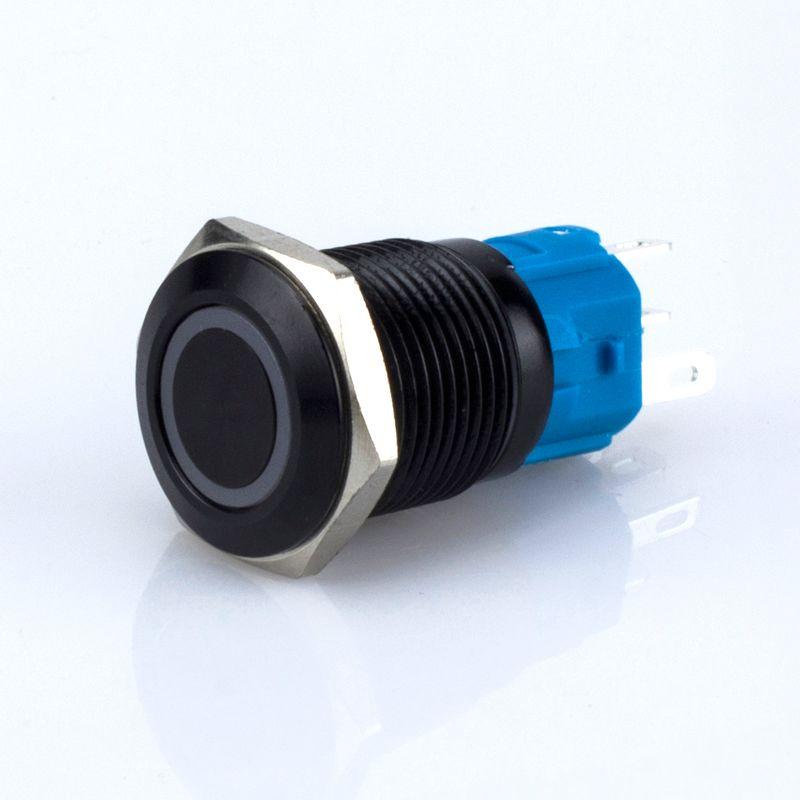

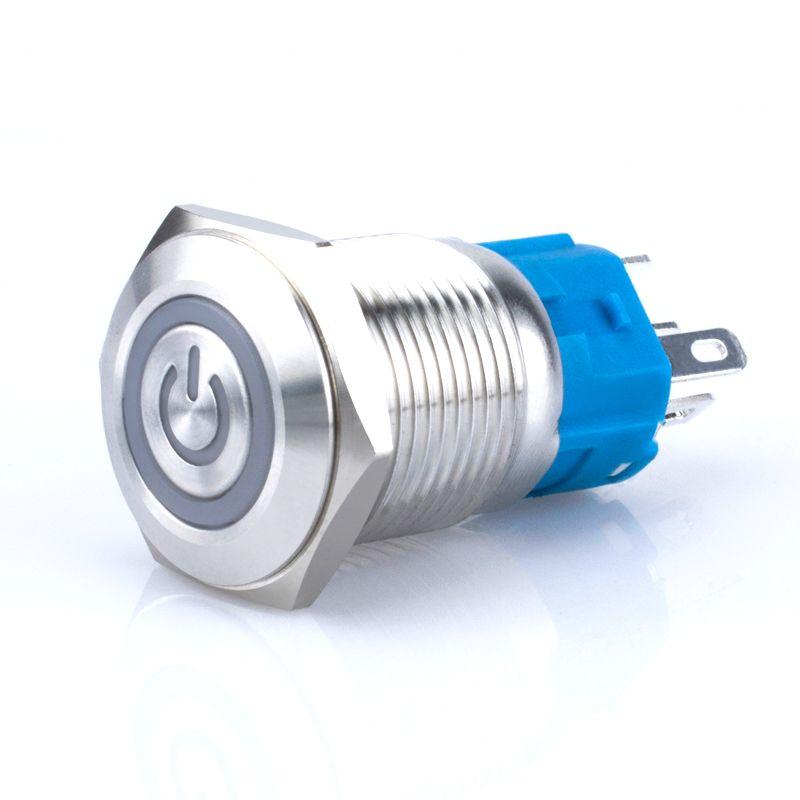

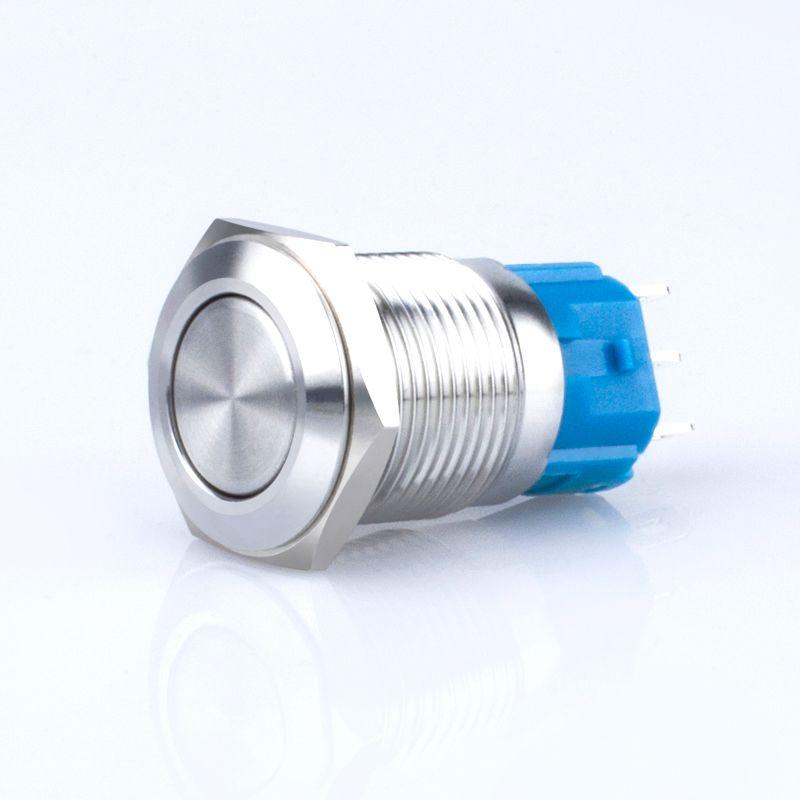

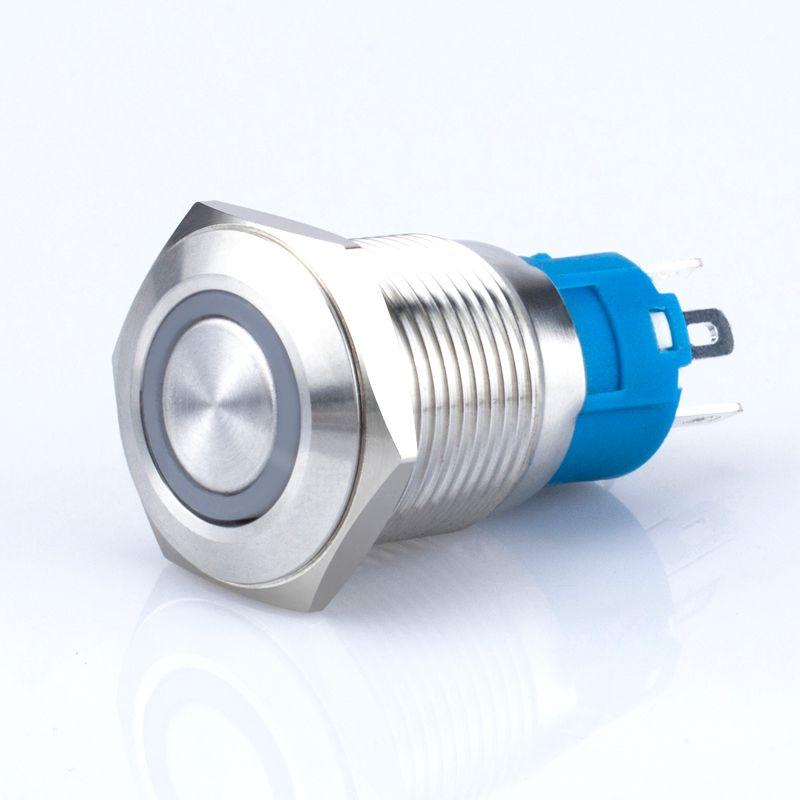

Weatherproof metal push button switch IP67 PCB mount

Strong terminal, 1NO1NC, Momentary or self-locking function, with led, can do

monochromatic light, dual-color led and tri-color led.

  • Brand:

  • Item no.:

  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

  • Color:

    Sliver, other colors(OEM)
  • Min order:

  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:


Weatherproof metal push button switch IP67 PCB mount

  Description of 16mm PushButton Switch
 A 16mm push button switch is a momentary or self-locking switch which causes a temporary change in the state of an electrical circuit only while the switch is physically actuated.

  Features of Stainless Steel Push Button

  • Bold pin: 2.8*0.5 thick pin, more solid, not easy to damage when the plug is connected or soldered

  • All silver contacts: strong heat dissipation, good electrical conductivity, and long service life

  • Environmentally friendly flame-retardant: PC plastic is used, and no return material is rejected, V0-class flame-retardant

  • IP67 waterproof: built-in waterproof ring, made of medical silicone material, safe and reliable. IP67, IK10, dustproof, waterproof, anti-vandalism

  Specifications of Push Button Switch

Product Name:

16mm push button switch with led

Product Model: 16QE
Switch Rating: 5A/250V AC Terminal Type: 2.8x0.5 J pin terminal
Switch Function: 1NO1NC, Momentary/Self-locking Environment Temperature: -20℃~+55℃
Contact Resistance: ≤50mΩ Insulation Resistance: ≥1000MΩ
Panel Thickness: 1~10mm Protection Grade: IP65/IP67, IK10
Contact Material: Sliver Alloy Button Material: Stainless steel, Zn-Al alloy(any color)
Body Material: Brass nickel plated, Stainless steel, Zn-Al alloy(any color) Base Material: PBT
Lamp Voltage: 2V, 3V, 5V, 6V, 12V, 24V, 36V, 48V, 110V, 220V Lamp color: Red, Orange, White, Blue, Green, Yellow (dual-color led, tri-color led)

  Drawing of 120V Push Button Switch







  Application of 16mm Push Button

16mm push button switch can be applied to car motorcycle modification, electric equipment, appliance, machine, home Lamps etc.

16mm push button switch


How to wire a push button switch?

  • Matched socket: safety, convenience, reliable, plug and play
  • Terminal sheath: economical and practical
  • Manual soldering: It is recommended to use a 25W electric soldering iron, and the soldering time should be within 3 seconds
  • Automatic welding machine: recommended 240℃ within 3 seconds
