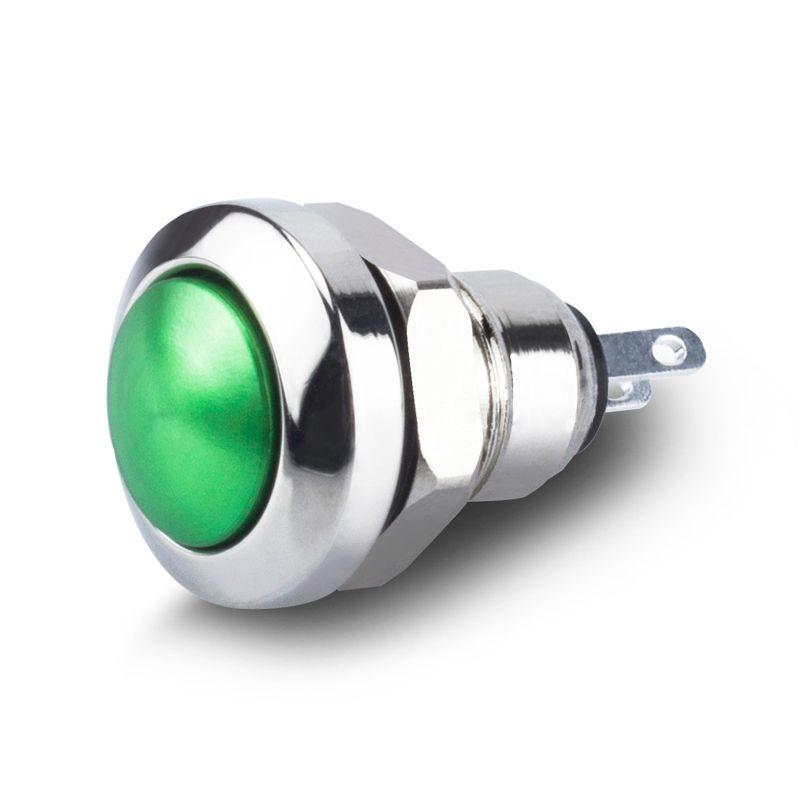

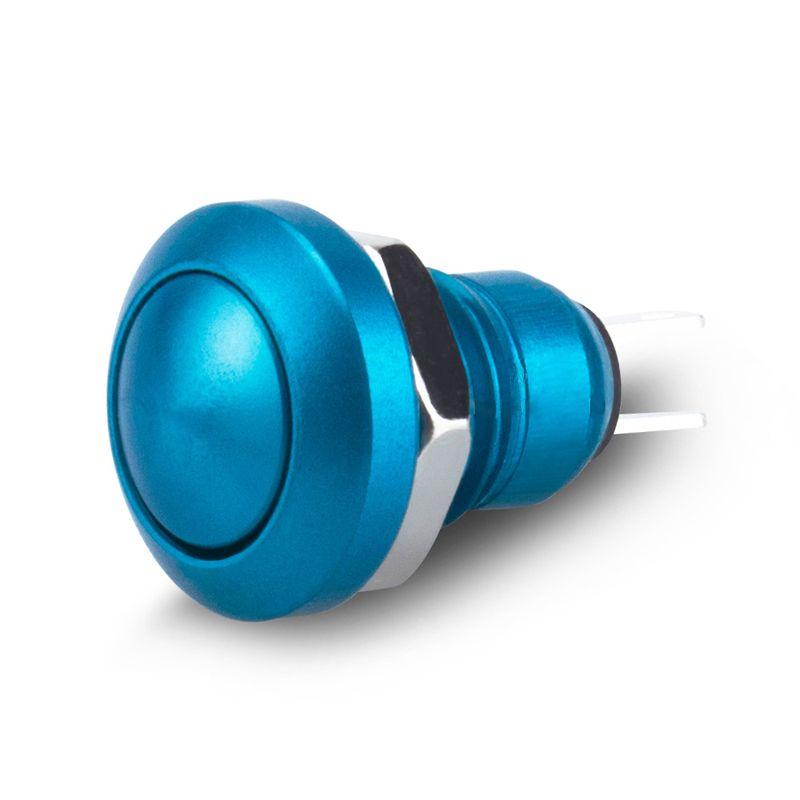

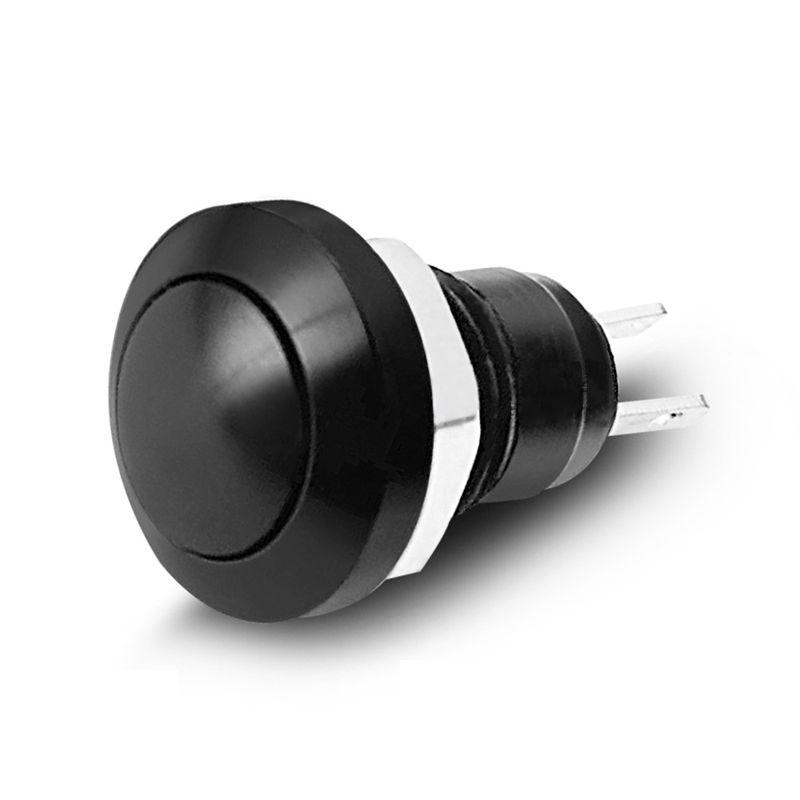

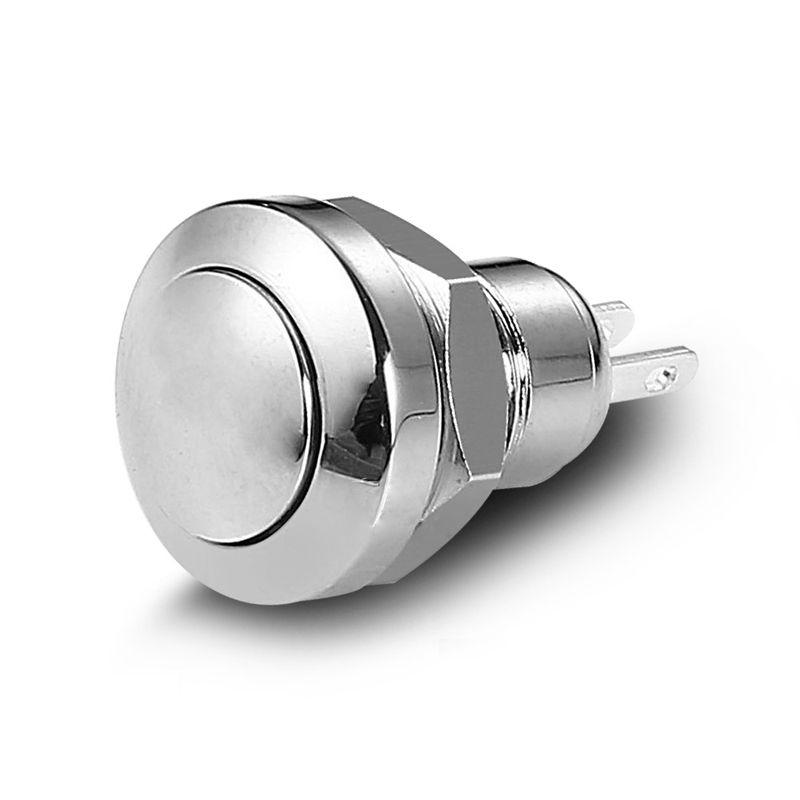

2 way mini momentary push button switch 8mm

IP65 waterproof momentary push button switch, only 8 mm mini size. Can custom other color shell.

  • Brand:

  • Item no.:

  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

  • Color:

    Sliver, other colors(OEM)
  • Min order:

  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:


 2 way mini momentary push button switch 8mm


   Features of Momentary push button switch

  • Soldering pin terminal: can be installed with plug-ins, the wiring is stable and convenient

  • Metal shell: waterproof, rust-proof, corrosion-resistant, pressure-resistant and high-temperature resistant

  • Waterproof rubber ring: The rubber gasket is matched with a fastening nut, and the waterproof seal is not easy to fall off

  • Small size: miniature push button switch, small and beautiful, spherical head

  • Flame-retardant material: stainless steel or brass nickel-plated shell + PBT base, safe and fireproof

   Specifications of 8mm pushbutton switch

Product Name: Mini momentary push button switch Product Model:  8QA
Switch Rating:  1A /24V DC Terminal Type:  1.5 x 0.5  J pin terminal
Switch Function:  1NO, Momentary Environment Temperature:  -20℃~+55℃
Contact Resistance:  ≤50mΩ Insulation Resistance:  ≥1000MΩ
Panel Thickness:  1~4 mm Protection Grade:  IP65, IK08
Head shape:  Ball Button Material:  Brass nickel plated, Stainless steel,  Zn-Al alloy(Black, Red, Green)
Body Material:  Brass nickel plated, Stainless steel, Zn-Al alloy(any color) Base Material: PBT

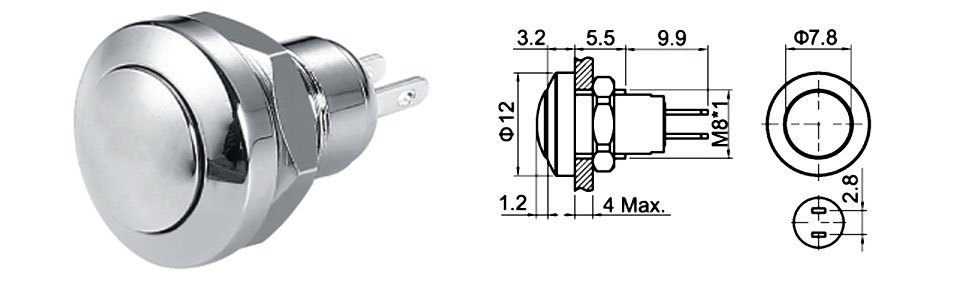

   Drawings of Small push button switch

   Application of Mini push button switch

8 mm push button switch can be applied to car motorcycle modification, electric equipment, appliance, machine, home Lamps etc.

16mm push button switch

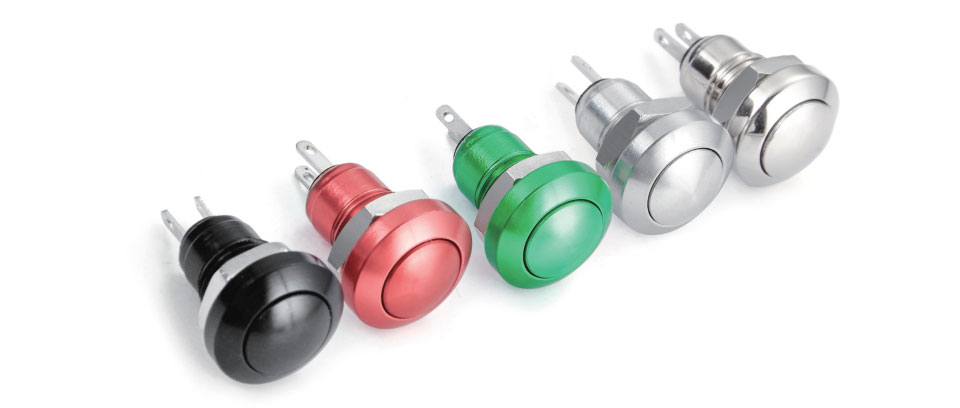

Can be able to make other colors?

Yes, there are green, red and black color can be chosen. Other colors need to custom.
