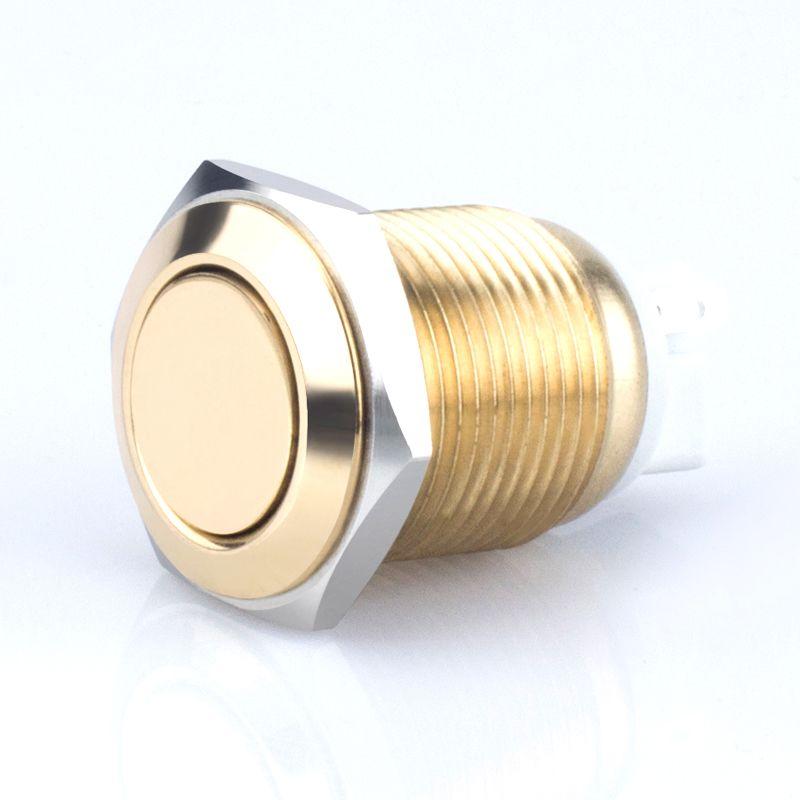

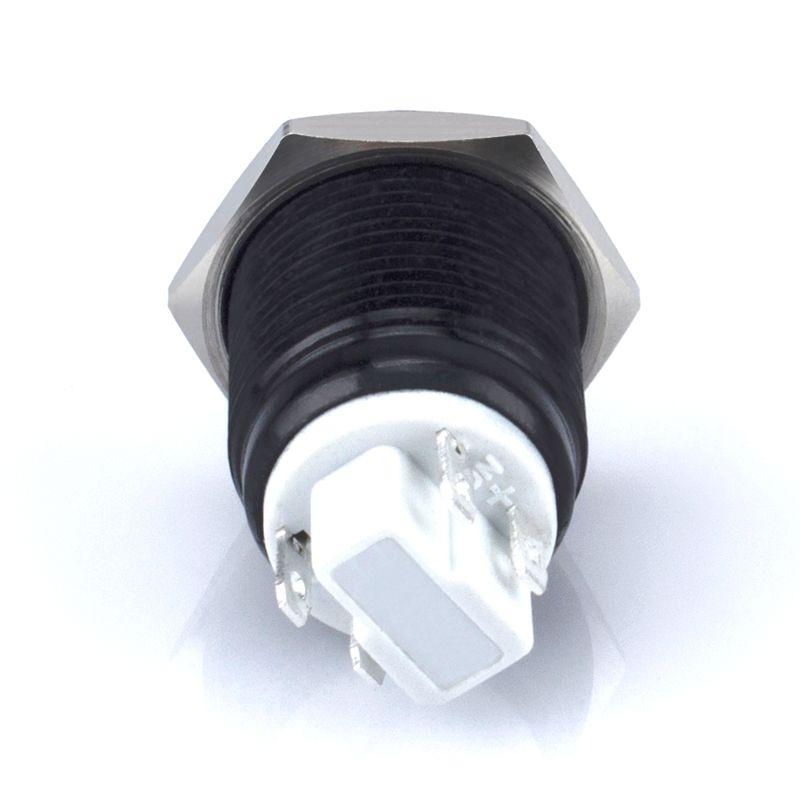

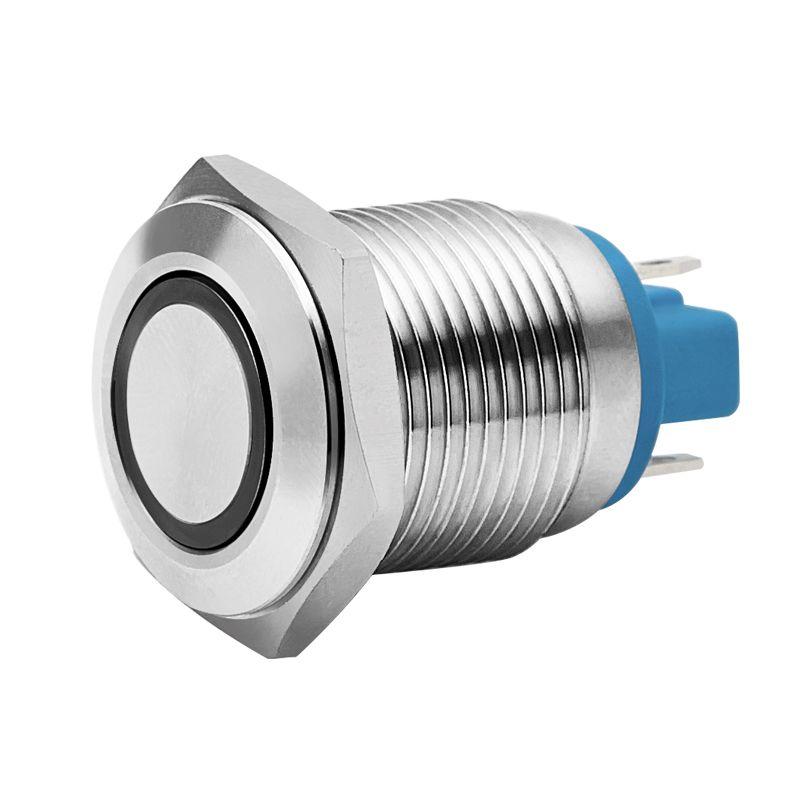

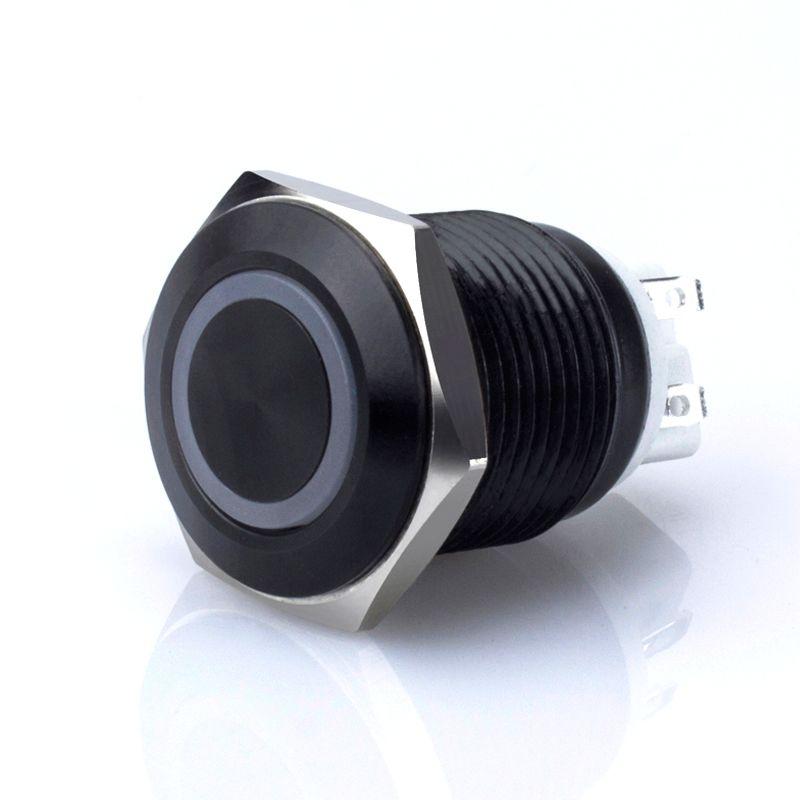

12 volt 16mm waterproof momentary push button switch stainless

Short design, applied in mechanical equipment, household appliances, robots and other fields. Max. current is 10A and max. power is 2500W.

  • Brand:

  • Item no.:

  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

  • Color:

    Sliver, other colors(OEM)
  • Min order:

  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:


12 volt 16mm waterproof momentary push button switch stainless

  Description of 16mm PushButton Switch
 A 16mm push button switch is a momentary or self-locking switch which causes a temporary change in the state of an electrical circuit only while the switch is physically actuated.

  Features of Stainless Steel Push Button

  • Waterproof level: The water resistance of ip65/ip67 makes it suitable for more complex use environments.
  • Stainless steel shell: Except stainless steel, there still have brass nickel plated and Zn-Al alloy of the shell material. You can make in in any color, like black.
  • Switch and the LED are separated, LED can be on all the time or only on when switch is on, it depends on how will you wire it.
  • Wiring – We are able to provide wiring, and also connector sockets which match with our metal push button switch. If this is something you’re looking for, mention this with detail requirements when making an enquiry.

  Specifications of Push Button Switch

Product Name:

16mm waterproof push button switch

Product Model:   16QC
Switch Rating:   5A/250V AC, 10A/250V AC Terminal Type:   2.0x0.5 J pin terminal
Switch Function:   1NO, Momentary/Self-locking Environment Temperature:   -20℃~+55℃
Contact Resistance:   ≤50mΩ Insulation Resistance:   ≥1000MΩ
Panel Thickness:   1~10mm Protection Grade:   IP65/IP67, IK10
Contact Material:   Sliver Alloy Button Material:   Stainless steel, Zn-Al alloy(any color)
Body Material:   Brass nickel plated, Stainless steel, Zn-Al alloy(any color) Base Material:   PBT
Lamp Voltage:   2V, 3V, 5V, 6V, 12V, 24V, 36V, 48V, 110V, 220V Lamp color:   Red, Orange, White, Blue, Green, Yellow

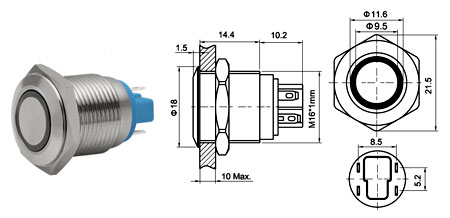

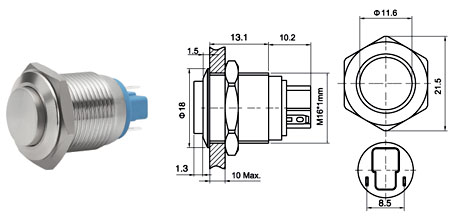

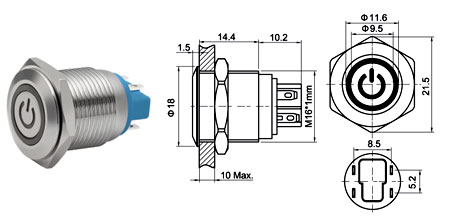

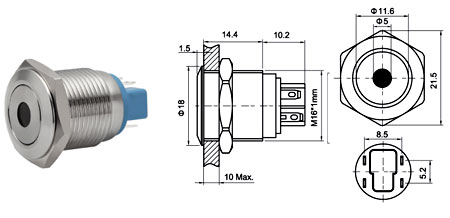

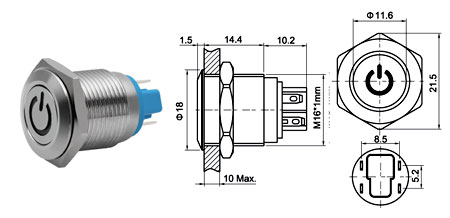

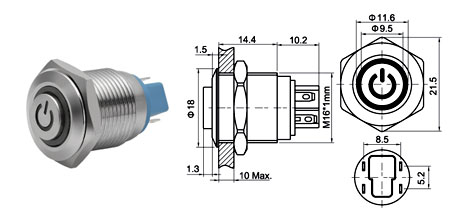

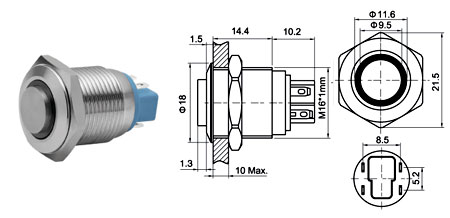

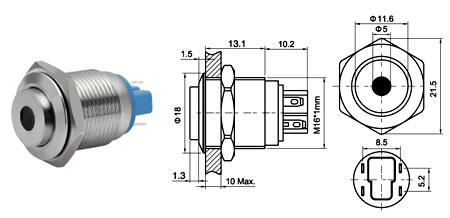

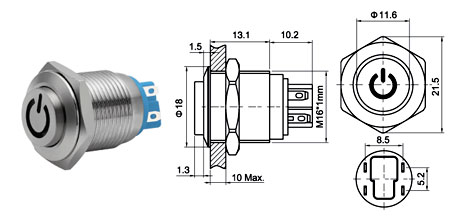

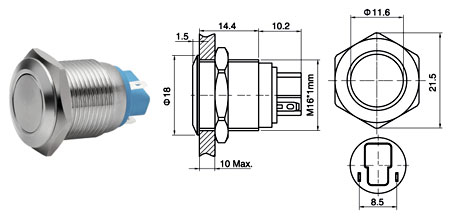

  Drawing of 120V Push Button Switch









  Application of 16mm Push Button

16mm push button switch can be applied to car motorcycle modification, electric equipment, appliance, machine, home Lamps etc.

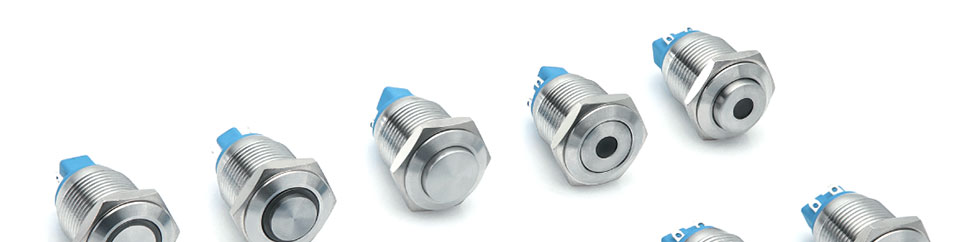

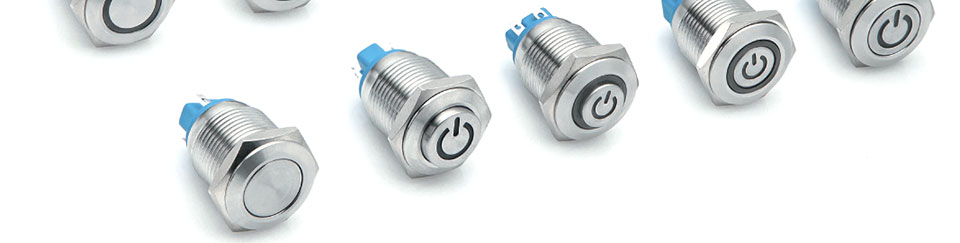

16mm push button switch


How are these items packed?

  • Only the switch: 40/50 pcs in a inner box, then into a carton.
  • If the switch with wiring: Without inner box, packed with a ziplock bag, then into a carton.
