2 way 16mm electric push button switch with light

Reset switch, used in coffee machine, electronic cigarette and other type electronic equipments.

Brand:
OLINK
Item no.:
16QA
Payment:
Wire transfer, PayPal, Western Union, Alipay
Product origin:
China
Color:
Sliver, other colors(OEM)
Min order:
40
Shipping port:
Xiamen, Ningbo
Lead Time:
7

Inquiry now

product introduction

2 way 16mm electric push button switch with light

Description of 16mm Push Button Switch

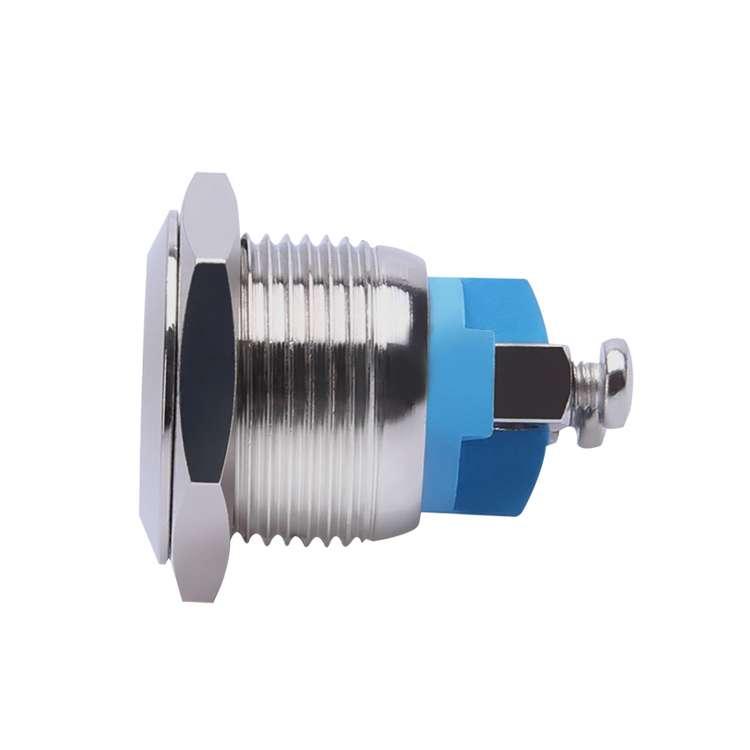

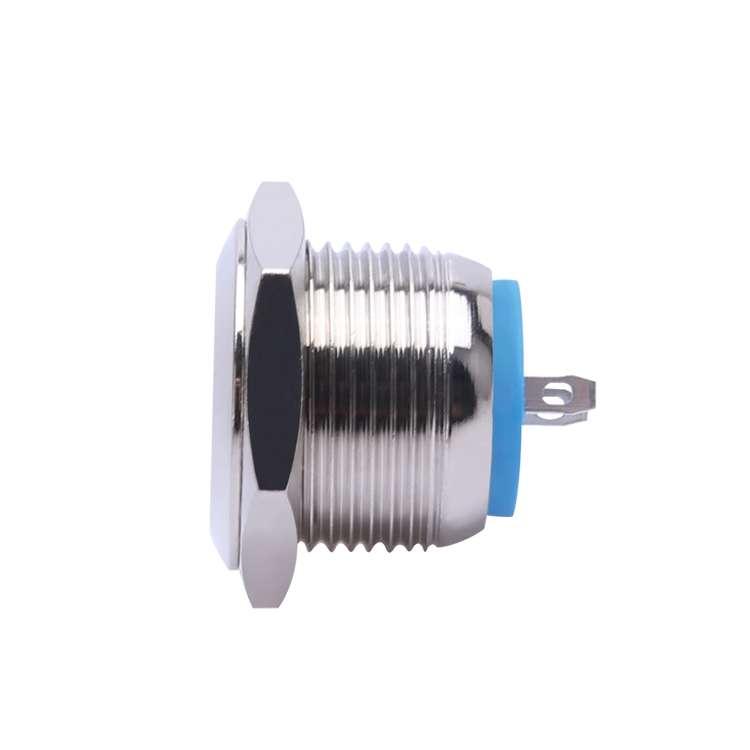

16mm push button switch has two kinds of wiring method, one is soldering and another is screw. And its switch function is momentary, if you release your hand, the button will return automatically and the circuit is off.

Features of Electric push button switch

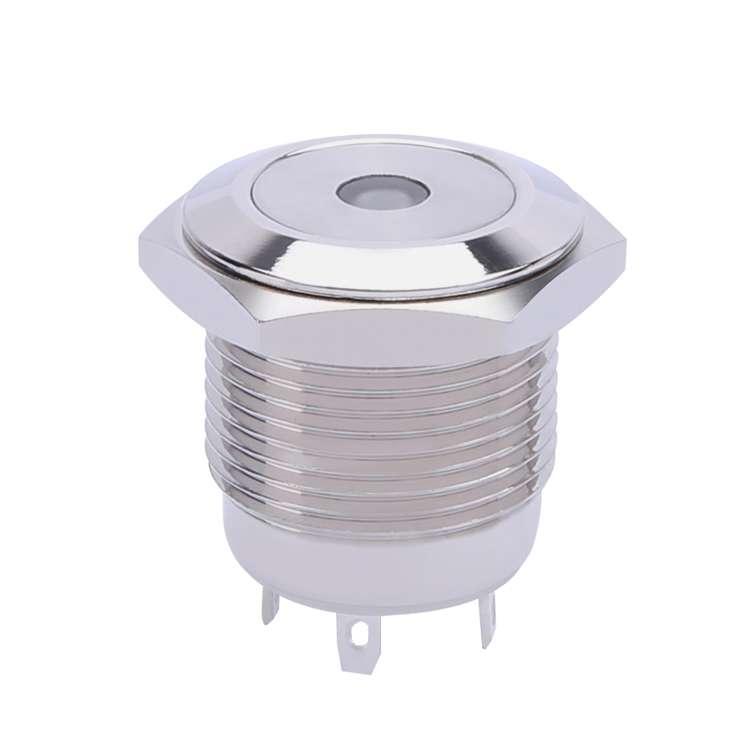

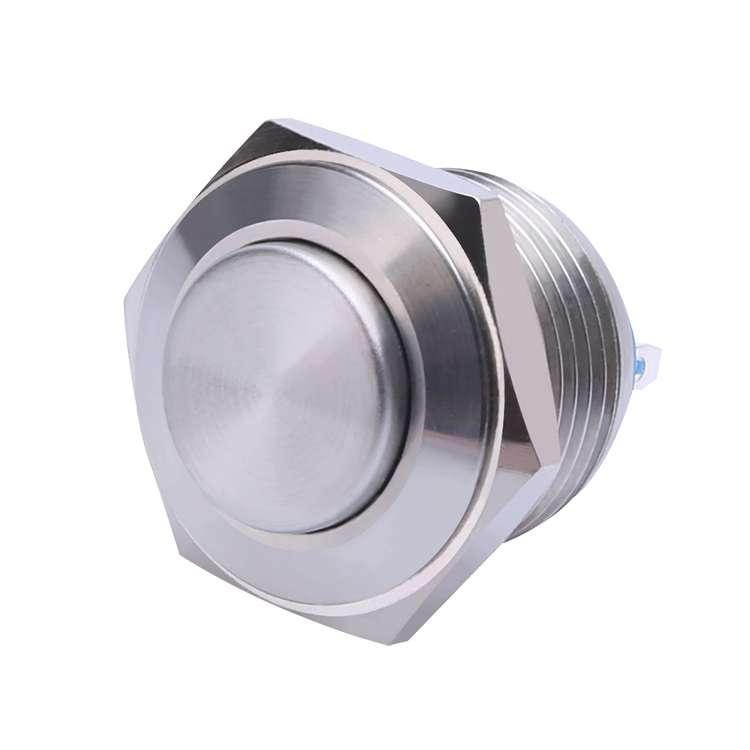

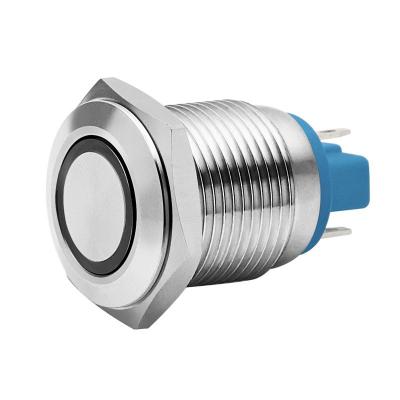

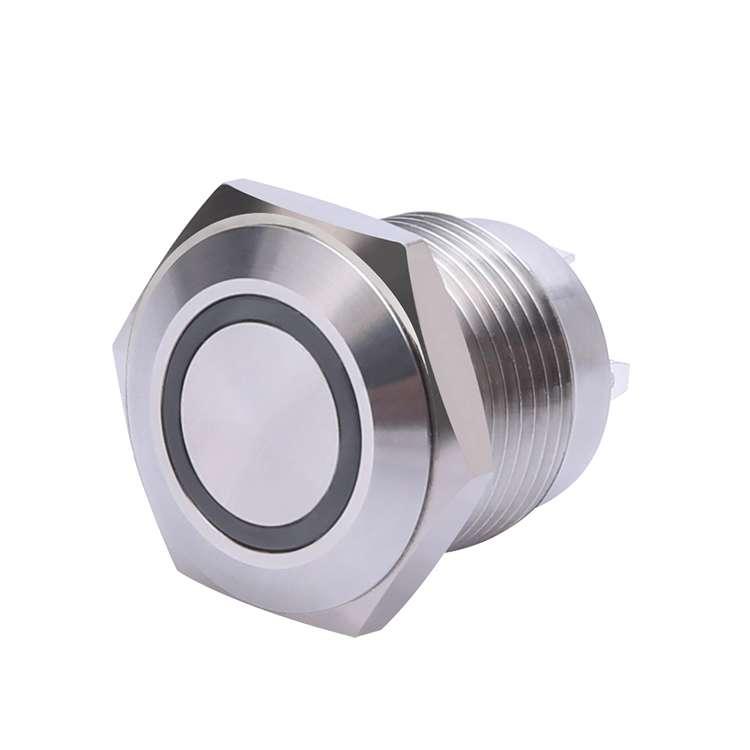

Different button head shape and lamp shape can choose: There are flat, high round, ball head shape, and lamp type have dot, ring, ring&symbol.
Different shell material: Except stainless steel, there still have brass nickel plated and Zn-Al alloy of the shell material. You can make in in any color, like black, yellow.
Protection level: IP65, IK08. Completely prevent dust from entering and prevent the impact of deep soaking.
Switch and the LED are separated, LED can be on all the time or only on when switch is on, it depends on how will you wire it.
Wiring – We are able to provide wiring. If this is what you’re looking for, mention this with detail requirements when making an inquiry.

Specifications of 16mm Push Button Switch

Product Name:	16mm momentary push button switch	Product Model:	16QA
Switch Rating:	2A/36V DC, 2A/250V AC	Terminal Type:	2.0 x 0.5 J pin terminal/Screw terminal
Switch Function:	1NO, Momentary	Environment Temperature:	-20℃~+55℃
Contact Resistance:	≤ 50 mΩ	Insulation Resistance:	≥ 1000 MΩ
Panel Thickness:	1~8 mm	Protection Grade:	IP65, IK08
Contact Material:	Sliver Alloy	Button Material:	Stainless steel, Zn-Al alloy(any color)
Body Material:	Brass nickel plated, Stainless steel, Zn-Al alloy(any color)	Base Material:	PBT
Lamp Voltage:	2V (Red, Orange, Yellow) 3V (Green, Blue, White) 5V, 6V, 12V, 24V, 36V, 48V, 110V, 220V (Need an external resistance)	Lamp color:	Red, White, Blue, Green, Yellow (Other colors can custom)

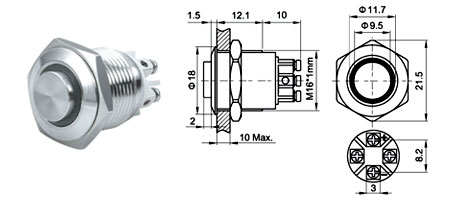

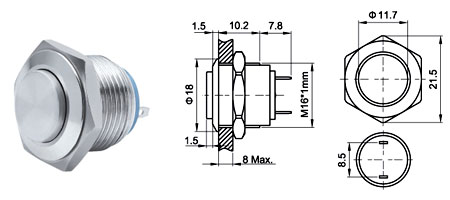

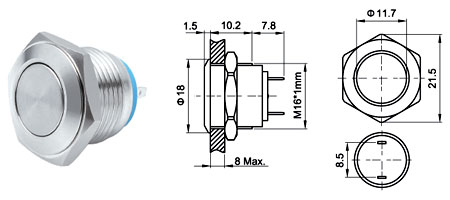

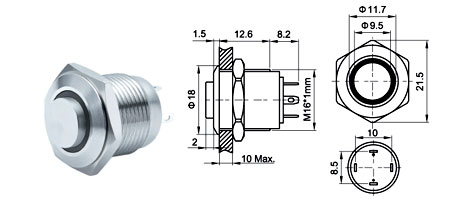

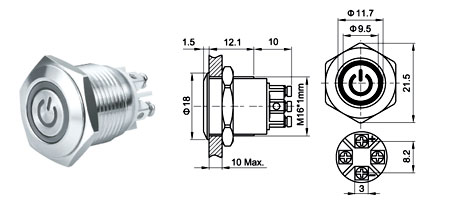

Drawing of Push Button Switch

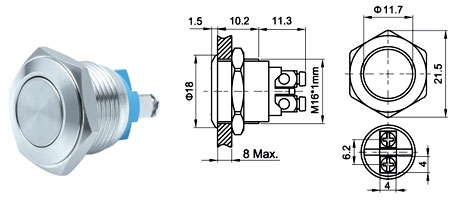

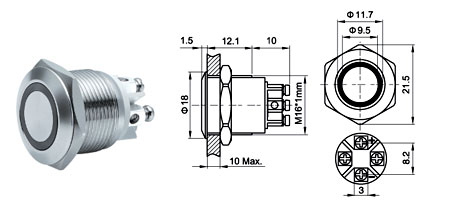

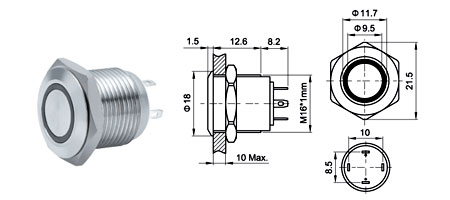

16QA-F10		16QA-F10L

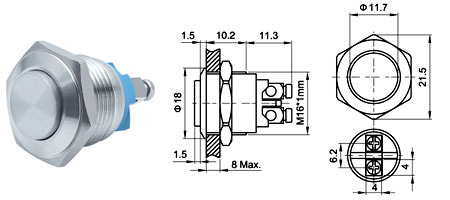

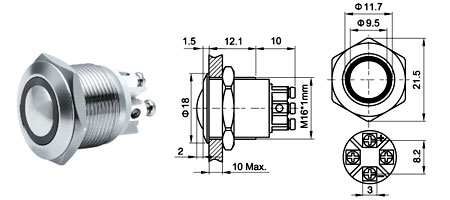

16QA-H10		16QA-H10L

16QA-F10/E		16QA-H10/E

16QA-F10L/E		16QA-H10L/E

16QA-F10L/EV		16QA-B10L/E

Application of Electric push button switch

16mm push button switch can be applied to car motorcycle modificaction, electric equipment, appliance, machine, home Lamps etc.

16mm push button switch
