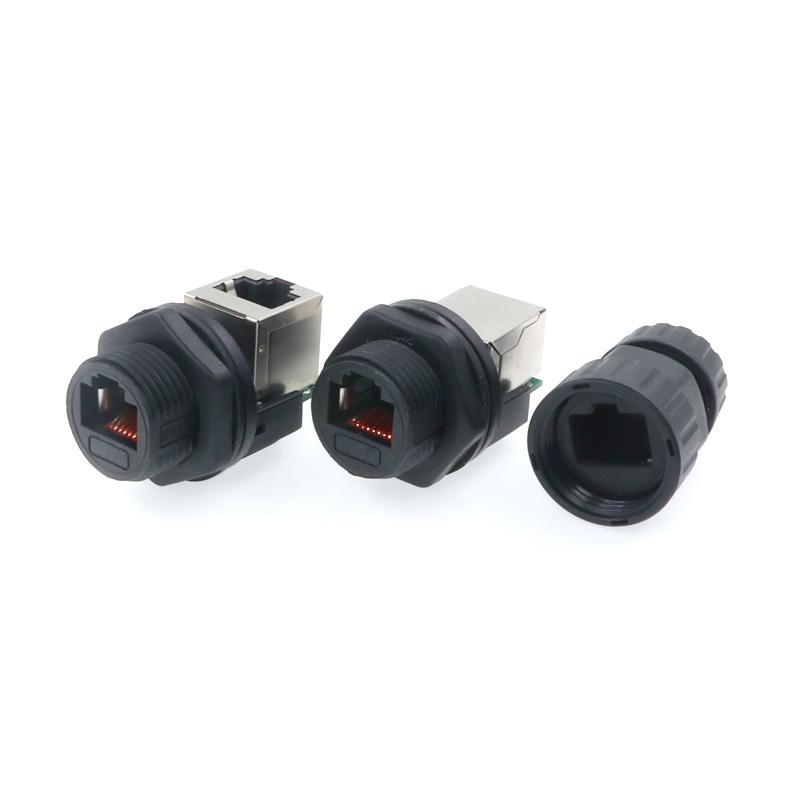

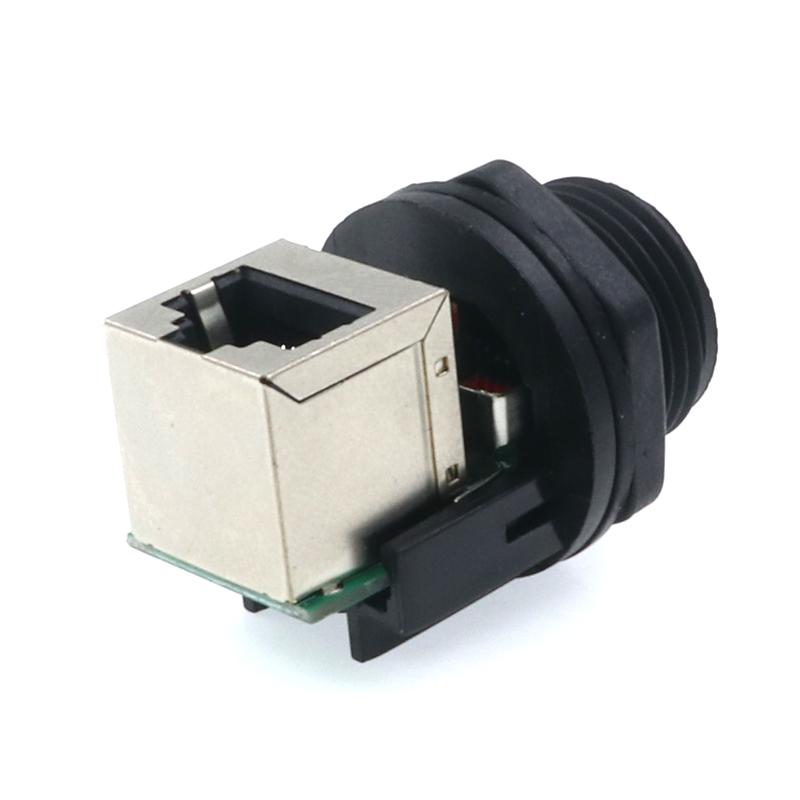

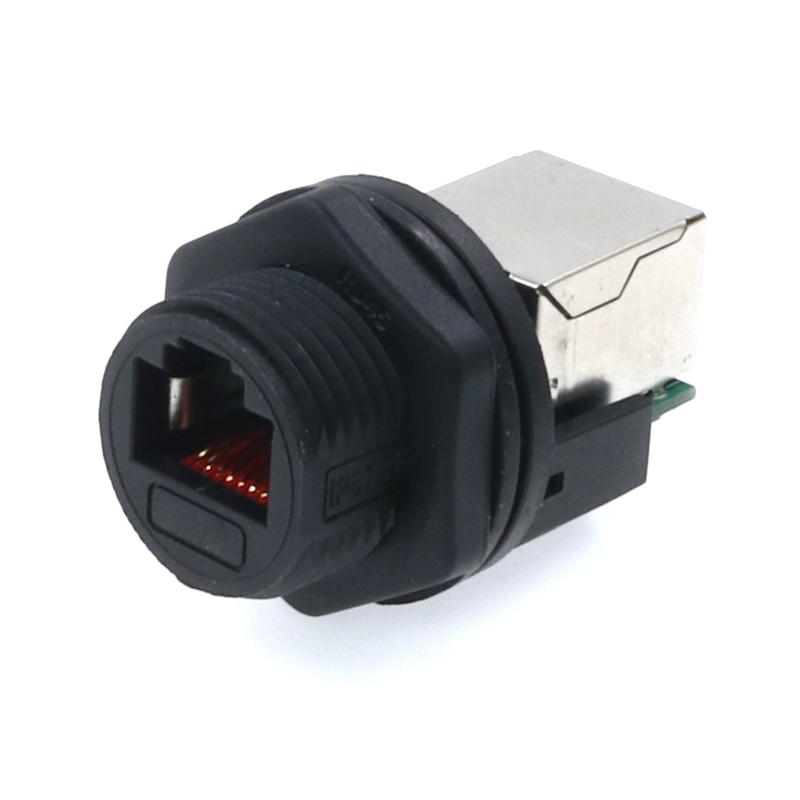

Waterproof IP67 RJ45 Ethernet Connector for Current Usage Panel Type Printed Circuit Board

Ethernet coupling connector is simply disassembled and assembled by locking the tail nut, so that the connector and the cable form a perfect fit, not easy to fall off, and its waterproof effect can achieve to IP67
  • Brand:

    OLINK
  • Item no.:

    M19-RJ45

Ethernet RJ45 waterproof connector IP67/IP68

Product Feature

● Excellent performance: use standard Category 5 pure copper four stranded twisted pair network cable and crystal head ● Convenient nconnection: There is no need for welding operations or any installation tools. Simply insert the standard crystal head directly, which can achieve quick installation and use.
● Waterproof and dustproof meet the requirements of IP67 standard.
● Threaded connection, safe and reliable, resistant to impact, vibration, and tension
● Anti electromagnetic interference protection
● No signal attenuation: Since the plug and socket do not need to damage or interrupt any original wiring structure, there is no signal attenuation.

product name
RJ45 connector
product model
M19-RJ45
Rated voltage
36V
Rated current
0.2A
Wire size
24 AWG
Cable diameter
Max. 7mm
Material
RJ45 female socket: gold plated.
Contact plastic: Nylon V-0
Waterproof rubber ring: silicone.
Glue pouring: epoxy resin
Durability
(Plug/Unplug)
3000 times
Number of cores
8P
Protection class
IP67/IP68
Working temp.
-40℃~105℃
Resistance
Contact resistance: ≤10mΩ
Insulation resistance: 1000MΩ DC 500V
Applicable scene
Video transmission, transformer, network signal transmission equipment

Application

The most commonly used devices in the market are video transmission, transformers, and network signal transmission devices, which are widely used in communication fields, charging stations, home network ports, signal transmission and reception devices, 5G network fields, etc
