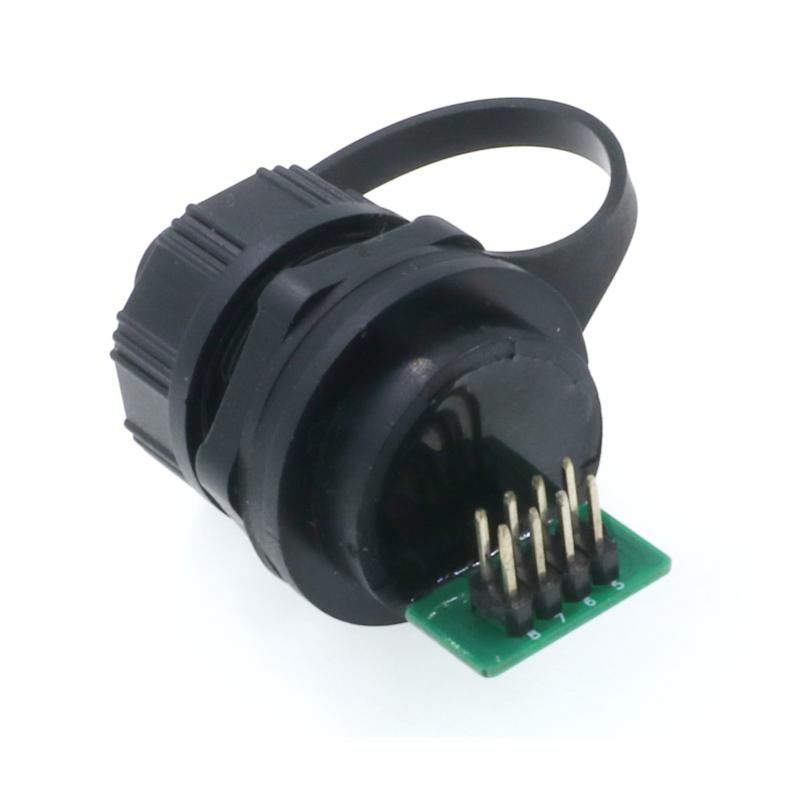

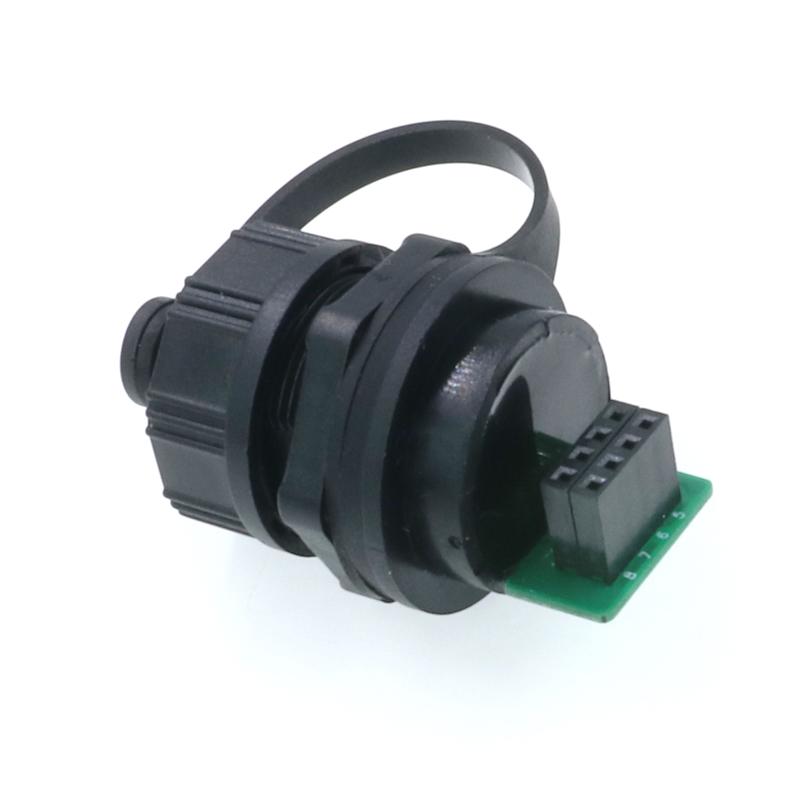

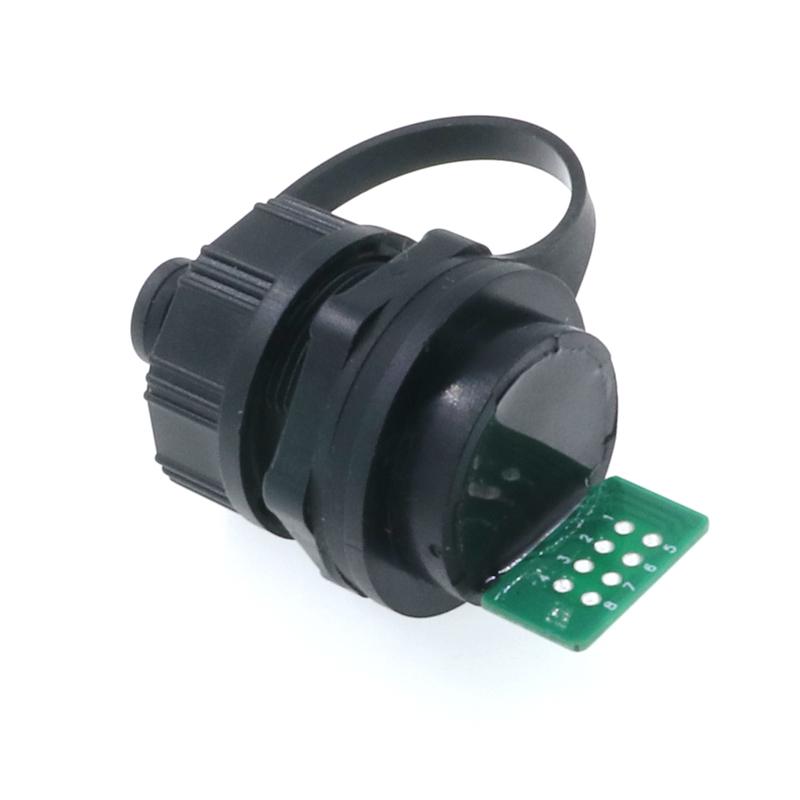

IP67 Panel Mount Adapter Socket Waterproof Female RJ45 Connector with 8P Pins

Ethernet coupling connector is simply disassembled and assembled by locking the tail nut, so that the connector and the cable form a perfect fit, not easy to fall off, and its waterproof effect can achieve to IP67

Brand:
OLINK
Item no.:
M20-RJ45

Inquiry now

product introduction

Ethernet RJ45 waterproof connector IP67/IP68

Product Feature

Excellent performance: use standard Category 5 pure copper four stranded twisted pair network cable and crystal head
Convenient connection: There is no need for welding operations or any installation tools. Simply insert the standard crystal head directly, which can achieve quick installation and use.
Waterproof and dustproof meet the requirements of IP67 standard.
Threaded connection, safe and reliable, resistant to impact, vibration, and tension
Anti electromagnetic interference protection
No signal attenuation: Since the plug and socket do not need to damage or interrupt any original wiring structure, there is no signal attenuation.

product name	RJ45 connector	product model	M20-RJ45
Rated voltage	36V	Rated current	0.2A
Wire size	24 AWG	Cable diameter	Max. 7mm
Material	RJ45 female socket: gold plated. Contact plastic: Nylon V-0 Waterproof rubber ring: silicone. Glue pouring: epoxy resin	Durability (Plug/Unplug)	3000 times
Number of cores	8P	Protection class	IP67/IP68
Working temp.	-40℃~105℃	Resistance	Contact resistance: ≤10mΩ Insulation resistance: 1000MΩ DC 500V
Applicable scene	Video transmission, transformer, network signal transmission equipment

Application

The most commonly used devices in the market are video transmission, transformers, and network signal transmission devices, which are widely used in communication fields, charging stations, home network ports, signal transmission and reception devices, 5G network fields, etc
