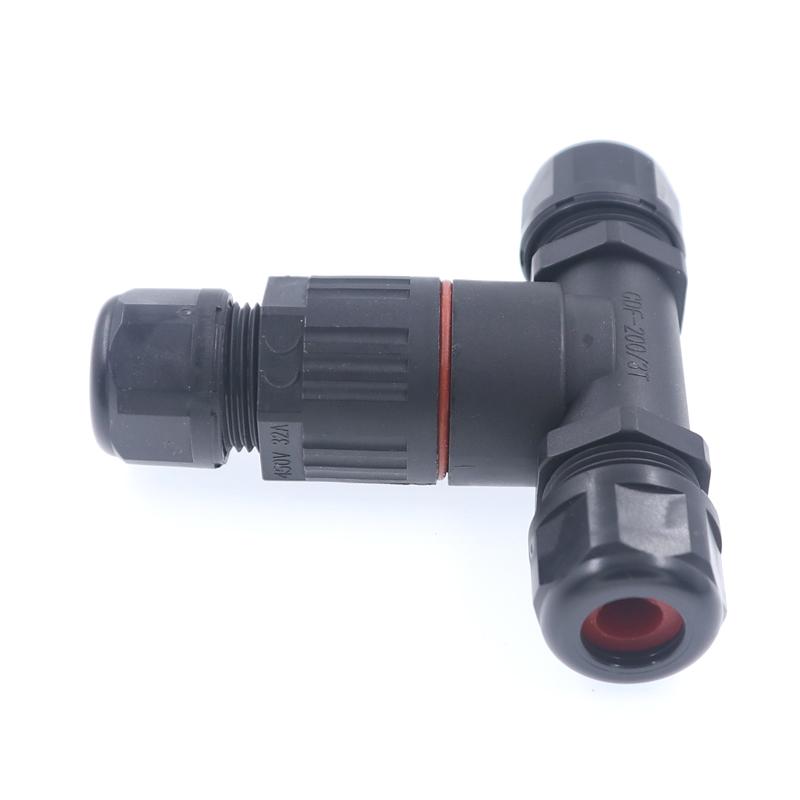

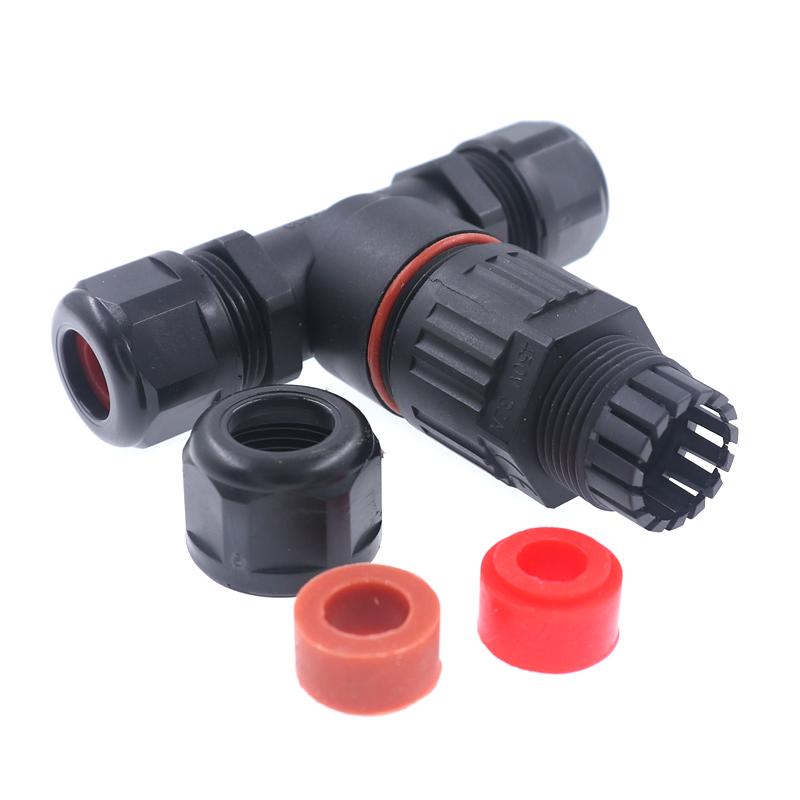

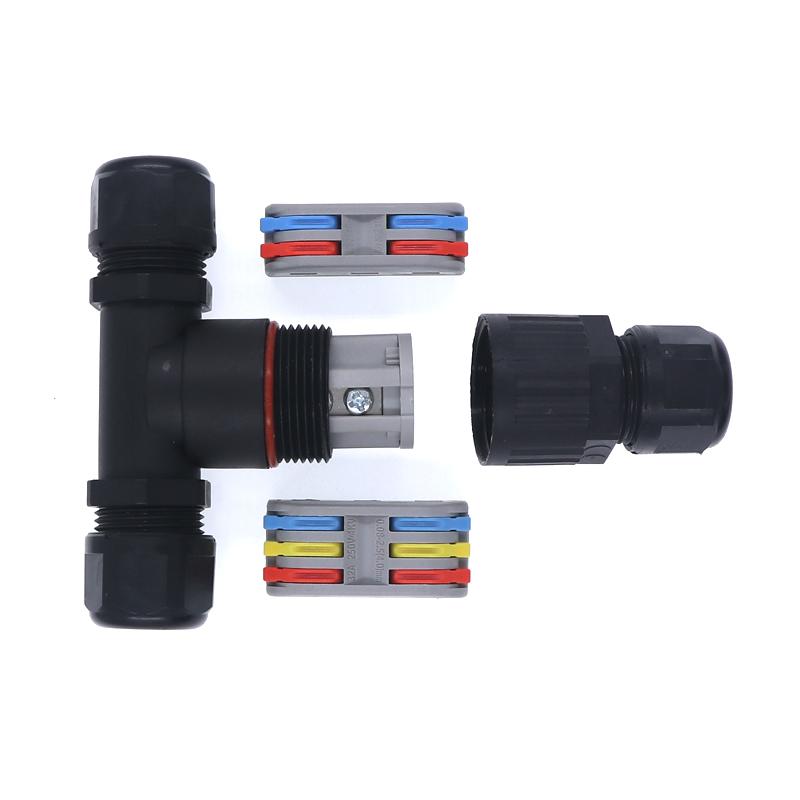

Waterproof 450V 32A IP68 3pin 5pin T Type watertight cable connector

IP68 Waterproof Cable Connector securely splices cables up to 5 conductors. Ideal for outdoor lighting systems or humid environments, this accessory has durable plastic housing and rubber gaskets to resist corrosion and seal out moisture.

Brand:
OLINK
Item no.:
CDF-200T
Payment:
Wire transfer, Paypal, Western Union, Alipay
Product origin:
China
Color:
Black
Product weight:
3
Shipping port:
Xiamen
Lead Time:
7

Inquiry now

product introduction

2 pin 3 pin ip68 waterproof cable connector

Description:

This IP68 cable connector by OLINK can be used for safe and waterproof outdoor connection of electrical installations. The practical cable connector can be used to connect or extend cables.

Features:

Cable glands joint is made of nylon PA66 plastic, durable and waterproof.
Wide adjustable cable range and special design of the clamping die and rubber part combine with strong stretching resistance ensure no damage to cables and devices.
Cable gland joint can be inserted through directly, and can be tightened easily without disassemble.
Gold plated copper contacts ensures good electric conductivity.
Long service life, plugging times more than 500 times.
Thread locking design for reliable connection.

Waterproof 450V 32A IP68 3pin 5pin T Type watertight cable connector Specifications:

Product Name:	IP68 Cable connector	Product Model:	CDF-200T
Rated Voltage:	450v	Rated Current:	32A
Wring Range:	0.5mm²-4.0mm²	Cable OD:	Φ4-Φ7/Φ7-Φ10
Product Material:	Flame retardant nylon	Contact Material:	Brass nickel plated
Number Of Cores:	3P/5P	Operating Temperature:	-40℃~95℃
Professional Level:	IP68/water depth 4m

Application:

CDF-200T waterproof cable connector ip68 is ideal for any equipment for watertight, indoor / outdoor applications, such as outdoor electric tools or appliances, medical device, communications, Marine equipment, under water equipment, outdoor led lighting, outdoor LED panels, outdoor security cameras, transformer, control box, machines and equipment, packing machines, and so on

Waterproof 450V 32A IP68 3pin 5pin T Type watertight cable connector
