T Type Connector 3 Way Power Branch 250V16A IP68 2pin 3pin 4pin

T Type Waterproof Connector Use 6-10mm diameter cable, wire size ≤14AWG (2.5mm²), screw crimping; the maximum current can support 16A. There are 3 independent wiring devices. Compared with other T-type or Y-type connectors with only one wiring device, the wiring is faster, the operation is simpler, and the contact is more reliable.

Brand:
OLINK
Item no.:
OL-T1-2P/3P/4P
Payment:
Wire transfer, Paypal, Western Union, Alipay
Product origin:
China
Color:
Black
Goods stock:
50000
Min order:
50
Product weight:
98
Shipping port:
Xiamen
Lead Time:
5 day

Inquiry now

product introduction

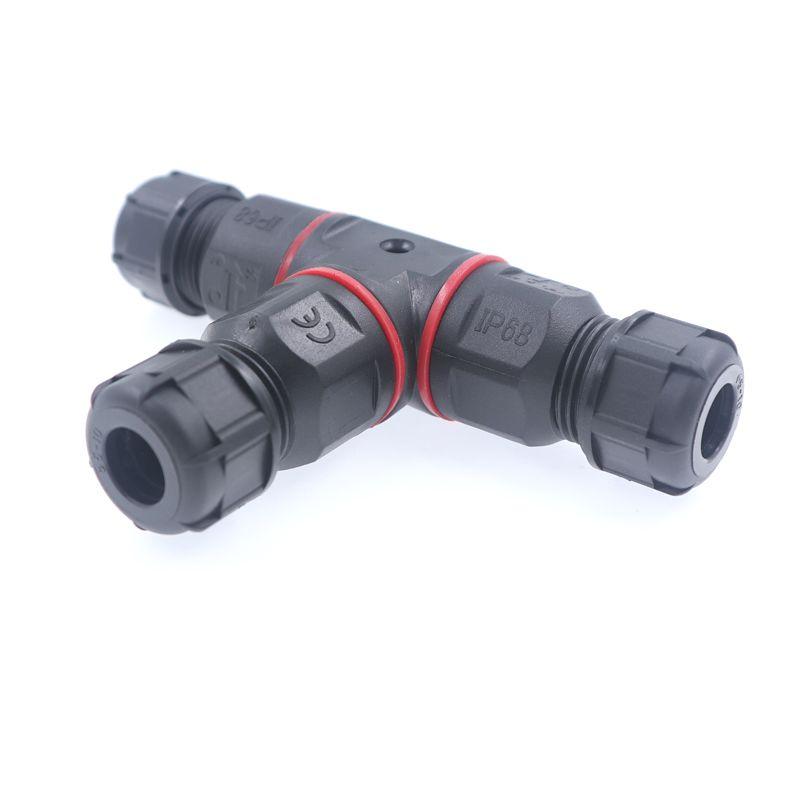

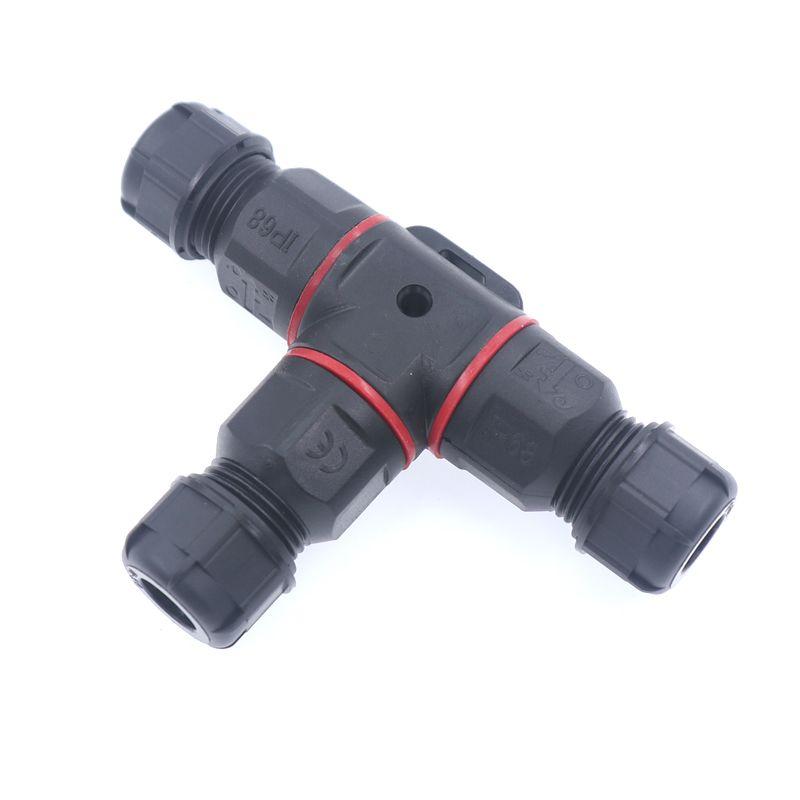

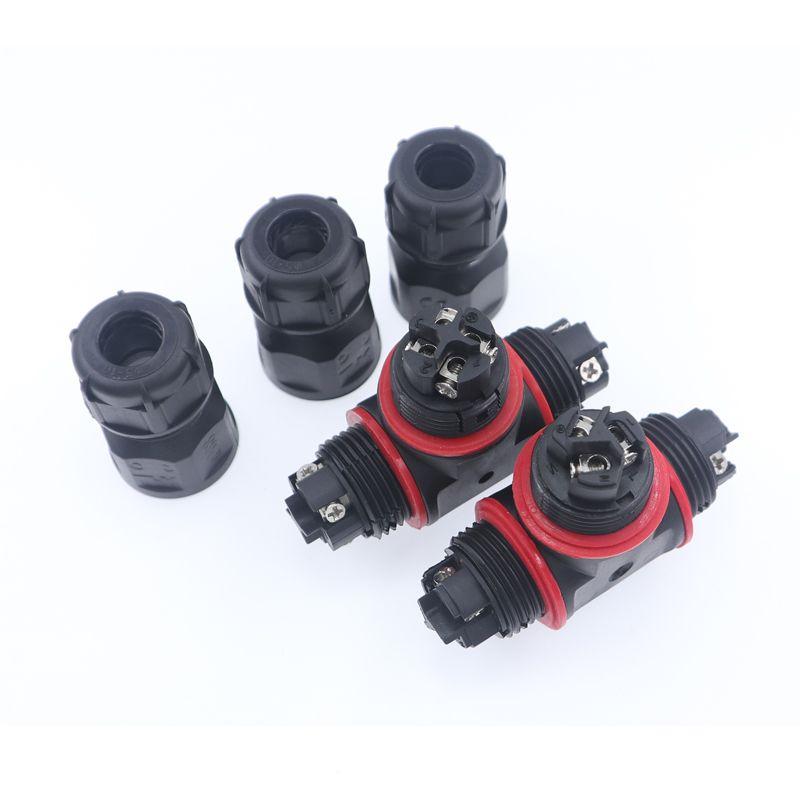

T Type Connector 3 Way Power Branch 250V16A IP68 2pin 3pin 4pin

T Type outdoor power branch connectors

*T Type 3 Way Branch Connectors 2Pin/3pin/4pin

*6-10mm Cable Diameter, ≤2.5mm2(14AWG)Wiring, Screw Crimp

*250V AC, ≤16A

*Three-Way Independent Wiring, Easier And Faster To Operate

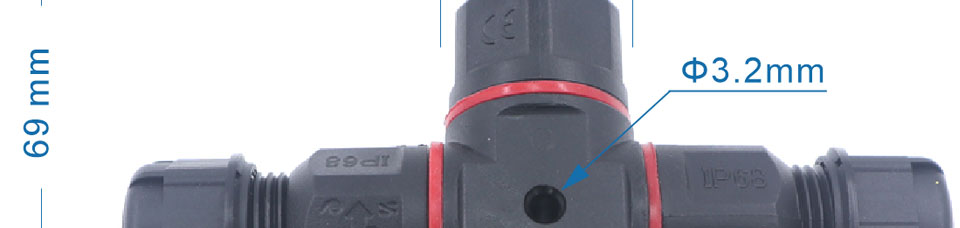

Size Of T Type 3Way Power Connectors Joint

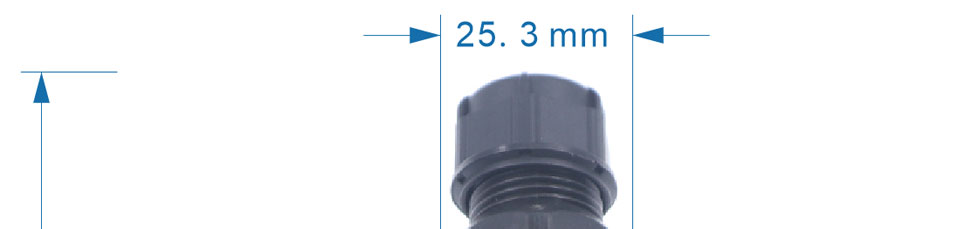

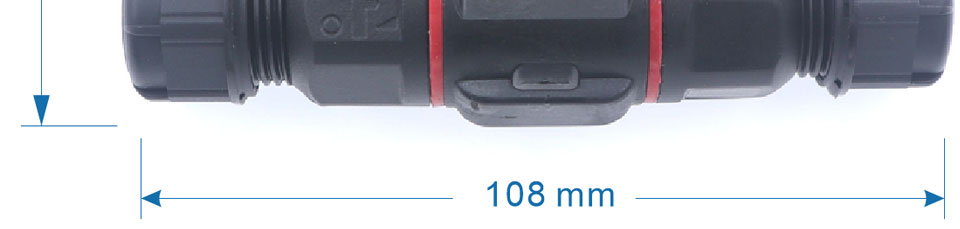

T Type 3 Way Connectors Product Size Is : 108mm*69mm*25.3mm, There is also a fixed hole of Φ3.2mm designed.

Product Parameter Of 3 Way Power Branch Connectors
Model	OL-T1-2P/3P/4P	Housing Material	Nylon
Contact Material	Nickel plated copper	Rated Voltage	250V AC
Rated Current	16A	Waterproof Level	IP68
Wiring Core	2P 3P 4P	Wiring Range	＜2.5mm²(14AWG)
Adapter Cable Diameter	6-10mm	Wiring Type	Screw Crimp
Use	Power Branch Connections	Fire-Proof Level	UL94 V-0

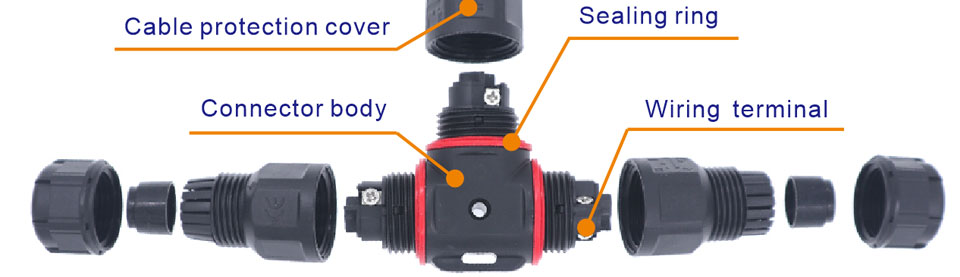

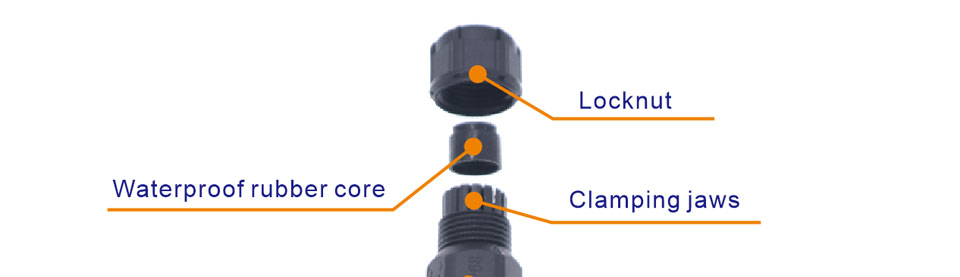

T Connectors Composition

Product Details of T Type Connectors

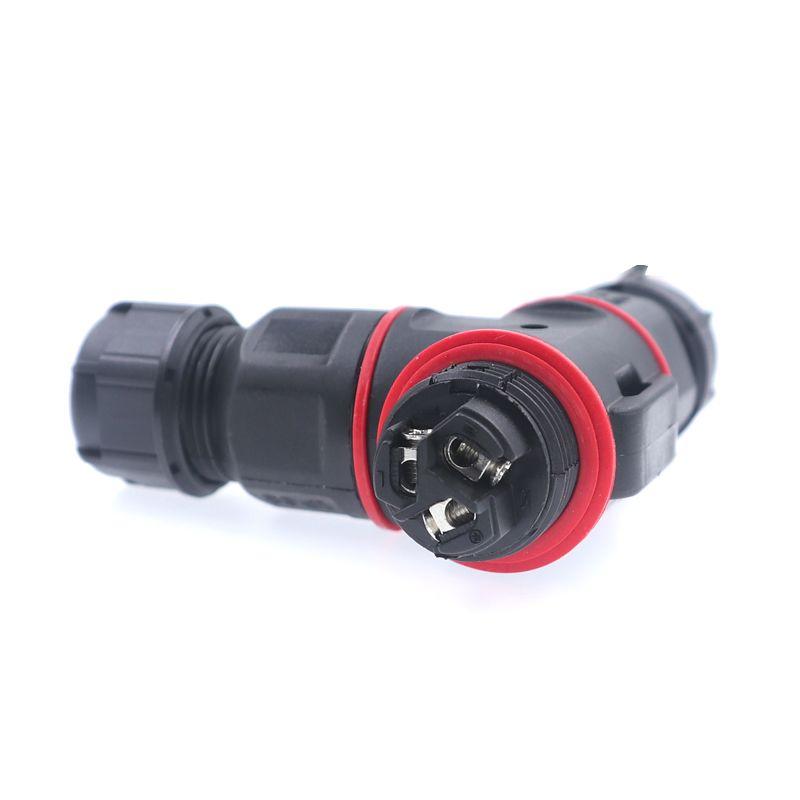

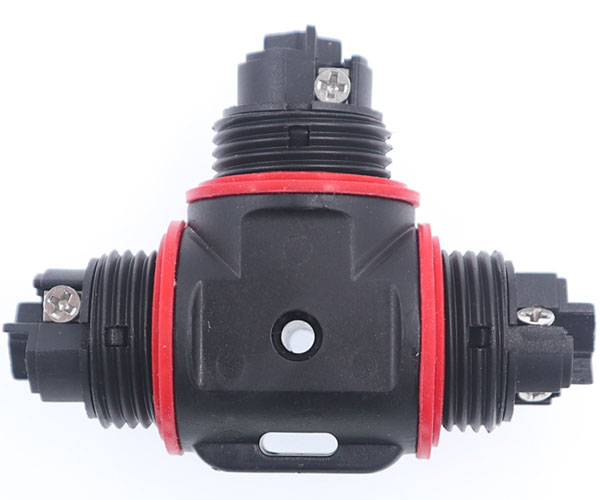

	Three-way independent wiring, easier and faster to operat*e

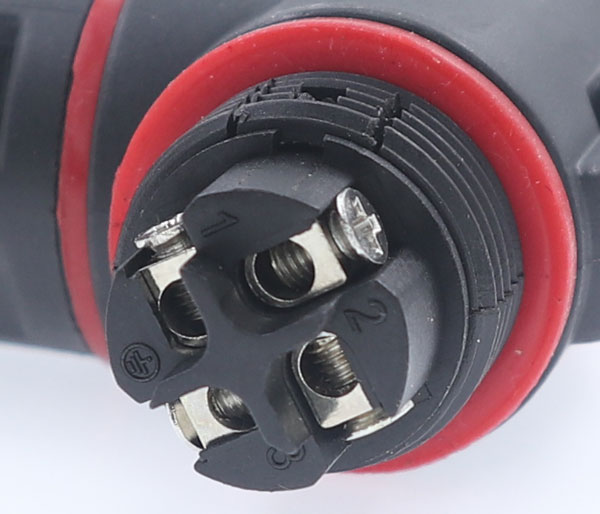

*Each terminal is marked with polarity or number symbol, such as: "1", "2", "3" or "N", "L" to avoid wiring errors

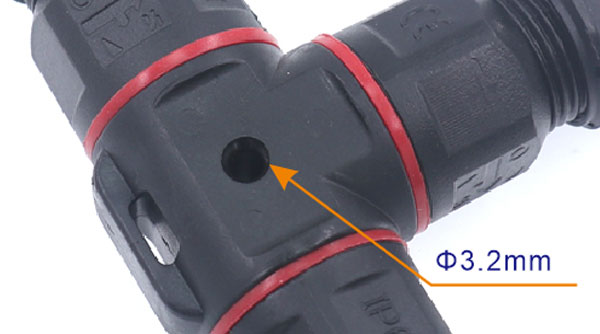

	*he product is designed with a Φ3.2mm through hole, which is convenient for product fixing

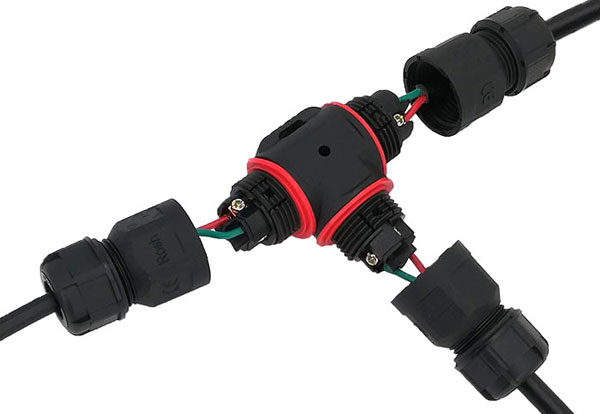

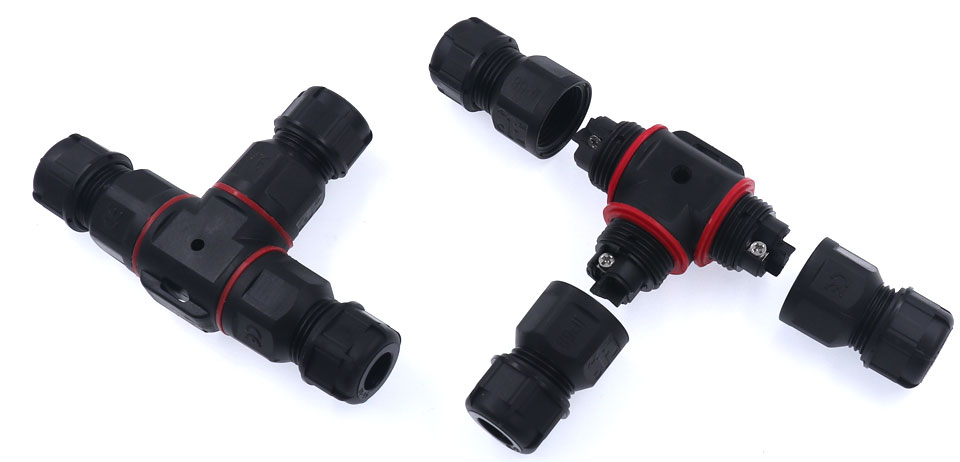

*The actual picture after wiring is completed

3 Way Connectors applicable scenarios

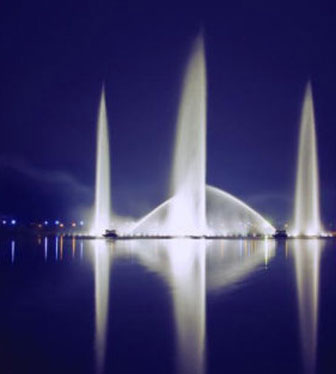

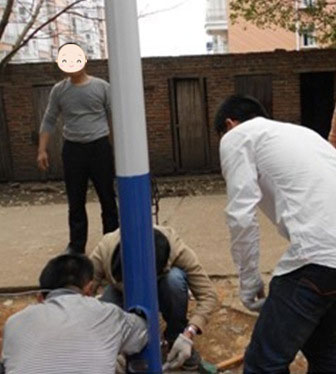

Wiring of outdoor street lights	Landscape, fountain wiring

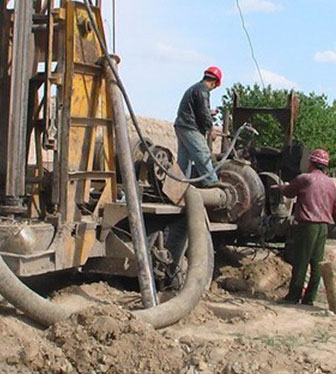

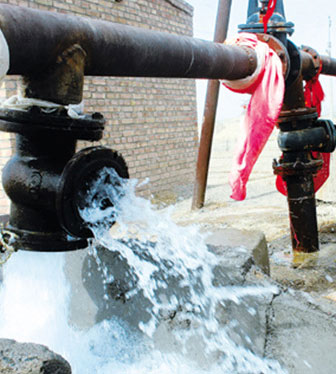

Construction site power connection	Water Pump Power Wiring

T-connectors are mainly used for the connection of various outdoor lamps, landscape fountains, construction sites and water pumps and other circuits.

*If you need more information, you can find us through the contact information on the right side of this page.
