Quick-Connect Bayonet Connector - For Russian Industrial AC/DC Wiring, Miniature Power Connections

Russian Mil Industrial Compact Mini Circular Bayonet 4Pin Male/Female Connector AC/DC Power for Quick Connects

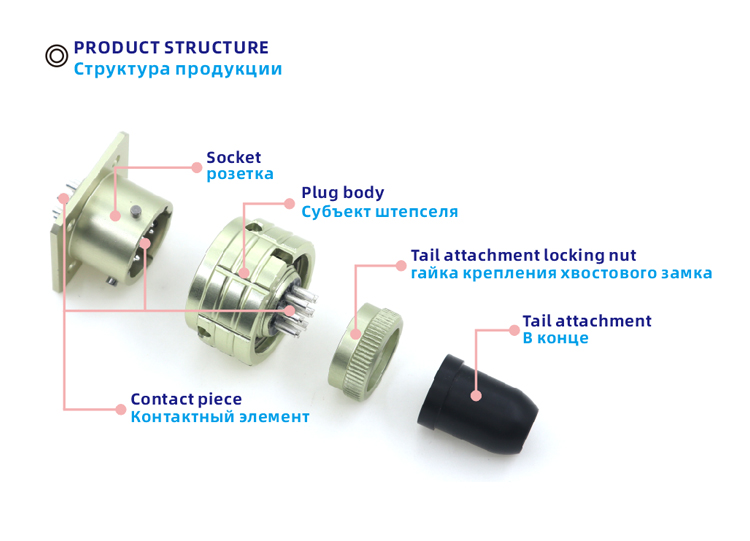

OHS Series Connector Was Developed According Tothe Russia Type Ohц-b C-1(2),Widely Used In Direct Current And Alrernate Currentcircuit,the Connect Way Is Bayonet ,Receptcle without Tail ,plug With Plastic Straight Tail.

Brand:
OLINK
Item no.:
OHS
Payment:
T/T
Product origin:
China
Color:
Gold
Min order:
10
Lead Time:
10

Inquiry now

product introduction

PRODUCT INTRODUCTION
OHS Series Connector Was Developed According Tothe Russia Type Ohц-b C-1(2),Widely Used In Direct Current And Alrernate Currentcircuit,the Connect Way Is Bayonet ,Receptcle without Tail ,plug With Plastic Straight Tail.

PRODUCT PARAMETERS

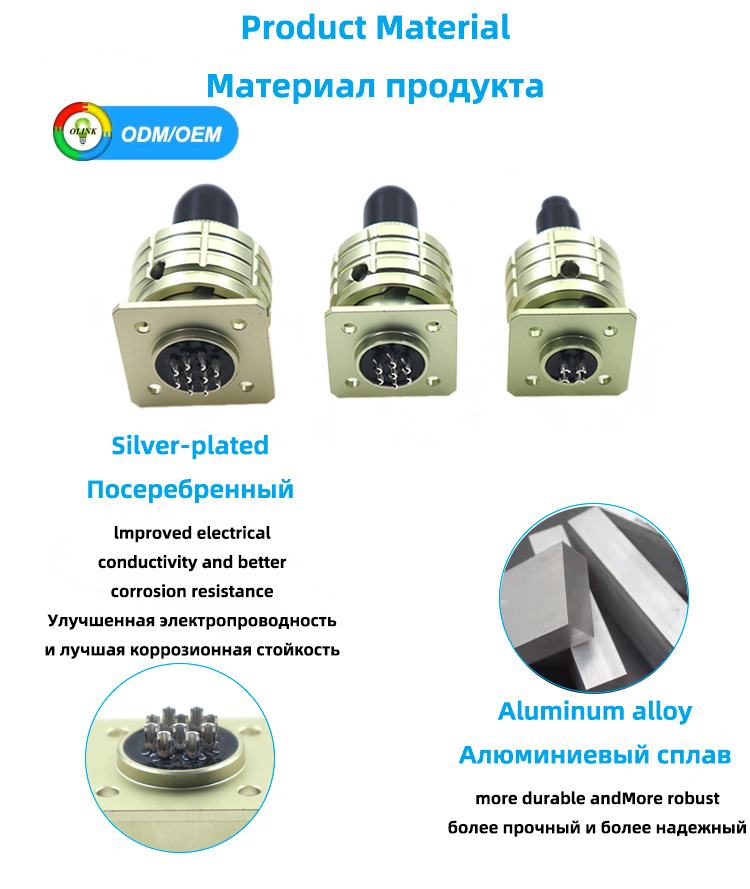

Shell material	aluminum alloy	Connection type	Threaded connection
Wiring method	Welding	Working temperature	-60℃~+85℃
Rated voltage	250V	Contact Resistance	≤5mΩ
Vibration	1-5000Hz 20g	Insulation Resistance	≥1000MΩ
Shock	1000g (single times), 100g (multiple times	Contact Diameter	Φ1.0mm

OPERATING VOLTAGE AND CURRENT

Shell No.	Number of contacts	Working current(A)	Operating voltage(V)
10	4	3.7	250V
12	7	3.1	250V
14	10	3.0	250V
18	19	2.1	250V
22	32	1.8	250V
27	50	1.5	250V

PRODUCT NAMING AND CODES

Note: If You Need Detailed Size Drawings, Please Contact Our Customer Service Staff For Consultation, We Will Provide You With Professional Answers!
