Miniature Push Button 120v Small DPDT Waterproof Momentary Switch

12 mm hole mount diameter, small and exquisite, used for controlling lithium battery, machine and equipment, Max. 2500W

Brand:
OLINK
Item no.:
12QC
Payment:
Wire transfer, PayPal, Western Union, Alipay
Product origin:
China
Color:
Sliver, other colors(OEM)
Min order:
40
Shipping port:
Xiamen, Ningbo
Lead Time:
7

Inquiry now

product introduction

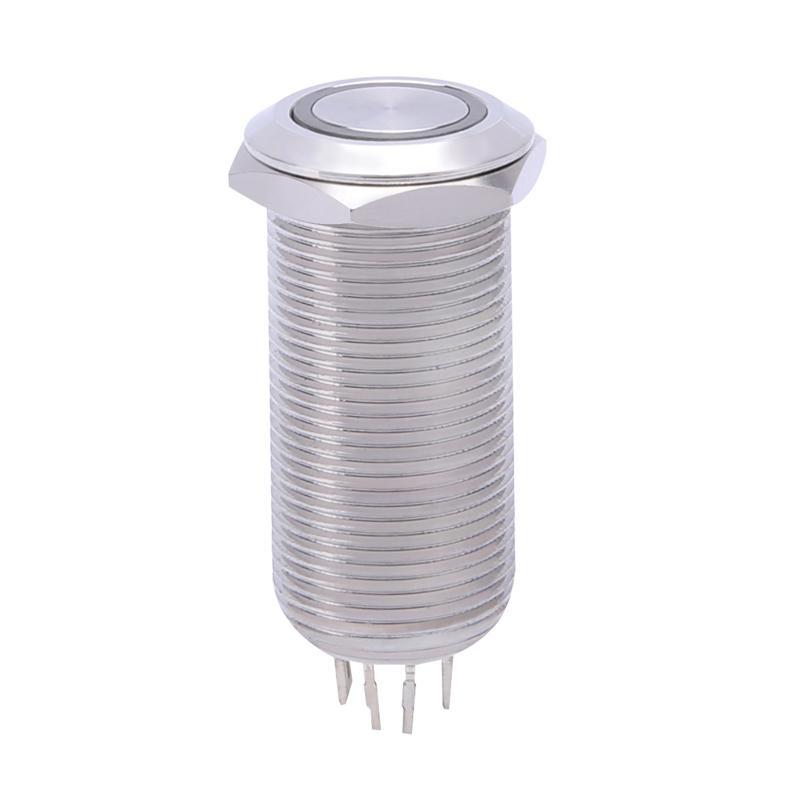

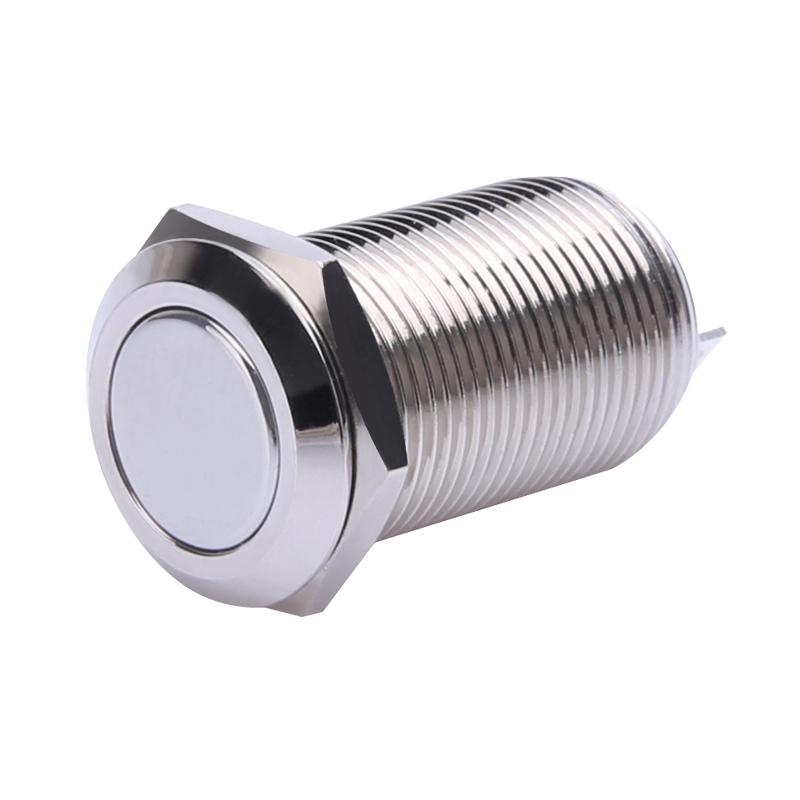

12mm round panel mount push button switch self locking

Features of Self locking Push Button Switch

Stainless steel shell: Anti-corrosion and rust proof. Glossy appearance, appearance of the the atmosphere.
Flame-retardant contacts: Silver contact, instant electricity no heat, resistance to load. Protect the safety of the circuit.
Waterproof design: water and moisture proof, to avoid accidental water damage circuit equipment.
Precision spiral thread: Nut type mounting and fixing, easy to installation. Deep thread, the force is evenly and firmly.

Specifications of Panel Mount Push Button Switch

Product Name:	12mm self-locking push button switch	Product Model:	12QC
Switch Rating:	3A/250V AC, 10A/250V AC	Terminal Type:	2.8 x 0.5 J pin terminal
Switch Function:	1NO, Momentary/Self-locking	Environment Temperature:	-20℃~+55℃
Contact Resistance:	≤ 50 mΩ	Insulation Resistance:	≥ 1000 MΩ
Panel Thickness:	1~10 mm	Protection Grade:	IP65, IK108
Contact Material:	Sliver Alloy	Button Material:	Stainless steel, Zn-Al alloy(any color)
Body Material:	Brass nickel plated, Stainless steel, Zn-Al alloy(any color)	Base Material:	PBT
Lamp Voltage:	2V(Red, orange, yellow), 3V(Green, Blue, White), 5V, 6V, 12V, 24V, 36V, 48V, 110V, 220V ( Need an external resistance)	Lamp color:	Red, Orange, White, Blue, Green, Yellow

Drawings of DC Push Button Switch


12QC-F10Z		12QC-H10Z

12QC-F10Z/D		12QC-H10Z/D

12QC-F10Z/E		12QC-H1/E

12QC-F10Z/V		12QC-H10Z/V

12QC-H10Z/A(N)

Application of Round Push Button Switch

12mm push button switch can used in automobile industry, battery car industry, mechanical equipment, aerospace equipment, kitchen appliances, medical beauty equipment.

16mm push button switch

FAQ:

What is the lamp color and voltage?

Color: Regular color- Red, Green, Yellow, Blue, White; Can custom- Purple, Orange, Dual-color, Tri-color

Voltage: Red & Yellow - Rated voltage 2V; Green & Blue & White - Rated voltage 3V; Other voltage (5V/6V/12V/24V/36V/48V/110V/220V) required an external resistor. We provide resistors for free, but you need to solder them yourself. We can also provide soldering service, more details pls consult us.
