LEMOS shielding push-pull plug socket metal and plastic

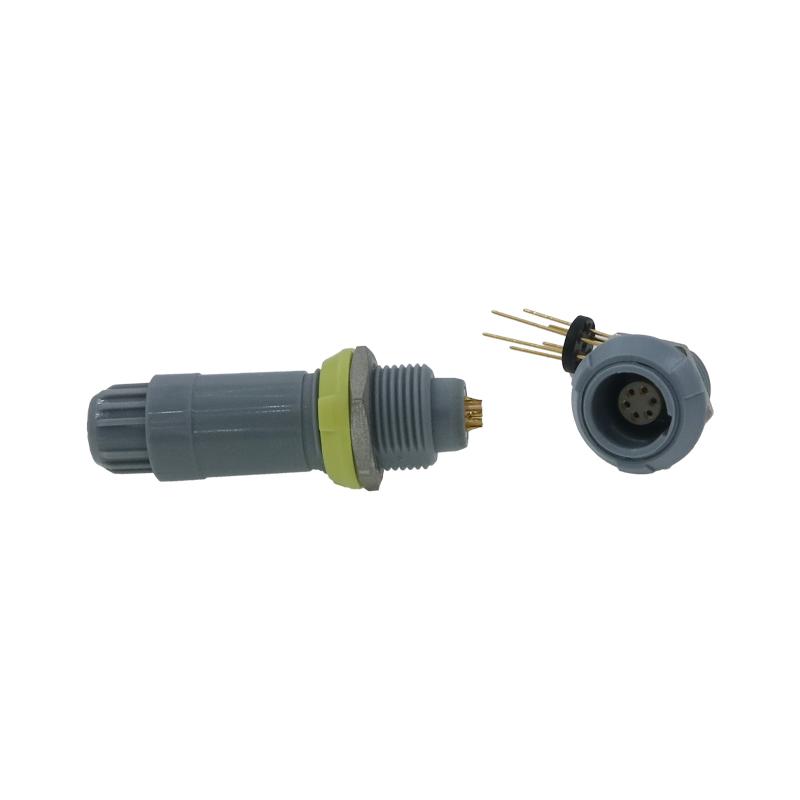

Olink company produce Plastic push pull connector with alignment key for medical applications.

The PHG male plug connector design allows to adjust and position the connector in an efficient way in order to prevent cable snaging. Each connector can be orientated during its assembly and enables 8 positions. The connector then remains securely positioned in its orientation.

Push Pull Connectors,Standard B series,Waterproof/watertight K series,Half-moon insert S series,Standard F series,Plastic P series.

B series multipin female connector provide the following main features: 1. Security of the Push-Pull self-latching system. 2. Multiple key options to avoid cross mating. 3. keying system («G» key standard)of similar connectors for connector alignment. 4. 360° screening for full EMC shielding. 5. Multipole types 2 to 32 contacts. 6. Solder, print contacts (straight or elbow). 7. High packing density for space savings. How to order: Product size: Reference Dimension Model Series e L M A B E S1 S3 0B ECG M9x0.6 2.5 18.3 12 12.4 2.4 8.2 11 1B ECG M12x1.0 3.5 20.3 16 15.8 6 10.5 14 2B ECG M15x1.0 3.5 22.3 20 19.2 6.5 13.5 17 3B ECG M18X1.0 4.5 25.8 24 25.0 9 16.5 22 Technical characteristics: Mechanical and Climatically 1. Endurance:> 5000 mating cycles. 2. Humidity :Up to 95% at 60 ℃. 3. Temperature range:-40℃, +250℃. 4. Resistance to vibration :15 g[10 HZ-2000HZ]. 5. Shock resistance:100 g ,6 MS. 6. Salt spray corrosion test :> 48h. 7. Protection index (mated) :IP50. Industry Application: It is widely used on all kinds of medical equipment’s, specially for the signal transmission, Medical Equipment, Audio / Video, Test and Measurement, Communications product line. Series B Metal Connector with Multiple pins for your selection: 00B Series:2,3,4 Pins 0B Series: 2, 3, 4, 5, 6, 7, 9 Pins 1B Series: 2, 3, 4, 5, 6, 7, 8, 10, 14, 16 Pins 2B Series: 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, 18, 19, 26, 32 Pins 3B Series: 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18, 20, 22, 24, 26, 30 Pins

Push pull connector for Coaxial Cable are standard self-locking multi pole connectors with alignment key. Equivalent B-Series ranges from 00 to 5B size.

Push Pull Electrical Connector are standard self-locking multi pole connectors with alignment key. Equivalent B-Series ranges from 00 to 5B size.

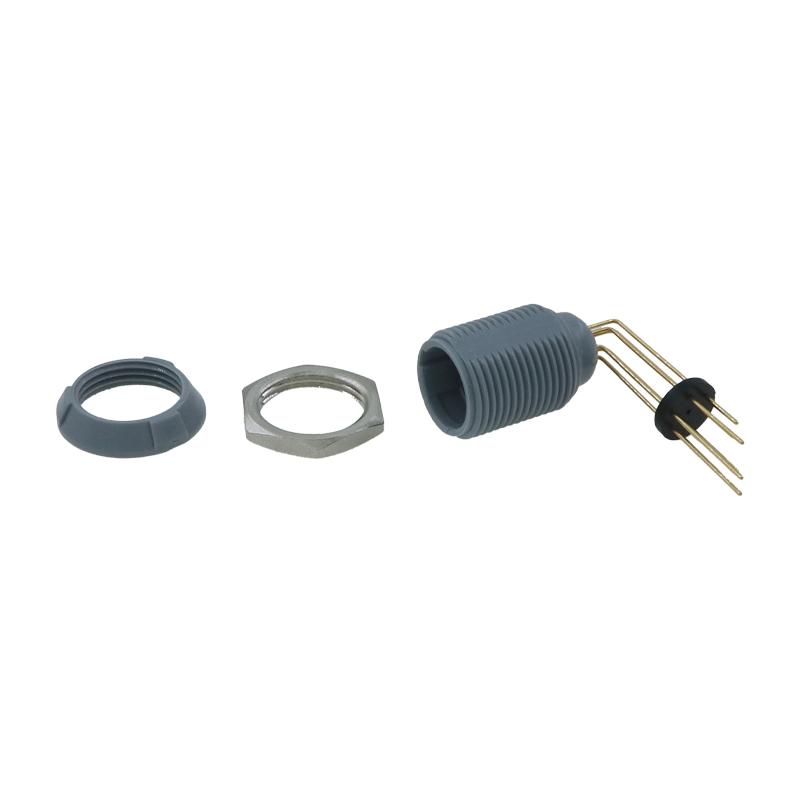

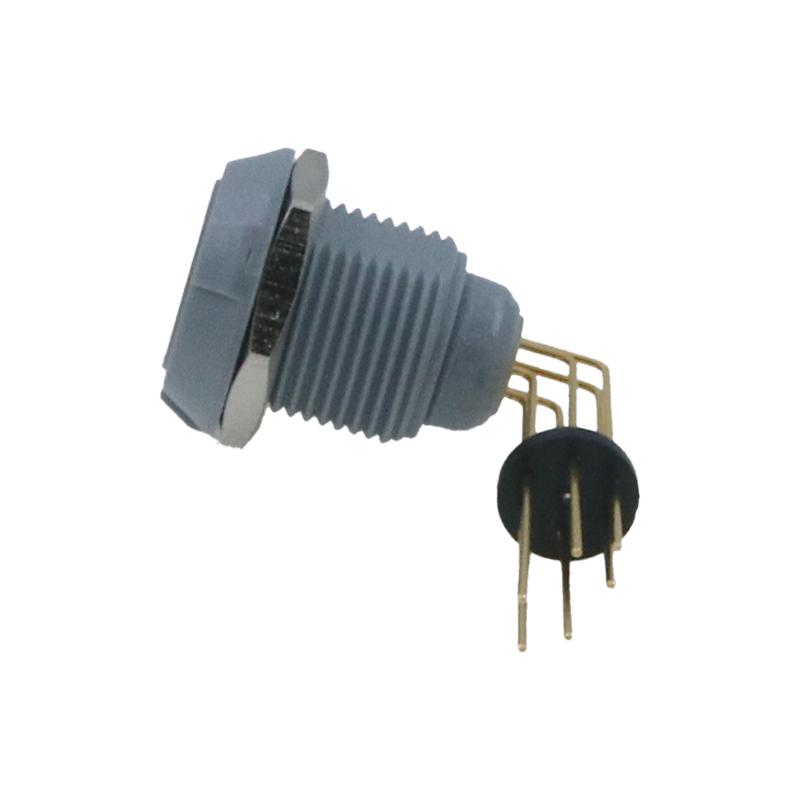

Olink company produce Plastic push pull connector socket with alignment key for medical applications.

Metal medical push pull connectors are important connection devices applied in the medical field. They adopt a push pull self - locking system, which makes plugging and unplugging simple and quick. Moreover, there is an insertion sound prompt when connecting or separating, facilitating operation confirmation. It has an elaborate self - locking device, ensuring a firm and reliable connection. It can effectively resist vibration and impact, preventing disconnection caused by pulling the cable, and can adapt to various complex medical environments.
