Industrial Connector Fixed Socket Nut FIxing Front Panel Male Female 6+2 Connectors For Coaxial Cable

Push pull connector for Coaxial Cable are standard self-locking multi pole connectors with alignment key. Equivalent B-Series ranges from 00 to 5B size.

Brand:
OLINK
Item no.:
FGG/EGG 3B 6+2
Payment:
Wire transfer, Paypal, Western Union, Alipay
Product origin:
China
Color:
Gray
Min order:
10
Shipping port:
Xiamen
Lead Time:
7

Inquiry now

product introduction

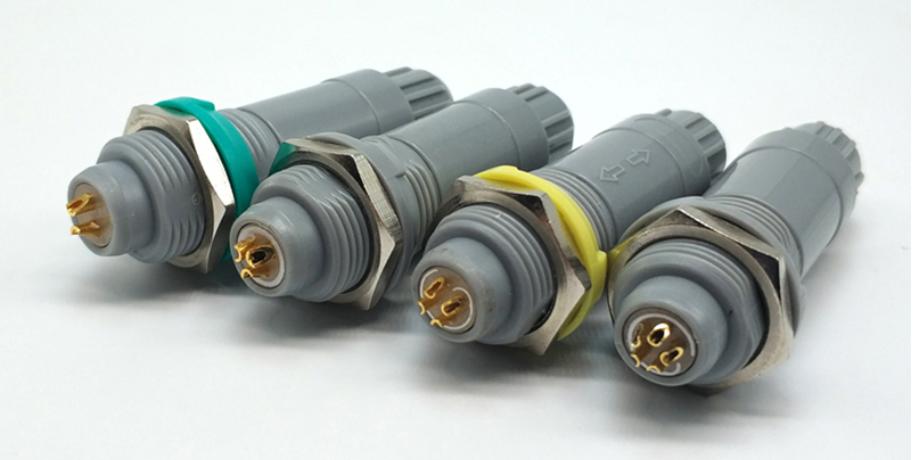

Industrial Connector Fixed Socket Nut FIxing Front Panel Male Female 6+2 Connectors For Coaxial Cable

Features of medical connector

metal push-pull circular connector
Automatic locking device after insertion
A variety of wire connection hole diameters
Multi-angle positioning pin design to avoid wrong insertion
A variety of shell colors are available

Reference	Dimension
Series	L	M	A	S1	S2
0B	35	25	11	8	8
1B	42	33	13.5	10	9
2B	48	36	16.5	13	12
3B	56.5	41.5	19	15	15

Series B Audio Connector with Multiple pins for your selection:
M7 metal connector 00B Series:2,3,4 Pins
M9 metal connector 0B Series: 2, 3, 4, 5, 6, 7, 9 Pins
M12 metal connector 1B Series: 2, 3, 4, 5, 6, 7, 8, 10, 14, 16 Pins
M15 metal connector 2B Series: 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, 18, 19, 26, 32 Pins
M18 metal connector 3B Series: 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18, 20, 22, 24, 26, 30 Pins

Solder connector technical characteristics:
Mechanical and Climatically
1. Endurance:> 5000 mating cycles.
2. Humidity :Up to 95% at 60 ℃.
3. Temperature range:-40℃, +250℃.
4. Resistance to vibration: 15 g [10 HZ-2000HZ].
5. Shock resistance:100 g ,6 MS.
6. Salt spray corrosion test :> 48h.
7. Protection index (mated) :IP54.

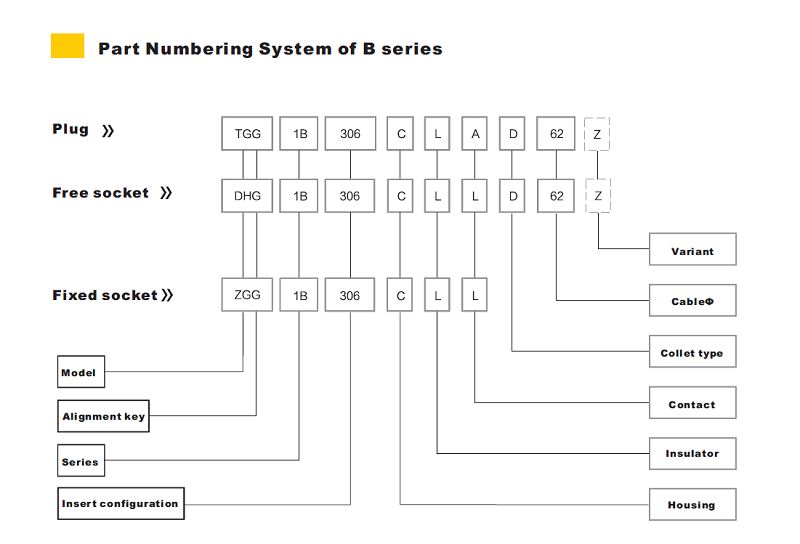

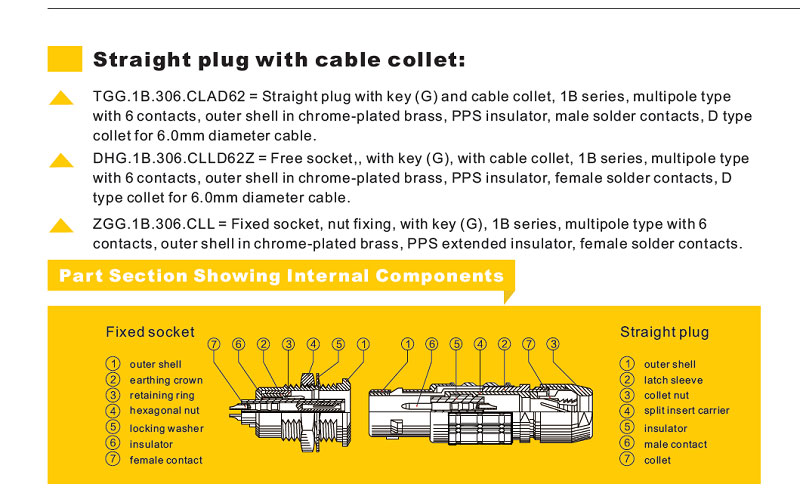

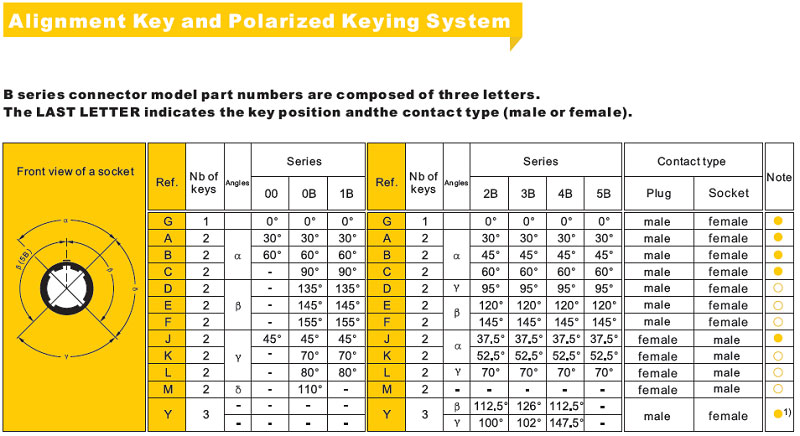

How to order Male Female 6+2 Connectors:

Industry Application:

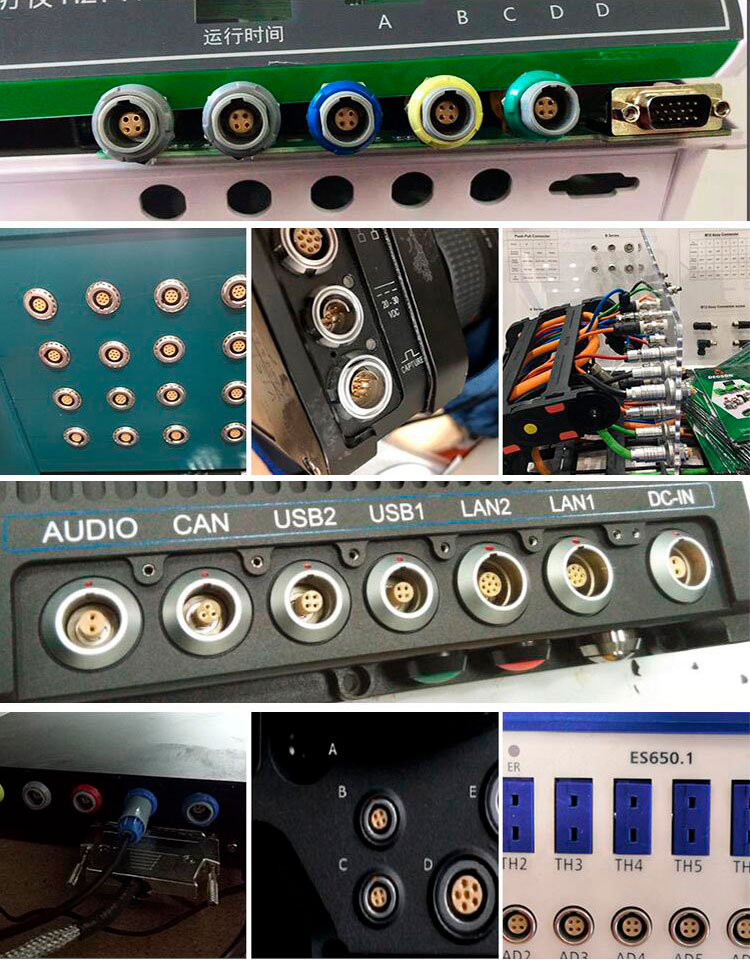

Circular push pull connector is widely used on all kinds of medical equipment, specially for the signal transmission, Medical Equipment, Audio / Video, Test and Measurement, Communications product line.

Material and Spec of push pull connector

Coupling	Threaded connections	Termination	Solder
The shell material	Copper alloy	Mating cycle	500 Times
Insulator material	Heat-resistant PPS	Temperature	-30°C-100°C
Contact material	Brass With Gold plating	IP Protection class	IP55

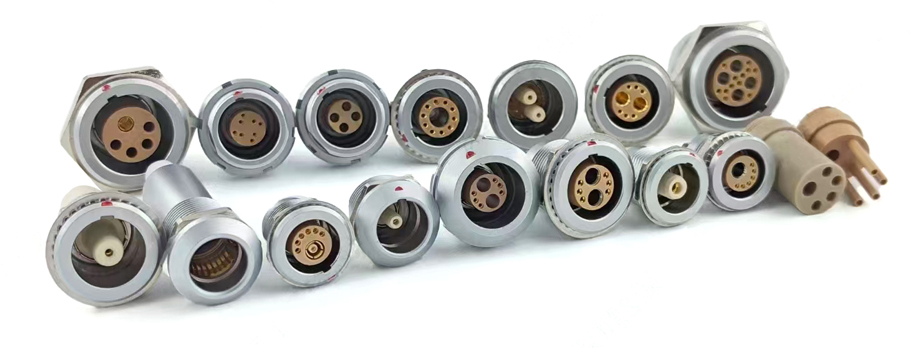

More push-pull connectors

*Available in 0B, 1B, 2B, 3B, 4B specifications,For more information, please contact us by email or through any contact information on the webpage.
