Circular B Series Connector

 /circular self locking push pull connector FGG/EGG.00/0B/1B/2B/3B/4B 2 to 30 pin 6 pin 9 pin 12 pin

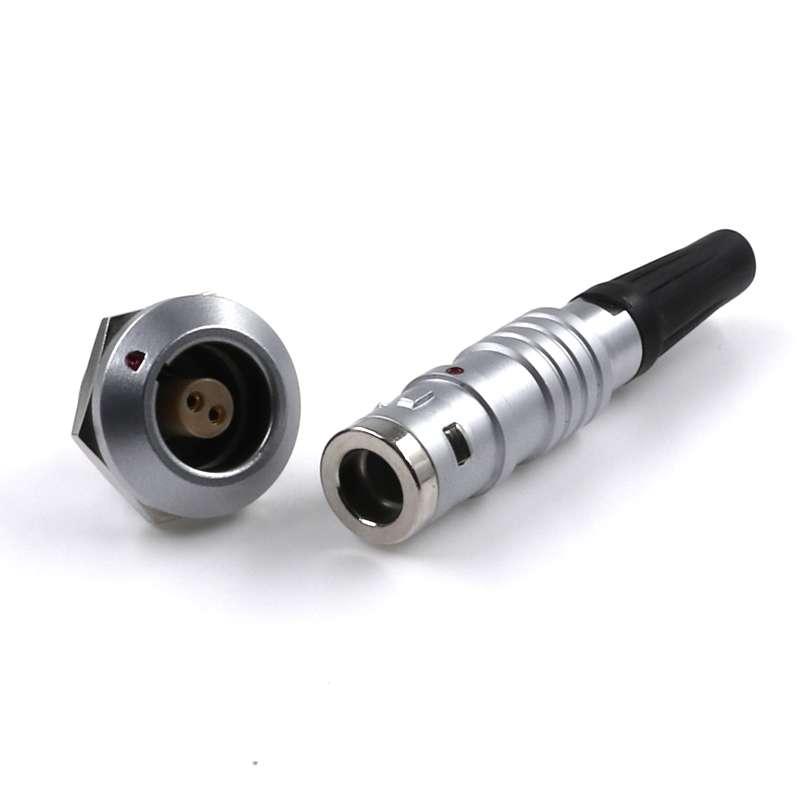

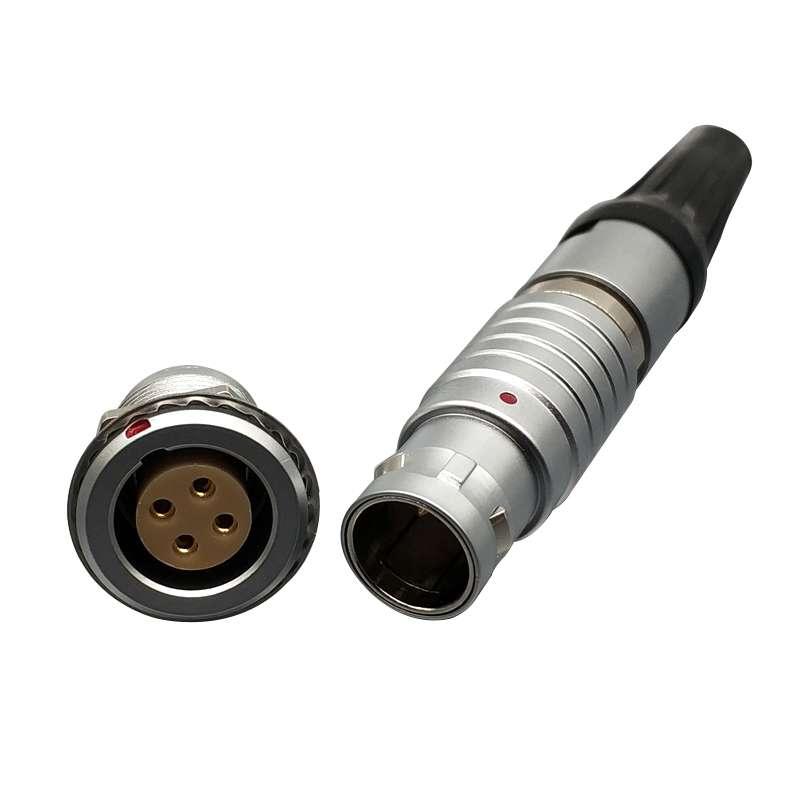

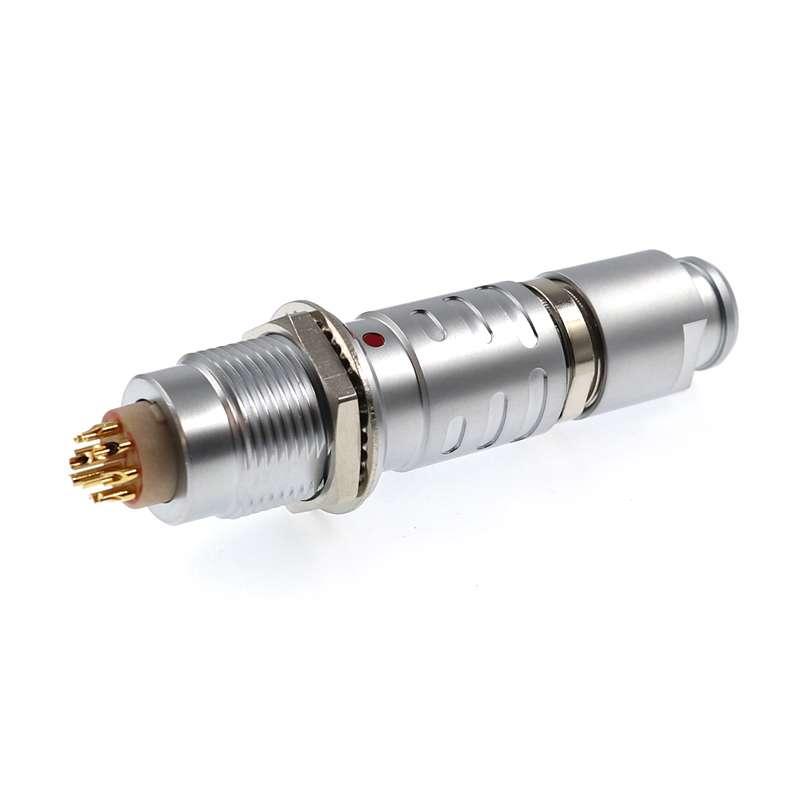

Circular push pull connector
Circular push pull connector Circular push pull connector Circular push pull connector

circular self locking push pull connector FGG/EGG.00/0B/1B/2B/3B/4B 2 to 30 pin 6 pin 9 pin 12 pin

Circular push pull connectors are standard self-locking multi pole connectors with alignment key. Equivalent B-Series ranges from 00 to 5B size.

  • Brand:

    OLINK

  • Item no.:

    TGG/ZGG

  • Payment:

    Wire transfer, Paypal, Western Union, Alipay

  • Product origin:

    China

  • Color:

    Gray

  • Min order:

    10

  • Shipping port:

    Xiamen

  • Lead Time:

    7
Inquiry now

FGG/EGG.00/0B/1B/2B/3B/4B circular self locking push pull connector


Features of Plastic medical connector

  • metal push-pull circular connector
  • Automatic locking device after insertion
  • A variety of wire connection hole diameters
  • Multi-angle positioning pin design to avoid wrong insertion
  • A variety of shell colors are available


  Reference Dimension
Series L M A S1 S2
0B 35 25 11 8 8
1B 42 33 13.5 10 9
2B 48 36 16.5 13 12
3B 56.5 41.5 19 15 15

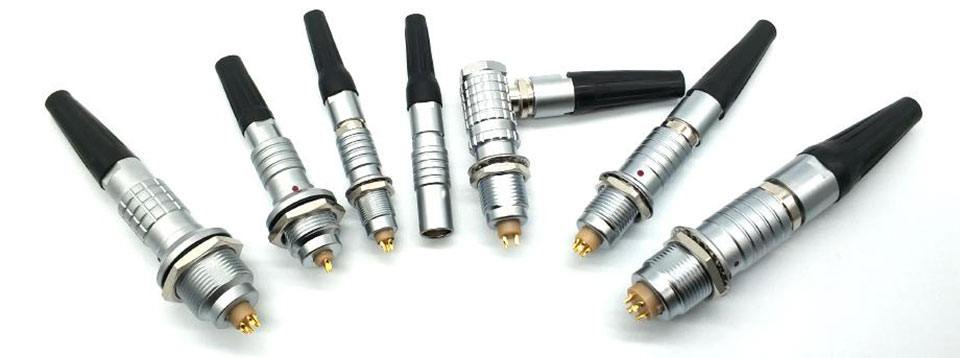

Series B Audio Connector with Multiple pins for your selection:
M7 metal connector 00B Series:2,3,4 Pins
M9 metal connector 0B Series: 2, 3, 4, 5, 6, 7, 9 Pins
M12 metal connector 1B Series: 2, 3, 4, 5, 6, 7, 8, 10, 14, 16 Pins
M15 metal connector 2B Series: 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, 18, 19, 26, 32 Pins
M18 metal connector 3B Series: 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18, 20, 22, 24, 26, 30 Pins

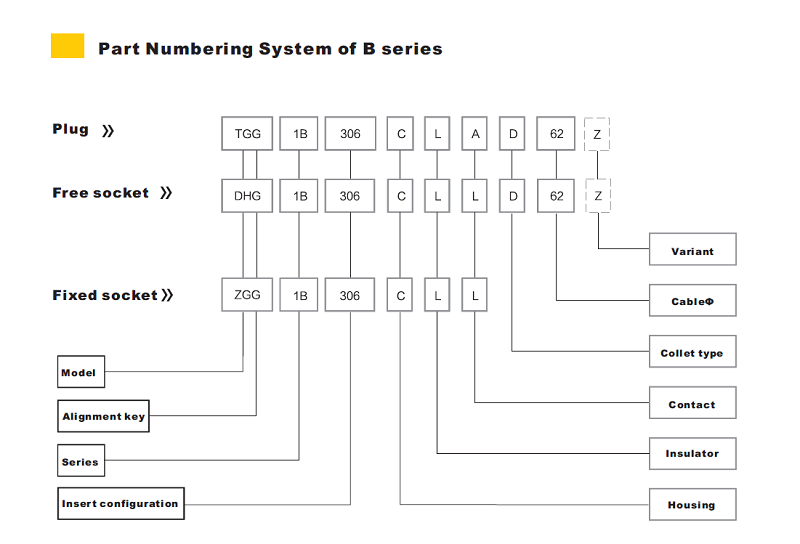

How to order:

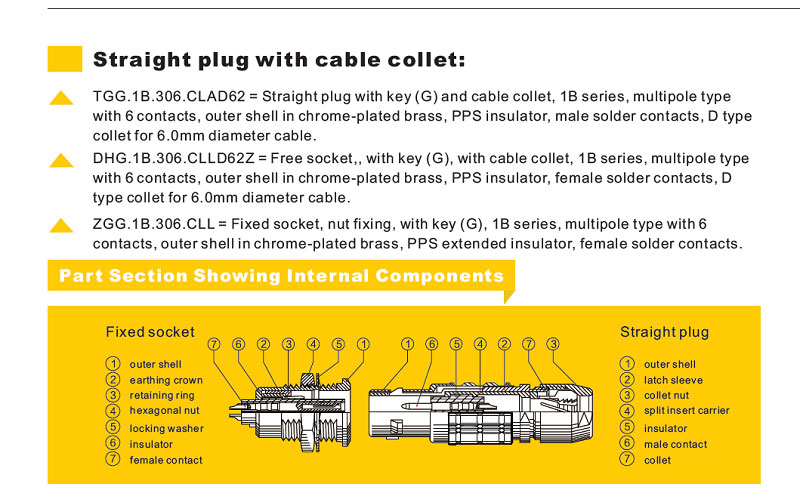

Material and Spec of push pull connector

Coupling   Threaded connections Termination   Solder
The shell material   Copper alloy Mating cycle   500 Times
Insulator material   Heat-resistant PPS Temperature   -30°C-100°C
Contact material   Brass With Gold plating IP Protection class   IP55
Application of push-pull connector

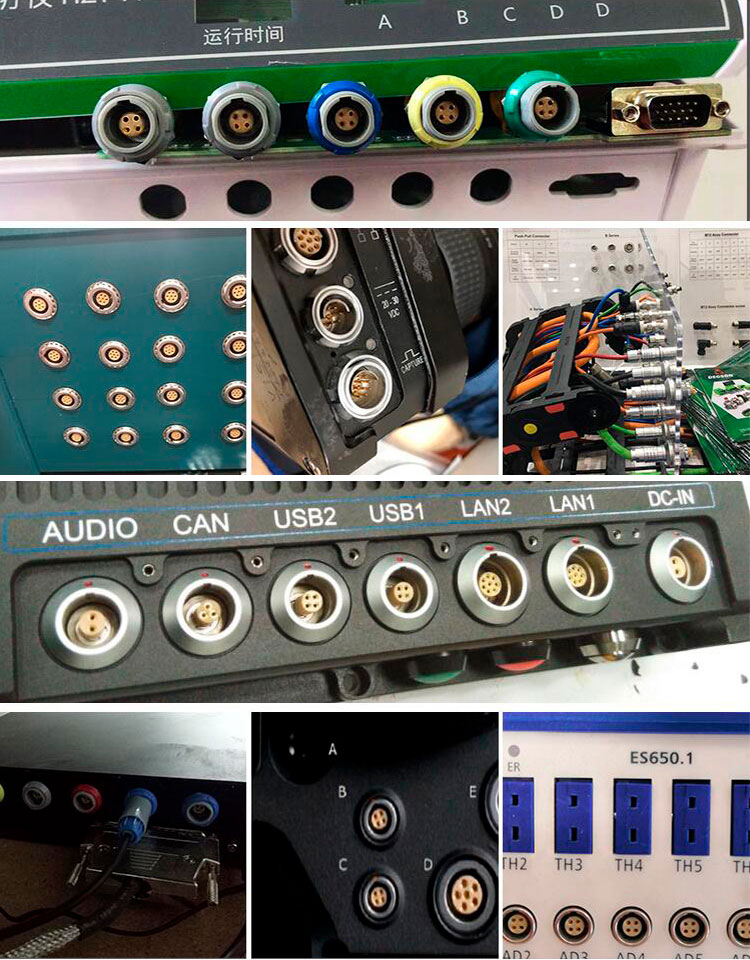

push-pull Self-latching circular connector all kinds of medical equipment, specially for the signal transmission, Medical Equipment, Audio / Video, Test and Measurement, Communications product line.
